Case Sv300 Skid Steer Loader Parts Catalog Manual PDF File Download

Description

Case SV300 Skid Steer Loader Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Case SV300 Skid Steer Loader Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 976
Downloadable : Yes
File Type : PDF
Size: 65.1 MB

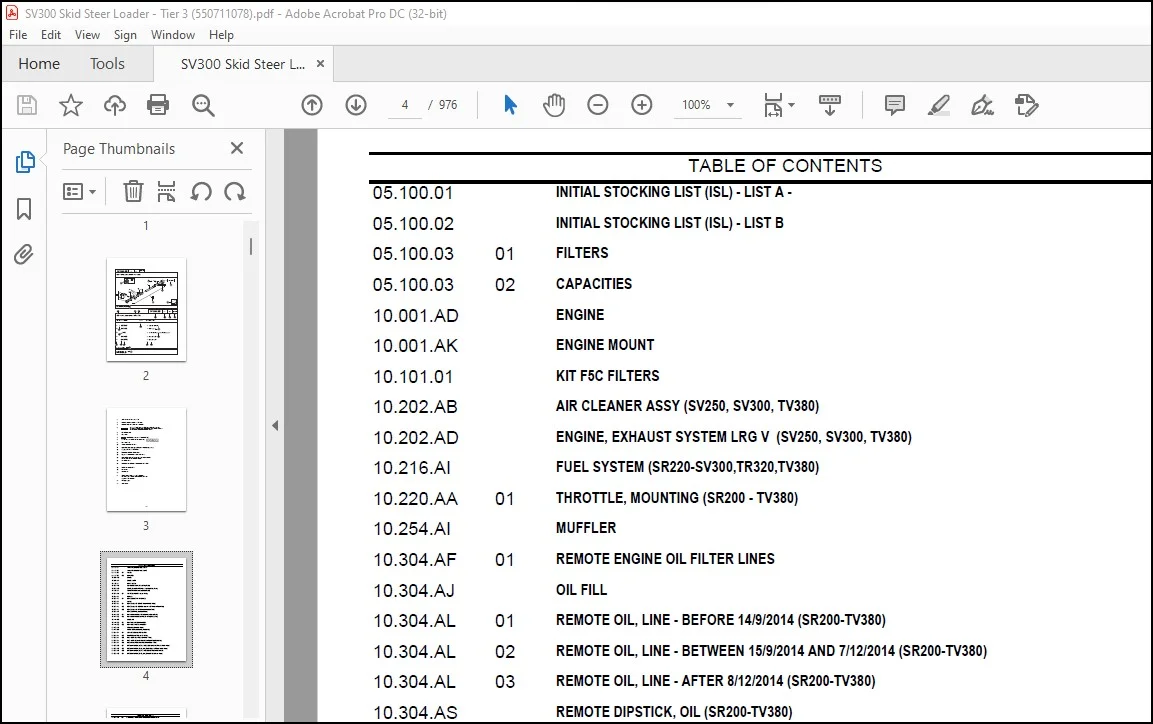

TABLE OF CONTENTS:

Case SV300 Skid Steer Loader Parts Catalog Manual – PDF DOWNLOAD

05.100.01 INITIAL STOCKING LIST (ISL) – LIST A –
05.100.02 INITIAL STOCKING LIST (ISL) – LIST B
05.100.03 01 FILTERS
05.100.03 02 CAPACITIES
10.001.AD ENGINE
10.001.AK ENGINE MOUNT
10.101.01 KIT F5C FILTERS
10.202.AB AIR CLEANER ASSY (SV250, SV300, TV380)
10.202.AD ENGINE, EXHAUST SYSTEM LRG V (SV250, SV300, TV380)
10.216.AI FUEL SYSTEM (SR220-SV300,TR320,TV380)
10.220.AA 01 THROTTLE, MOUNTING (SR200 – TV380)
10.254.AI MUFFLER
10.304.AF 01 REMOTE ENGINE OIL FILTER LINES
10.304.AJ OIL FILL
10.304.AL 01 REMOTE OIL, LINE – BEFORE 14/9/2014 (SR200-TV380)
10.304.AL 02 REMOTE OIL, LINE – BETWEEN 15/9/2014 AND 7/12/2014 (SR200-TV380)
10.304.AL 03 REMOTE OIL, LINE – AFTER 8/12/2014 (SR200-TV380)
10.304.AS REMOTE DIPSTICK, OIL (SR200-TV380)
10.400.BE 01 RADIATOR & COOLER, LINES (SR220-SV300,TR320,TV380)
10.400.BE 02 RADIATOR & COOLER, ASSY (SR220 – SV300,TR320,TV380)
10.414.AC ENGINE FAN
10.414.BE 01 VAR – 761068 STANDARD FAN BELT
10.414.BE 02 VAR – 761069 HIGH FLOW FAN BELT
25.450.AA AXLE ASSY, HD (SR200-SV300)
25.450.AC POWER TRAIN (SR220,SR250,SV250,SV300)
29.200.AI 01 SELF CENTERING DAMPER CONTROL
29.200.AI 02 DAMPENING CONTROL (SR175 – TV380)
29.200.AI 03 HAND CONTROLS, INTERLINK (SR130 – TV380)
29.200.AI 04 HAND CONTROLS, LG FRAME SERVO (SR220-SV300,TR320,TV380)
29.200.AI 08 HANDLE MOUNTING, MD-LG FRAME HC (SR200 – TV380)
29.204.AB 01 HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (SR220 – SV300)
29.204.AB 02 HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (SR220-SV300)
29.204.AB 03 HYDROSTATIC PUMP, SUPPLY LINES, EH CONTROLS (SR220-SV300)
29.204.AB 04 HYDROSTATIC PUMP, DRIVE, LINE, EH CONTROLS (SR220 – SV300)
TABLE OF CONTENTS
29.204.AB 05 E-H PUMP EHF, SUPPLY LINES, EH CONTROLS (SR250, SV300)
29.204.AB 06 E-H, PUMP EHF, DRIVE, LINE, EH CONTROLS (SR250, SV300)
29.218.AO 01 PUMP, HYDROSTATIC EH 45CC A20VG
29.218.AO 02 HYDROSTATIC PUMP, 53CC, EHF
29.218.AO 02 HYDROSTATIC PUMP, EHF (SR250, SV300, TR320, TV380)
29.218.AO 03 TANDEM HYDROSTATIC PUMP, 46CC MECHANICAL CONTROLS, FRONT (SR250, SV300, TR320,
TV380)
29.218.AO 04 TANDEM, HYDROSTATIC PUMP 46CC MECHANICAL CONTROL, FRONT (SR250, SV300, TR320,
TV380)
29.218.AO 05 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, FRONT (SR250, SV300, TR320, TV380)
29.218.AO 06 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, REAR (SR250, SV300, TR320, TV380)
29.218.AO 07 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, REAR (SR250, SV300, TR320, TV380)
29.218.AO 08 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROL, REAR (SR250, SV300, TR320, TV380)
29.353.AD 04 MOTOR, REXROTH DRIVE MOTOR 1SPD (SR200-SV300)
29.353.AD 06 MOTOR, REXROTH DRIVE MOTOR 2SPD (SR200-SV300)
29.353.AD 08 MOTOR, REXROTH DRIVE MOTOR 1SPD (SR200-SV300)
29.353.AD 10 MOTOR, REXROTH DRIVE MOTOR 2SPD (SR200-SV300)
35.100.AB HYDRAULIC RETURN PLUMBING
35.100.BG HYDRAULIC SUPPLY PLUMBING (SV300, TV380)
35.220.AA 01 AUX HYD, STD, GEAR PUMP (SR220,SR250,SV250,SV300,TR320,TV380)
35.220.AA 03 2ND AUX HYD, HIGH FLOW, GEAR PUMP (SV250,SV300,TV380)
35.300.AN HYDRAULIC OIL FILTER
35.300.AQ TANK, HYDRAULIC (SV250,SV300,TV380)
35.353.AC 01 VALVE, BRAKE (SR130-SV300)
35.353.AC 01 VALVE, BRAKE 2SPD (SR175-SV300)
35.353.AC 02 VALVE, BRAKE EH 2SPD (SR175-SV300)
35.353.AC 04 TRAVEL SPEED 1SPD (SR220 – SV300)
35.353.AC 09 TRAVEL SPEED 2SPD (SR220 – SV300)
35.353.AC 12 TRAVEL SPEED E-H (SR220 – SV300)
35.353.AE 01 2SPD PLUMBING (SR220,SR250,SV250,SV300)
35.353.AE 01 BRAKE PLUMBING (SR130 – SV300)
35.353.AE 02 BRAKE PLUMBING (SR220,SR250,SV250,SV300)
35.355.AH CONTROL VALVE, MECHANICAL HAND EH AUX (SR130-SV300)
35.356.AV LOADER, CONTROL VALVE, FOOT CONTROL VALVE
35.357.AG 01 CONTROL VALVE, EH W/ HARNESS (ALL CASE)
TABLE OF CONTENTS
35.701.03 SUPPLY PLUMBING (LOADER VALVE) (ALL CASE)
35.701.AX 01 LOADER VALVE PLUMBING (SV250,SV300,TV380)
35.701.AX 02 LOADER VALVE PLUMBING (SV250,SV300,TV380)
35.701.AX 03 LOADER HYDRAULICS (SV250,SV300,TV380)
35.701.AX 04 LOADER HYDRAULICS (SV300,TV380) AFTER JULY 31 2013
35.701.BQ 01 RIDE CONTROL – NONE (SR175-TV380)
35.701.BR 01 RIDE CONTROL (SR175-TV380)
35.701.BR 02 RIDE CONTROL VALVE BREAKDOWN
35.701.BU 01 NO SELF LEVELING MECH, SV250, SV300, TV380
35.701.BU 01 SELF LEVELING – NONE MED LG (SR175-TV380)
35.701.CB 01 HYDRAULIC LIFT CYLINDER, RH, – JAN 18, 2012 (SV300)
35.701.CB 02 HYDRAULIC LIFT CYLINDER, RH, JAN 18, 2012 – JULY 31, 2013 (SV300)
35.701.CB 03 HYDRAULIC LIFT CYLINDER, RH (SV300,TV380) AFTER JULY 31, 2013
35.701.CB 04 HYDRAULIC LIFT CYLINDER, LH, – JAN 18, 2012 (SV300)
35.701.CB 05 HYDRAULIC LIFT CYLINDER, LH, JAN 18, 2012 – JULY 31, 2013 (SV300)
35.701.CB 06 HYDRAULIC LIFT CYLINDER, LH (SV300,TV380) AFTER JULY 31, 2013
35.723.AA 01 BUCKET CYLINDER, BEFORE 28-AUG-2012 (SR220-SV300,TR320,TV380)
35.723.AA 03 BUCKET CYLINDER, 29-AUG-2012 AND AFTER (SR220-SV300,TR320,TV380)
35.734.AC HYDRAULIC COUPLER VALVE
35.734.AH 01 HYDRAULIC COUPLER (SR175-TV380)
35.734.AH 02 2ND AUX HYD, HIGH FLOW, ARM PLUMBING (SV300,TV380)
35.734.AH 02 AUX HYD, HIGH FLOW ARM PLUMBING (SV250,SV300,TV380)
35.734.AH 02 AUX HYD, HIGH FLOW, AUX ARM PLUMBING (SV250,SV300,TV380)
35.734.AH 02 AUX HYD, STD, ARM PLUMBING (SV250,SV300,TV380)
35.734.AH 02 AUX HYD, STD, CONNECT UNDER PRESSURE, ARM PLUMBING (SV250,SV300,TV380)
35.734.AH 02 BUCKET TIP LINES, (SV250, SV300, TV380) AFTER JULY 31, 2013
35.734.AH 02 BUCKET TIP LINES, HP HIGH FLOW 2ND, (SV300,TV380) AFTER JULY 31, 2013
35.734.AH 02 HYDRAULIC COUPLER, ARM PLUMBING (SV250,SV300,TV380)
35.734.AH 03 2ND AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SV250,SV300,TV380)
35.734.AH 03 AUX HYD, HIGH FLOW CHASSIS PLUMBING (SV250,SV300,TV380)
35.734.AH 03 AUX HYD, STD, CHASSIS PLUMBING (SV250,SV300,TV380)
35.734.AH 03 HYDRAULIC COUPLER, CHASSIS PLUMBING (SR175-TV380)
35.734.AH 03 HYDRAULIC COUPLER, CHASSIS PLUMBING (SV185,SV250,SV300,TV380)
39.100.AB 01 CHASSIS (SV250, SV300)
TABLE OF CONTENTS
39.140.AM COUNTERWEIGHT (SR250,SV300)
44.511.AG 01 WHEELS (SR130 – SV300)
44.511.AG 01 WHEELS (SR175 – SV300)
44.511.AG 01 WHEELS (SR200 – SV300)
44.511.AG 01 WHEELS (SR220 – SV300)
50.100.AC 01 HEATER PLUMBING BASIC (SR220-SV300,TR320,TV380)
50.100.AP 01 HEATER, LARGE FRAME (SR220-SV300,TR320,TV380)
50.100.AP 02 HEATER (ALL CASE)
50.100.AP 03 HVAC, LARGE FRAME (SR220-SV300,TR320,TV380)
50.100.AP 04 HEATER W/ AC (SR175 – TV380)
50.200.AA AIR CONDITIONER, COMPRESSOR (SR200-TV380)
50.200.AK CONDENSER ASSY, 11-FEB-2013 & NEWER
50.200.BY AIR CONDITIONING BASIC PLUMBING (SR220 – SV300, TR320, TV380)
55.015.AB 01 ENGINE, ELECTRICAL (SV250,SV300,TV380)
55.100.DO 02 FUSE BOX #1, MECHANICAL, EH, EHF (SR220 – SV300, TR320, TV380)
55.100.DO 04 FUSE BOX #2, EH (SR175 – SR250, SV250 – TV380)
55.100.DO 05 FUSE BOX #2, ENHANCED HIGH FLOW, (SR250, SV300, TR320, TV380)
55.101.AC 01 CHASSIS OPTIONS HARNESS, MECH LG (SR220 – SV300, TR320, TV380)
55.101.AC 02 ELECTRICAL MECH, LG OPEN CAB (SR220-SV300,TR320,TV380)
55.101.AC 03 ELECTRICAL ELECTRO-HYDRAULIC LG OPEN CAB (SR220 – SV300, TR320, TV380)
55.101.AC 04 ELECTRICAL MECH, LG (SR220-SV300,TR320,TV380)
55.101.AC 05 ELECTRICAL ELECTRO-HYDRAULIC LG (SR220 – SV300, TR320, TV380)
55.101.AC 06 ELECTRICAL ELECTRO-HYDRAULIC OPEN CAB LG, HIGH FLOW OPTION(SR250, SV300, TR320,
TV380)
55.101.AC 07 ELECTRICAL EH LG (SR220, SV300,TR320,TV380)
55.201.AH INSTRUMENT PANEL, KEYED
55.201.AH INSTRUMENT PANEL, KEYLESS
55.202.AE 01 BLOCK HEATER NA (SR200-TV380)
55.202.AE 02 BLOCK HEATER EU (SR200-TV380)
55.302.AG BATTERY
55.302.AI 01 BATTERY DISCONNECT LG (SR220-SV300,TR320, TV380)
55.302.AI 02 NO BATTERY DISCONNECT LG (SR220-SV300,TR320, TV380)
55.302.AK BATTERY RETENTION MED (ALL CASE)
55.404.AL 01 FRONT LIGHT ASSY, 55 DEGREE
TABLE OF CONTENTS
55.404.AL 01 HEAVY DUTY, FRONT LIGHT ASSY, 55 DEGREE
55.404.AL 02 HEAVY DUTY, LH, FRONT LIGHT, 55 DEGREE
55.404.AL 02 LH, FRONT LIGHT, 55 DEGREE
55.404.AL 03 HEAVY DUTY, RH, FRONT LIGHT, 55 DEGREE
55.404.AL 03 RH, FRONT LIGHT, 55 DEGREE
55.404.BM 01 LIGHT ASSEMBLY REAR ROAD (ALL CASE)
55.404.BM 02 LAMP WORK REAR ASSEMBLY (SV185,SV250,SV300,TV380)
55.404.CY 01 EU ROAD LIGHTS LG VERT CASE (SV250,SV300,TV380)
55.408.AG 01 WORKLIGHTS, HORN AND RELATED PARTS (SV250,SV300,TV380)
55.408.BE 01 COMMON INSTRUMENTS AND ELEC (ALL CASE)
55.510.BM 01 ELECTRICAL ASSEMBLY SOCKET EU (ALL CASE)
55.510.BM 01 ELECTRICAL ASSEMBLY SOCKET NA (ALL CASE)
55.511.AS 01 NO ROAD LIGHTS OR TURN SIGNAL (ALL CASE)
55.512.BW 01 MULTIFUNCTION ELECTRICAL (SV185,SV250,SV300,TV380)
55.512.BW 02 NO MULTIFUNCTION ELECTRICAL (ALL CASE)
55.512.CL 01 HANDLE GRIP PICTORIAL INDEX
55.512.CL 02 LEVEL 100 HANDLE GRIPS, 1-SPEED MECH CONTROLS
55.512.CL 03 LEVEL 200 HANDLE GRIPS, 2-SPEED MECH CONTROLS, W/O MULTI-FUNCTION ELEC CTRL
55.512.CL 04 LEVEL 250 HANDLE GRIPS, E-H CONTROLS, W/O MULTI-FUNCTION ELEC CTRL
55.512.CL 05 LEVEL 300 HANDLE GRIPS, 2-SPEED MECH CONTROLS, W/MULTI-FUNCTION ELEC CTRL
55.512.CL 06 LEVEL 350 HANDLE GRIPS, E-H CONTROLS, W/ MULTI-FUNCTION ELEC CTRL
55.512.CL 08 HAND CONTROLS, HANDLE LH (ALL CASE)
55.512.CL 09 HAND CONTROLS, HANDLE RH (ALL CASE)
55.512.CL 10 HANDLE, ELECTRONIC CONTROL CASE (ALL CASE)
55.518.AS WINDSHIELD WASH RESERVOIR
55.518.AT 01 WASHER BOTTLE, FRONT (ALL CASE)
55.518.AT 02 WASHER BOTTLE, REAR (ALL CASE)
55.518.AT 03 WASHER BOTTLE, FRONT & REAR (ALL CASE)
55.525.AB 01 THROTTLE CONTROL, HAND & FOOT (SR220-SV300)
55.525.AB 02 THROTTLE CONTROL, HAND & FOOT EH (SR220-SV300,TR320,TV380)
55.991.AA 01 ELECTRONIC CONTROL UNIT, TELEMATICS
55.991.AA 02 TELEMATICS
82.100.AG COUPLER, BASIC GRAY (SV300,TV380) JULY 1, 2011 AND AFTER
82.100.AH 01 BOOM, LOCK (SV300, TV380)
TABLE OF CONTENTS
82.300.AC 01 MANUAL COUPLER (SR250, SV300) BEFORE JUL 30, 2013
82.300.AC 02 MANUAL COUPLER (SR250, SV300) AFTER JUL 31, 2013
82.300.AN 01 BUCKETS – LOADER, EXTENDED LOW PROFILE
82.300.AN 02 BUCKET – LOADER, HEAVY DUTY DIRT
82.300.AN 03 BUCKETS – LOADER, DIRT / FOUNDRY
82.300.AN 04 BUCKETS – LOADER, UTILITY / LIGHT MATERIAL
82.300.AN 05 BUCKETS – LOADER, MANURE / SLURRY
82.300.AN 06 BUCKET, BOLT ON CUTTING EDGE (B.O.C.E.) (ALL CASE)
82.300.AN 07 PALLET FORK 48 TINE (ALL CASE)
82.300.AN 10 SPILL GUARD 72″ (SR130-TR270)
82.300.AN 11 SPILL GUARD 78″ (SR175 – TV380)
82.300.AN 12 SPILL GUARD 84″ (SR220 – SV300, TR320, TV380)
84.910.AA BOOM
82.100.AG 02 SERVICE KIT, COUPLER FRAME
88.090.010 KIT, LARGE FRAME HAND CONTROLS, SERVO
88.100.05 DIA KIT, FIRE EXTINGUISHER (ALL CASE)
88.100.090 06 DIA KIT, INTERIOR MIRROR
88.100.10 05 DIA KIT, ASPIRATOR (SV250,SV300,TV380)
88.100.10 08 DIA KIT, BLOCK HEATER 120V USA (SR200-TV380)
88.100.10 09 DIA KIT, BLOCK HEATER 220V – ROW (SR200-TV380)
88.100.10 17 ENGINE ACCESSORIES EU/OPEN EU (SV250,SV300,TV380)
88.100.35 04 DIA KIT, SELF-LEVEL BUCKET, 60 PERCENT (SV250,SV300,TV380)
88.100.35 06 DIA KIT, RIDE CONTROL CASE MED/LG (SR175-SV300,TR270,TR320,TV380)
88.100.35 09 DIA KIT, HYDRAULIC COUPLER VERT (SV185,SV250,SV300,TV380)
88.100.35 12 DIA KIT, HIGH FLOW AUX – LG VERT (SV250,SV300,TV380)
88.100.35 16 DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY, VERTICAL BOOMS, (SV250,SV300,TV380)
88.100.35 20 DIA KIT, CYLINDER GUARD (ALL CASE)
88.100.37 01 DIA KIT, DRAW BAR LARGE GRAY (SR220-SV300,TR320,TV380)
88.100.39 03 DIA KIT, COUNTERWEIGHT LFW CASE (SR220-SV300)
88.100.39 05 DIA KIT, 4 POINT LIFT HOOK (SR220-SV300,TR320,TV380)
88.100.39 11 DIA KIT, SINGLE POINT LIFT HOOK (SV250,SV300,TV380)
88.100.39 12 DIA KIT, ROPS SERVICE FRAME
88.100.50 01 DIA KIT, COMPLETE HEAT
88.100.50 02 DIA KIT, COMPLETE HVAC
TABLE OF CONTENTS
88.100.55 03 DIA KIT, MECH CHASS OPT HARNESS, LARGE (SR220-SV300,L223-L230)
88.100.55 05 DIA KIT, MULTI-FUNCTION ELEC EH & MECH VERT
88.100.55 08 DIA KIT, E-H JUMPER HARNESS
88.100.55 09 DIA KIT, ROAD LIGHTS
88.100.55 13 DIA KIT, EU ROAD LIGHT LG VERT CASE (SV250,SV300,TV380)
88.100.55 14 DIA KIT, BEACON (ALL CASE)
88.100.55 15 DIA KIT, STROBE (ALL CASE)
88.100.55 16 DIA KIT, SIDE LAMP (ALL CASE)
88.100.55 18 DIA KIT – 55 DEGREE HD LIGHT
88.100.55 19 DIA KIT, TELEMATICS
88.100.55 23 DIA KIT, LG FRM FOOT CONTROLS, SERVO (SR220-SV300)
88.100.55 26 DIA KIT, LRG FRM HAND CONTROLS, SERVO
88.100.55 27 DIA KIT, RADIO (ALL CASE)
88.100.55 29 DIA KIT, ITALY SPECIFIC (SR175-SV300,TR270-TV380)
88.100.55 30 SEAL PACKAGE, FOAM (ALL CASE)
88.100.55 32 FUSE COVER, MED-LG CHASSIS (SR175-TV380)
88.100.82 KIT, BOOM
88.100.82 02 DIA KIT, 72IN SPILL GUARD TAN (SR130-TR270)
88.100.82 03 DIA KIT, 78IN SPILL GUARD TAN (SR175-TV380)
88.100.82 04 DIA KIT, 84IN SPILL GUARD (SR220-SR300,TR320,TV380)
88.100.82 07 DIA KIT, 72IN BUCKET CUTTING EDGE (SR130-TR270)
88.100.82 08 DIA KIT, 78IN BUCKET CUTTING EDGE (SR175-TV380)
88.100.82 09 DIA KIT, 84IN BUCKET CUTTING EDGE (SR175-TV380)
88.100.82 10 DIA KIT, HEAVY DUTY DIRT, BUCKET TEETH (ALL CASE)
88.100.82 11 DIA KIT, BUCKETS – FIELD (ALL CASE)
88.100.82 12 DIA KIT, PALLET FORK 48IN TINES (ALL CASE)
88.100.82 14 DIA KIT, COUPLER CROSS TUBE REINFORCEMENT
88.100.84 02 DIA KIT, RH BOOM LINK
88.100.84 04 DIA KIT, LH, BOOM LINK
88.100.90 01 DIA KIT, DEMO REAR DOOR (ALL CASE)
88.100.90 02 DIA KIT, DEMO FRONT DOOR (ALL CASE)
88.100.90 03 DIA KIT, GLASS FRONT DOOR (ALL CASE)
88.100.90 04 DIA KIT, CAB SIDE WINDOWS (ALL CASE)
88.100.90 05 DIA KIT, REAR EXT ACCESS WINDOW (ALL CASE)
TABLE OF CONTENTS
88.100.90 06 DIA KIT, REMOVABLE TOP WINDOW (ALL CASE)
88.100.90 07 DIA KIT, RH, SIDE SCREEN (ALL CASE)
88.100.90 08 DIA KIT, LH, SIDE SCREEN (ALL CASE)
88.100.90 09 DIA KIT, 3IN LAP BELT (ALL CASE)
88.100.90 10 DIA KIT, HANDLE 300/400 (ALL CASE)
88.100.90 11 DIA KIT, HANDLE 350/450 (ALL CASE)
88.100.90 12 DIA KIT – HEAVY DUTY REAR DOOR
88.100.90 20 DIA KIT, FOPS LEVEL 2 MODS (ALL CASE)
88.100.90 21 DIA KIT, INSIDE MIRROR (ALL CASE)
88.100.90 22 DIA KIT, INTERIOR TRIM
88.100.90 24 DIA KIT, CAB SIDE WINDOW
88.100.90 28 DIA KIT, SINGLE POINT LIFT HOOK
88.100.90 32 KIT, CAB SIDE WINDOWS
90.100.AG CHASSIS HOODS AND COVERS (SV250,SV300)
90.100.AU HOODS AND COVERS (SV250,SV300)
90.100.AU HOODS AND COVERS (SV250,SV300) AFTER FEB 13, 2013
90.100.BE REAR DOOR
90.100.BI 06 REAR HOOD ASSY
90.108.AB DECALS (SV300)
90.108.AC 01 DECALS (SV300)
90.108.AC 02 DECALS (ALL CASE)
90.108.AC 03 DECALS – WARNING (ALL CASE)
90.116.AO 01 LOADER STOP 23MM
90.116.AO 02 LOADER STOP 40MM
90.116.AO 03 LOADER STOP 50MM
90.116.AO 04 LOADER STOP 63MM
90.116.AS 03 FLOORPLATE, NO PEDAL (ALL CASE)
90.119.AB 01 CAB CASE (SR175-TV380)
90.119.AB 01 CAB SEALING (ALL CASE)
90.119.AB 01 CAB SEALING (ALL CASE)
90.119.AB 02 CAB CASE
90.120.AD 01 SEAT, NON SUSPENSION (ALL CASE)
90.120.AD 02 SEAT, NON-SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 03 SEAT, NON-SUSPENSION
TABLE OF CONTENTS
90.120.AD 04 SEAT, NON-SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 05 SEAT, MECHANICAL SUSPENSION
90.120.AD 06 SEAT, MECHANICAL SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 07 SEAT, MECHANICAL SUSPENSION
90.120.AD 08 SEAT, MECHANICAL SUSPENSION (03-OCT-2016 & NEWER)
90.124.AE 01 SEAT, AIR SUSPENSION
90.124.AE 02 SEAT, AIR SUSPENSION (03-OCT-2016 & NEWER)
90.124.AE 03 SEAT, AIR SUSPENSION
90.124.AE 04 SEAT, AIR SUSPENSION (03-OCT-2016 & NEWER)
90.151.AD 01 SEAT BELT, 2 PT RETRACTOR 2 IN WEB (ALL CASE)
90.151.AD 02 SEAT BELT, 3 PT (ALL CASE)
90.151.AD 03 LAP BAR (ALL CASE)
90.151.AD 03 SEAT BELT
90.151.AD 04 LAP BAR STOP
90.154.010 01 GLASS DOOR MOUNTING COMPONENTS (1-FEB-2013 & PRIOR)
90.154.010 02 GLASS DOOR ASSY COMPONENTS (1-FEB-2013 & PRIOR)
90.154.020 01 DEMO DOOR MOUNTING COMPONENTS (1-FEB-2013 & PRIOR)
90.154.020 02 DEMO DOOR ASSY COMPONENTS (1-FEB-2013 & PRIOR)
90.154.020 05 LH RH WINDOW KIT
90.154.AC OPEN CAB, NO HEAT OR HVAC (SR200-TV380)
90.154.AQ CAB, GAS STRUT ASSY (ALL CASE)
90.154.AV 04 REAR WINDOW EU (ALL CASE)
90.154.AV 04 REAR WINDOW NA (ALL CASE)
90.154.AV 05 SIDE WINDOW ASSY (ALL CASE)
90.160.AR 01 FLOOR MAT, MECHANICAL HAND CONTROL (ALL CASE)
90.160.AR 02 FLOOR MAT, EH CONTROLS (SR130-SV300)
90.160.AS 01 HANDLE MOUNTING EH (SR175-TV380)
90.160.AS 02 ELEC-HYDRAULIC CONTROLS MD-LG FRM (SR175-TV380)
90.160.AX 01 CAB HEADLINER, NO RADIO (ALL CASE)
90.160.AX 02 CAB HEADLINER, WITH RADIO (ALL CASE)
90.160.CK 01 INTERIOR TRIM CASE (ALL CASE)
90.160.CK 02 INTERIOR TRIM CASE (ALL CASE)
90.160.CK 04 SEAL PACKAGE (SR175-TV380)
95.002.AAY ADAPTER, SSL ATTACHMENT BLANK, SV300
TABLE OF CONTENTS
95.004.AAY AUGER DRIVE, SV300
95.006.AAY AUTO RAKE, SV300
95.008.ABB BACKHOES, SV300
95.010.AAY BALE HANDLER, SV300
95.012.AAY BALE SPEAR, SV300
95.016.AAY ANGLE BROOM, SV300
95.016.CCY HOPPER BROOM, SV300
95.016.EEY PICK-UP BROOM, SV300
95.018.CCT 4 X 1 BUCKET (CONSTRUCTION), SV300
95.018.EEY POWER SIDE DISCHARGE BUCKETS, SV300
95.022.AAV CHIPPER, SV300
95.024.AAU COLD PLANERS, HIGH FLOW, SV300
95.024.CCY COLD PLANERS, STANDARD FLOW, SV300
95.026.AAY CONCRETE BUCKET, SV300
95.028.AAY CONCRETE CLAW, SV300
95.032.AAY DOZER BLADES, SV300
95.034.AAY GRADER RAKES, SV300
95.036.AAT GRAPPLES, BRUSH, CONSTRUCTION, SV300
95.036.DDY GRAPPLE, LOG, SV300
95.036.FFT GRAPPLE, SCRAP, CONSTRUCTION, SV300
95.042.AAY HARLEY POWER BOX RAKE, SV300
95.044.AAY HYDRAULIC HAMMERS, SV300
95.048.AAY LIFT BOOM, SV300
95.050.AAY LOAD MONITORS, SV300
95.052.AAY MANURE FORK & MANURE FORK WITH GRAPPLE, SV300
95.054.AAY MANURE SCRAPERS, SV300
95.088.SPA SNOW PUSHER ATTACHMENT, 10.5FT
95.088.SPA SNOW PUSHER ATTACHMENT, 8FT
95.088.SPA 01 SNOW PUSHER ATTACHMENT, HEAVY DUTY MOLDBOARD COMPONENTS
95.088.SPA 02 SNOW PUSHER ATTACHMENT, SIDE PANEL & MOLDBOARD ATTACHING HARDWARE
95.089.00 ATTACHMENT, HYD POS FORK-NURSERY SLEEVES
95.400.010 TREE PULLER
95.400.020 TRENCHER
95.400.040 DUAL MAST GRADER 72″, 84″, 96″

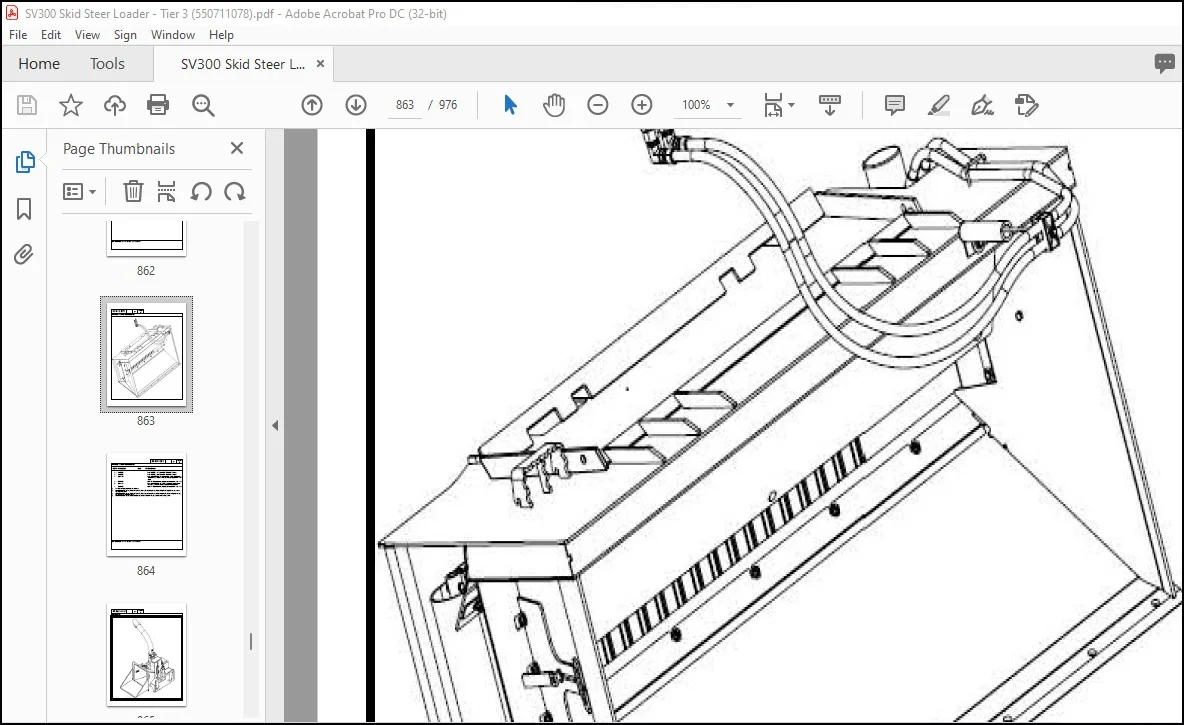

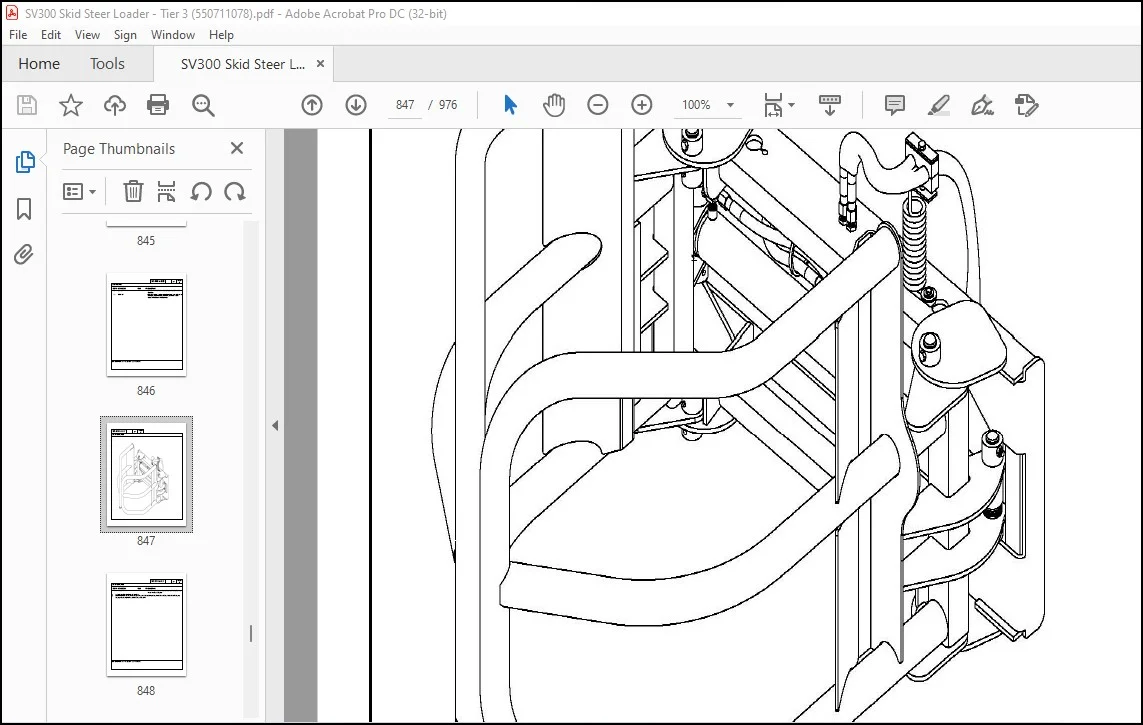

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
