Case TR320 Compact Track Loader Parts Catalog Manual – PDF DOWNLOAD

Description

Case TR320 Compact Track Loader Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Case TR320 Compact Track Loader Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 926
Downloadable : Yes
File Type : PDF
Size: 66.1 MB

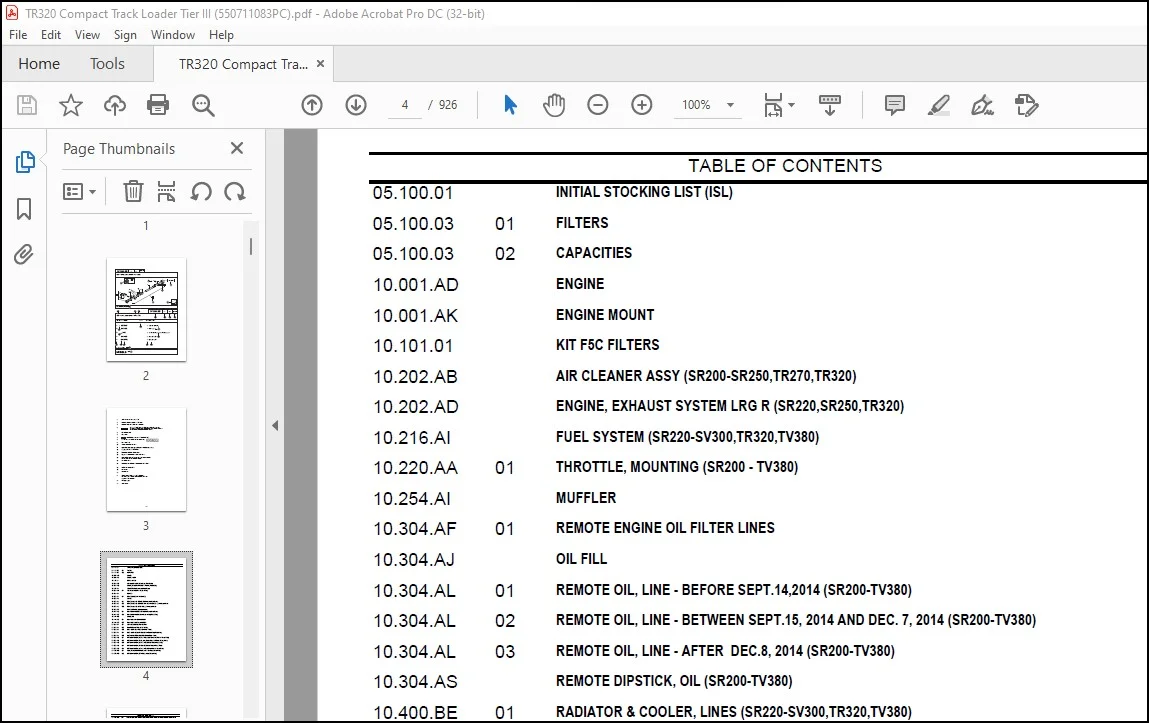

TABLE OF CONTENTS:

Case TR320 Compact Track Loader Parts Catalog Manual – PDF DOWNLOAD

05.100.01 INITIAL STOCKING LIST (ISL)
05.100.03 01 FILTERS
05.100.03 02 CAPACITIES
10.001.AD ENGINE
10.001.AK ENGINE MOUNT
10.101.01 KIT F5C FILTERS
10.202.AB AIR CLEANER ASSY (SR200-SR250,TR270,TR320)
10.202.AD ENGINE, EXHAUST SYSTEM LRG R (SR220,SR250,TR320)
10.216.AI FUEL SYSTEM (SR220-SV300,TR320,TV380)
10.220.AA 01 THROTTLE, MOUNTING (SR200 – TV380)
10.254.AI MUFFLER
10.304.AF 01 REMOTE ENGINE OIL FILTER LINES
10.304.AJ OIL FILL
10.304.AL 01 REMOTE OIL, LINE – BEFORE SEPT.14,2014 (SR200-TV380)
10.304.AL 02 REMOTE OIL, LINE – BETWEEN SEPT.15, 2014 AND DEC. 7, 2014 (SR200-TV380)
10.304.AL 03 REMOTE OIL, LINE – AFTER DEC.8, 2014 (SR200-TV380)
10.304.AS REMOTE DIPSTICK, OIL (SR200-TV380)
10.400.BE 01 RADIATOR & COOLER, LINES (SR220-SV300,TR320,TV380)
10.400.BE 02 RADIATOR & COOLER, ASSY (SR220 – SV300,TR320,TV380)
10.414.AC ENGINE FAN
10.414.BE 01 VAR – 761068 STANDARD FAN BELT
10.414.BE 02 VAR – 761069 HIGH FLOW FAN BELT
29.200.AI 01 SELF CENTERING DAMPER CONTROL
29.200.AI 02 DAMPENING CONTROL (SR175 – TV380)
29.200.AI 03 HAND CONTROLS, INTERLINK (SR130 – TV380)
29.200.AI 04 HAND CONTROLS, LG FRAME SERVO (SR220-SV300,TR320,TV380)
29.200.AI 08 HANDLE MOUNTING, MD-LG FRAME HC (SR200 – TV380)
29.204.AB 01 HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (TR320, TV380)
29.204.AB 02 HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (TR320, TV380)
29.204.AB 03 HYDROSTATIC PUMP, SUPPLY LINES, EH CONTROLS (TR320,TV380)
29.204.AB 04 HYDROSTATIC PUMP, DRIVE LINES, EH CONTROLS (TR320, TV380)
29.204.AB 05 HYDROSTATIC PUMP, SUPPLY LINES, EHF CONTROLS (TR320,TV380)
29.218.AO 01 PUMP, HYDROSTATIC EH 46CC A20VG ET (TR270, TR320, TV380)
29.218.AO 02 HYDROSTATIC PUMP, EHF (SR250, SV300, TR320, TV380)
TABLE OF CONTENTS
29.218.AO 03 TANDEM HYDROSTATIC PUMP, 46CC MECHANICAL CONTROLS, FRONT (SR250, SV300, TR320,
TV380)
29.218.AO 04 TANDEM, HYDROSTATIC PUMP 46CC MECHANICAL CONTROL, FRONT (SR250, SV300, TR320,
TV380)
29.218.AO 05 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, FRONT (SR250, SV300, TR320, TV380)
29.218.AO 06 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, REAR (SR250, SV300, TR320, TV380)
29.218.AO 07 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROLS, REAR (SR250, SV300, TR320, TV380)
29.218.AO 08 TANDEM HYDROSTATIC PUMP, MECHANICAL CONTROL, REAR (SR250, SV300, TR320, TV380)
29.353.AD 11 MOTOR ASSY, BONFIGLIOLI DRIVE MOTOR, TRACK 2SPD (TR270-TV380)
35.100.AB HYDRAULIC RETURN PLUMBING
35.100.BG HYDRAULIC SUPPLY PLUMBING (SR220,SR250,SV250,TR320)
35.220.AA 01 AUX HYD, STD, GEAR PUMP (SR220,SR250,SV250,SV300,TR320,TV380)
35.220.AA 02 AUX HYD, HIGH FLOW GEAR PUMP (SR220,SR250,TR320)
35.300.AN HYDRAULIC OIL FILTER
35.300.AQ TANK, HYDRAULIC (SR130,SR150,SR175,SR200,SR220,SR250,TR270,TR320)
35.353.AC 01 VALVE, BRAKE EH TRACK (TR270-TV380)
35.353.AC 06 TRAVEL SPEED 2SPD
35.353.AC 06 TRAVEL SPEED E-H (TR320,TV380)
35.356.AV LOADER, CONTROL VALVE, FOOT CONTROL VALVE
35.357.AG 01 CONTROL VALVE, EH W/ HARNESS (ALL CASE)
35.357.AG 02 CONTROL VALVE, EH W/ HARNESS (ALL CASE)
35.701.03 SUPPLY PLUMBING (LOADER VALVE) (ALL CASE)
35.701.AX 01 LOADER VALVE PLUMBING (SR220,SR250,TR320)
35.701.AX 02 LOADER HYDRAULICS (SR175,SR200,SR220,SR250,TR270,TR320)
35.701.AX 02 LOADER VALVE PLUMBING (SR250,TR320) AFTER JULY 31, 2013
35.701.AX 03 LOADER HYDRAULICS (SR250,TR320) AFTER JULY 31 2013
35.701.BQ 01 RIDE CONTROL – NONE (SR175-TV380)
35.701.BR 01 RIDE CONTROL (SR175-TV380)
35.701.BR 02 RIDE CONTROL VALVE BREAKDOWN
35.701.BU 01 SELF LEVELING – NONE MED LG (SR175-TV380)
35.701.CB 01 HYDRAULIC LIFT CYLINDER, BSN NCM440429 (TR320)
35.701.CB 02 HYDRAULIC LIFT CYLINDER, ASN NCM440429 (TR320)
35.723.AA 01 BUCKET CYLINDER, BEFORE 28-AUG-2012 (SR220-SV300,TR320,TV380)
35.723.AA 03 BUCKET CYLINDER, 29-AUG-2012 AND AFTER (SR220-SV300,TR320,TV380)
35.734.AC HYDRAULIC COUPLER VALVE
TABLE OF CONTENTS
35.734.AH 01 HYDRAULIC COUPLER (SR175-TV380)
35.734.AH 02 2ND AUX HYD, HIGH FLOW, ARM PLUMBING (SR250,TR320)
35.734.AH 02 AUX HYD, HIGH FLOW (SR220,SR250,TR320)
35.734.AH 02 AUX HYD, HIGH FLOW ARM PLUMBING (SR220,SR250,TR320)
35.734.AH 02 AUX HYD, STD, CONNECT UNDER PRESSURE, ARM PLUMBING
(SR175,SR200,SR220,SR250,TR270,TR320)
35.734.AH 02 HYDRAULIC COUPLER, ARM PLUMBING (SR220,SR250,TR320)
35.734.AH 03 AUX HYD, HIGH FLOW CHASSIS PLUMBING (SR220,SR250,TR320)
35.734.AH 03 AUX HYD, STD, CHASSIS PLUMBING (SR220,SR250,TR320)
35.734.AH 03 HYDRAULIC COUPLER, CHASSIS PLUMBING (SR175-TV380)
39.100.AB 01 CHASSIS (TR320)
39.140.AM COUNTERWEIGHT (SR220, SV250, TR320, TV380)
48.100.AE TRACK BELT (TR320, TV380)
48.138.AB UNDERCARRIAGE (TR320,TV380)
50.100.AC 01 HEATER PLUMBING BASIC (SR220-SV300,TR320,TV380)
50.100.AP 01 HEATER, LARGE FRAME (SR220-SV300,TR320,TV380)
50.100.AP 02 HEATER (ALL CASE)
50.100.AP 03 HVAC, LARGE FRAME (SR220-SV300,TR320,TV380)
50.100.AP 04 HEATER W/ AC (SR175 – TV380)
50.200.AA AIR CONDITIONER, COMPRESSOR (SR200-TV380)
50.200.AK CONDENSER ASSY, 11-FEB-2013 & NEWER
50.200.BY AIR CONDITIONING BASIC PLUMBING (SR220 – SV300, TR320, TV380)
55.015.AB 01 ENGINE, ELECTRICAL (SR220,SR250,TR320)
55.100.DO 02 FUSE BOX #1, MECHANICAL, EH, EHF (SR220 – SV300, TR320, TV380)
55.100.DO 04 FUSE BOX #2, EH (SR175 – SR250, SV250 – TV380)
55.100.DO 05 FUSE BOX #2, ENHANCED HIGH FLOW, (SR250, SV300, TR320, TV380)
55.101.AC 01 CHASSIS OPTIONS HARNESS, MECH LG (SR220 – SV300, TR320, TV380)
55.101.AC 02 ELECTRICAL MECH, LG OPEN CAB (SR220-SV300,TR320,TV380)
55.101.AC 03 ELECTRICAL ELECTRO-HYDRAULIC LG OPEN CAB (SR220 – SV300, TR320, TV380)
55.101.AC 04 ELECTRICAL MECH, LG (SR220-SV300,TR320,TV380)
55.101.AC 05 ELECTRICAL ELECTRO-HYDRAULIC LG (SR220 – SV300, TR320, TV380)
55.101.AC 06 ELECTRICAL ELECTRO-HYDRAULIC OPEN CAB LG, HIGH FLOW OPTION(SR250, SV300, TR320,
TV380)
55.101.AC 07 ELECTRICAL EH LG (SR220, SV300,TR320,TV380)
55.201.AH INSTRUMENT PANEL, KEYED
TABLE OF CONTENTS
55.201.AH INSTRUMENT PANEL, KEYLESS
55.202.AE 01 BLOCK HEATER NA (SR200-TV380)
55.202.AE 02 BLOCK HEATER EU (SR200-TV380)
55.302.AG BATTERY
55.302.AI 01 BATTERY DISCONNECT LG (SR220-SV300,TR320, TV380)
55.302.AI 02 NO BATTERY DISCONNECT LG (SR220-SV300,TR320, TV380)
55.302.AK BATTERY RETENTION MED (ALL CASE)
55.404.AL 01 HEAVY DUTY, FRONT LIGHT ASSY, 90 DEGREE
55.404.AL 01 STANDARD , FRONT LIGHT ASSY
55.404.AL 02 HEAVY DUTY, LH, FRONT LIGHT, 90 DEGREE
55.404.AL 02 STANDARD , FRONT LIGHT, LH
55.404.AL 03 HEAVY DUTY, RH, FRONT LIGHT, 90 DEGREE
55.404.AL 03 STANDARD, FRONT LIGHT, RH
55.404.BM 01 LIGHT ASSEMBLY REAR ROAD (ALL CASE)
55.404.CY 01 EU ROAD LIGHTS LG (SR220,SR250,TR320)
55.408.AG 01 WORKLIGHTS, HORN AND RELATED PARTS (SR175,SR200,SR220,SR250,TR270,TR320)
55.408.BE 01 COMMON INSTRUMENTS AND ELEC (ALL CASE)
55.510.BM 01 ELECTRICAL ASSEMBLY SOCKET EU (ALL CASE)
55.510.BM 01 ELECTRICAL ASSEMBLY SOCKET NA (ALL CASE)
55.511.AS 01 NO ROAD LIGHTS OR TURN SIGNAL (ALL CASE)
55.512.BW 01 MULTIFUNCTION ELECTRICAL (SR175,SR200,SR220,SR250,TR270,TR320)
55.512.BW 02 NO MULTIFUNCTION ELECTRICAL (ALL CASE)
55.512.CL 01 HANDLE GRIP PICTORIAL INDEX
55.512.CL 03 LEVEL 200 HANDLE GRIPS, 2-SPEED MECH CONTROLS, W/O MULTI-FUNCTION ELEC CTRL
55.512.CL 04 LEVEL 250 HANDLE GRIPS, E-H CONTROLS, W/O MULTI-FUNCTION ELEC CTRL
55.512.CL 05 LEVEL 300 HANDLE GRIPS, 2-SPEED MECH CONTROLS, W/MULTI-FUNCTION ELEC CTRL
55.512.CL 06 LEVEL 350 HANDLE GRIPS, E-H CONTROLS, W/ MULTI-FUNCTION ELEC CTRL
55.512.CL 08 HAND CONTROLS, HANDLE LH (ALL CASE)
55.512.CL 09 HAND CONTROLS, HANDLE RH (ALL CASE)
55.512.CL 10 HANDLE, ELECTRONIC CONTROL CASE (ALL CASE)
55.518.AS WINDSHIELD WASH RESERVOIR
55.518.AT 01 WASHER BOTTLE, FRONT (ALL CASE)
55.518.AT 02 WASHER BOTTLE, REAR (ALL CASE)
55.518.AT 03 WASHER BOTTLE, FRONT & REAR (ALL CASE)
TABLE OF CONTENTS
55.525.AB 01 THROTTLE CONTROL, HAND & FOOT (SR220-SV300)
55.525.AB 02 THROTTLE CONTROL, HAND & FOOT EH (SR220-SV300,TR320,TV380)
55.991.AA 01 ELECTRONIC CONTROL UNIT, TELEMATICS
55.991.AA 04 TELEMATICS, MED-LARGE FRAME, RADIAL
82.100.AF KIT, LOADER ARM
82.100.AG COUPLER BASIC GRAY, AUGUST 19, 2013 AND AFTER
82.100.AG COUPLER, BASIC TAN (SR175,SV185,SR200,SR220,SR250,SV250,SV300,TR270,TR320,TV380)
82.300.AC 01 MANUAL COUPLER (TR320, TV380) BEFORE AUG 18, 2013
82.300.AC 02 MANUAL COUPLER (TR320, TV380) AFTER AUG 19, 2013
82.300.AN 01 BUCKETS – LOADER, EXTENDED LOW PROFILE
82.300.AN 02 BUCKET – LOADER, HEAVY DUTY DIRT
82.300.AN 03 BUCKETS – LOADER, DIRT / FOUNDRY
82.300.AN 04 BUCKETS – LOADER, UTILITY / LIGHT MATERIAL
82.300.AN 05 BUCKETS – LOADER, MANURE / SLURRY
82.300.AN 06 BUCKET, BOLT ON CUTTING EDGE (B.O.C.E.) (ALL CASE)
82.300.AN 07 PALLET FORK 48 TINE (ALL CASE)
82.300.AN 11 SPILL GUARD 78″ (SR175 – TV380)
82.300.AN 12 SPILL GUARD 84″ (SR220 – SV300, TR320, TV380)
88.090.010 KIT, LARGE FRAME HAND CONTROLS, SERVO
88.100.05 DIA KIT, FIRE EXTINGUISHER (ALL CASE)
88.100.090 06 DIA KIT, INTERIOR MIRROR
88.100.10 06 DIA KIT, ASPIRATOR (SR220,SR250,TR320)
88.100.10 08 DIA KIT, BLOCK HEATER 120V USA (SR200-TV380)
88.100.10 09 DIA KIT, BLOCK HEATER 220V – ROW (SR200-TV380)
88.100.10 20 ENGINE ACCESSORIES EU W/SOUND (TR320)
88.100.10 23 ENGINE ACCESSORIES OPEN EU (TR320)
88.100.35 02 DIA KIT, SELF-LEVEL BUCKET, 72 PERCENT (SR175,SR200-SR250,TR270,TR320)
88.100.35 06 DIA KIT, RIDE CONTROL CASE MED/LG (SR175-SV300,TR270,TR320,TV380)
88.100.35 07 DIA KIT, HYDRAULIC COUPLER MED/LG RAD (SR175,SR200-SR250,TR270,TR320)
88.100.35 08 DIA KIT, HYDRAULIC COUPLER, LRT, TR320, ASN NDM462750
88.100.35 13 DIA KIT, HIGH FLOW AUX – LG RAD (SR220,SR250,TR320)
88.100.35 15 DIA KIT, 2ND FRONT HYDRAULIC AUX RADIAL BOOM
88.100.35 20 DIA KIT, CYLINDER GUARD (ALL CASE)
88.100.37 01 DIA KIT, DRAW BAR LARGE GRAY (SR220-SV300,TR320,TV380)
TABLE OF CONTENTS
88.100.39 04 DIA KIT, COUNTERWEIGHT LFT CASE (TR320,TV380)
88.100.39 05 DIA KIT, 4 POINT LIFT HOOK (SR220-SV300,TR320,TV380)
88.100.39 10 DIA KIT, SINGLE POINT LIFT HOOK (SR220,SR250,TR320)
88.100.39 12 DIA KIT, ROPS SERVICE FRAME
88.100.48 02 DIA KIT, TRACK COVERS, LARGE FRAME (TR320,TV380)
88.100.50 01 DIA KIT, COMPLETE HEAT
88.100.50 02 DIA KIT, COMPLETE HVAC
88.100.55 04 DIA KIT, MULTI-FUNCTION ELEC MECH CS RAD (SR175,SR200-SR250,TR270,TR320)
88.100.55 06 DIA KIT, MULTI-FUNCTION ELEC EH CS RAD (SR175,SR200-SR250,TR270,TR320)
88.100.55 07 DIA KIT, MECHANICAL JUMPER HARNESS
88.100.55 08 DIA KIT, E-H JUMPER HARNESS
88.100.55 09 DIA KIT, ROAD LIGHTS
88.100.55 12 DIA KIT, EU ROAD LIGHT LG RAD CASE (SR220,SR250,TR320)
88.100.55 14 DIA KIT, BEACON (ALL CASE)
88.100.55 15 DIA KIT, STROBE (ALL CASE)
88.100.55 16 DIA KIT, SIDE LAMP (ALL CASE)
88.100.55 17 DIA KIT – 90 DEGREE HD LIGHT
88.100.55 19 DIA KIT, TELEMATICS
88.100.55 26 DIA KIT, LRG FRM HAND CONTROLS, SERVO
88.100.55 27 DIA KIT, RADIO (ALL CASE)
88.100.55 29 DIA KIT, ITALY SPECIFIC (SR175-SV300,TR270-TV380)
88.100.55 30 SEAL PACKAGE, FOAM (ALL CASE)
88.100.55 32 FUSE COVER, MED-LG CHASSIS (SR175-TV380)
88.100.82 KIT, LIFT ARM
88.100.82 03 DIA KIT, 78IN SPILL GUARD TAN (SR175-TV380)
88.100.82 04 DIA KIT, 84IN SPILL GUARD (SR220-SR300,TR320,TV380)
88.100.82 08 DIA KIT, 78IN BUCKET CUTTING EDGE (SR175-TV380)
88.100.82 09 DIA KIT, 84IN BUCKET CUTTING EDGE (SR175-TV380)
88.100.82 10 DIA KIT, HEAVY DUTY DIRT, BUCKET TEETH (ALL CASE)
88.100.82 11 DIA KIT, BUCKETS – FIELD (ALL CASE)
88.100.82 12 DIA KIT, PALLET FORK 48IN TINES (ALL CASE)
88.100.82 15 DIA KIT, COUPLER CROSS TUBE REINFORCEMENT
88.100.82 17 SERVICE FRAME, COUPLER
88.100.90 01 DIA KIT, DEMO REAR DOOR (ALL CASE)
TABLE OF CONTENTS
88.100.90 02 DIA KIT, DEMO FRONT DOOR (ALL CASE)
88.100.90 03 DIA KIT, GLASS FRONT DOOR (ALL CASE)
88.100.90 04 DIA KIT, CAB SIDE WINDOWS (ALL CASE)
88.100.90 05 DIA KIT, REAR EXT ACCESS WINDOW (ALL CASE)
88.100.90 06 DIA KIT, REMOVABLE TOP WINDOW (ALL CASE)
88.100.90 07 DIA KIT, RH, SIDE SCREEN (ALL CASE)
88.100.90 08 DIA KIT, LH, SIDE SCREEN (ALL CASE)
88.100.90 09 DIA KIT, 3IN LAP BELT (ALL CASE)
88.100.90 10 DIA KIT, HANDLE 300/400 (ALL CASE)
88.100.90 11 DIA KIT, HANDLE 350/450 (ALL CASE)
88.100.90 18 KIT, DEBRIS HARD PARTS WITH SEALS
88.100.90 19 DIA, KIT DEBRIS SOFT PARTS
88.100.90 20 DIA KIT, FOPS LEVEL 2 MODS (ALL CASE)
88.100.90 21 DIA KIT, INSIDE MIRROR (ALL CASE)
88.100.90 22 DIA KIT, INTERIOR TRIM
88.100.90 24 DIA KIT, CAB SIDE WINDOW
88.100.90 26 DIA KIT, E-H HYDROSTATIC PUMP DRIVE, LINES UPGRADE
88.100.90 27 DIA KIT, E-H W/EHF HYDROSTATIC PUMP DRIVE LINES UPGRADE
88.100.90 29 DIA KIT, SINGLE POINT LIFT HOOK
88.100.90 32 KIT, CAB SIDE WINDOWS
88.100.91 KIT, KIT, KIT, MED RAD ARM COMPONENTS
90.100.AG CHASSIS HOODS AND COVERS (TR320)
90.100.AU HOODS AND COVERS, TR320, BSN NCM440601
90.100.BE REAR DOOR
90.100.BI 01 REAR HOOD AND CHASSIS ACCESS COVERS, SN NCM440601 AND AFTER
90.100.BI 05 REAR HOOD ASSY, SN NCM440601 AND AFTER
90.108.AB DECALS (TR320)
90.108.AC 01 DECALS (TR320)
90.108.AC 02 DECALS (ALL CASE)
90.108.AC 03 DECALS – WARNING (ALL CASE)
90.116.AO 01 LOADER STOP 23MM
90.116.AO 02 LOADER STOP 40MM
90.116.AO 03 LOADER STOP 50MM
90.116.AO 04 LOADER STOP 63MM
TABLE OF CONTENTS
90.116.AS 03 FLOORPLATE, NO PEDAL (ALL CASE)
90.119.AB 01 CAB CASE (SR175-TV380)
90.119.AB 01 CAB SEALING (ALL CASE)
90.119.AB 01 CAB SEALING (ALL CASE)
90.119.AB 02 CAB CASE
90.120.AD 01 SEAT, NON SUSPENSION (ALL CASE)
90.120.AD 02 SEAT, NON-SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 03 SEAT, NON-SUSPENSION
90.120.AD 04 SEAT, NON-SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 05 SEAT, MECHANICAL SUSPENSION
90.120.AD 06 SEAT, MECHANICAL SUSPENSION (03-OCT-2016 & NEWER)
90.120.AD 07 SEAT, MECHANICAL SUSPENSION
90.120.AD 08 SEAT, MECHANICAL SUSPENSION (03-OCT-2016 & NEWER)
90.124.AE 01 SEAT, AIR SUSPENSION
90.124.AE 02 SEAT, AIR SUSPENSION (03-OCT-2016 & NEWER)
90.124.AE 03 SEAT, AIR SUSPENSION
90.124.AE 04 SEAT, AIR SUSPENSION (03-OCT-2016 & NEWER)
90.151.AD 01 SEAT BELT, 2 PT RETRACTOR 2 IN WEB (ALL CASE)
90.151.AD 02 SEAT BELT, 3 PT (ALL CASE)
90.151.AD 03 LAP BAR (ALL CASE)
90.151.AD 03 SEAT BELT
90.151.AD 04 LAP BAR STOP
90.154.010 01 GLASS DOOR MOUNTING COMPONENTS (1-FEB-2013 & PRIOR)
90.154.010 02 GLASS DOOR ASSY COMPONENTS (1-FEB-2013 & PRIOR)
90.154.010 04 GLASS DOOR ASSY COMPONENTS (2-FEB-2013 & NEWER)
90.154.020 01 DEMO DOOR MOUNTING COMPONENTS (1-FEB-2013 & PRIOR)
90.154.020 02 DEMO DOOR ASSY COMPONENTS (1-FEB-2013 & PRIOR)
90.154.020 05 LH RH WINDOW KIT
90.154.AC OPEN CAB, NO HEAT OR HVAC (SR200-TV380)
90.154.AQ CAB, GAS STRUT ASSY (ALL CASE)
90.154.AV 04 REAR WINDOW EU (ALL CASE)
90.154.AV 04 REAR WINDOW NA (ALL CASE)
90.154.AV 05 SIDE WINDOW ASSY (ALL CASE)
90.160.AR 01 FLOOR MAT, MECHANICAL HAND CONTROL (ALL CASE)
TABLE OF CONTENTS
90.160.AS 01 HANDLE MOUNTING EH (SR175-TV380)
90.160.AS 02 ELEC-HYDRAULIC CONTROLS MD-LG FRM (SR175-TV380)
90.160.AX 01 CAB HEADLINER, NO RADIO (ALL CASE)
90.160.AX 02 CAB HEADLINER, WITH RADIO (ALL CASE)
90.160.CK 01 INTERIOR TRIM CASE (ALL CASE)
90.160.CK 02 INTERIOR TRIM CASE (ALL CASE)
90.160.CK 04 SEAL PACKAGE (SR175-TV380)
95.002.ABA ADAPTER, SSL ATTACHMENT BLANK, TR320
95.004.ABA AUGER DRIVE, TR320
95.006.ABA AUTO RAKE, TR320
95.008.ABD BACKHOES, TR320
95.010.ABA BALE HANDLER, TR320
95.012.ABA BALE SPEAR, TR320
95.016.ABA ANGLE BROOM, TR320
95.016.CAA HOPPER BROOM, TR320
95.016.EAA PICK-UP BROOM, TR320
95.018.CCV 4 X 1 BUCKET (CONSTRUCTION), TR320
95.018.EAA POWER SIDE DISCHARGE BUCKETS, TR320
95.022.AAX CHIPPER, TR320
95.024.AAW COLD PLANERS, HIGH FLOW, TR320
95.024.CAA COLD PLANERS, STANDARD FLOW, TR320
95.026.ABA CONCRETE BUCKET, TR320
95.028.ABA CONCRETE CLAW, TR320
95.032.ABA DOZER BLADES, TR320
95.034.ABA GRADER RAKES, TR320
95.036.AAV GRAPPLES, BRUSH, CONSTRUCTION, TR320
95.036.DEA GRAPPLE, LOG, TR320
95.036.FFV GRAPPLE, SCRAP, CONSTRUCTION, TR320
95.042.ABA HARLEY POWER BOX RAKE, TR320
95.044.ABA HYDRAULIC HAMMERS, TR320
95.048.ABA LIFT BOOM, TR320
95.050.ABA LOAD MONITORS, TR320
95.052.ABA MANURE FORK & MANURE FORK WITH GRAPPLE, TR320
95.054.ABA MANURE SCRAPERS, TR320
TABLE OF CONTENTS
95.088.SPA SNOW PUSHER ATTACHMENT, 10.5FT
95.088.SPA SNOW PUSHER ATTACHMENT, 8FT
95.088.SPA 01 SNOW PUSHER ATTACHMENT, HEAVY DUTY MOLDBOARD COMPONENTS
95.088.SPA 02 SNOW PUSHER ATTACHMENT, SIDE PANEL & MOLDBOARD ATTACHING HARDWARE
95.089.00 ATTACHMENT, HYD POS FORK-NURSERY SLEEVES
95.400.010 TREE PULLER
95.400.020 TRENCHER

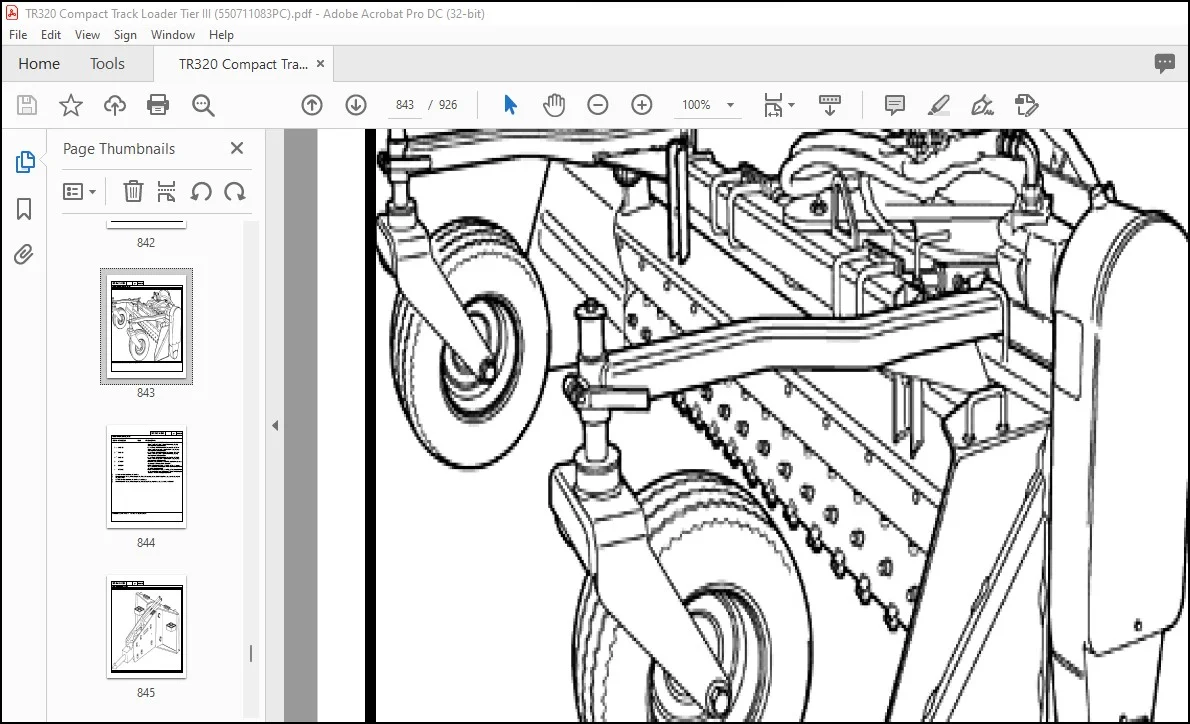

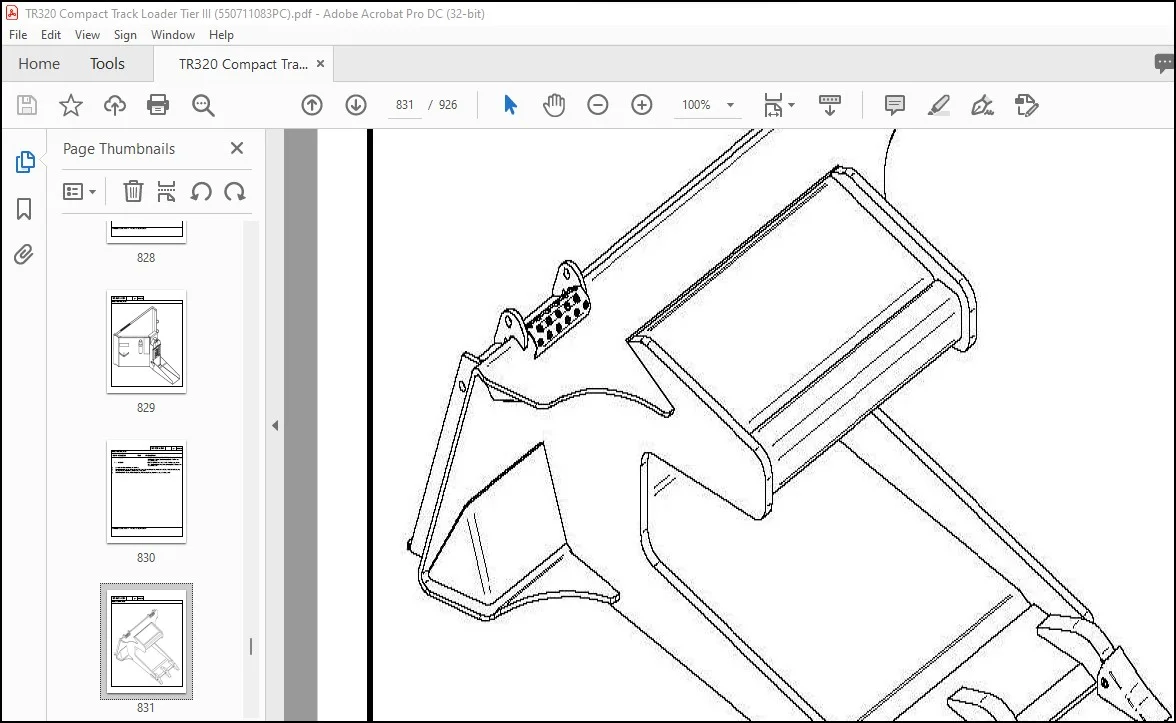

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/723701311

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
