Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual - PDF DOWNLOAD
Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual - PDF DOWNLOAD - Image 2
Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual - PDF DOWNLOAD - Image 3
Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual - PDF DOWNLOAD - Image 4

Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual – PDF DOWNLOAD

Original price was: $89.95.Current price is: $34.95.

Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual – PDF DOWNLOAD

Category: Tags: , , Vendor: Clutch Manuals
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 1050
Downloadable : Yes
File Type : PDF
Size: 78.3 MB

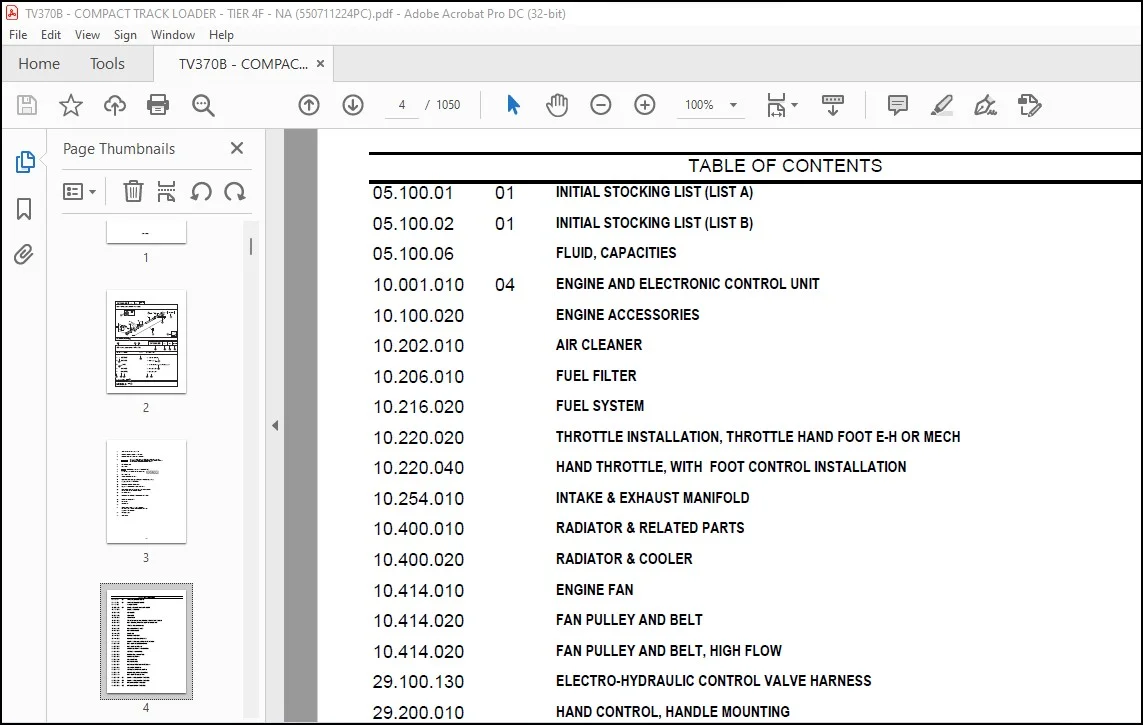

TABLE OF CONTENTS:

Case TV370B Compact Track Loader Tier 4F Parts Catalog Manual – PDF DOWNLOAD

Table of Contents

05 – Initial Stocking / Capacities

CodeVariantDescription
05.100.0101INITIAL STOCKING LIST (LIST A)
05.100.0201INITIAL STOCKING LIST (LIST B)
05.100.06—FLUID, CAPACITIES

10 – Engine

CodeVariantDescription
10.001.01004ENGINE AND ELECTRONIC CONTROL UNIT
10.100.020—ENGINE ACCESSORIES
10.202.010—AIR CLEANER
10.206.010—FUEL FILTER
10.216.020—FUEL SYSTEM
10.220.020—THROTTLE INSTALLATION, THROTTLE HAND FOOT E-H OR MECH
10.220.040—HAND THROTTLE, WITH FOOT CONTROL INSTALLATION
10.254.010—INTAKE & EXHAUST MANIFOLD
10.400.010—RADIATOR & RELATED PARTS
10.400.020—RADIATOR & COOLER
10.414.010—ENGINE FAN
10.414.020—FAN PULLEY AND BELT
10.414.020—FAN PULLEY AND BELT, HIGH FLOW

29 – Controls / Drive Lines / Hydrostatic Pump

CodeVariantDescription
29.100.130—ELECTRO-HYDRAULIC CONTROL VALVE HARNESS
29.200.010—HAND CONTROL, HANDLE MOUNTING
29.200.020—HAND CONTROL INTERLINK
29.200.030—CONTROL DAMPENING AND CENTERING
29.200.040—LEFT HAND HAND CONTROL
29.200.050—RIGHT HANDLE HAND CONTROL
29.200.060—CONTROL DAMPENING
29.200.070—PEDAL MOUNTING
29.200.080—HANDLE MOUNTING
29.200.080—HANDLE MOUNTING, ELECTRO-HYDRAULIC
29.200.090—SERVO PUMP CENTERING
29.200.100—LEFT HANDLE, WITH FOOT CONTROL
29.200.110—RIGHT HANDLE, WITH FOOT CONTROL
29.200.130—HAND CONTROL INSTALLATION
29.204.01001ELECTRO-HYDRAULIC PUMP DRIVE LINES
29.204.01002ELECTRO-HYDRAULIC PUMP DRIVE LINES
29.204.03001HYDROSTATIC PUMP DRIVE LINES
29.204.03002HYDROSTATIC PUMP DRIVE LINES
29.218.010—HYDROSTATIC PUMP
29.218.03001HYDROSTATIC PUMP
29.218.03002HYDROSTATIC PUMP
29.218.03003HYDROSTATIC PUMP
29.218.03004HYDROSTATIC PUMP
29.218.03005HYDROSTATIC PUMP
29.218.03006HYDROSTATIC PUMP
29.218.040—2-SPEED TRAVEL MOTOR & REDUCTION GEAR
29.218.050—2-SPEED HYDROSTATIC MOTOR

33 – Brake

CodeVariantDescription
33.202.020—MECH TRACK BRAKE VALVE

35 – Hydraulic System

CodeVariantDescription
35.100.010—SUPPLY LINES
35.100.020—RETURN PLUMBING
35.100.030—TRACK MOTOR PLUMBING COVER
35.220.010—GEAR PUMP
35.220.010—HIGH FLOW GEAR PUMP
35.300.010—HYDRAULIC TANK ACCESSORIES
35.300.020—HYDRAULIC FILTER
35.355.010—VALVE, ELECTRO-HYDRAULIC CONTROL WITH HARNESS
35.356.010—CONTROL VALVE ASSY, MECHANICAL FOOT CONTROLS EH AUX
35.356.010—FOOT CONTROL VALVE, ROD
35.356.020—CONTROL VALVE ASSY, MECHANICAL HAND CONTROL EH AUX
35.525.010—HIGH FLOW AUXILIARY CHASSIS PLUMBING
35.525.020—HIGH FLOW AUXILIARY ARM PLUMBING
35.525.020—STANDARD, AUXILIARY, C.U.P. ARM, PLUMBING
35.525.030—CASE DRAIN CHASSIS
35.525.040—COVER, HIGH FLOW AUXILIARY ARM PLUMBING
35.525.050—QUICK COUPLER MANIFOLD
35.701.010—LH HYDRAULIC CYLINDER
35.701.010—RH HYDRAULIC CYLINDER
35.701.030—BOOM HYDRAULIC
35.701.03001BOOM HYDRAULIC
35.701.040—LOADER VALVE PLUMBING
35.701.060—NO RIDE CONTROL
35.723.010—HYDRAULIC CYLINDER
35.724.010—NO SELF-LEVELING, EH
35.724.010—NO SELF-LEVELING, MECH
35.724.020—SELF-LEVELING, MECHANICAL
35.724.020—SELF-LEVELING, MECHANICAL
35.724.030—SELF-LEVELING, EH
35.734.020—HYDRAULIC COUPLER ARM PLUMBING
35.734.030—HYDRAULIC COUPLER CHASSIS PLUMBING

39 – Frame / Counterweight

CodeVariantDescription
39.100.030—FRAME
39.140.010—COUNTERWEIGHT

48 – Track / Undercarriage

CodeVariantDescription
48.100.010—TRACK, 400 HD
48.100.020—TRACK, 450 SD BELT
48.138.010—TRACK ASSY, UNDERCARRIAGE

50 – Cab Heating / Air Conditioning

CodeVariantDescription
50.000.000—CAB, AIR CONDITIONING
50.000.000—HEATER, CAB
50.100.020—HEATER, PLUMBING
50.100.030—HEATER, BOX
50.100.030—HEATER, BOX, FRAME
50.100.040—HEATER, AIR CONDITIONING, ASSY
50.200.010—PLUMBING, AIR CONDITIONING
50.200.030—COMPRESSOR, AIR CONDITIONING

55 – Electrical System

CodeVariantDescription
55.010.010—FUEL FILTER/WATER SEPARATOR WIF JUMPER
55.019.010—HYDROSTATIC PUMP, HARNESS JUMPER
55.019.020—HYDROSTATIC PUMP, JUMPER HARNESS, CONNECTORS
55.036.010—ELECTRO-HYDRAULIC CONTROL VALVE HARNESS
55.101.010—CHASSIS, ELECTRICAL
55.101.010—CHASSIS, ELECTRICAL
55.101.020—WIRE HARNESS CHASSIS RH TOWER
55.101.03001CONNECTOR, WIRE HARNESS RH TOWER
55.101.03002CONNECTOR, WIRE HARNESS RH TOWER
55.101.03003CONNECTOR, WIRE HARNESS RH TOWER
55.101.040—CONNECTOR, WIRE HARNESS RH TOWER
55.101.05001CONNECTOR, WIRE HARNESS CHASSIS
55.101.05002CONNECTOR WIRE HARNESS CHASSIS
55.101.05002CONNECTOR, WIRE HARNESS CHASSIS
55.101.05003CONNECTOR, WIRE HARNESS CHASSIS
55.101.05004CONNECTOR, WIRE HARNESS CHASSIS
55.101.05005FUSE BOX 1
55.101.05006FUSE BOX 2
55.202.010—BLOCK HEATER
55.302.010—ENGINE ELECTRICAL
55.302.020—ENGINE ELECTRICAL
55.302.030—BATTERY DISCONNECT
55.404.010—LIGHT BAR, NO CAMERA
55.404.01003LIGHT BAR WIRE HARNESS
55.404.050—LIGHT BAR, WITH CAMERA
55.404.10001LIGHT ASSEMBLY HD 55 DEG W\DOOR, LH
55.404.10002LIGHT ASSEMBLY HD 55 DEG W\DOOR RH
55.404.130—55 DEGREE HD LIGHTS
55.404.140—55 DEG SD LIGHT INSTALLATION
55.404.1400155 DEG SD LIGHT ASSEMBLY, LH
55.404.1400255 DEG SD LIGHT ASSEMBLY, RH
55.408.010—ELECTRICAL BASE
55.408.020—BACK-UP ALARM ASSEMBLY
55.417.010—HARNESS, WIRE, SPEED SENSOR, JUMPER
55.510.010—ACCESSORIES SOCKET
55.510.020—ELECTRICAL, CAB
55.510.020—ELECTRICAL, CAB
55.510.020—ELECTRICAL, CAB
55.510.020—ELECTRICAL, CAB
55.510.020—ELECTRICAL, CAB
55.510.030—HARNESS, WIRE, CAB, ASSY
55.510.030—HARNESS, WIRE, CAB, ASSY
55.510.030—HARNESS, WIRE, CAB, ASSY
55.510.030—HARNESS, WIRE, CAB, ASSY
55.510.04001CAB, HARNESS, WIRE
55.510.04001CAB, HARNESS, WIRE, MECHANICAL
55.510.04001HARNESS, WIRE, CAB
55.510.04001HARNESS, WIRE, CAB
55.510.04001HARNESS, WIRE, CAB
55.510.04002CAB, HARNESS, WIRE, MECHANICAL
55.510.04002HARNESS, WIRE, CAB
55.510.04002HARNESS, WIRE, CAB
55.510.04002HARNESS, WIRE, CAB
55.510.04003CAB, HARNESS, WIRE, MECHANICAL
55.510.04003HARNESS, WIRE, CAB
55.510.04003HARNESS, WIRE, CAB
55.510.04003HARNESS, WIRE, CAB
55.510.04004CAB, HARNESS, WIRE, MECHANICAL
55.510.04004HARNESS, WIRE, CAB
55.510.04004HARNESS, WIRE, CAB
55.510.04005HARNESS, WIRE, CAB
55.510.04005HARNESS, WIRE, CAB
55.510.04005X4EW010HT2
55.512.010—100 LEVEL GRIPS, MECHANICAL HAND
55.512.010—HARNESS, WIRE, DISPLAY, JUMPER
55.512.01001HAND CONTROL DECALS, 100 – 200 GRIPS
55.512.020—100 LEVEL GRIPS, MECHANICAL FOOT
55.512.02001FOOT CONTROL DECALS, 100 – 250 GRIPS
55.512.030—200 LEVEL GRIPS, MECHANICAL HAND
55.512.040—200 LEVEL GRIPS, MECHANICAL FOOT
55.512.050—250 LEVEL GRIP ELECTRO-HYDRAULIC
55.512.060—300 LEVEL GRIPS, MECHANICAL HAND
55.512.070—300 LEVEL GRIPS, MECHANICAL FOOT
55.512.07001FOOT CONTROL DECALS, 300 – 350 GRIPS
55.512.080—350 LEVEL GRIP, EH
55.512.08001HAND OR E-H LEVEL DECALS, 300 – 350 GRIPS
55.512.100—ELECTRONIC CONTROL HANDLE INSTALLATION
55.512.150—INSTRUMENT CLUSTER
55.512.170—INSTRUMENT CLUSTER, HAWK
55.512.180—INSTRUMENT CLUSTER, HAWK
55.512.190—NO MULTIFUNCTION ELECTRICAL
55.512.210—MULTIFUNCTION,NO ROAD LIGHT
55.518.010—NO WASHER BOTTLE SWITCH COVER
55.518.02001WASHER BOTTLE ASSEMBLY
55.518.030—FRONT WASHER BOTTLE INSTALLATION
55.991.020—TELEMATIC SYSTEM INSTALLATION
55.100.05534KIT, MULTIFUNCTIONAL, WATER PUMP, BOOM, HARNESS

82 – Coupler / Bucket

CodeVariantDescription
82.100.010—BASIC, COUPLER
82.100.010—COUPLER
82.100.010—COUPLER
82.100.020—HYDRAULIC, COUPLER
82.100.020—HYDRAULIC, COUPLER
82.100.030—MANUAL RELEASE COUPLER LEVERS
82.300.010—BUCKET 78″
82.300.010—BUCKET 78″LPED
82.300.010—BUCKET 84″
82.300.030—BUCKET TOOTHED 78″
82.300.040—SPILLBOARD 78″
82.300.040—SPILLBOARD 84″
82.300.050—BUCKET 84″ LPED
82.300.060—BUCKET 78″ HD DIRT
82.300.060—BUCKET 84 HD DIRT
82.300.090—CUTTING EDGE 72″
82.300.100—CUTTING EDGE 78″

84 – Loader Arm

CodeVariantDescription
84.910.010—LOADER ARM
84.910.020—BOOM LOCK

88 – Kits

CodeVariantDescription
88.100.05520KIT, MECHANICAL CHASSIS OPTION HARNESS
88.100.05521KIT, CAB FIELD JUMPER HARNESS, T4, MECH, IC
88.100.05522KIT, CAB FIELD JUMPER HARNESS, MECH, T4
88.100.01002KIT, RADIATOR DEBRIS
88.100.01008KIT, BLOCK HEATER F5C
88.100.01009RADIATOR, KIT
88.100.01013DIA KIT, RADIATOR DEBRIS SCREEN
88.100.03503KIT, TIP CYLINDER GUARD
88.100.03508KIT, ATTACHMENT HOSE GUIDE-HYDRAULIC COUPLER
88.100.03509KIT, ATTACHMENT HOSE GUIDE-MANUAL COUPLER
88.100.03513KIT, HIGH FLOW 36.6/20.4CC
88.100.03519KIT, HYDRAULIC COUPLER
88.100.03530DIA KIT, SELF-LEVELING
88.100.03532DIA KIT, SELF-LEVELING
88.100.03536DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY
88.100.03905DIA KIT, CAB SIDE SEALS
88.100.03906DIA KIT, COUNTERWEIGHTLFW CASE
88.100.03911DIA KIT, DRAWBAR
88.100.03913DIA KIT, FRONT COUNTERWEIGHT
88.100.03915DIA KIT, LARGE VERTICAL BOOM
88.100.03918DIA KIT, LARGE VERTICAL ARM COMPONENTS
88.100.04801DIA KIT, FRONT TRACK IDLER
88.100.04807DIA KIT, TRACK MOTOR PLUMBING COVER
88.100.05002DIA KIT, HEAT COMPLETE
88.100.05010DIA KIT, HVAC COMPLETE
88.100.05501DIA KIT, BEACON
88.100.05503DIA KIT, STROBE LIGHT
88.100.05505KIT, BLOCK HEATER, 120 VOLTS, FSC
88.100.05506KIT, BLOCK HEATER, 220 VOLTS
88.100.05509KIT, 55 DEGREE HD LIGHT
88.100.05510KIT RH, GRIP MOUNTING
88.100.05511KIT LH, GRIP UPGRADE
88.100.05512KIT RH, GRIP UPGRADE
88.100.05526KIT, MULTIFUNCTIONAL, ELECTRICAL
88.100.05527KIT, ROAD LIGHTS
88.100.05535KIT, TELEMATIC SYSTEM
88.100.08210DIA KIT, COUPLER
88.100.08212DIA KIT, COUPLER CROSS TUBE REINFORCEMENT
88.100.08403KIT, LINK ARM ASSY KIT
88.100.08404LH, LINK ARM ASSY KIT
88.100.09001KIT, INTERIOR MIRROR
88.100.09003KIT, GLASS FRONT DOOR
88.100.09004KIT, DEMO FRONT DOOR
88.100.09005KIT, CAB SIDE WINDOWS
88.100.09010KIT, F.O.P.S. LEVEL 2 MODIFICATION
88.100.09011KIT, DEALER INSTALLED, HAND CONTROLS, T4
88.100.09012KIT, 3 PT SEAT BELT, CASE
88.100.09014KIT, INTERIOR TRIM CASE EURO
88.100.09015KIT, INTERIOR TRIM CASE
88.100.09018KIT, RH SIDE SCREEN
88.100.09019KIT, LH SIDE SCREEN
88.100.09020KIT, 3 INCH LAP BELT – CASE
88.100.09022DIA KIT, CAB SIDE WINDOW
88.100.09025DIA KIT, FIRE EXTINGUISHER
88.100.09026DIA KIT, FOOT CONTROL STABILZE WITH RIDE CONTROL
88.100.09027DIA KIT, FOOT CONTROL STABILZE WITHOUT RIDE CONTROL
88.100.09028DIA KIT, RADIO
88.100.09029DIA KIT, REAR EXTERIOR ACCESS WINDOW
88.100.09030DIA KIT, REMOVABLE TOP WINDOW
88.100.09031DIA KIT FOOT CONTROLS T4

89 – Forks

CodeVariantDescription
89.100.010—FORKS

90 – Covers / Cab / Seat / Decals

CodeVariantDescription
90.100.010—SOFT SEAL, HOOD, COVER
90.100.030—HOOD, COVER
90.100.050—REAR DOOR, HD
90.100.060—REAR DOOR, SD
90.100.070—HOOD STRUT
90.100.080—HOOD BRACKET WITH HAVC
90.105.010—HEEL PLATE SEAL
90.108.010—DECAL, COMMON TO MODEL
90.108.010—DECAL, COMMON TO MODEL
90.114.010—LAP BAR SAFETY DEVICE
90.114.010—LAP BAR, SAFETY DEVICE, MECHANICAL
90.114.020—LAP BAR STOP
90.116.010—LOADER ARM STOP
90.120.02001SEAT, MECHANICAL SUSPENSION, MOUNTING
90.120.02001SEAT, SUSPENSION, MOUNTING
90.120.02002SEAT, MECHANICAL SUSPENSION
90.120.02002SEAT, NON-SUSPENSION, MOUNTING
90.120.02002SEAT, SUSPENSION
90.124.010—SEAT, AIR SUSPENSION, MOUNTING
90.124.010—SEAT, AIR SUSPENSION, MOUNTING
90.124.020—SEAT, AIR SUSPENSION
90.124.020—SEAT, AIR SUSPENSION
90.150.010—CAB, ROPS
90.150.020—CAB SEAL
90.150.040—CAB LOCKING DEVICE
90.150.050—OPEN CAB
90.151.010—SEAT BELT 2 PT
90.151.010—SEAT BELT 2PT, 2 IN WEB
90.154.010—DEMO, FRONT DOOR
90.154.010—GLASS, FRONT DOOR
90.154.020—DEMO DOOR COMPONENTS
90.154.020—FRONT DOOR COMPONENTS
90.154.030—DEMO DOOR FRAME WITH KICK WINDOW
90.154.030—DOOR FRAME, WITH KICK WINDOW
90.156.010—NO SIDE WINDOW
90.156.020—REAR WINDOW
90.156.020—REAR WINDOW
90.156.030—SIDE WINDOW ASSEMBLY
90.160.010—HEADLINER, NO RADIO
90.160.020—HEADLINER WITH RADIO
90.160.030—CAB INTERIOR TRIM
90.160.040—FLOOR PLATE, NO PEDAL
90.160.040—NO PEDAL FOOT PLATE
90.160.070—OPEN CAB TRIM
90.160.080—FLOOR MAT
90.160.080—FLOOR MAT FOOT CONTROLS
90.160.080—FLOOR MAT MECHANICAL JOYSTICK CONTROLS
90.160.090—FUSE BOX COVER ELECTRO-HYDRAULIC
90.160.090—FUSE, COVER

95 – Attachments / Work Tools

CodeVariantDescription
95.100.150—AUGER DRIVE
95.100.15101AUTO, RAKE
95.100.15201BACKHOE
95.100.153—BALE HANDLER
95.100.154—BALE SPEAR
95.100.15501ANGLE, BROOM
95.100.156—PICKUP, BROOM
95.100.15701BUCKET, 4 IN 1
95.100.15801BUCKET, SIDE DISC
95.100.15902COLD, PLANER
95.100.160—COLD PLANER SP
95.100.161—CONCRETE, BUCKET
95.100.162—COONCRETE, CLAW
95.100.17601DOZER BLADE
95.100.177—GRADER RAKE
95.100.17801BUCKET, BRUSH, GRAPPLE
95.100.179—LOG, GRAPPLE
95.100.18001BUCKET, SCRAP, GRAPPLE
95.100.18101POWER, BOX, RAKE
95.100.18201HAMMER, HYDRAULIC
95.100.183—LIFT, BOOM
95.100.184—WEIGHLOG
95.100.18501FARM, FORK
95.100.18601MANURE, SCRAPER
95.100.18701PALLET, FORKS
95.100.188—POST, DRIVER
95.100.18901PREPARATOR
95.100.191—REAR STABILIZER, LARGE FRAME
95.100.19202BUCKET, ROCK
95.100.19301ROCK, SAW
95.100.19401ROOT, RAKE, WITH GRAPPLE
95.100.19502ROT. CUTTER
95.100.196—SILAGE, DEFACER
95.100.197—SILT FENCE INSTALLER
95.100.198—SNOW BLADE,
95.100.19903SNOW, BLOWER
95.100.20001SNOW, BLOWER
95.100.20101SNOW, BUCKET
95.100.20202SNOW, PUSH
95.100.203—STUMP, GRINDER
95.100.204—3 PT ADAPTER
95.100.20501TILLER
95.100.206—TILT-ATTACH
95.100.20701TREE, SHOVEL
95.100.20801TRENCHER
95.100.20901VIB ROLLER
95.100.210—WATER TANK, ROOF MOUNT
95.100.211—ADAPTER, SSL ATTACHMENT
95.100.212—PALLET, FORKS
95.100.213—HYD, POS, FOR-NURSERY, SLEEVES
95.100.214—SNOW, PUSH
95.100.21501COLD, PLANER
95.100.216—SCRAP, GRAPPLE
95.100.21702BUCKET, SKELETON, GRAPPLE
95.100.218—TREE, PULLER
95.100.21901BIG BALE, SKELETON
95.100.22001BUCKET, BIG BALE, GRAPPLE
95.100.22101GRAPPLE, LARGE, CAP, SKELETON
95.100.22202SNOW BLADE, PUSHER
95.100.22302SNOW, V-BLADE
95.100.224—MULCHER
95.100.22502SINGLE MAST GRADER
95.100.226—SKID HOE, RIGID

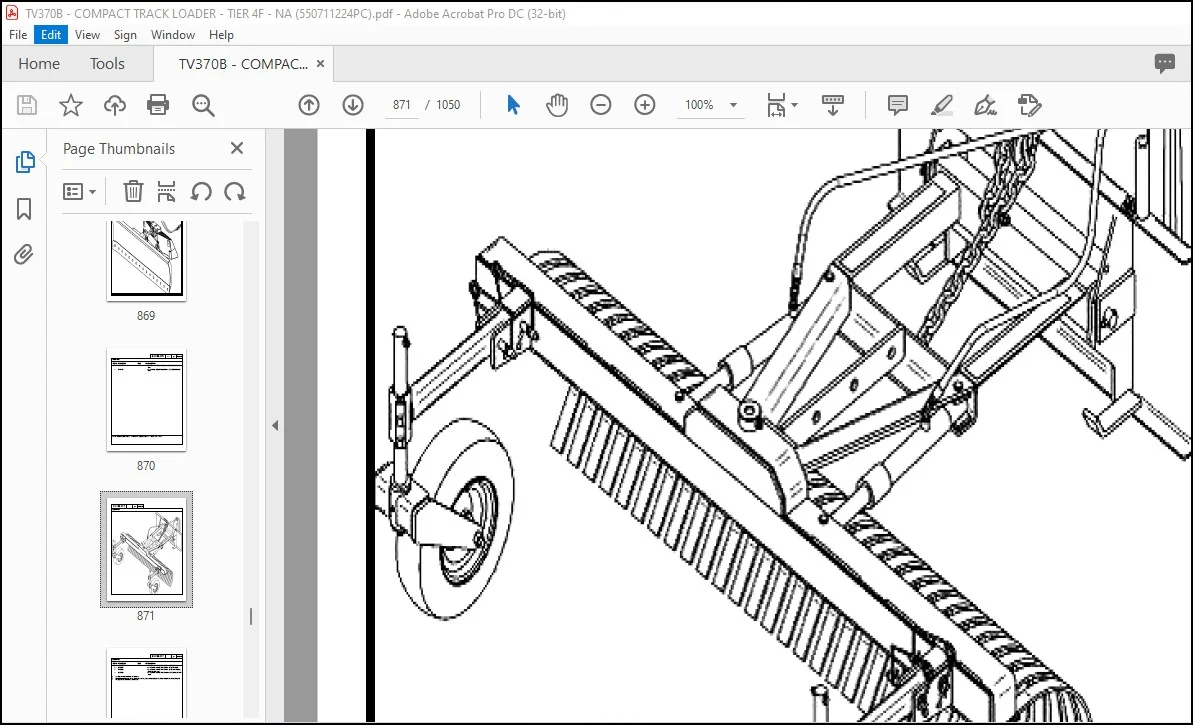

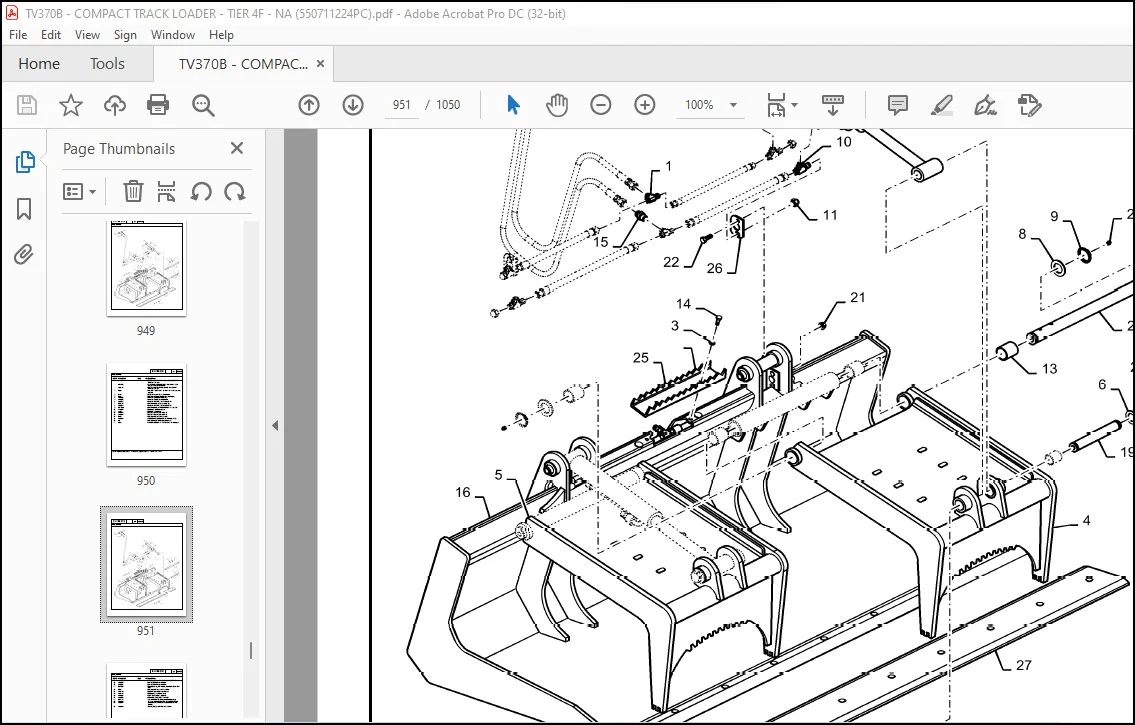

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/723716201

PLEASE NOTE:

  • This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
  • This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
  • Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V



What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...

🌟 Related Products

Discover more professional manuals for your equipment

-9% OFF
Case 580 SUPER k 580SK Turbo Loader Backhoe Operators Manual - PDF Download
-40% OFF
Case 680e Ck Backhoe Loader Parts Catalog Manual - PDF Download
Case 580le 580sle 580lsp 580lxt 580lps 590sle 590lsp Backhoe Loader Operators Manual - PDF Download
-33% OFF
Case 580k Backhoe Loader Operators Manual Download

Case 580k Backhoe Loader Operators Manual Download

★★★★★ (200 reviews)
$29.95 $19.95
DOWNLOAD
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    🛒
    Recently Purchased
    🕒 verified order
