Case TX130-40, TX130-43, TX130-45, TX140-43, TX140-45, TX170-45 turbo Telescopic Handlers Service Manual (87595115A) – PDF Download

Description

Case TX130-40, TX130-43, TX130-45, TX140-43, TX140-45, TX170-45 turbo Telescopic Handlers Service Manual (87595115A)

FILE DETAILS:

Case Telehandlers TX130 45 TX140 45 TX170 45 TURBO Service Manual_87595115A
Size : 53.4 MB
Format : PDF
Language : English
Brand: Case
Number of page: 500 page
Type of machine: Case Telehandlers
Type of document: Service Manual
Model: Case Telehandlers TX130 45 TX140 45 TX170 45 TURBO
Part No: 87595115A

CASE TX130-40, TX130-43, TX130-45, TX140-43, TX140-45, TX170-45 TURBO TELESCOPIC HANDLERS SERVICE MANUAL (87595115A) – PDF DOWNLOAD:

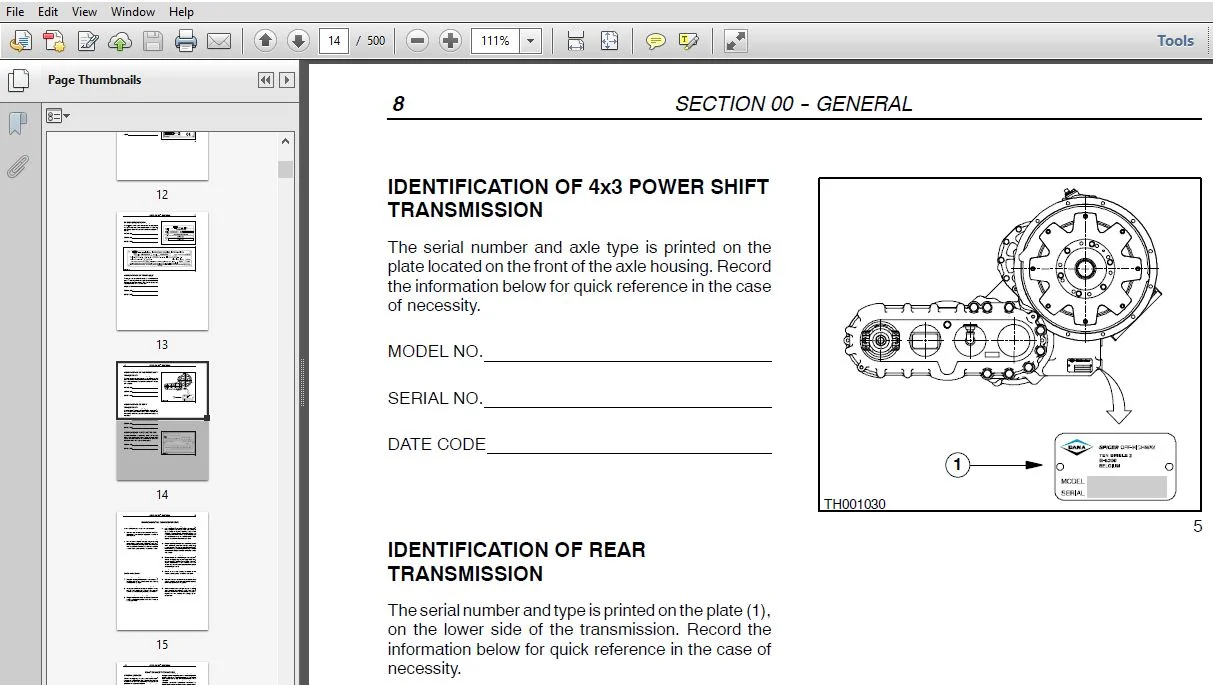

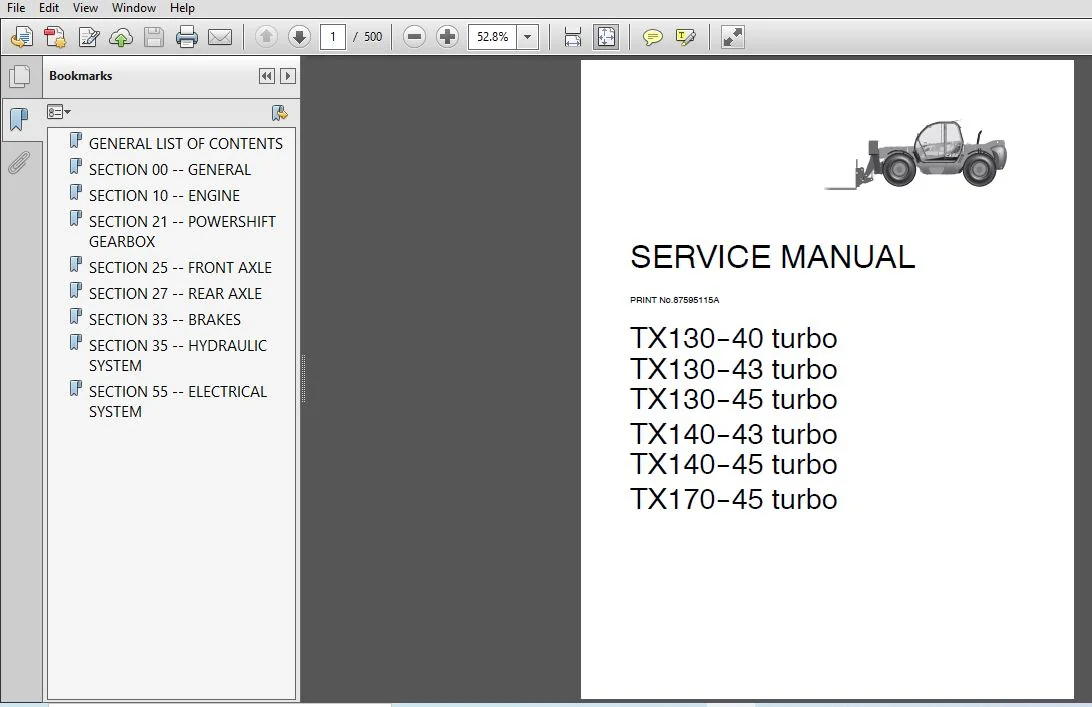

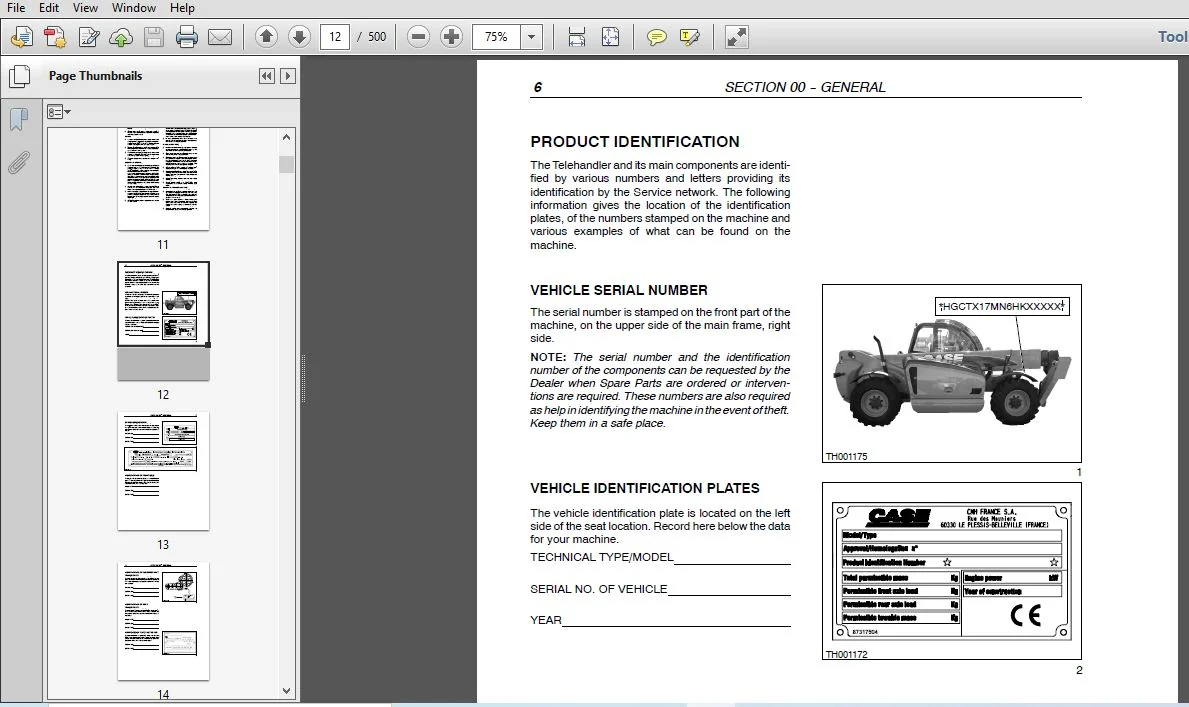

IMAGE PREVIEW:

DESCRIPTION:

Case TX130-40, TX130-43, TX130-45, TX140-43, TX140-45, TX170-45 turbo Telescopic Handlers Service Manual (87595115A)

• Clean the outside of all the components prior to performing any type of repair. Dirt and abrasive dust can reduce the efficient life expectancy of a component and result in expensive repairs.
• The time spent in preparing and cleaning working surfaces is giving results, making work easier and safer, and the components overhauled will be more reliable and operate better.
• Use cleaning fluids proven to be safe. Some types of fluid can cause serious problems toO–Rings and irritate the skin. It is necessary to check that the solvents are suitable to clean the components and that of they are free of risks for the health of workers.
• ReplaceO–Rings, sealing rings and seals every time they aremoved. Never use oldO–Rings or seals and new ones together, independently from their conditions. Always lubricate new O–Rings and seals with hydraulic oil before installing them.
• When replacing components, always use the tooling required by this type of work

TABLE OF CONTENTS:

Case TX130-40, TX130-43, TX130-45, TX140-43, TX140-45, TX170-45 turbo Telescopic Handlers Service Manual (87595115A)

SECTION 00 — GENERAL
Description Page
General instructions 1
Safety rules 3
Product identification 6
Environmental considerations 9
Maintenance techniques 10
SECTION 10 — ENGINE
Description Page
Coding of engines of origin 3
Main engine specifications 4
General engine specifications 5
Generalities 7
Description of engine main mechanical components 13
Lubrication 24
Cooling 29
Mechanical injection fuel system 31
Injection assembly 33
Removal of the engine transmission group from the vehicle 43
Engine overhaul on bench 46
Replacement of injectors 98
Valve clearance 100
Timing setting 101
Timing of injection pump 102
Electrical components 103
Troubleshooting 104
Tooling 108
Mounting plays 112
SECTION 21 — POWERSHIFT GEARBOX
Description Page
Gearbox assembly 5
Idler gear case assembly 7
Gearbox operation 8
Transmission and Hydraulic oil circuit diagrams 15
Modulation valve operation 31
Torque converter and heat exchanger hydraulic oil circuit 34
Troubleshooting procedures 37
Pressure testing clutch and high pressure circuit 38
Pressure testing torque converter and cooler circuit 39
Check points 40
Assembly instructions 42
Overhaul 45
Special tools 104
SECTION 25 — FRONT AXLE
Description Page
Specifications 1
Description 2
Operation 3
Troubleshooting 4
Wheel toe–in check 5
Component overhaul 5
Front axle removal procedure 6
Front axle overhaul 7
Axle drive pinion bearing adjustment 52
How to install and adjust the axle drive pinion 54
Front drive shaft 57
SECTION 27 — REAR AXLE
Description Page
Specifications 1
Description 2
Operation diagram 3
Component overhaul 5
Rear axle removal procedure 5
Overhaul 6
Special tools 7
SECTION 33 — BRAKES
Description Page
Power brakes 2
Parking brake 3
Brake disc adjustment 6
Troubleshooting 7
Brake disc replacement 8
SECTION 35 — HYDRAULIC SYSTEM
Description Page
Technical data 2
Description and operation 3
Steering system hydraulic circuit 3
Steering valve 4
Telescopic boom hydraulic circuit 6
Component operation 11
Hydraulic pump 11
Hydraulic scheme 11
Delivery side divider valve 11
Pressure reducing valve 13
Front loader controls 15
Power steering (OSPQ) 19
Telescopic boom distributor 21
Auxiliary controls distributor 24
Cylinders 25
Arms 35
Boom removal 35
Working platform 61
Procedure for the calibration of the personnel carrier platform electronic controller 65
Special tools 71
SECTION 55 — ELECTRICAL SYSTEM
Description Page
Chapter 1 – Electrical system general
Electrical equipment specifications 1
Electrical system and fuse 2
Controls and instruments 6
Use of the tip–over prevention system 16
Bulb replacement 23
Protecting the electrical systems during charging or welding 26
Starting the machine using jump leads 27
Temporary wiring repair 28
Electrical system general fault finding 30
Working platform 31
Special tools 46
Chapter 2 – Circuit diagrams
List of connectors 48
List of components 49
How to use the circuit diagrams 50
Diagram 1: Starting/Recharge/Warning lights/Indicator 51
Diagram 2: Transmission 55
Diagram 3: Wheel alignment/Hydraulic solenoids/Brake system 57
Diagram 4: Arm control 59
Diagram 5: Stabiliser 61
Diagram 6: Lights/Windscreen wiper 63
Diagram 7: Work lamps/Roof beacon light 65
Diagram 8: Tilting prevention system/Roof wiper 67
Diagram 9: Sound system heating/Electric socket/Roof lamp 69
Diagram 10: Air conditioner 71
Chapter 3 — Wiring list
Instrument panel wiring 75
Cab wiring 79
Front wiring 80
Rear wiring 81
Engine wiring 82

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
