Case W11 Articulated Loader Service Repair Manual Case W11 – PDF DOWNLOAD

Description

Case W11 Articulated Loader Service Repair Manual Case W11

CASE W11 ARTICULATED LOADER SERVICE REPAIR MANUAL CASE W11 – PDF DOWNLOAD:

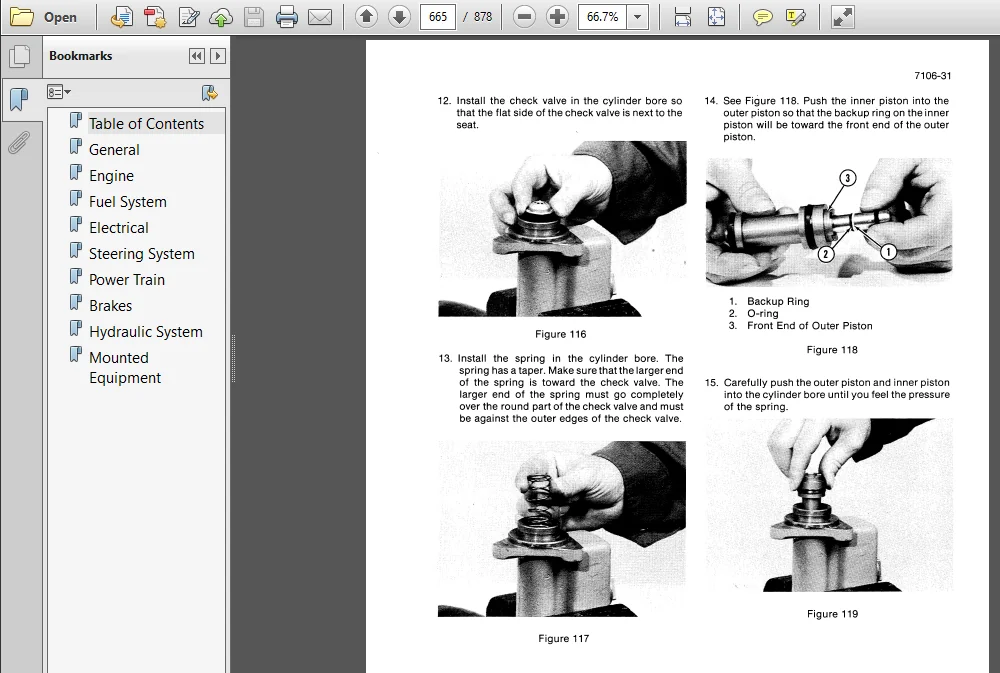

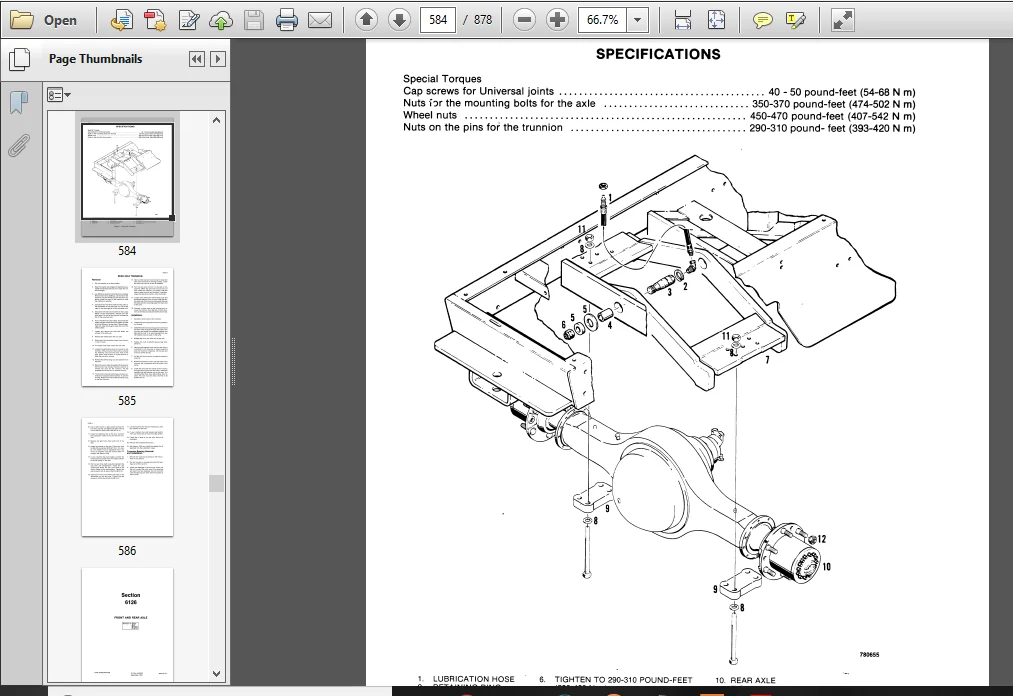

IMAGE PREVIEW:

General Information:

Case W11 Articulated Loader Service Repair Manual Case W11

• This service manual has been prepared with the latest service information available. Troubleshoot- ing, removal. disassembly. Inspection and installa- tion procedures and complete specifications and tightening references can be found in most sec- tions. Some sections will have drawings without a written procedure because the job Is easily done. This service manual is one of the most important tools available to the service technician.
• The terms right-hand and left-hand and front and rear as used in this manual indicate the right and left sides. and front and rear of the machine as seen from the operator’s seat for correct operation of the machine or attachment.

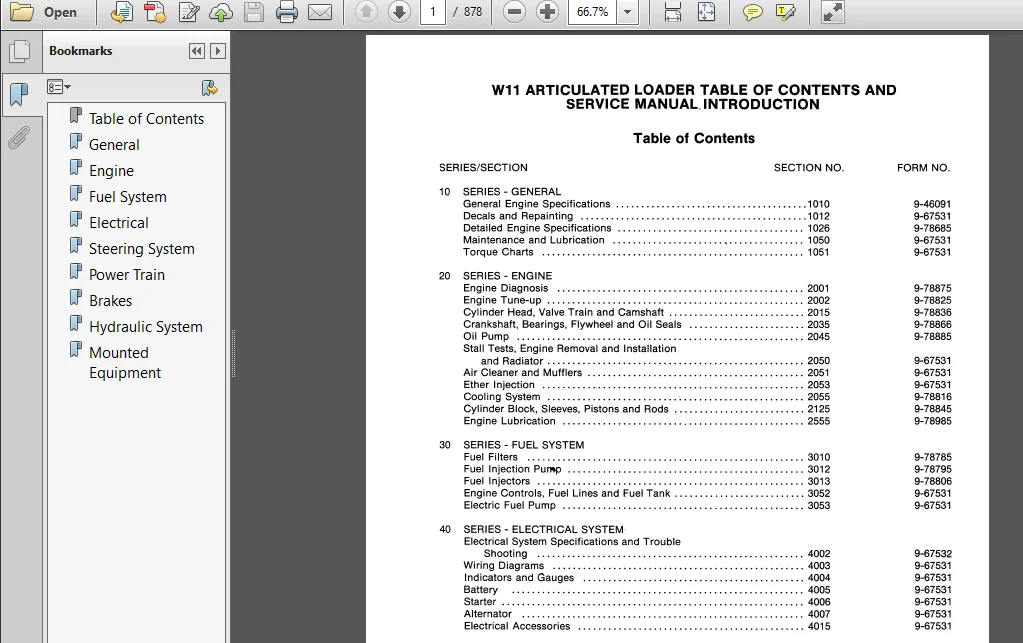

TABLE OF CONTENTS:

Case W11 Articulated Loader Service Repair Manual Case W11

10 SERIES—GENERAL
GeneralEngine Specifications
Decalsand Repainting
Detailed Engine Specifications
Maintenance and Lubrication
TorqueCharts
20 SERIES-ENGINE
EngineDiagnosis
EngineTune-up
Cylinder Head, Valve Train and Camshaft
Crankshaft, Bearings, Flywheel and Oil Seals
OiIPump
Stall Tests, Engine Removal and Installation and Radiator
Air Cleaner and Mufflers
Ether lnjection
Cooling System
Cylinder Block, Sleeves, Pistons and Rods
Engine Lubrication
30 SERIES-FUEL SYSTEM
Fuel Filters
Fuel InjectionPump
Fuel Injectors
Engine Controls, Fuel Lines and Fuel Tank
Electric Fuel Pump
40 SERIES – ELECTRICAL SYSTEM
Electrical System Specifications and Trouble
Shooting
WiringDiagrams
lndicatorsandGauges
Battery
Starter
Alternator
EIectricalAccessories
50 SERIES – STEERING SYSTEM
Hydraulic Diagram, Pressure Check and Trouble
Shooting
Steering Control Valve
Steering Cylinder
CenterPivot
60 SERIES-POWER TRAIN
Transmission Maintenance and Trouble Shooting
Charging Pump
Transmission ControlVaIve
Torque Converter
Transmission
TransmissionControIs
Drive Shafts, Center Bearing and Universal
Joints
RearAxIeTrunnion
FrontandRearAxle
WheelsandTires
70 SERIES-BRAKES
Brake System Operation, Brake Actuator and
Brake PedalAdjustment
Brakes
Parking Brake
80 SERIES – HYDRAULIC SYSTEM
Hydraulic Diagram, Maintenance, Trouble Shooting
and PressureChecks
Hydraulic Pump
Flow ControlVaIve
LoaderControIValve
UnloaderValve
Cylinders
90 SERIES- MOUNTED EQUIPMENT
Loader
ROPS Caband ROPSCanopy

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
