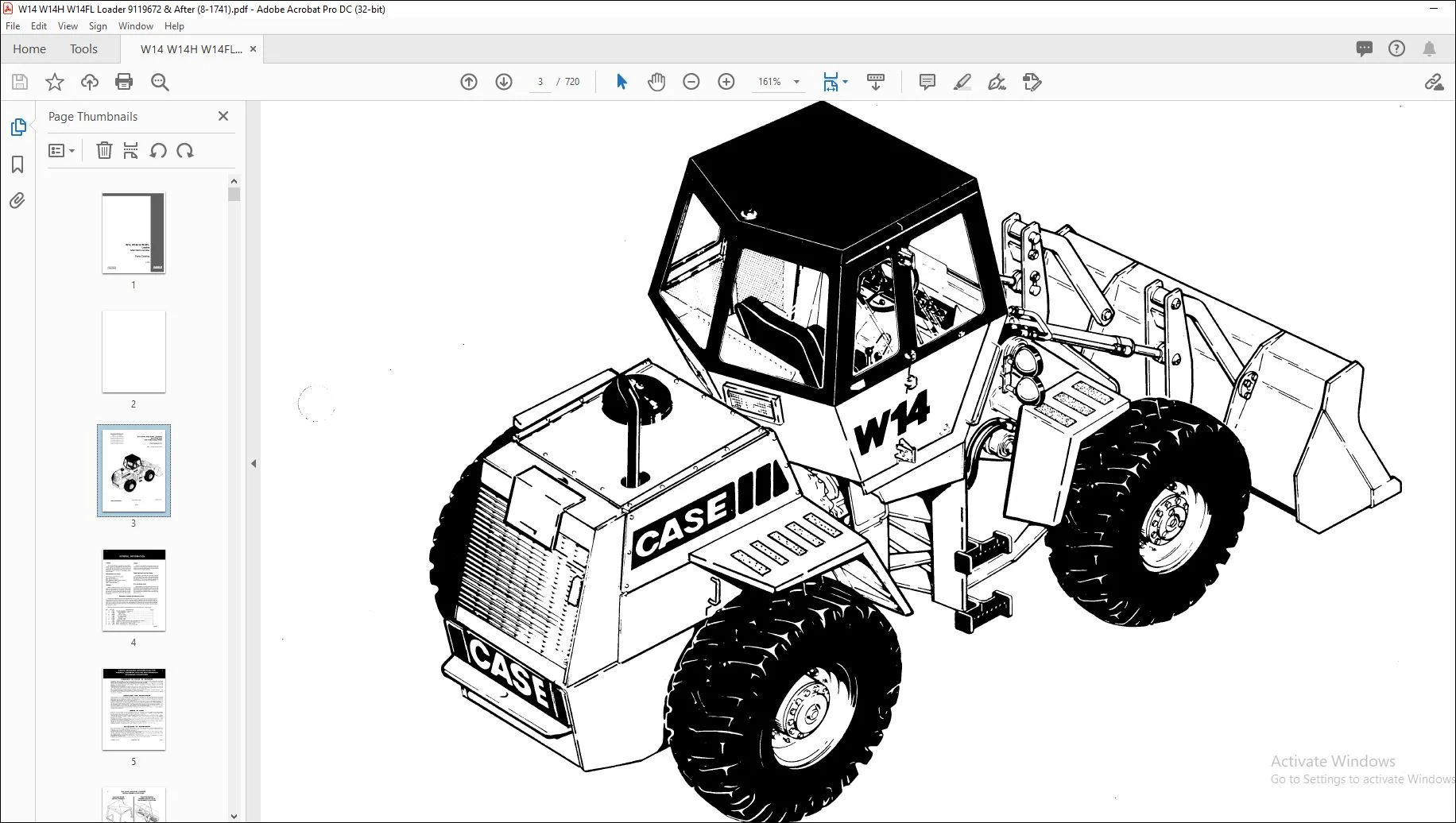

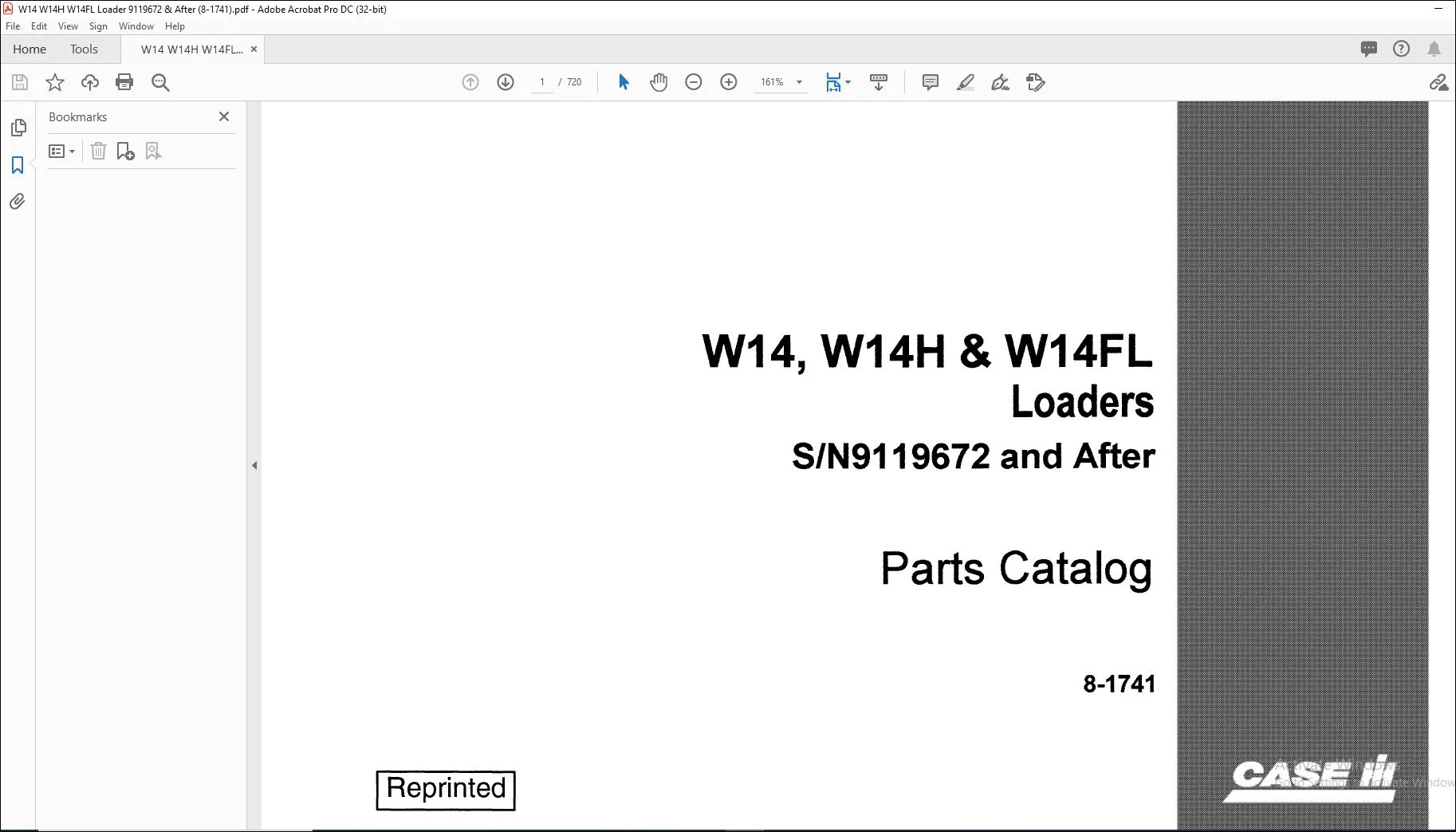

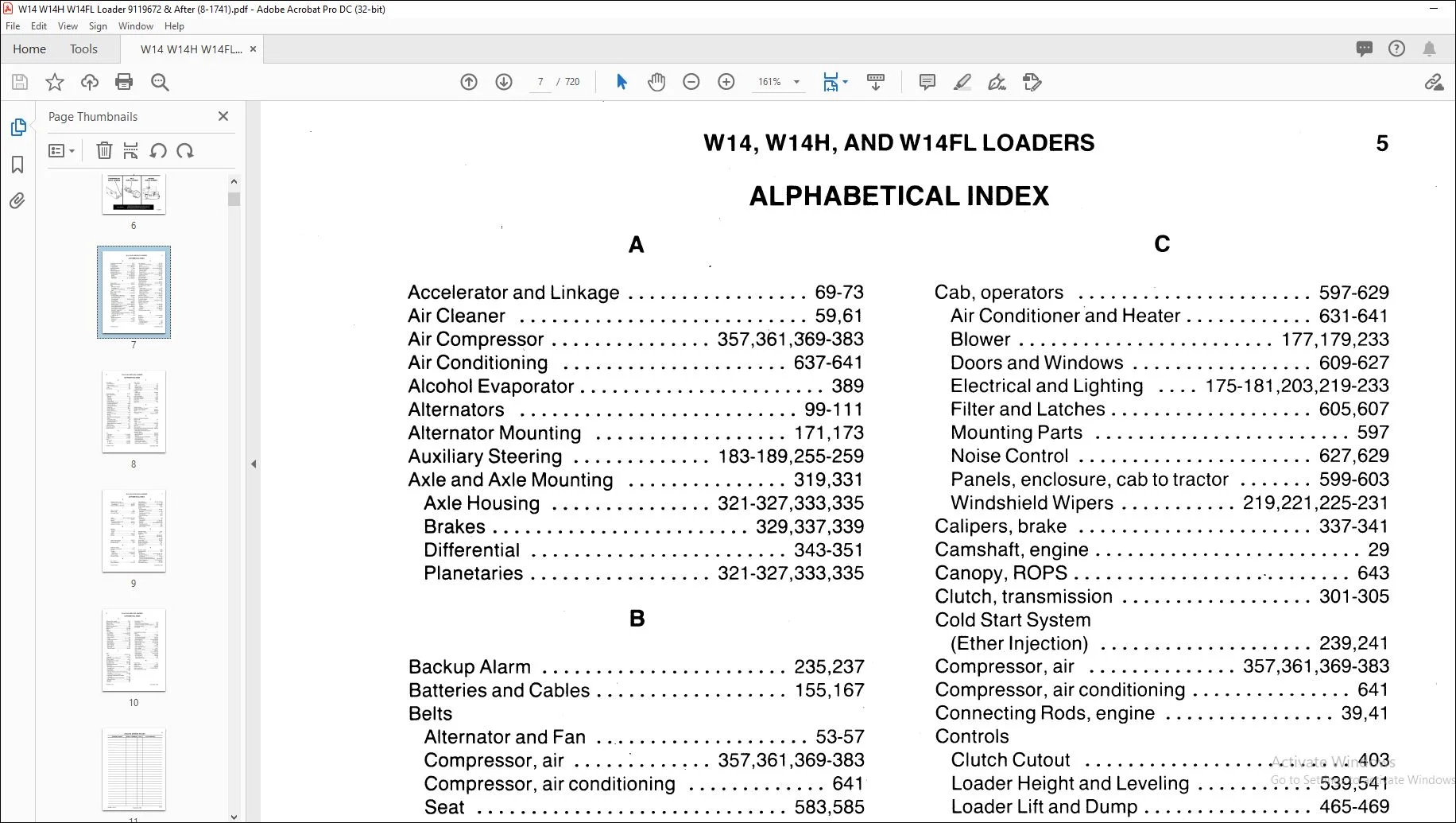

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case W14 W14H & W14FL Loaders Parts Catalog Manual 8-1741 – PDF DOWNLOAD

S/N9119672 and After

Indexes:
This parts catalog is arranged for easy identification on parts. The Alphabetical Index at the front of the catalog gives location of major groups and assemblies. The Numerical Index at the rear of the catalog gives part numbers and the page on which they are listed.
Abbreviations and Terms:
PIN – Product Identification Number.
SN – Serial Number.
NSS – Not sold separately.
REF – Reference. Used to clarify drawing.
RESERVED – No item listed.
UAR – Use as required.
Changes:
When changes are made to the machine, revised pages for this catalog will be issued. These pages must be inserted into your catalog as soon as they are received. Failure to keep your catalog up to date will result in confusion and may cause you to order wrong parts.
Orders :
Orders should specify correct part number, full description, quantity required, machine and engine model, machine and engine serial numbers, method of shipment and shipping address.

TABLE OF CONTENTS:

Case W14 W14H & W14FL Loaders Parts Catalog Manual 8-1741 – PDF DOWNLOAD

A
Accelerator and Linkage 69-73
Air Cleaner 59,61
Air Compressor 357,361,369-383
Air Conditioning 637-641
Alcohol Evaporator 389
Alternators 99-111
Alternator Mounting 171, 173
Auxiliary Steering 183-189,255-259
Axle and Axle Mounting 319,331
Axle Housing 321-327,333,335
Brakes 329,337,339
Differential 343-351
Planetaries 321-327,333,335
B
Backup Alarm 235,237
Batteries and Cables 155,167
Belts
Alternator and Fan 53-57
Compressor, air : , 357,361,369-383
Compressor, air conditioning 641
Seat 583,585
Block, engine cylinder 31
Blower, cab 177,179,233
Brake System
Air Compressor to Reservoir 357-363
Air Pressure Protection Valve 403,441
Alcohol Evaporator 389
Brake Actuator 395,399,415-431
Drum Brakes 329
Caliper Brakes 337-341
Governor, air compressor 385,387
Master Cylinder 395,399,415-431
Brake Actuator to Wheel Cylinders 395,401
Parking Brake Actuator 407,433,435
Parking Brake Valve to Actuator 407
Parking Brake, transmission 307
Reservoir- brake fluid 399,449,451
Treadle Assembly 409
Treadle to Master Cylinder and Reservoir 391,393
Treadle to Hydraulic Tank 403
Treadle to Horn 405
Buckets
Bucket and Grapple 547
Clam (4-in-1) : 553,555
Standard 549
Teeth 547,551
Printed in U S A
C
Cab, operators 597-629
Air Conditioner and Heater 631-641
Blower 177,179,233
Doors and Windows 609-627
Electrical and Lighting 175-181,203,219-233
Filter and Latches 605,607
Mounting Parts 597
Noise Control 627,629
Panels, enclosure, cab to tractor 599-603
Windshield Wipers 219,221,225-231
Calipers, brake 337-341
Camshaft, engine 29
Canopy, ROPS – 643
Clutch, transmission 301-305
Cold Start System
(Ether Injection) 239,241
Compressor, air 357,361,369-383
Compressor, air conditioning 641
Connecting Rods, engine 39,41
Controls
Clutch Cutout 403
Loader Height and Leveling 539,541
Loader Litt and Dump 465-469
Pedal, accelerator , 69
Pedal, brake, treadle 391,403,405,409
Transmission 275-279
Convertor, torque 291-297
Cooler, transmission oil 53,55
Couplings, hydraulic tor backhoe 475,477,487
Crankshaft, engine 33
Cylinder, master 395,399,415-431
Cylinder Head, engine 25
Cylinders, Hydraulic
Bucket Tilt 467,493,495
Clam 557,559
Grapple 471,497
Loader Litt 465,489,491
Steering 265-269
Cylinders, sleeve, engine 39,41
D
Decals 23,25,645-649
Defroster · 219
Differential 343-351
Dipsticks
Engine Oil 31
Hydraulic Reservoir 453
Transmission Oil 289
Disc Brakes 337-341
Issued May, 1985
6 W14, W14H, AND W14FL LOADERS
ALPHABETICAL INDEX
D
Drive Shafts
Center Bearing 315
Front, axle end 315
Front, transmission end 317
Rear 317
Drum Brakes 329
E
Electrical System 99-241
Engine Components
Alternator 99-111
Balancer 43
Camshaft 29
Crankshaft 33
Cylinder Block 31
Cylinder Head and Cover 25
Flywheel and Housing 33,35
Fuel Filter System 87
Fuel Injection System 83,85
Gasket Kits 45,47
Injection Nozzles 95,97
Injection Pump 91
Injection Pump Drive 89
Manifolds 11, 19
Oil Filter and Cooler 17
Oil Pan 43
Oil Pump 43
Piston and Connecting Rods 39,41
Starter 113-129
Timing Gear Cover 49
Turbocharging System 21,23
Valve Mechanism 27
Water Manifold and Thermostat 11
Water Pump 13, 15
Engine Mounting 51
Evaporator, alcohol : 389
Exhaust System 63-67
F
Fan
Cab Blower 177,179,233
Defroster 219-223
Engine Cooling 53,55
Fenders 571-575
Filter
Air Cleaner 59,61
Air, cab 605,607
Air, governor 385,387
Printed in U S A
F
Filter – Cont
Engine Oil : 17
Fuel 87
Hydraulic Oil 499
Injection Pump – 91
Transmission Oil 283-287
Flywheel, engine 33
Frames
Loader, Lift 543,545
Main, Front 575
Main, Rear 561
Fuel Filter System 87
Fuel Injector Nozzles 91-95
Fuel Injector System 83,85
Fuel Lines 75, 77
Fuel Pump 77,81
Fuel Tank 79
G
Gaskets, engine 45,47
Gauges – see Electrical System
Governor, air compressor 385,387
Grille 565-569
Guard, drive train 579
Forestry · 319,331,579,581
H
Harness – see Electrical System
Head, engine 25
Heater
Block, engine 31
Cab 631-635-
Hood and Front Panels 563
Horn, air 447
Hose, radiator 53-57
Hose and Fitting Conversion Part Numbers 652-654
Hoses, See Fuel Lines, Brake
Assemblies and Hydraulic eircuits
Hydraulic Circuit
Auxiliary Steering 255-259
Basic Hydraulics 457,459
Backhoe 473-479
Loader Bucket Clam and Grapple 471
Loader Bucket Lift 465
Loader Bucket Tilt 467
Pump to Loader Valve 457-461
Loader Valve to Reservoir 463
Steering Pump to Cylinders 265
Issued May, 1985
W14, W14H, AND W14FL LOADERS
ALPHABETICAL INDEX
7
H
Hydraulic Circuit – Cont
Steering Valve to Reservoir 253
Transmission 281-285
Hydraulic Reservoir Assembly 453,455
Index, numerical 655
_ Injection, fuel 83-85
Instrument Panel 131-133
L
Lamps 143,151,1’59,169,191-197
Lift Frame 543,545
Loader
Buckets and Attachments 547-555
Hydraulic Circuits 457-479
Lock Up, front frame 577
M
Manifold
Exhaust 19
Intake 19
Water 11
Mirrors 603,643
Mufflers 63-67
N
Nozzle, ether injection 239,241
Nozzle, fuel injection 95,97
Numerical Index 655
0
Oil Cooler, engine 17
Oil Cooler, transmission 53,55
Oil Filter
Engine 17
Hydraulic 453,463,499
Transmission 283-287
Oil Pan, engine 43
Oil Pump, engine 43
p
Pan, engine oil 43
Panel, instrument 131-133
Printed in U S A
p
Parking Brake 307,407,433,435
Pedal, accelerator 69
Pedal, brake 391,403-409
Pistons, engine 39,41
Pivot Assembly, spindle 561
Pulleys
Air Compressor 357,361
Air Conditioner Compressor 637
Alternator 171 , 173
Alternator and Fan Drive 33
Fan Mounting 13, 15
Pump Drive, water 13, 15
Pumps
Engine oil 43
Fuel Injection 91
Fuel, electric 75,77,81
Hydraulic 271,273,461
Steering 251,255,263,271,273/
Torque Converter /a~r-i
Transmission Charging ~ 309
Water, engine 13, 15
R
Radiator, engine 53-57
Regulator, voltage 99-111
Reservoirs
Air 359,363,391
Brake Fluid 399,449,451
Fuel 79
Hydraulic Oil 453,455
Rims, wheel 353,355
Rings, engine piston 39,41
Rocker Arms, engine 27
Rods, connecting 39,41
Rods, push 27
s
Screens, canopy 643B
Seat Mountings 585
Senders
Air Pressure 145,149,159,391,407
Engine Oil Pressure 31,133,151
Fuel Gauge 79,157
Hydraulic Oil Filter Restriction 499
Torque Converter Oil Temperature 145,149,165
Water Temperature 145, 149,213-217
Shroud, radiator 565-569
Side Panels, engine 571,573
Issued May, 1985
8 W14, W14H, AND W14FL LOADERS
ALPHABETICAL INDEX
s
Sleeves, piston, engine 39,41
Slow Moving Vehicle Emblem 651
Solenoid, cab 147
Solenoid, starter 129
Spindle, pivot assembly 561
Starter, engine 113-127
Steering 243-273
Steps 569,575
Switches
Air Pressure 139,157
Backup Alarm 147,149,235,237
Cab Controls 175-181
Clutch Pressure 141
Key and Starter – 131
Lamps 131,177,213
Loader Height Control 541
Neutral Start 141,145,149,165
Parking Brake 139
Rotating Beacon 205
Return-To-Dig 539
Steering Motor 187
Stop Lamp 141,437
Turn and Flasher 199,201
T
Tank
Air 359,363,391
Fuel 79
Hydraulic 453,455
Thermostat, water temperature 11
Throttle, engine 69-73
Timing Gear Cover, engine 49
Tire Inflation Kit 365,367
Torque Converter 291,293
Transmission Mounting 289
Transmission
Axle Output Shaft and Parking Brakes 307
Charging Pump 309
Control Parts 275-279
Control Valve 311
Convertor Housing, Gears and Transmission
Housing 295,297
Forward Clutch and Planetary 303
Front Cover, Input Shaft, and Torque
Converter 291,293
High Range Clutch and Transfer Gear 305
Hydraulic System 281-285
Mounting 289
Oil Filter 287
Printed in U S A
T
Transmission – Cont
Overhaul Kit ; 313
Reverse Clutch and Planetary 301
Turbine Driven Gears and Freewheel Unit 299
Turbocharger System 21,23
Turn Signals 199,201
V
Valve Mechanism, engine 27
Valves
Air Safety 359,363
Air Shut-Off 403
Air Pressure Protection 403,441
Air Pressure Regulator 403,437
Backhoe Relief 475,479,483,485
Backhoe Selector 473,477,481
Brake Control, treadle 391,403-409
Check, double 391 ,437
Clutch Cutout 403
Drain, air reservoir 363,391
Drain, engine oil cooler 17
Drain, radiator 53,57
Flow Control, steering 251,255,261
Horn 405,441
Loader Control 461-4 71,501-539
Parking Brake 407,411,413
Steering Control 243-249
Tire, valve stem 353,355
Torque Converter 295
Transmission Control 311
w
Water Pump 13, 15
Wheel, steering · 243
Wheel, tire 353,355
Windows, cab 623,625
Wiper, windshield 219,221,225-231
Wire, see electrical circuits
