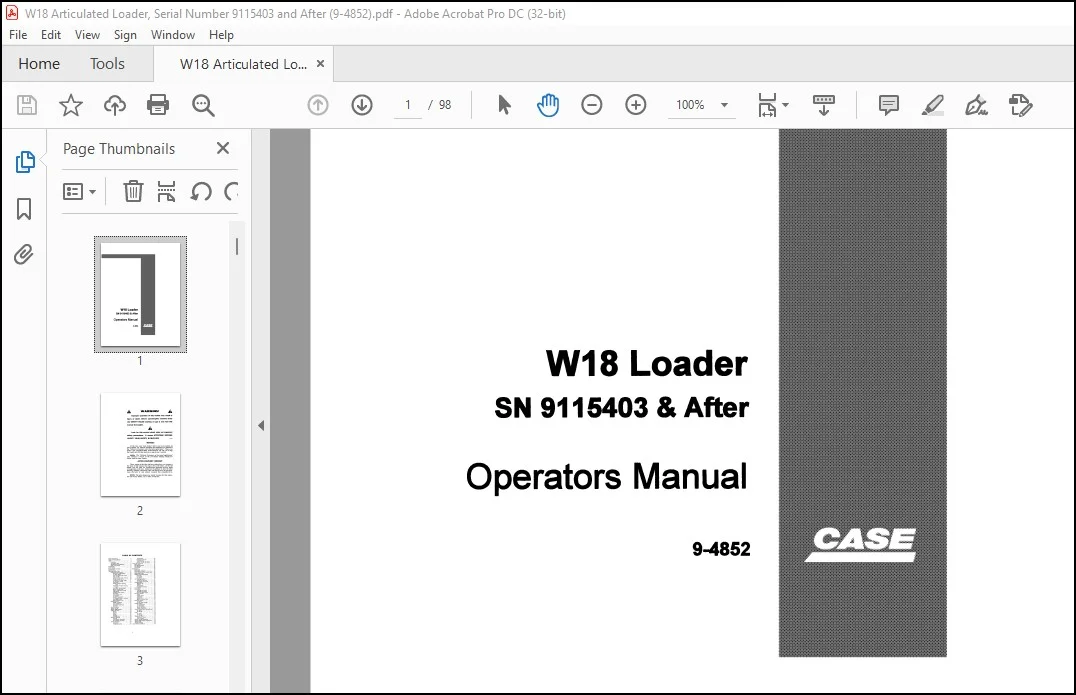

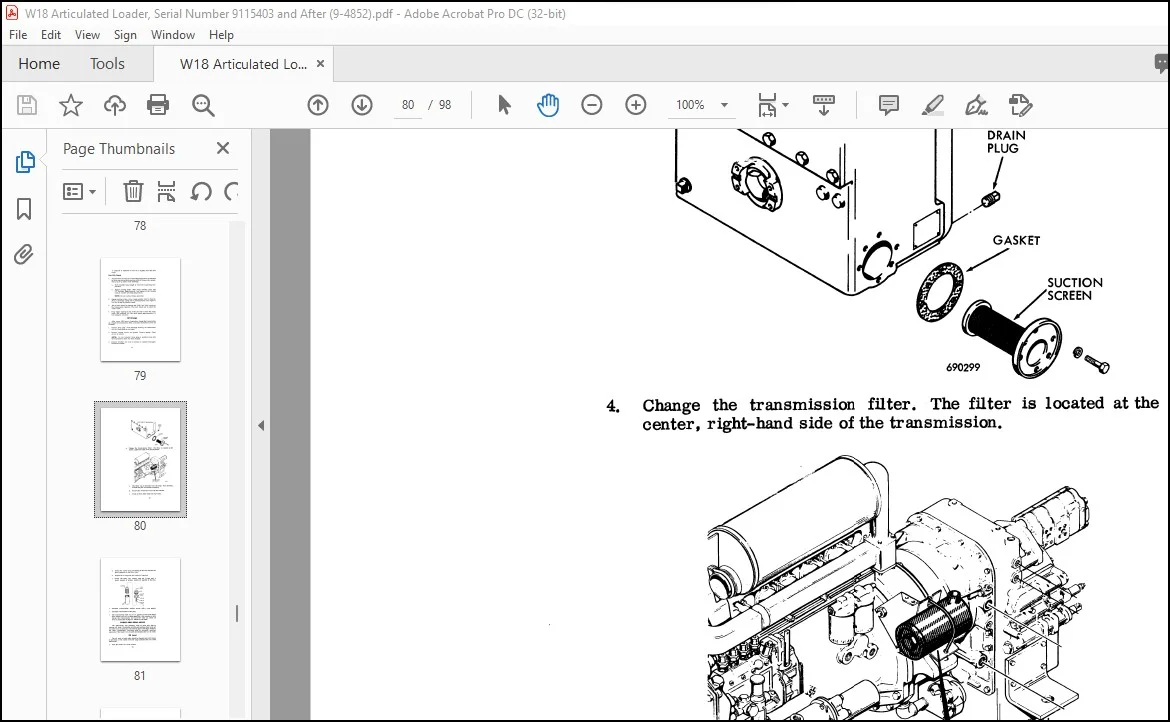

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case W18 Loader Operators Manual 9-4852 – PDF DOWNLOAD

SN 9115403 & After

SAFETY RULES :

Your safety and the safety of those around you is highly dependent upon the care and good judgment you exercise in the use of this equipment. Know the positions and functions of all controls before attempting to operate. BE SURE TO CHECK ALL CONTROLS IN A SAFE OPEN AREA BEFORE STAR TING YOUR WORK. READ THIS MANUAL THOROUGHLY and makesureyouunderstand its contents. All equipment has limitations.

• Be sure you understand, for example, the speed, braking, steering, stability and load characteristics of this machine before starting to operate. The safety information presented in this manual is not intended to replace safety codes, insurance requirements, federal, state and local laws, rules and regulations.
• Know the regulations and laws that apply to your area and be sure that your machine is properly equipped to meet such laws and regulations. It is recommended that the following safety rules be posted on the job site. Clean or replace all decals* if they can’t be read. Wear the proper safety equipment when you feel your safety is in doubt.
• Avoid loose clothing, particularly cuffs and scarfs. Always carry a fire extinguisher* and first aid kit. Get to know the local terrain thoroughly and the location of underground cables, gas lines and water mains. Know all hand signals, flags or signs to be used on the job sites.
• Visually check out your loader for leaks and broken, missing or malfunctioning parts. Be sure the operator’s area is free of oil, ice or loose objects. Check that the parking brake is set and transmission is in neutral before starting the engine. Clear the operating area of all unauthorized persons. If authorized workers on foot are in the area, installation of a backup alarm* is recommended.

TABLE OF CONTENTS:

Case W18 Loader Operators Manual 9-4852 – PDF DOWNLOAD

Safety Precautions 2
Spark Arresting Muffler 4
ROPS 4
Seat Belts 4
Accidental Upset 5
Maintenance and Inspection 5
Safety Precautions 5
Introduction 7
To the Owner 7
Serial Number Location 8
Specifications 9
Operating Instructions 15
Instruments and Controls 15
Operator’s Compartment 15
Air Horn Button 15
Left and Right Brake Pedals 15
Foot Throttle 15
Bucket and Lift Arm Controls 15
Range Selector Lever 16
Converter Oil Temp Gauge 17
Air Pressure Gauge 17
Fuel Gauge 17
Clutch Pressure Warning
Light 17
Engine Oil Pressure Warning
Light 17
Alternator Warning Light 17
Brake Warning Light 17
Water Temperature Gauge 18
Light Switch 18
Parking Brake Control 18
Key Switch 19
Fuel Shutoff Lever 19
Tachometer 20
Electric Hourmeter 20
Air Cleaner Restric Indicator 20
Turn Signal Lever 21
Safety Flasher Lever 21
Operator’s Seat 21
Height Adjustment 21
Tilt Adjustment 21
Horizontal Adjustment 21
Seat Belt 21
Loader Controls 22
Return-To-Dig 22
Bucket Height Control 22
Engine Operation 24
Run-In 24
Starting 25
Idling 26
Stopping 26
Starting Aids 26
Machine Operation 28
Driving 28
Cold Weather Operation 30
Hot Weather Operation 31
Loader Operation 32
Job Layout 33
Filling the Bucket 33
Transporting 35
Dumping the Bucket 35
Truck Loading 35
Return-To-Dig Operations 36
Fuels and Lubricants 37
Diesel Fuel 37
Fuel Specifications 37
Fuel Storage 37
Lubricants 38
Maintenance 40
Safety Link 40
Maintenance Schedule 41
Fuels, Fluids and Lubricants Chart 43
Lubrication Points 44
Engine Lubrication System 47
Oil Level 47
Oil Change 4 7
Oil Filter 48
Air Cleaning System 49
Restriction Indicator 51
Air Cleaner Servicing 51
Cooling System 53
Radiator Cap 53
Coolant 54
Thermostats 54
Cleaning the System 56
Drive Belts 58
Fuel System 59
Cleaning the System 60
Bleeding the System 63
Servicing Fuel Filters 64
Electrical System 65
Lights 65
Starter Motor 67
Alternator 68
Battery Care 68
Specific Gravity Table 70
Hydraulic System 71
Oil Level 71
Oil and Filter Change 71
Braking System 73
Air Compressor 73
Air Reservoir 73
Master Cylinders 74
Alcohol Evaporator 7 4
Trans Torque Conv Hydraulic Sys 76
Oil Level 76
Oil Change 77
Axles 79
Oil Level 79
Oil Change 80
Wheels and Tires 81
Wheel Nut Torque 81
Tire Pressure 81
Return-To-Dig Adjustment 82
Bucket Height Control Adjustment 82
Bucket Teeth 84
Machine Storage 84
After Delivery Check-up 89
