DESCRIPTION:

Case W18 Loader Parts Catalog Manual F1169 – PDF DOWNLOAD

Indexes:

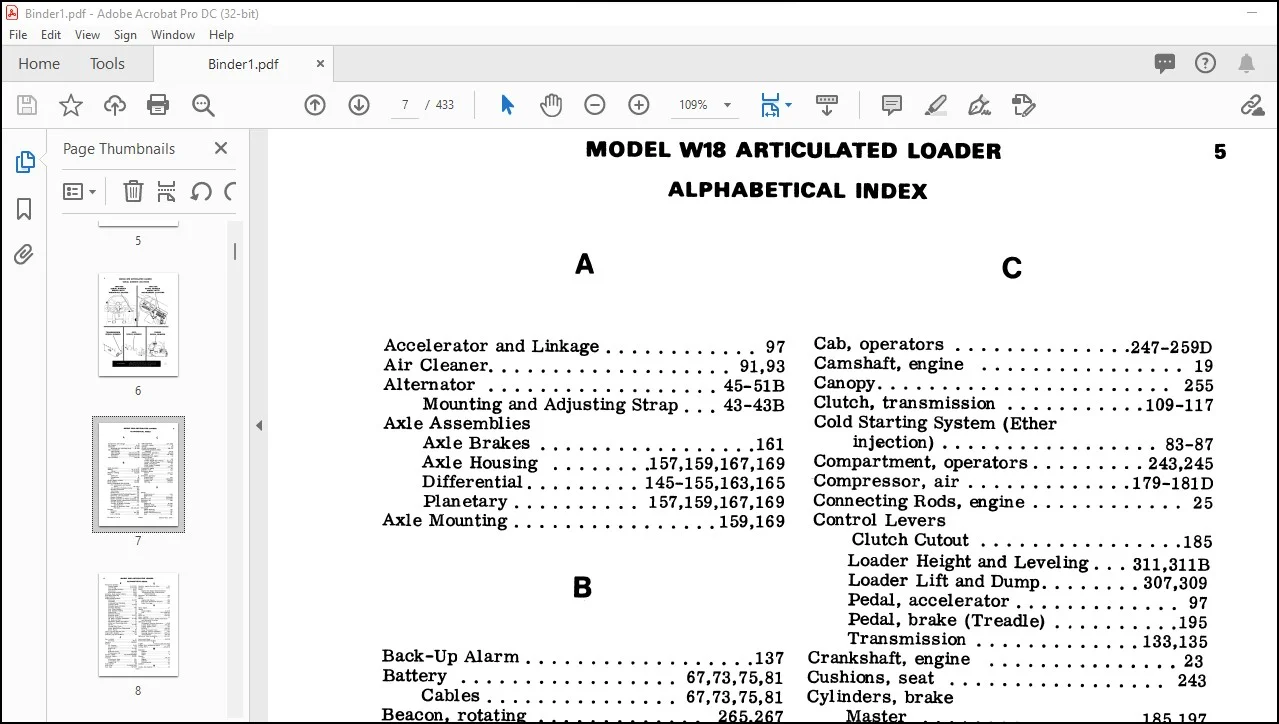

This parts catalog is arranged for easy identification on parts. The Alphabetical Index at the front of the catalog gives location of major groups and assemblies. The Numerical Index at the rear of the catalog gives part numbers and the page on which they are listed.
Abbreviations and Terms:
PIN – Product Identification Number.
SN – Serial Number.
NSS – Not sold separately.
REF – Reference. Used to clarify drawing.
RESERVED – No item listed.
UAR – Use as required.
Changes:
When changes are made to the machine, revised pages for this catalog will be issued. These pages must be inserted into your catalog as soon as they are received. Failure to keep your catalog up to date will result in confusion and may cause you to order wrong parts.
Orders :
Orders should specify correct part number, full description, quantity required, machine and engine model, machine and engine serial numbers, method of shipment and shipping address.

TABLE OF CONTENTS:

Case W18 Loader Parts Catalog Manual F1169 – PDF DOWNLOAD

A
Accelerator and Linkage 97
Air Cleaner 91,93
Alternator 45-51B
Mounting and Adjusting Strap 43-43B
Axle Assemblies
Axle Brakes 161
Axle Housing 157,159,167,169
Differential 145-155,163,165
Planetary 157,159,167,169
Axle Mounting 159,169
B
Back-Up Alarm 137
Battery 67,73,75,81
Cables 67,73,75,81
Beacon, rotating 265,267
Belts
Alternator 41
Compressor 41
Seat 245
Block, engine cylinder 21,21B
Block Heater 21,21B
Brake Assemblies and Circuits
Air Compressor and Related
Parts 179-181D
Air Pressure Protection Valve ,201
Alcohol Evaporator 203
Axle Brake 161
Brake Valve 195
Emergency Brake To Safety Chamber 1 73
Governor, air compressor 183
Master Cylinder 185,197
Master Cylinder To Wheel Cylinders 187
Parking Brake, transmission 119,173,175
Treadle Assembly 195
Treadle To Master Cylinder
and Reservoir 185
Treadle To Hydraulic Tank
and Horn 189-193,195
Buckets
St8Ildard 2 71
Teeth 271,273
4-in-1 Bucket 273
C
Cab, operators 247-259D
Camshaft, engine 19
Canopy 255
Clutch, transmission 109-117
Cold Starting System (Ether
injection) 83-87
Compartment, operators 243,245
-Compressor, air 179-181D
Connecting Rods, engine 25
Control Levers
Clutch Cutout 185
Loader Height and Leveling 311,311B
Loader Lift and Dump 307,309
Pedal, accelerator 97
Pedal, brake (Treadle) 195
Transmission 133,135
Crankshaft, engine 23
Cushicns, seat 243
Cylinders, brake
Master 185,197
Slave 161
Cylinders, hydraulic
Bucket Clam 301
Bucket Dump 299,299B
Loader Lift 295,297
Steering 217,219
D
Decals
Bucket (4-in-1) 273
Engine Data 1 7
Kit 303,303B
Defroster, cab 247,247B
Defroster, fan 249
Dipsticks
Engine Oil 21,21B
Hydraulic Tank 231,233
Transmission Oil 131
Driveshaft
Center Bearing 139
Front, axle end 139
Front, transmission end 141
Rear 141
Printed in U S A 750560 A Issued May, 1975
6 MODEL W18 ARTICULATED LOADER
ALPHABETICAL INDEX
E
Electrical Systems
Bucket Height 311,311B
Cab Wiring 247-253B
Cold Starting Systems 83-87
Harnesses 59-81
Instrument Panels 59,61
Emblem, slow moving vehicle 303D
Emergency Steering 213B
Engine Mounts 41
Engine Subassemblies
Alternator 45-51B
Camshaft 19
Crankshaft and Flywheel 23
Cylinder Block 2L21B
Cylinder Head and Cover 1 7
Flywheel Housing 23B
Fuel Filter System 33
Fuel Injection Sy~tem 31
Gasket Kits 29
Injection Nozzles 39
Injection Pump 37,37B
Injection Pump Drive 35

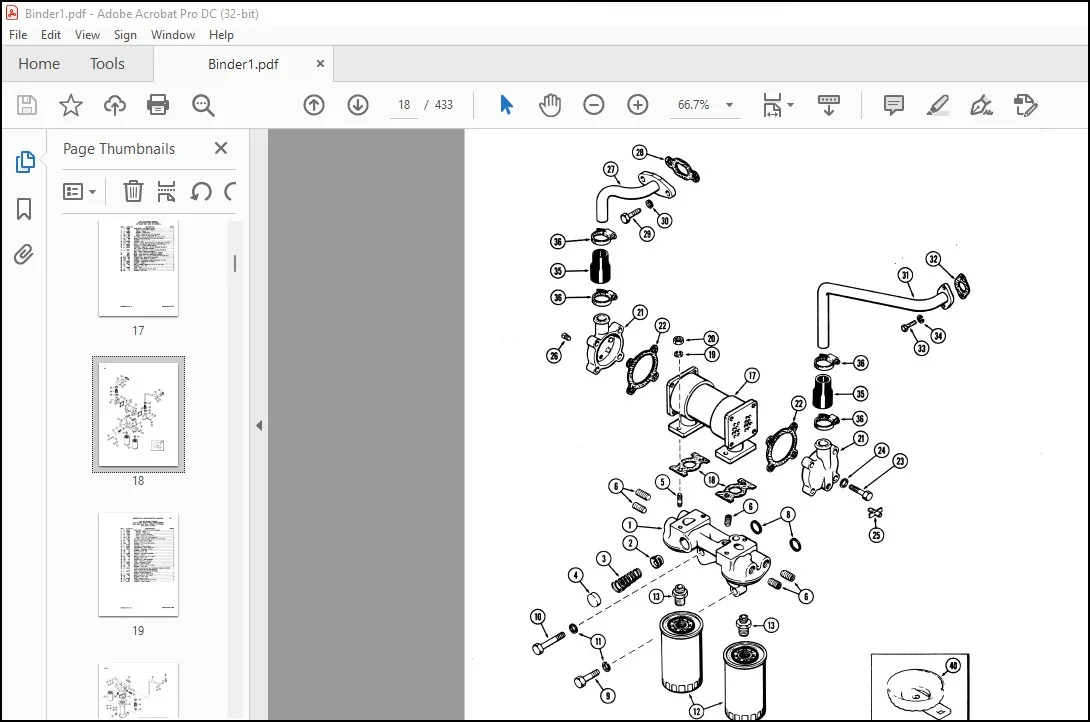

Oil Filter and Heat Exchanger 13-15B
Oil Pump and Pan 27
Manifolds, intake and exhaust 11
Piston and Connecting Rods 2 5
Starter 53-55D
Timing Gear Cover 35
Valve Mechanism 19
Water Manifold and Thermostat 9
Water Pump 9B
Ether Injection Starting Aid 83-87
Evaporator, alcohol 2 03
Exhaust, pipe and mufflers · 95
F
Fa ri, radiator 41
Mounting 9B,41
Fenders 239,241
Filters
Air Cleaner 91,93
Air, governor , 183
Engine Oil 13-15B
Fuel 33
Hydraulic Tank 231,233
Transmission Oil 127,129
Flasher Lights 253,253B,263,263B
Flywheel, engine 23,23B
Frames
Articulated, front 241
Articulated, rear 221
Loader Lift 269
Fuel Injector 39
Fuel Lines 31,33,22 7,229
Fuel Tank 22 7,229
G
Gaskets, engine (Service Kits) 29
Gauges 59-81
Gears
Engine (See Engine Subassemblies)
Transmission (See Transmission
Subassembl ies)
Governor, air compressor 183
Grille 235
Guards
Engine Side Panels 239
Roll-Over Protection Structure 255
Under Carriage 225
H
Head, engine 1 7
Heater
Block, engine 21,21B
Cab 247-247B,251
Hood 235-239
Horn, air 189-193
Hose, radiator 41
Hoses (See Fuel Lines, Brake Assemblies
and Hydraulic Circuits)
Hydraulic Circuits
Emergency Steering Hydraulics 213B
Loader Bucket (Clam) 273,293
Loader Bucket (Tilt) 291
Loader Lift 289
Primary 275,277
Pump To Loader Valve 279-287
Steering, pump to cylinders 215
Steering, pump to reservoir 209-213
Transmission 127,129
Hydraulic Tank Assemblies 231-233
I
Instrument Panel 59-65B
Instruments (See Gauges)
Lights ~ 89,253,253B,263,263B
Loader Arm, mechanical parts 269
Lockup Parts 237 ,237B
Manifold M
Exhaust 11
Intake 11
Water 9
Mounts
Axle 159,169
Engine 41
Radiator 41
Transmission 131
Mufflers 95
N
Nozzle, fuel injector 39
750561 A
MODEL W18 ARTICULATED LOADER
0
ALPHABETICAL INDEX
T
Oil Cooler, engine 13-15B
Oil Pan, engine 27
p
Parking Brake 119,173,175
Pedal, accelerator 97
Pedal, brake (Treadle) 195
Piston Assemblies, engine 25
Pulleys
Air Compressor 177 ,177B
Alternator 43,43B
Alternator and Fan Drive 23
Fan Mounting 9,41
Pump Drive, water 9B
Pumps
Engine, oil 2 7
Fuel Injection 37,37B
Fuel, electric 231
Hydraulic Oil 305
Steering, manual 207
Torque Converter 99,101
Transmission Charging 121
Water, engine 9B
R
Radiator, cooling 41
Regulator, voltage 45B,51,69, 77
Reservoirs
Air 177,177B
Fuel 227,229
Hydraulic Oil 231,233
Rims, wheel 171
Rings, engine piston 25
Rocker Arms, engine 19
Rods, connecting 25
Rods, push 19
Roll-Over Protection Structure 2 55 s
Safety Chamber 173,199
Seat Assemblies 243,245
Shafts
Axle (See Axle Assemblies)
Engine (See Engine Subassemblies)
Transmission (See Transmission
Subassemblies)
Shroud, radiator 235
Side Panels, engine 235
Sleeve, piston 25
Solenoid, starter 57
Starter engine 53-55D
Starting Aid (Ether Injection) 83-87
Steps 241
Thermostat, water temperature 9
Timing Gear and Cover, engine 35
Tire Inflation Kit 177,177B
Tools 303D
Torque Converter 99,101
Transmission Mounts 131
Transmission Subassemblies
Axle Output Shaft and Parking
Brakes 119
Charging Pump 121
Control Valve 121,123
Converter Housing, Gears and
Transmission Housing 103,105
Forward Clutch and Planetary 109,111
Front Cover, Input Shaft and Torque
Converter 99,101
High Range Clutch and Transfer
Gear 11 7
Hydraulic System 127,129
Oil Filter 127,129
Overhaul Kit 125
Reverse Clutch and Planetary 113,115
Turbine Driven Gears and Freewheel
Unit 107
Trunnion, rear frame 221
Turn Signals 253,253B,263,263B
V
Valve Mechanism, engine 19
Valve Parts, hydraulic control 321-239
Valves
Air Shutoff 189,193
Air Pressure Prote ction 189,193,201
Air Pressure Regulator 189,193,199
Brake Control 195
Breather, axle 159,169
Breather, transmission 105
Clutch Cutout 185
Emergency Brake 173,175,199
Drain, air reservoir 185
Drain, engine oil cooler ,15,15B
Drain, radiator 41
Flow Control, steering 209,211,213,213B
Horn 189,201
Loader Control, 2 spool 307
Loader Control, 3 spool 309
Tire, valve stem 171
Torque Converter 103
Transmission Control 121
Check, double 199
Wheel, steering ~ 205
Wheel, tire 1 71
Wiper, windshield 257,259B
Wire (See Electrical Circuits)
