Case W18 & W20 Articulated Loader Service Manual 9-71698 – PDF DOWNLOAD

Description

Case W18 & W20 Articulated Loader Service Manual 9-71698 – PDF DOWNLOAD

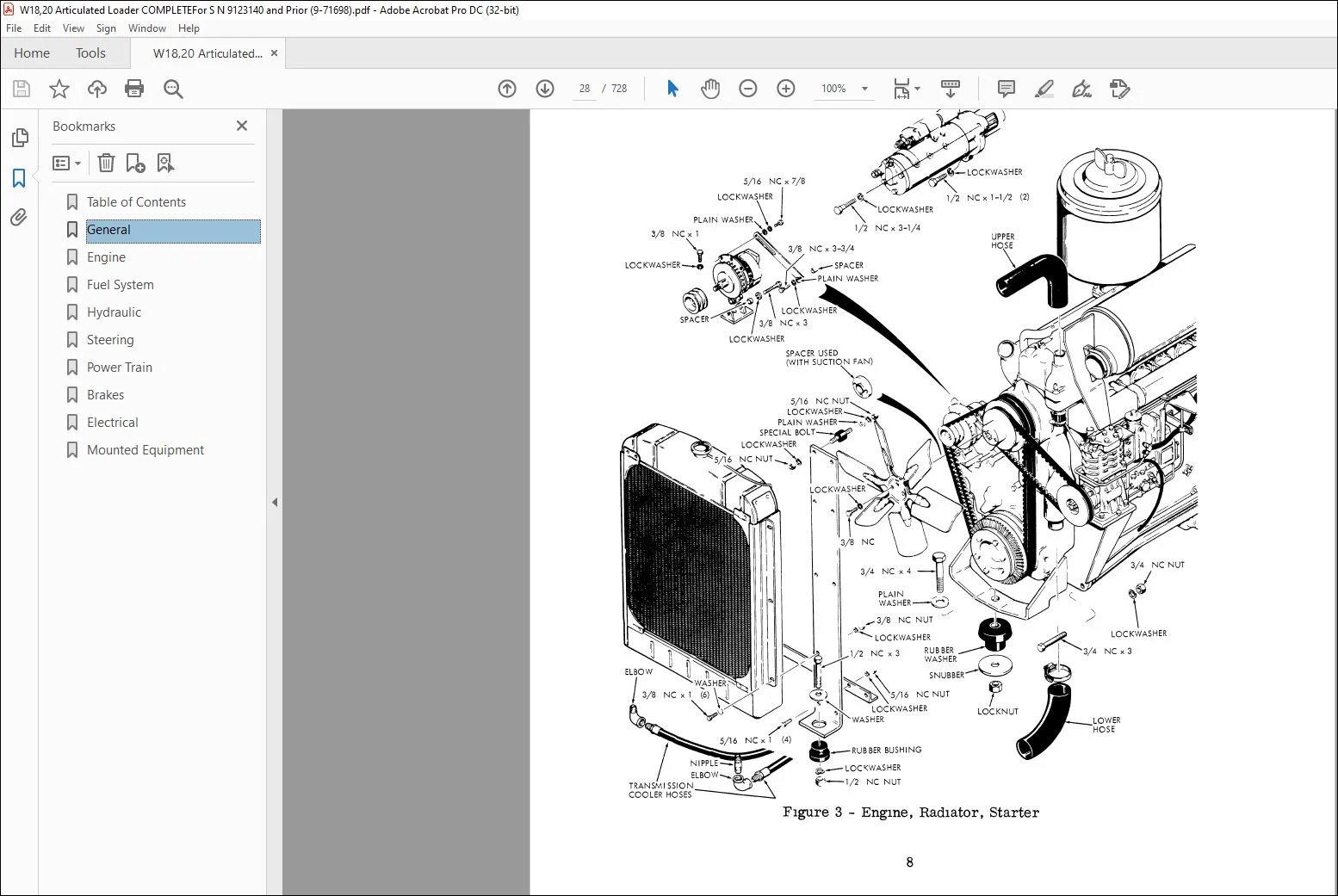

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case W18 & W20 Articulated Loader Service Manual 9-71698 – PDF DOWNLOAD

Run-In Procedure (Agricultural Tractors)
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours
DO NOT “lug” the engine. Prevent “lugging” by shifting to a lower gear. The engine must not
be “lugged” below its Rated Engine RPM during the early hours of life.
Run-In Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load. DO NOT baby
the engine, but avoid prolonged converter or hydraulic stall. Engine must not be “lugged” below
its Rated Engine RPM (Do not exceed 10 seconds of stall).
Run-In Procedure (Power Units)
For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load. For the next
(1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM). Then full load and
rated RPM as required in application.

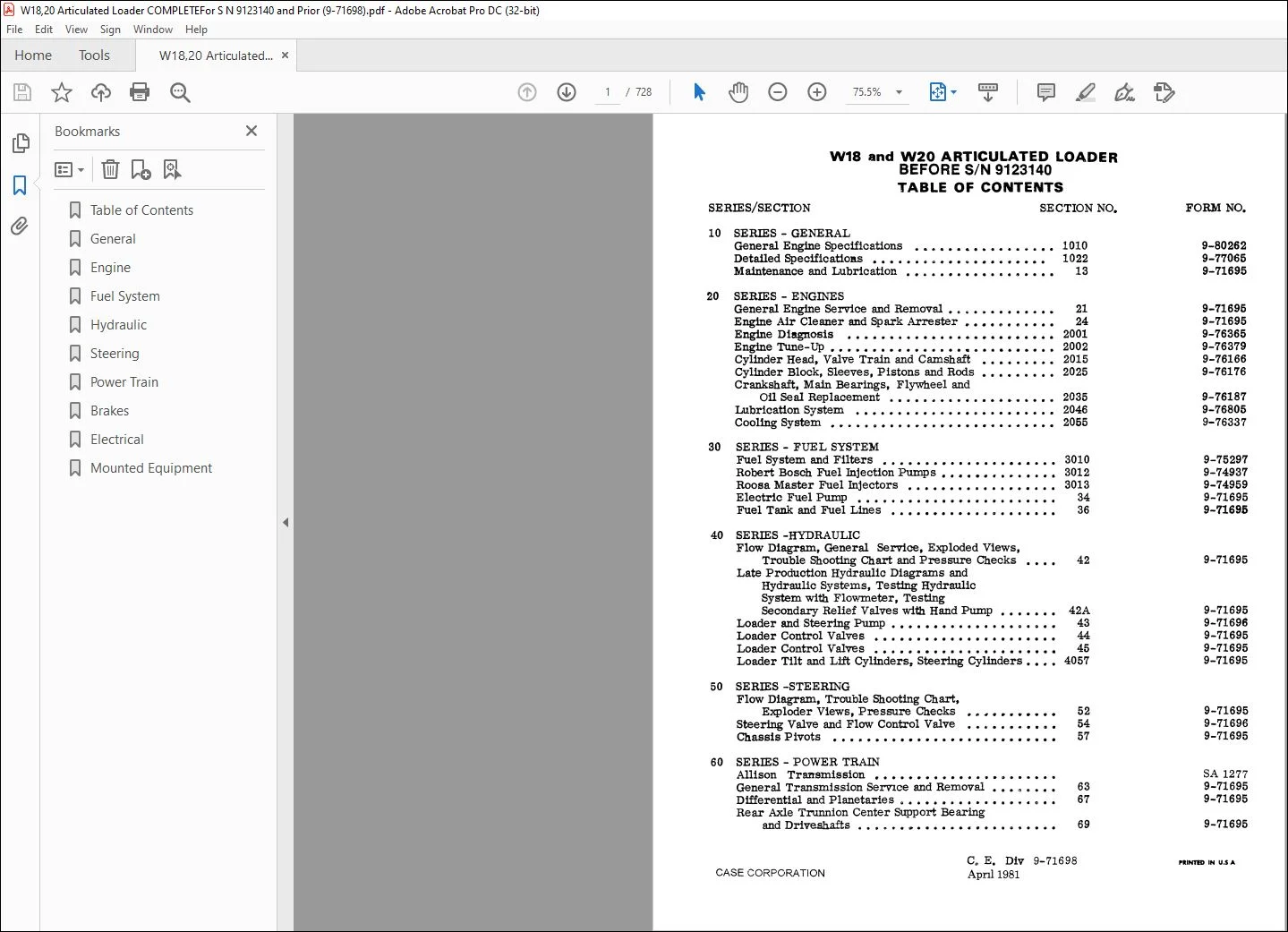

TABLE OF CONTENTS:

Case W18 & W20 Articulated Loader Service Manual 9-71698 – PDF DOWNLOAD

10 SERIES – GENERAL
General Engine Specifications
Detailed Specificatio:as
Maintenance and Lubrication
20 SERIES – ENGINES
General Engine Service and Removal
Engine Air Cleaner and Spark Arrester
Engine Diagnosis
Engine Tuneup
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearings, Flywheel and
Oil Seal Replacement

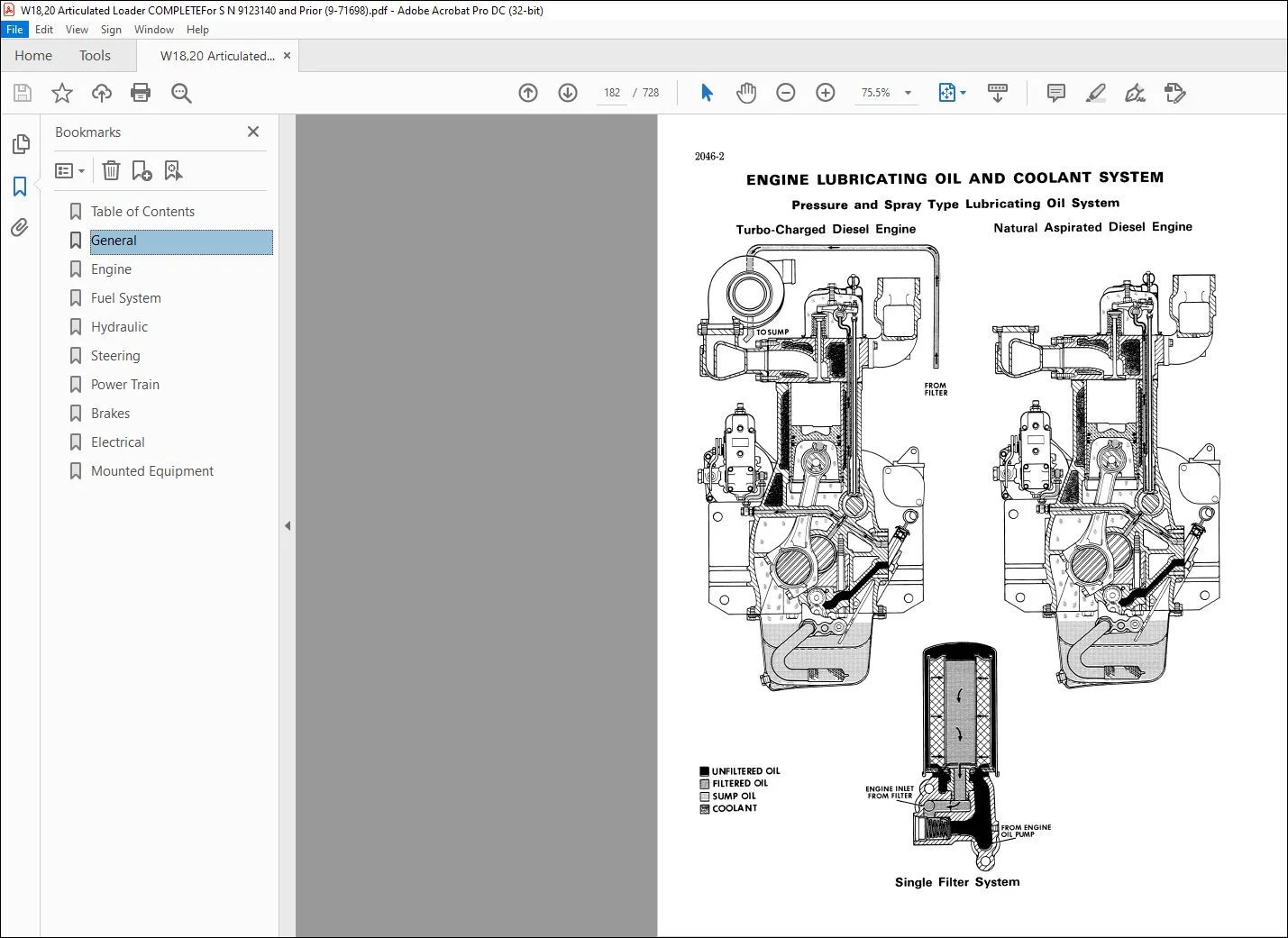

Lubrication System
Cool1n g System
30 SERIES – FUEL SYSTEM
Fuel System and Filters
Robert Bosch Fuel Injection Pumps
Roosa Master Fuel Injectors
Electric Fuel Pump
Fuel Tank and Fuel Lines
40 SERIES -HYDRAULIC
Flow Diagram, General Service, Exploded Views,
Trouble Shooting Chart and Pressure Checks
Late Production Hydraulic Diagrams and
Hydraulic Systems, Testing Hydraulic
System with Flowmeter, Testing
Secondary Relief Valves with Hand Pump
Loader and Steering Pump o o
Loader Control Valves
Loader Control Valves
Loader Tilt and Lift Cylinders, Steering Cylinders
50 SERIES -STEERING
Flow Diagram, Trouble Shooting Chart,
Exploder Views, Pressure Checks ,_
Steering Valve and Flow Control Valve ,
Chassis Pivots
60 SERIES – POWER TRAIN
General Transmission Service and Removal , 63
Differential and Planetaries e 67
Rear Axle Trunnion Center Support Bearing
70 SERIES – BRAKES
Air System Diagram and Operating Principles 71
Brakes and Air System 72
P arldng Brake Adjusbnent 7 2A
80 SERIES – ELECTRICAL
Wirin g Diagrams C, o ID o 81
Electrical System 82
30 Amp Alternator 8016
90 SERIES – MOUNTED EQUIPMENT
Bucket Cutting Edges and Loader Frame 92
Roll-over Protection structure 93

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
