Case W24 Articulated Loader Service Manual 9-99737 – PDF DOWNLOAD

Description

Case W24 Articulated Loader Service Manual 9-99737 – PDF DOWNLOAD

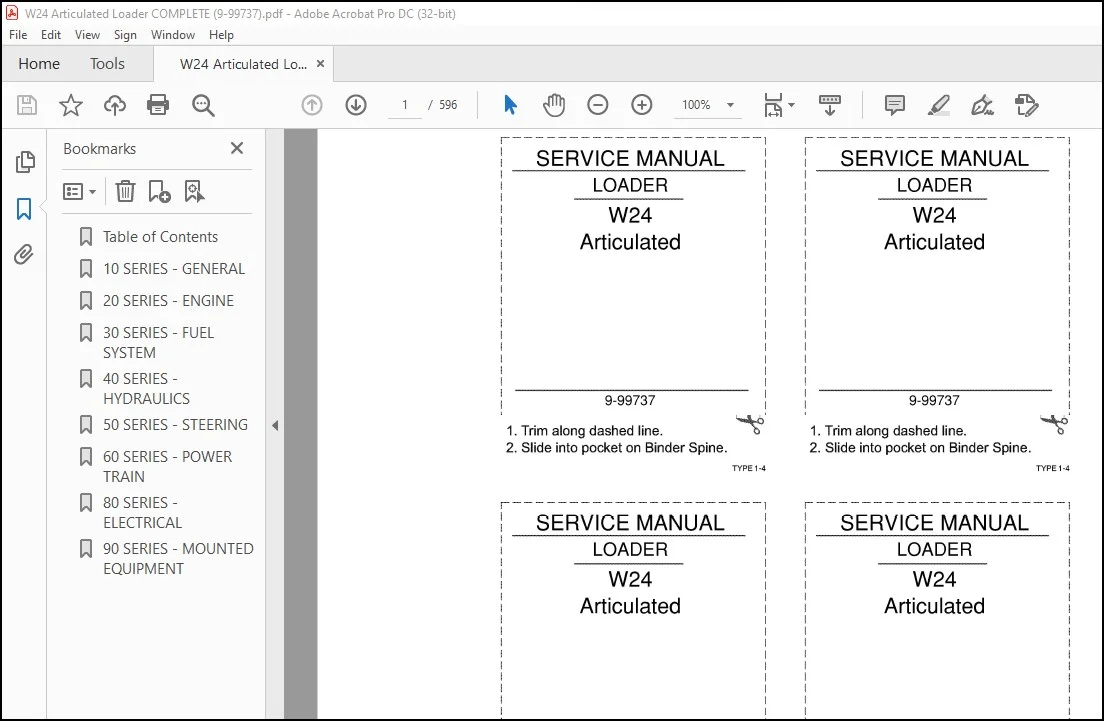

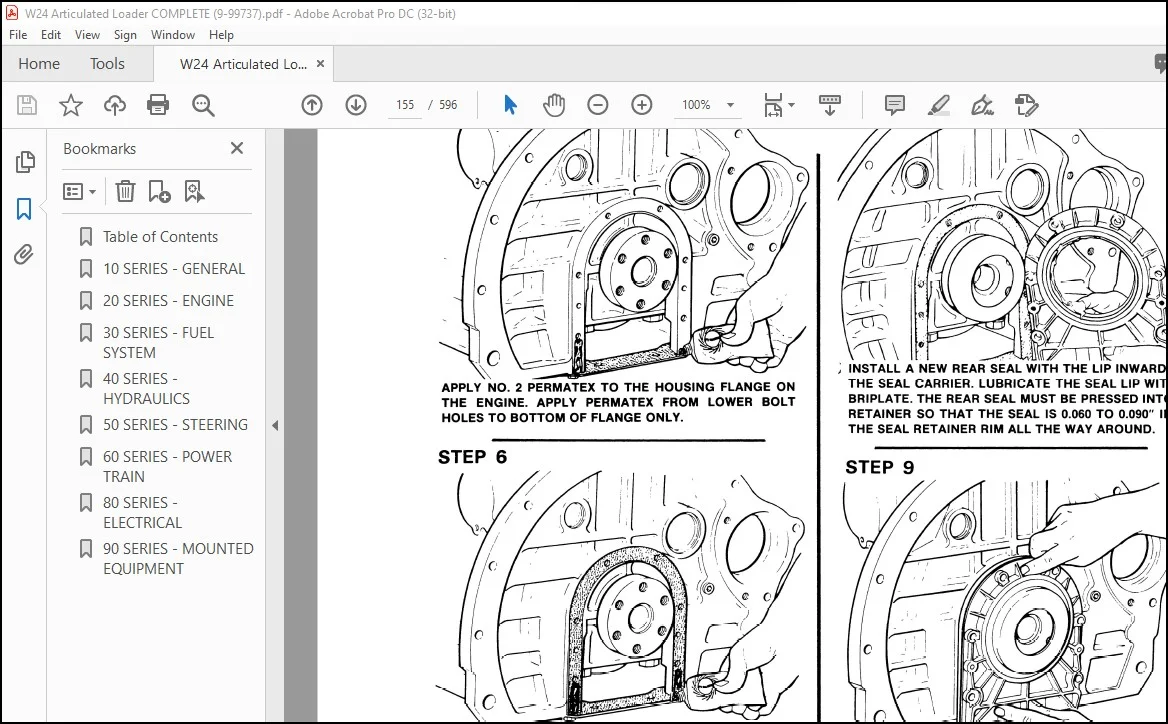

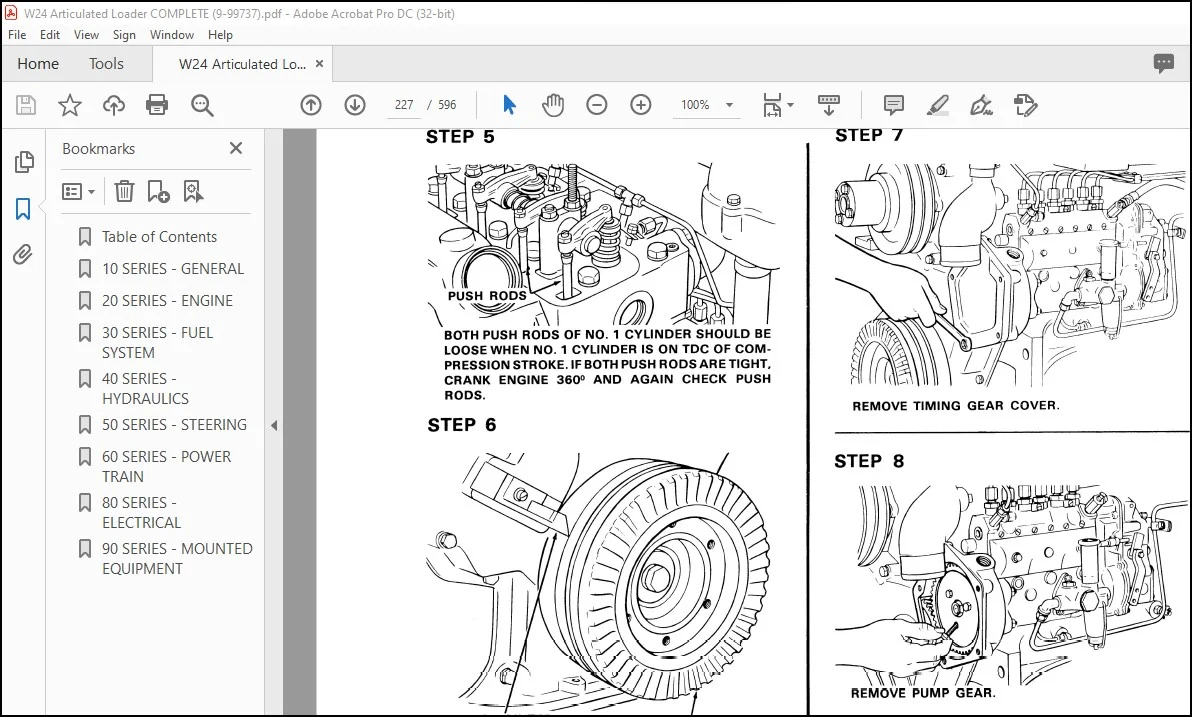

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case W24 Articulated Loader Service Manual 9-99737 – PDF DOWNLOAD

RUN-IN-INSTRUCTIONS
Engine Lubrication:

• When the engine rebuild is complete, fill the engine crankcase with Case HDM oil and install new
  engine oil filters. NOTE: If Case HDM oil is not used, use only a Series 3 DS or CD Service
  Classification oil that has the proper viscosity rating for prevailing air temperature. Refer to
  vehicle Operators Manual.
• After the first 20 hours of operation, change the engine oil while the engine is hot and replace the
  the engine oil filter Is. DO NOT DRAIN OIL UNTIL THE ENGINE HAS BEEN OPERATED 20 HOURS.
  Change the engine oil and filterl s at the recommended intervals thereafter as outlined in the
  Operator’s Manual.

Break-In Procedure for Rebuilt Engines (With a Dynamometer)
The following procedure must be implemented when using a PTO dynamometer to break-in the
engine. The dynamometer will insure control of the engine load at each speed and will eliminate
over streSSing new parts during break-in.
