Case W24B Loader Service Manual 9-72398 – PDF DOWNLOAD

Description

Case W24B Loader Service Manual 9-72398 – PDF DOWNLOAD

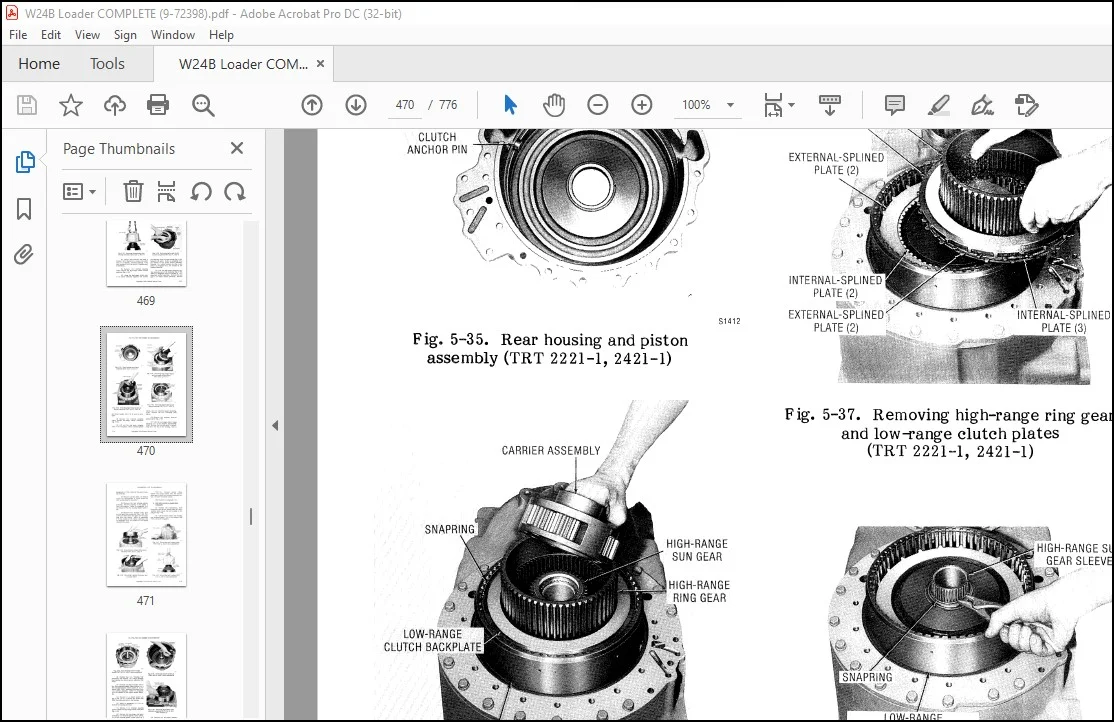

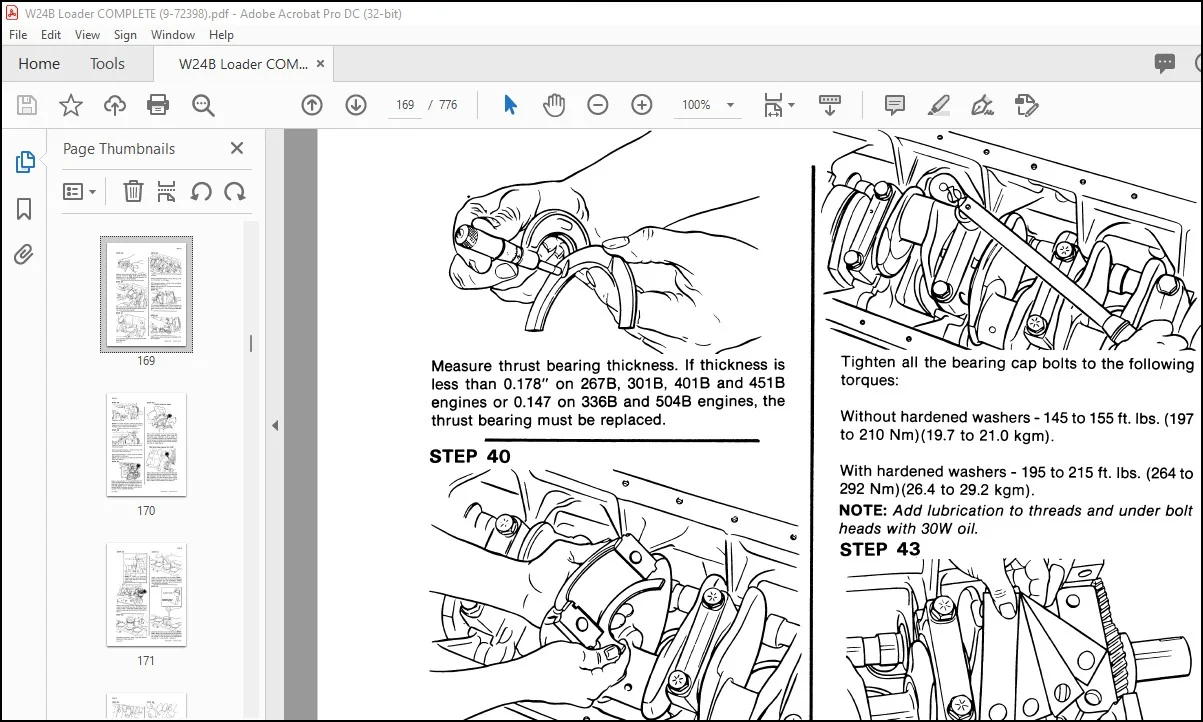

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case W24B Loader Service Manual 9-72398 – PDF DOWNLOAD

Run-In Procedure (Agricultural Tractors)
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours
DO NOT “lug” the engine. Prevent “lugging” by shifting to a lower gear. The engine must not
be “lugged” below its Rated Engine RPM during the early hours of life.
Run-In Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load. DO NOT baby
the engine, but avoid prolonged converter or hydraulic stall. Engine must not be “lugged” below
its Rated Engine RPM (Do not exceed 10 seconds of stall).
Run-In Procedure (Power Units)
For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load. For the next
(1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM). Then full load and
rated RPM as required in application.

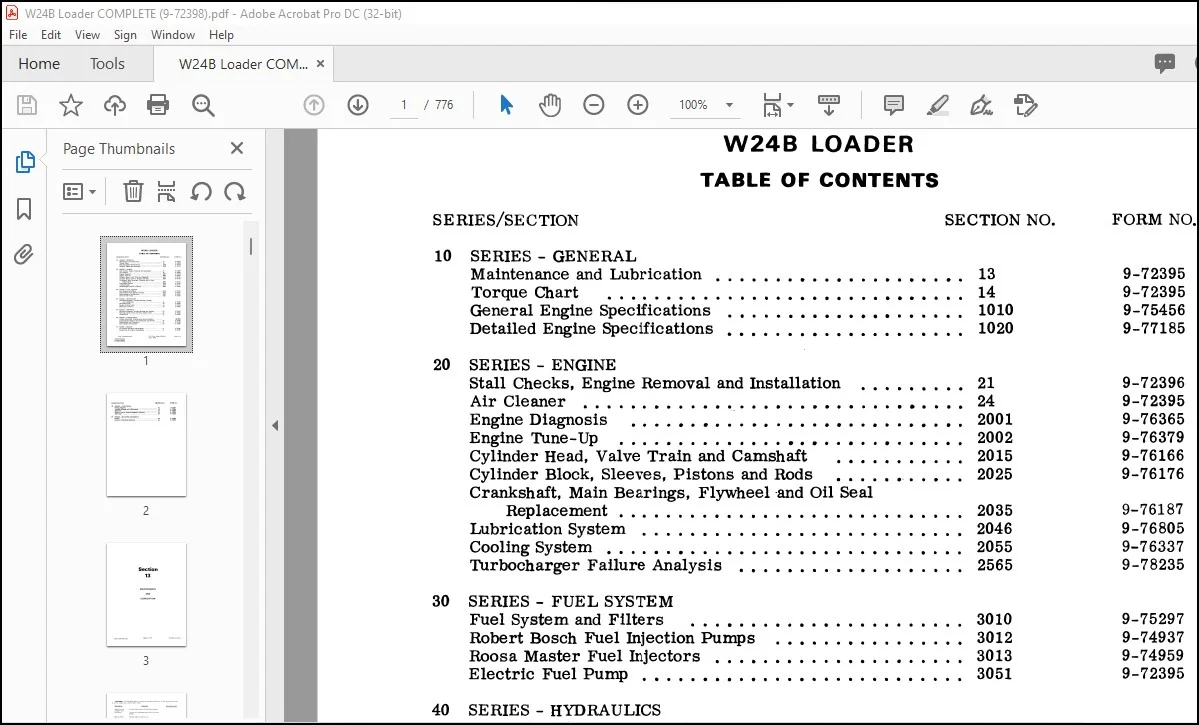

TABLE OF CONTENTS:

Case W24B Loader Service Manual 9-72398 – PDF DOWNLOAD

10 SERIES – GENERAL
W24B LOADER
TABLE OF CONTENTS
SECTION NO
Maintenance and Lubrication 13
TorqtI e Ch art 14
General Engine Specifications 1010
Detailed Engine Specifications 1020
20 SERIES – ENGINE
Stall Checks, Engine Removal and Installation 21
Air Cleaner 24
Engine Diagnosis 2001
Engine Tune-Up 2002
Cylinder Head, Valve Train and Camshaft 2015
Cylinder Block, Sleeves, Pistons and Rods 2025
Crankshaft, Main Bearings, Flywheel -and Oil Seal
Replacement 2035
Lubrication System 2046
Cooling System 2055
Turbocharger Failure Analysis 2565
30 SERIES – FUEL SYSTEM
Fuel System and Filters 3010
Robert Bosch Fuel Injection Pumps 3012
Roosa Master Fuel Injectors 3013
Electric Fuel Pump 3051
40 SERIES – HYDRAULICS
Hydraulic Diagram, Trouble Shooting, Testing
and Adjustments 42
Hydraulic Pump 43
Loader Control Valve 44
Hydraulic Cylinders 46
50 SERIES – STEERING
Hydraulic Diagram, Trouble Shooting and Testing 52
Steering Control Valve and Flow Control Valve 54
Center Pivot 57
60 SERIES – POWER TRAIN
Allison Powershift Transmission Service Manual
Transmission Removal and Installation and Service 63
Differentials and Planetaries 67
Drive Shafts and Trunnion 69
70 SERIES – BRAKES
Air System Operation and Diagram
Brakes and Air System Components
CASE CORPORATION
80 SERIES – ELECTRICAL
Wiring Diagram 81
Trouble Shooting and Adjustments 82
Batteries 84
Starter, Starter Solenoid Magnetic Switches 85
Alternator 86
90 SERIES – MOUNTED EQUIPMENT
wader 92
Rollover Protection Structure 93
