CASE W7 LOADER SERVICE REPAIR MANUAL (9-76762) CASE W7 LOADER – PDF Download

Description

CASE W7 LOADER SERVICE REPAIR MANUAL (9-76762) CASE W7 LOADER

CASE W7 LOADER SERVICE REPAIR MANUAL (9-76762) CASE W7 LOADER – PDF DOWNLOAD:

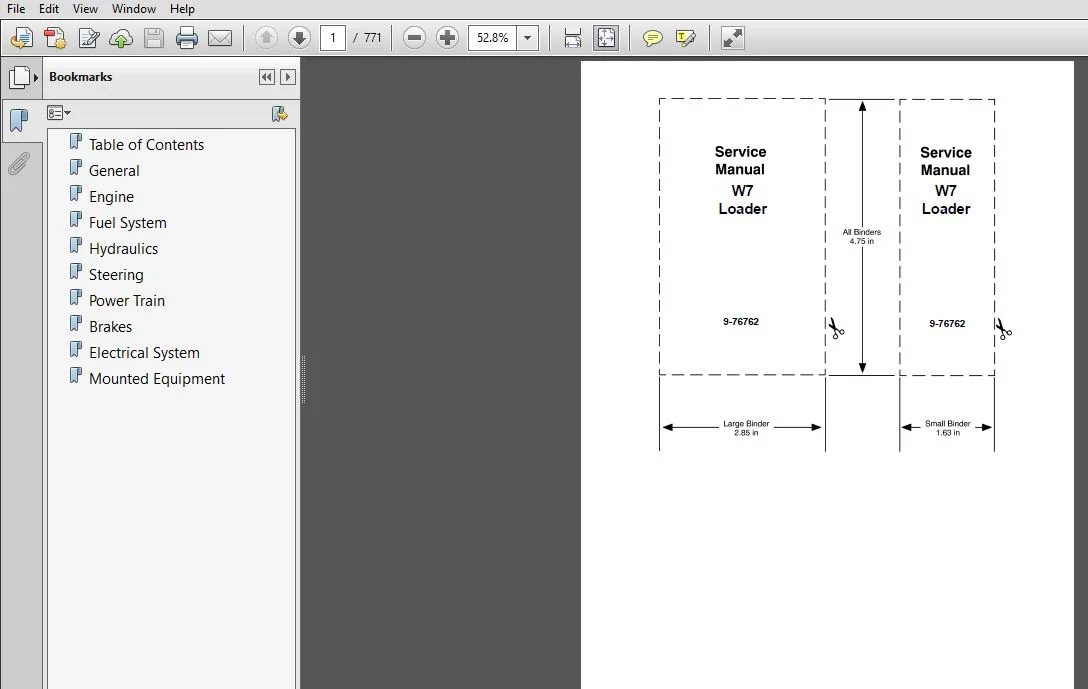

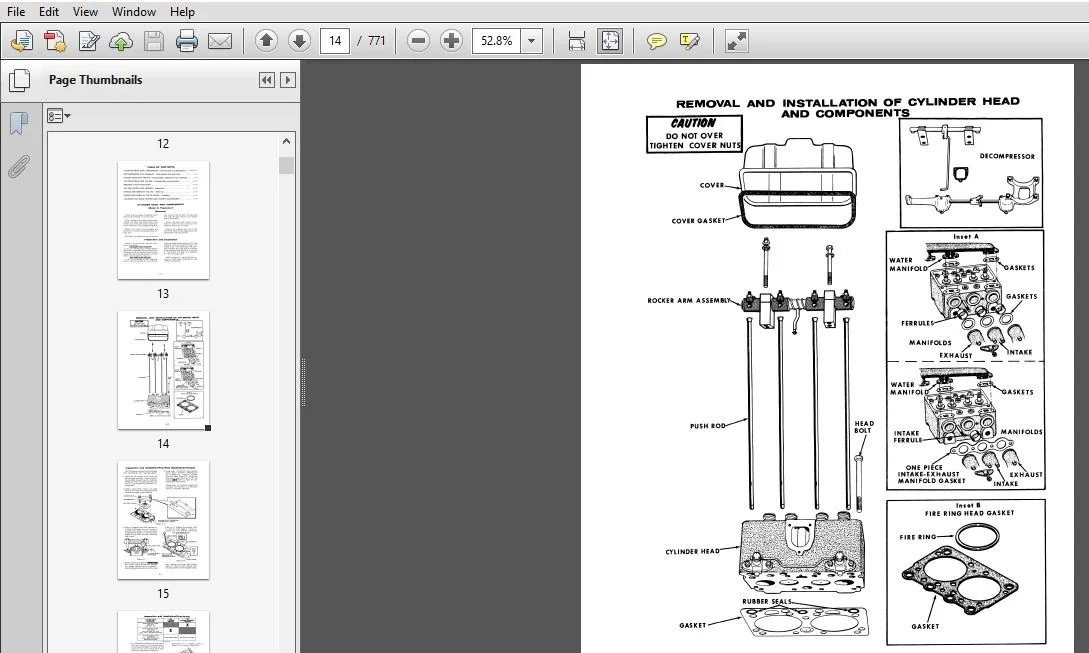

Image Preview:

Description:

CASE W7 LOADER SERVICE REPAIR MANUAL (9-76762) CASE W7 LOADER

• Before refacing the valves they shouldbe wire brushed, cleaned and inspected. Refer to the “Specification” Section for the correct valve face grinding angle. Set the refaoing machine protractor at this angle. Be sure the chuck of the machine is cleanbefore instaling. valve. Dress the grinding wheel before starting to rei‘ace each valve. Take only light cuts as the valve is refaced and the last out must be very fine so the valve face will have a polished finish.
• Replace any valve that after grinding has a thin edge or margin (Referto Figure L-Zl). If the margin on the ground valve is less than half the margin on a new valve replace the valve.
• The tip end of the valve should be checked for roughness or wear. Usually this can be removed with some very light cuts against the side of the grinding wheel andwill square up the end. Any excessive grinding should not be done to the stem end. Replace the valve.
• Before installing new valves 3. fine finish grinding should be done to each new valve. Check the valve face and valve stem runout before installing (Refer to Page L-ll).
• The valve face and seat contact location should be checked. Place valve billing (Prussion,Blue) on the face of the valve. Install the valve in the head and rotate the valve on its seat. Remove the valve and inspect the contact area on the valve face. The bluing will have been removed from the valve face evenly at the top edge of the contact area(Refer to Figure L-22) . This is due to the fact that the valve face and seat are ground with 1°INTERFERENCE ANGLE. Refer to “Specification” Section.

Table of Contents:

CASE W7 LOADER SERVICE REPAIR MANUAL (9-76762) CASE W7 LOADER

Table of Contents
....  2
General
..............  4
Engine
 .............. 12
Fuel System
..........134
Hydraulics
...........206
Steering
.............322
Power Train
..........378
Brakes
...............498
Electrical System
....600
Mounted Equipment
....644

Please Note:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
