Case W8B, W9B, W10B Loaders Service Repair Manual (9-76802) Case W8B, W9B, W10B – PDF DOWNLOAD

Description

Case W8B, W9B, W10B Loaders Service Repair Manual (9-76802) Case W8B, W9B, W10B

CASE W8B, W9B, W10B LOADERS SERVICE REPAIR MANUAL (9-76802) CASE W8B, W9B, W10B – PDF DOWNLOAD:

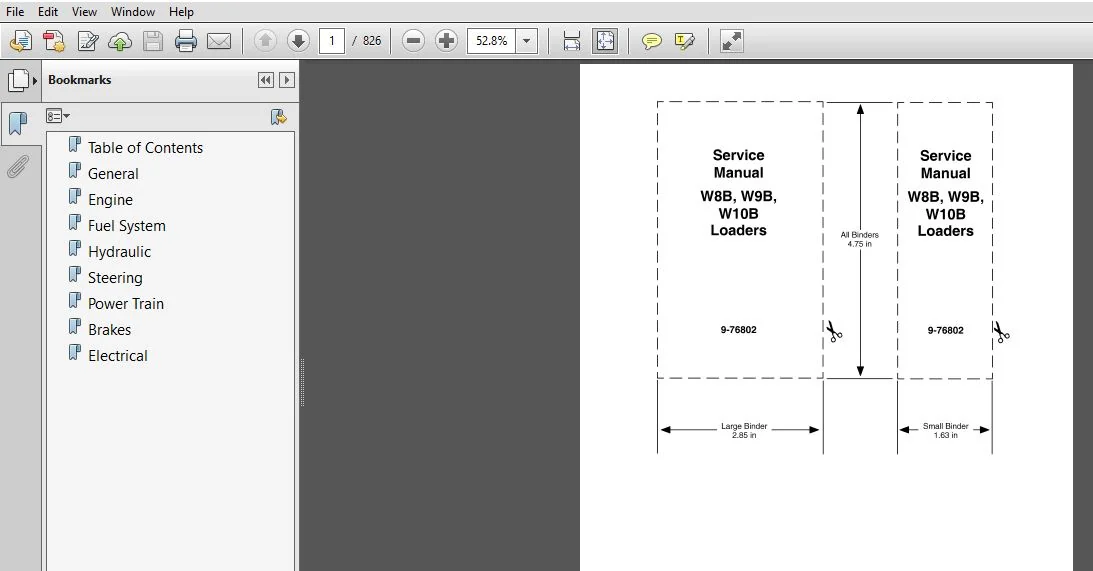

Image Preview:

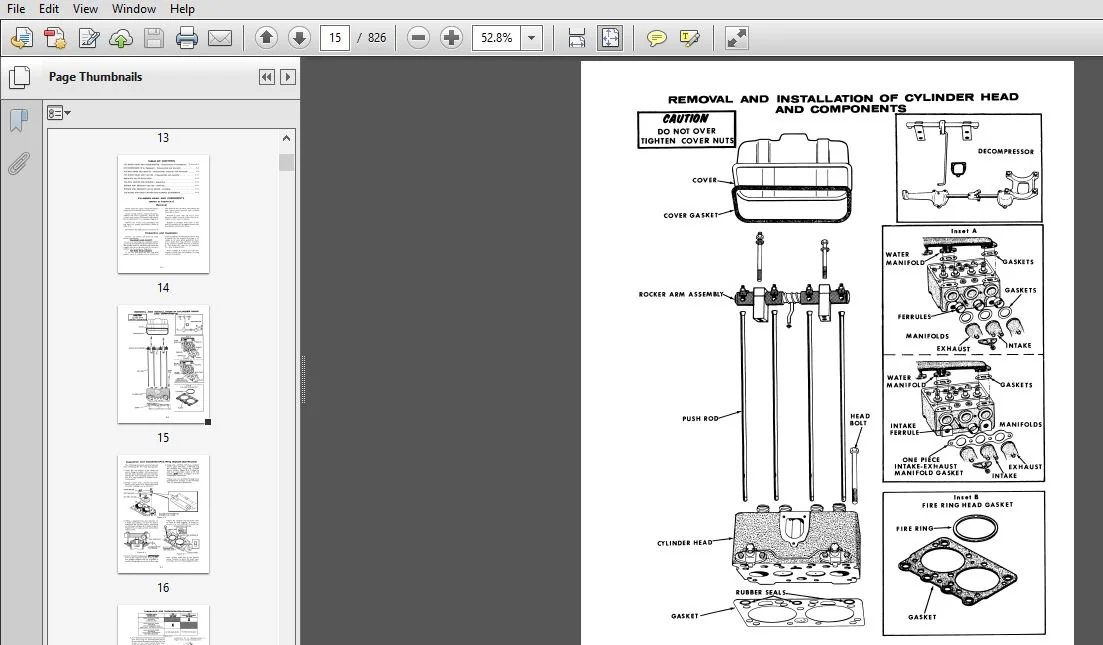

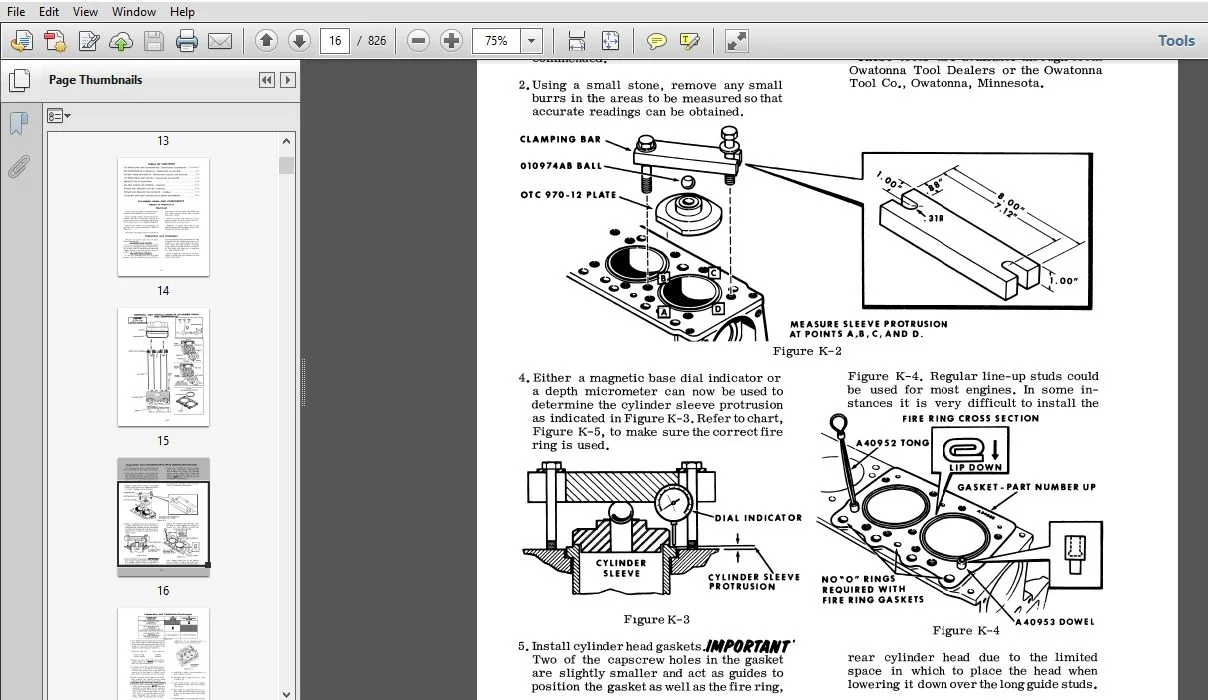

Sample Page from The Manual:

Case W8B, W9B, W10B Loaders Service Repair Manual (9-76802) Case W8B, W9B, W10B

• Heavy carbon or varnish deposits on the valve (Refer to Figure L-15) should be removed before valves are ground. This condition is usually caused by worn piston rings and sleeves which allow too much oil to reach the combustion chamber. This condition could also be caused by worn valve guides or no seals on the intake valves. Low operating temperature is still another cause. These conditions should be corrected or the same trouble with the valves will happen again.
• Inspect the valve head for dishing and the valve face for deep burned spots, Figure L-16. These conditions can’t be corrected by grinding the valves. The valves should be replaced. These conditions are usually caused by running the engine under excessive load at high engine temperatures.
• Valves with worn keeper grooves or the stem is worn or dished beyond the chamfer must be replaced (Refer to Figure L-17).
• The checking of the valve stem diameter can best be done with a good accurate micrometer (Refer to Figure L-18) ,The valve stem should not vary more than the wear limits given in the “Specification” Section at any point on the valve stem. Ifthis condition exists the valves must be replaced.
• The checking of the valve face runout should be done after the valves have been ground. A Vee block type holder with a dial indicator(Refer to Figure L-19)should be used to check the valve face runout. The valve face should not vary more than the specification given in the “Specification” Section. The valve stem runout can also be checked with this Vee block and dial indicator.

Table of Contents:

Case W8B, W9B, W10B Loaders Service Repair Manual (9-76802) Case W8B, W9B, W10B

Table of Contents....  3
General..............  5
Engine............... 13
Fuel System..........115
Hydraulic............179
Steering.............481
Power Train..........543
Brakes...............651
Electrical...........739
