Case W9, W9A, W10 and W12 loaders Service Repair Manual (9-76832) – PDF DOWNLOAD

Description

Case W9, W9A, W10 and W12 loaders Service Repair Manual (9-76832)

CASE W9, W9A, W10 AND W12 LOADERS SERVICE REPAIR MANUAL (9-76832) – PDF DOWNLOAD:

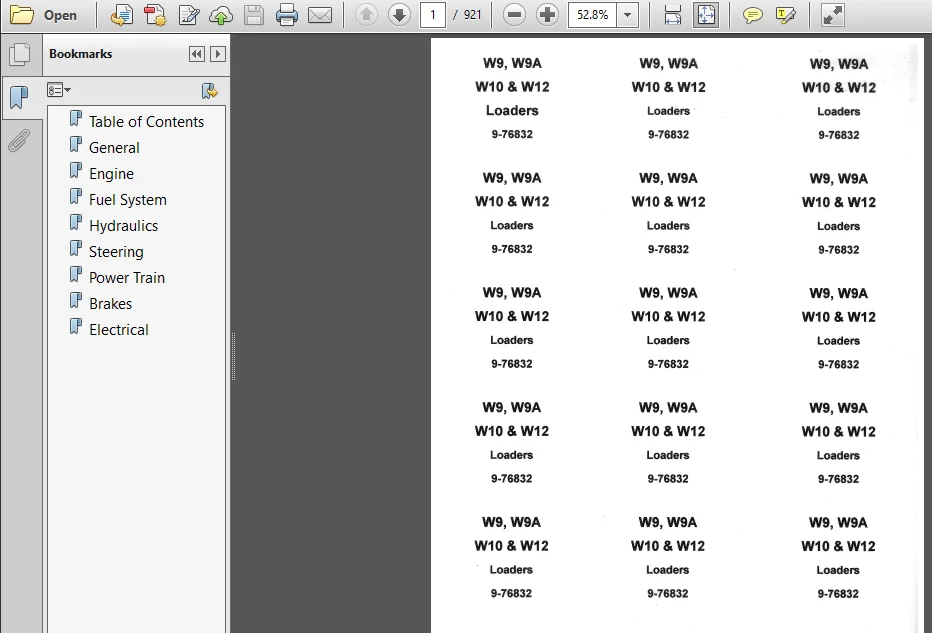

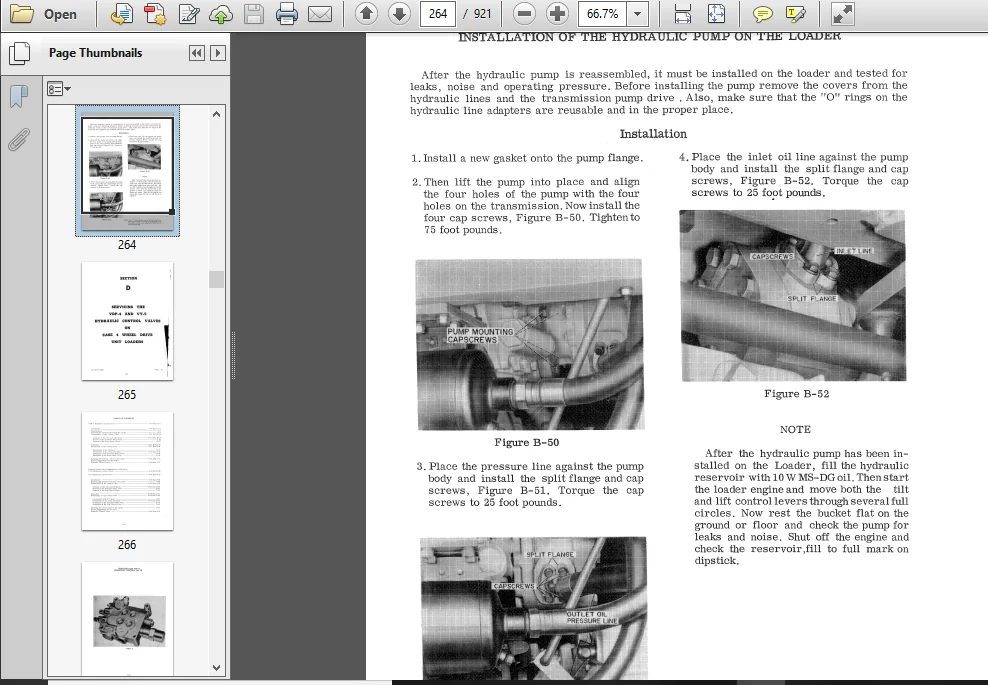

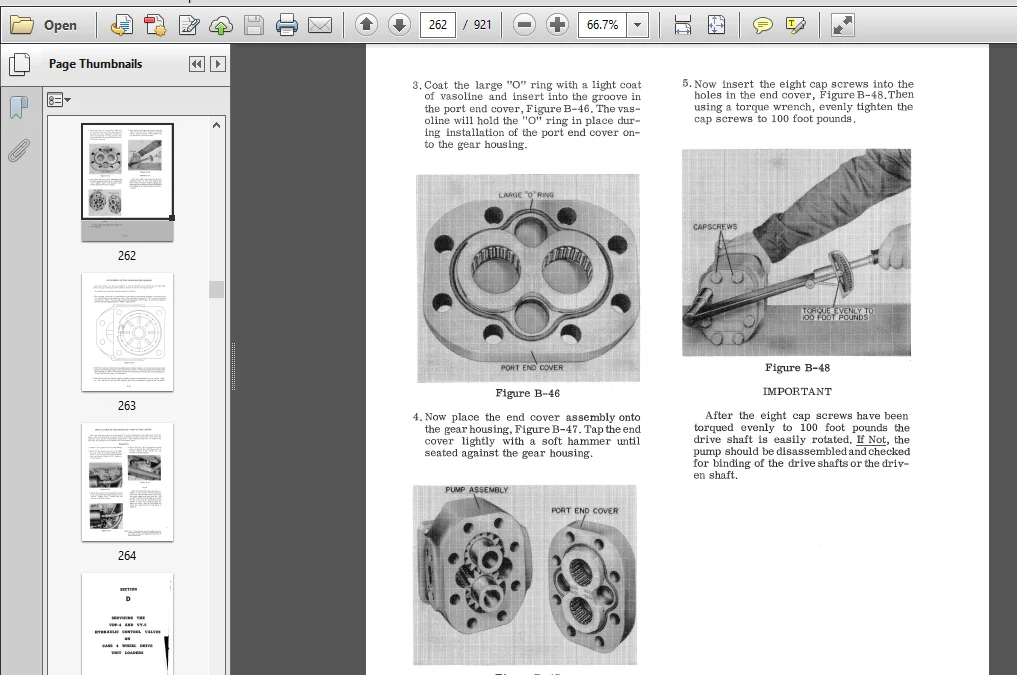

IMAGE PREVIEW:

SAMPLE PAGE FROM THE MANUAL:

Case W9, W9A, W10 and W12 loaders Service Repair Manual (9-76832)

• Clean all parts thoroughly. Place new bushing on Arbor and press into the cast rocker arm so the bushing (12) is evenly centered in the rocker arm and the oil hole is lined up with the oil hole in the rocker arm, (See Inset A). Check the bushing for high or rough spots and if they exist, they should be honed out.
• Install new oil wick (11) in the exhaust rocker arm. Lubricate each part with engine oil as they are installed.
• Install a shaft spring (9) and two intake rocker arms (8) on the shaft (4). When installing the cast rocker arms the adjusting screw and the shaft oil hole must he on the same side, (See Inset A).
• When installing the stamped steel rocker arms the adjusting screw and the shaft oil hole must be en opposite sides (Seeinsot B).
• Install the shaft brackets (7) on the shaft with the split Side toward the push rod side of the engine. Install the exhaust rocker arms

TABLE OF CONTENTS:

Case W9, W9A, W10 and W12 loaders Service Repair Manual (9-76832)

Table of Contents
....  3
General
..............  5
Engine
............... 21
Fuel System
..........139
Hydraulics
...........211
Steering
.............383
Power Train
..........531
Brakes
...............737
Electrical
...........865

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
