DESCRIPTION:

Case Wheel Loader 521E 621E 721E 821E QUICK COUPLER (OWNER/OPERATOR)MANUAL (87493852 )_EN_FR_ES – PDF DOWNLOAD

GENERAL INFORMATION
TO THE OWNER/OPERATOR

The Attachment Quick Coupler System and Case Coupler Bucket will give your machine increased
versatility and function. Combined with Case quality, it will put your machine on the fast track
for increased productivity. The ease of coupling, combined with a remote locking control allows for
a single operator to handle the attachment coupling and uncoupling operation without special tools
and without leaving the cab.
Read this manual and your machine’s Operator’s Manual before you start the engine or operate the
machine with the attachment quick coupler system and bucket. If you need more information, see your
Case dealer.
With experienced and trained technicians, your Case dealer can provide the best methods of
repair and maintenance for the attachment quick coupler system, as well as for your machine and
all attachments.
Use this manual as a guide. It includes safety guidelines, coupling and uncoupling steps,
operation and maintenance information.
DO NOT OPERATE or permit anyone to operate or service the machine and/or attachments until you or
the other persons have read and understand the safety, operation and maintenance instructions in
this manual, as well as the Operator’s Manual for your specific machine. Use only trained operators
who have demonstrated the ability to operate the machine correctly and safely.
The wheel loader with the attachment quick coupler system and bucket is intended to be used for
digging and general earth moving purposes such as land leveling, truck loading, and material
rehandling.
DO NOT use this machine for any application or purpose other than those described in this manual.
If the loader is to be used in an application that involves special attachments or equipment, such
as forestry, etc., consult an authorized dealer. Consult an authorized dealer on changes, additions
or modifications that can be required for this machine to comply with various country regulations
and safety requirements. Unauthorized modifications may cause serious injury or death. Anyone
making such unauthorized modifications is responsible for the consequences.
Always keep this manual in the manual storage compartment along with the machine Operator’s Manual
and other safety information. Make sure the manual is always complete and in good condition. If you
wish to obtain additional copies, consult your dealer.
Your dealer can supply any additional information you require. He will also provide any after-sales
service and genuine Case replacement parts, your guarantee of quality and match.

TABLE OF CONTENT:

Case Wheel Loader 521E 621E 721E 821E QUICK COUPLER (OWNER/OPERATOR)MANUAL (87493852 )_EN_FR_ES – PDF DOWNLOAD

TO THE OWNER/OPERATOR……………………………………………………… 3
Operator Manual Storage Comp;hm
Identification Numbers
Model, Serial Number, and Year of Manufacture………………………………………… 4
Safety Rules…………………………………………………………………. 5
PERSONAL SAFETY…………………………………………………………….. 5
General……………………………………………………………………. 6 P
Starting and Stopping Precautions………………………………………………….. 6
Operating Precautions………………………………………………………….. 6
Safety Precautions Specific to Attachment and Coupler…………………………………… 7
Maintenance and Maintenance cautions……………………………………………… 7
OPERATING INSTRUCTIONS……………………………………………………… 9
Coupling to the Attachment………………………………………………………. 9
Uncoupling from the Attachment………………………………………………….. 11
SPECIFICATIONS 521E WHEEL LOADER…………………………………………….. 12
SPECIFICATIONS 621E WHEEL LOADER…………………………………………….. 19
SPECIFICATIONS 721 E WHEEL LOADER…………………………………………….. 26
SPECIFICATIONS 821E WHEEL LOADER…………………………………………….. 33

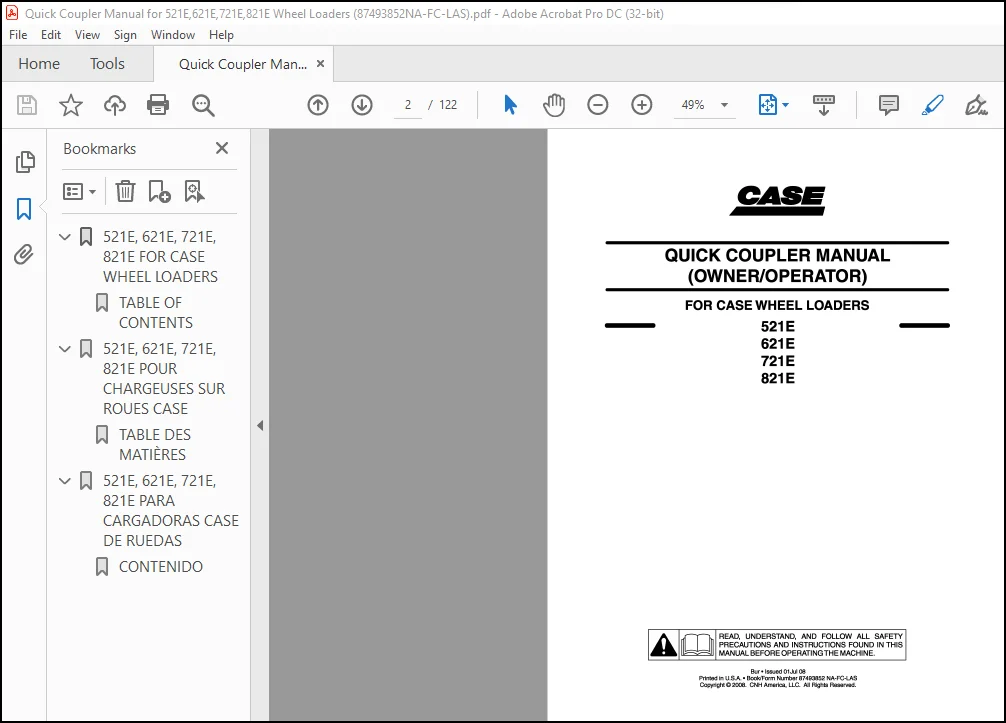

IMAGES PREVIEW OF THE MANUAL:
