CAT Beamed Stageloader DBT Impact Roll Crusher SB0916 Operation & Maintenance Manual – PDF DOWNLOAD

Description

CAT Beamed Stageloader DBT Impact Roll Crusher SB0916 Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

CAT Beamed Stageloader DBT Impact Roll Crusher SB0916 Operation & Maintenance Manual – PDF DOWNLOAD

About this manual

This chapter provides important information making it easier for you to use this manual. You will also be given information on the structure of the manual and the symbols and characters used

Before starting work

This operating manual is designed for the following crusher plant. It is only permitted to be used for this crusher plant (subject to change):

DBT Mineral Processing crusher plant SB 0916
Object-No.: 55274900000000
Mach.-No.: 500
Send for a new manual immediately if the present manual is no longer complete or has become illegible

Who is this operating manual intended for?

This operating manual is intended for those persons who work with or on the crusher plant. It is the customer’s / operator’s responsibility that all persons, who work with this plant, know this operaring manual. It must be realized and accessible.

This includes persons:
? are in charge of transport
? perform assembly/disassembly work
? operate the crusher plant
? eliminate faults
? perform daily routine work on site
? perform maintenance work
? perform repair work
Supervisory personnel who:
? initiate and/or
? supervise the activities just indicated

What is the purpose of this operating manual?

• This operating manual is intended to help you working efficiently and safely with our product. It contains important information on all the activities releated to the crusher plant.
• Pay special attention to the safety instructions.
• If any details are not clearly understood, please contact our service department. Our service address is given on the title and on the first side of this operating manual.
• Read the chapter “For your safety” with special attention. This chapter contains important information indicating possible hazards. Observe the information given and follow the procedural instructions

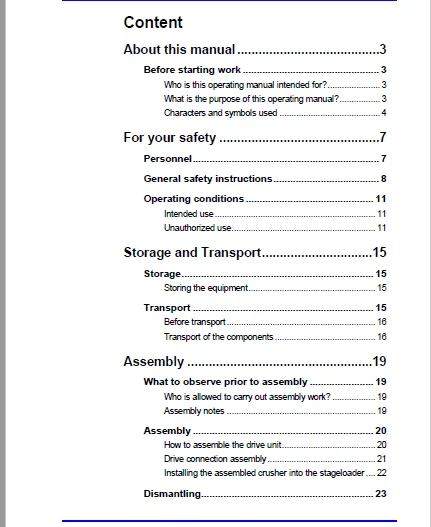

TABLE OF CONTENTS:

CAT Beamed Stageloader DBT Impact Roll Crusher SB0916 Operation & Maintenance Manual – PDF DOWNLOAD

About this manual 3
Before starting work 3
Who is this operating manual intended for? 3
What is the purpose of this operating manual? 3
Characters and symbols used 4
For your safety 7
Personnel 7
General safety instructions 8
Operating conditions 11
Intended use 11
Unauthorized use 11
Storage and Transport15
Storage 15
Storing the equipment 15
Transport 15
Before transport 16
Transport of the components 16
Assembly 19
What to observe prior to assembly 19
Who is allowed to carry out assembly work? 19
Assembly notes 19
Assembly 20
How to assemble the drive unit 20
Drive connection assembly 21
Installing the assembled crusher into the stageloader 22
Dismantling 23
BI619006
Technical data 27
Technical data sheet 27
Main components28
Components 29
Technical description 30
Crusher housing, substructure and pan 30
Impact roll30
Impact element32
Roll height adjustment33
Central lubrication 33
Tightening torques34
Screws resp nuts with metric coarse thread DIN 1334
Permissible media35
Lubricating greases 35
Hydraulic fluids 35
Operation 39
Commissioning of the crusher plant 39
Before commissioning 39
Notes for electrics40
Test run and start up 40
Operation of the crusher plant41
General 41
Roll height adjustment42
Maintenance44
Maintenance acc to schedule45
Lubrication46
Changing the impact elements47
Spare parts and special tools 48

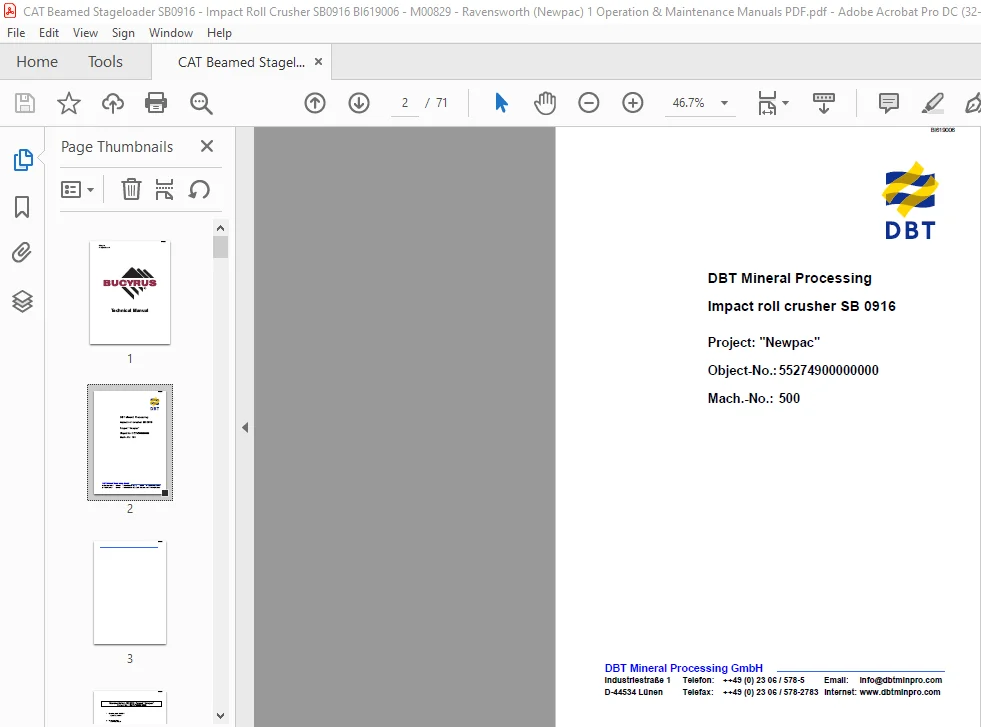

IMAGES PREVIEW OF THE MANUAL:
