Cat Bucyrus 1260-W Walking Dragline Operator’s Manual BI615833 – PDF DOWNLOAD

Description

Cat Bucyrus 1260-W Walking Dragline Operator’s Manual BI615833 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus 1260-W Walking Dragline Operator’s Manual BI615833 – PDF DOWNLOAD

Language : English
Pages : 33
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus 1260-W Walking Dragline Operator’s Manual BI615833 – PDF DOWNLOAD

FOREWORD:

• This manual establishes guidelines and furnishes general instructions for the operation of the
  Model 1260-W Walking Dragline.
• The Walking Draglines are electrically powered machines. They consist of four major
  units: the base, the revolving frame, propel equipment, and the front end equipment.
  The base provides a foundation for the swing rack and the lower rail and rollers.
• The revolving frame is mounted on the base and contains all machinery and controls to operate
  the dragline. The machinery house encloses the revolving frame completely with the
  exception of the walking cams and shoes. The operator’s cab is also mounted on the revolving
  frame and contains the operator’s station.
• The walking mechanism consists of the propel motors and gear reductions, inside the
  machinery house, and external cams and shoes.
• The front end equipment consists of the mast, boom, upper, lower and intermediate
  structural strands, the “A” Frame and the running ropes.
  Familiarize yourself with the contents of this manual so that you can easily locate particular
  infor­ mation when you need it.
• Bucyrus-Erie Company reserves the right to continually improve its products. Therefore changes to
  the equipment covered herein may have been made which are not reflected in this
  manual.

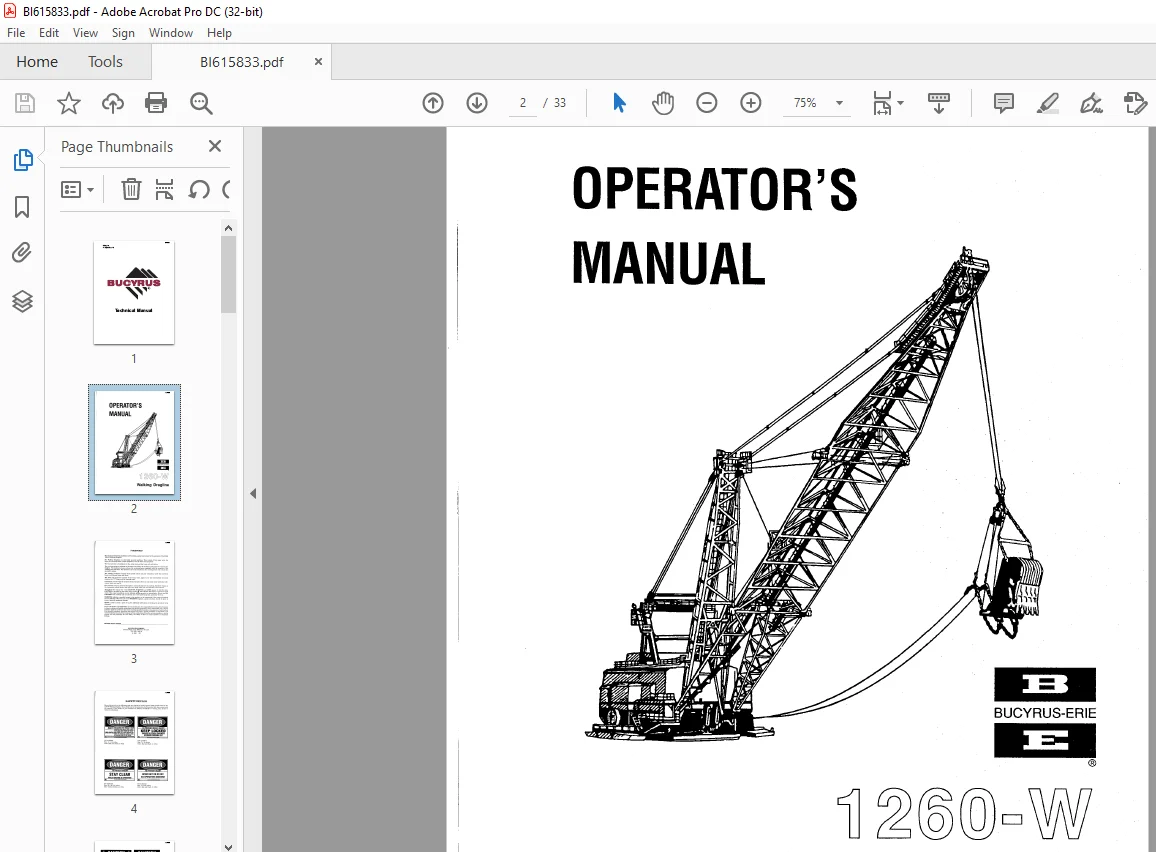

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Bucyrus 1260-W Walking Dragline Operator’s Manual BI615833 – PDF DOWNLOAD

SECTION 1 – SAFETY PRECAUTIONS AND PRESTART CHECKS
SAFETY 1-l
General 1-l
Specific Safety Rules 1-l
PRESTART CHECKS 1-2
Suggested External Prestart Walk-Around Inspection 1-2
On-Board Inspection 1-3
LUBE CH~TS 1-4
SECTION 2 – CONTROLS-FUNCTION AND LOCATION
INTRODUCTION 2-l
Machine orientation 2-l
PRIMARY OPERATING CONTROLS 2-l
Hoist Master Switch (Lever) 2-l
Signal Horn Button 2-2
Control Stop Pushbutton 2-2
Control Reset Pushbutton 2-2
Drag/Propel Transfer Switch 2-3
Power Off Pushbutton 2-3
Earth Continuity Lockout Emergency Stop Pushbutton 2-3
Panel view Lower Push button 2-3
Panelview Raise Pushbutton 2-3
Drag/Propel Master Switch (Lever) 2-3
Hoist Brake Switch 2-4
Drag Brake Switch 2-4
Swing Brake Switch 2-4
Propel Brake Switch 2-4
Air Pressure Gauge · 2-4
Air Compressor Switch , 2-4
Front Window Switch 2-4
Windshield Wiper Switch 2-4
Defroster Switch 2-4
Cab Heater Switch 2-4
Cigar Lighter 2-5
Ash Tray 2-5
Ground Warning Indicator Light 2-5
Swing Control 2-5
Panelview Monitor 2-5
Operator’s seat 2-6
SECONDARY OPERATING CONTROLS 2-6
Air Conditioner Control Unit 2-6
M-G Set Control Console 2-6
Auxiliary Circuit Breakers 2-6
Lighting Distribution Panel 2-7
Auxiliary Winch controllers 2-7
Overhead Crane Controllers 2-7
Lubrication Control Cabinet 2-7
BI615833
SECTION 3 – STARTUP AND SHUTDOWN
STARTUP 3-1
SHUTDOWN 3-2
Temporary Shutdown 3-2
Emergency Shutdown 3-2
Total Shutdown 3-2
SECTION 4 – OPERATION
INTRODUCTION 4-1
HOIST MOTION 4-1
DRAG MOTION 4-2
SWING MOTION 4-3
PROPEL MOTION 4-4
DIGGING CYCLE 4-7
CHOP-DOWN OPERATION 4-8
OPERATING HINTS 4-8
DURING OPERATION 4-9
