CAT Bucyrus 190-B Shovel Maintenance & Operation Manual BI379536 PDF DOWNLOAD
FILE DETAILS:
CAT Bucyrus 190-B Shovel Maintenance & Operation Manual BI379536 PDF DOWNLOAD
Language : English
Pages : 92
Downloadable : Yes
File Type : PDF

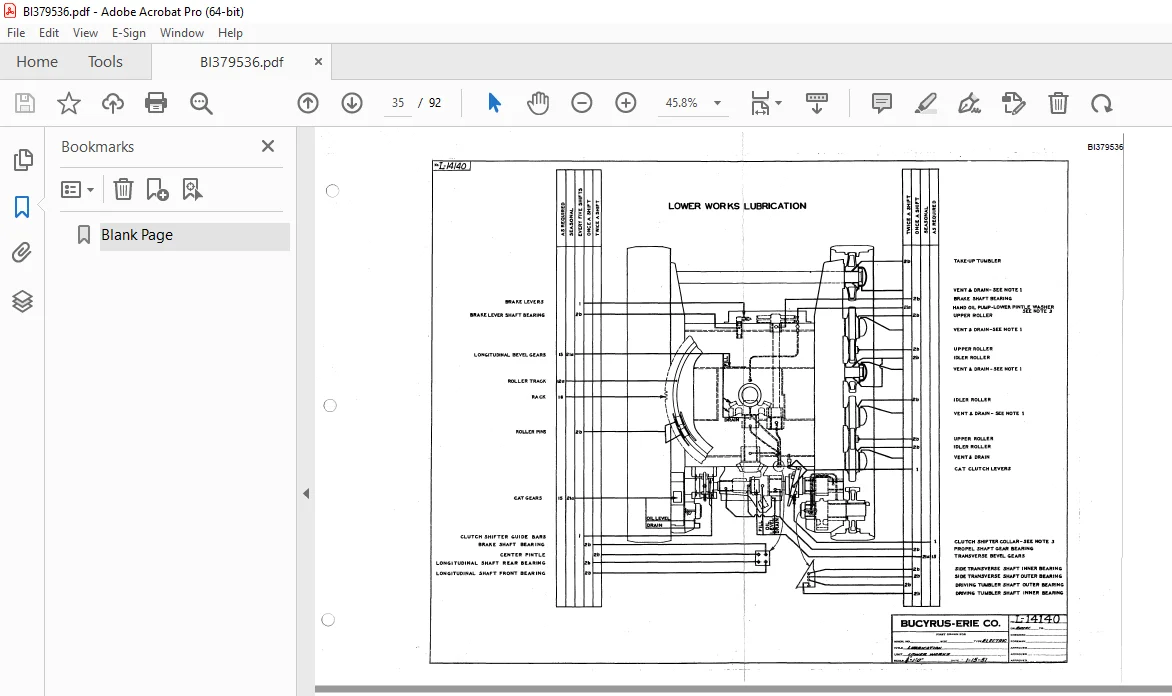

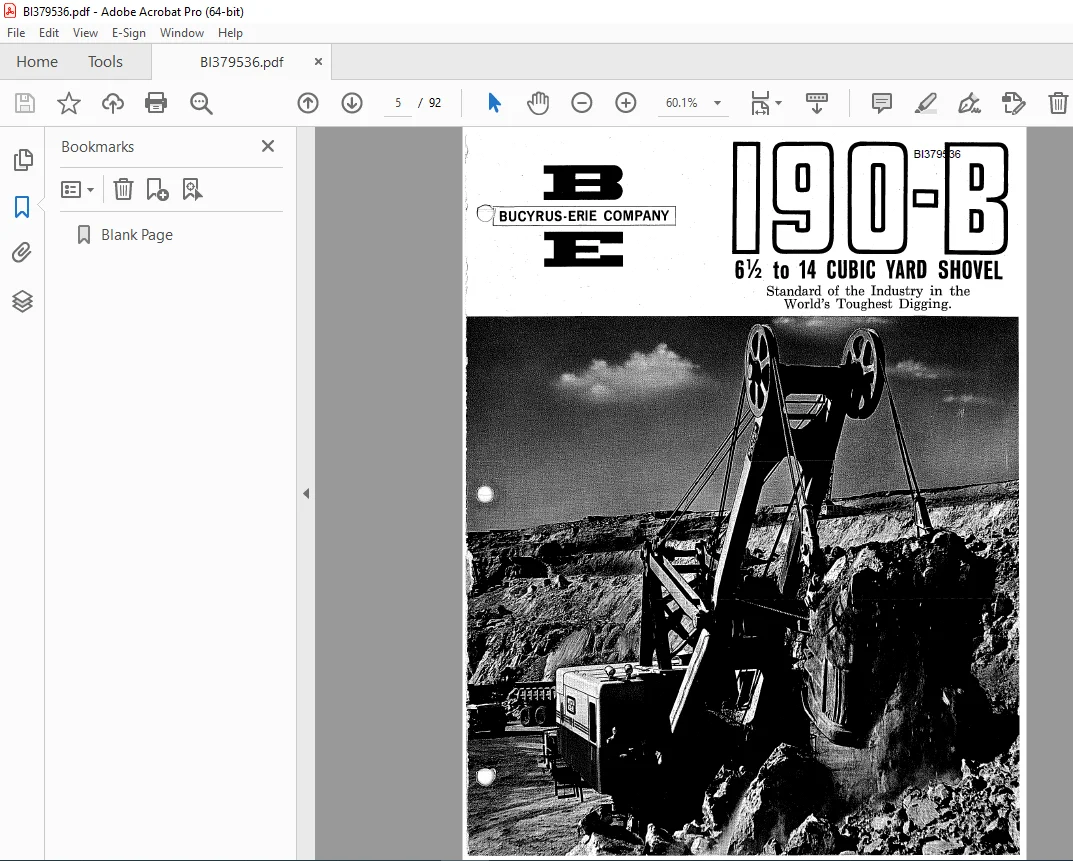

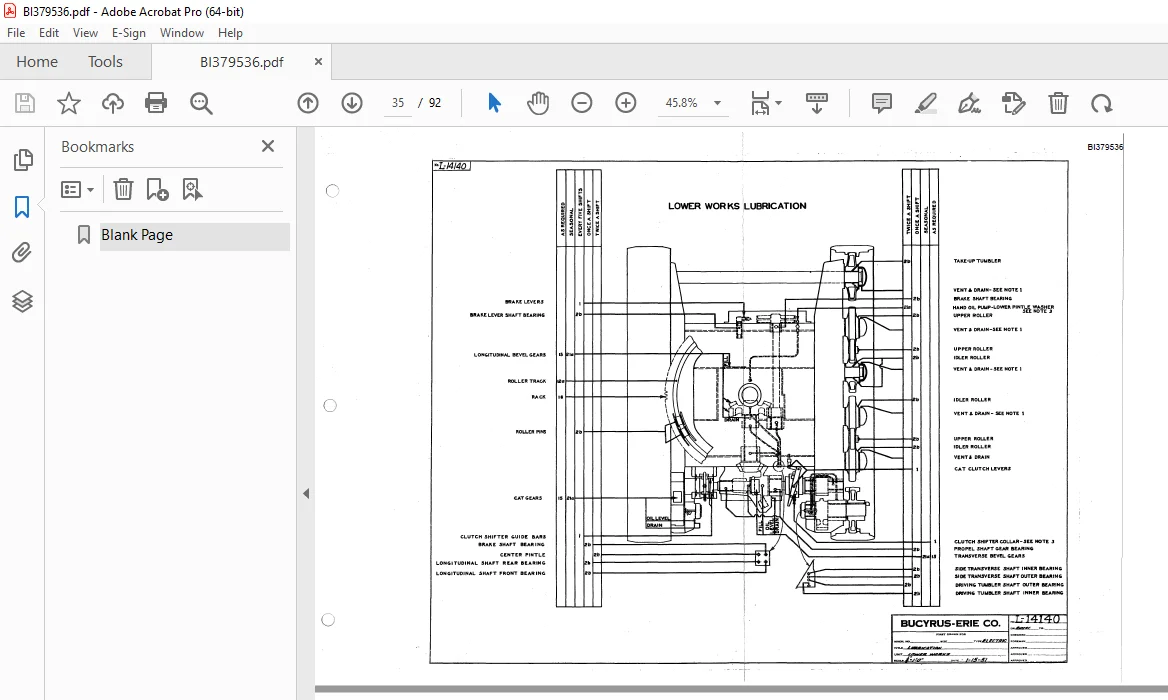

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CAT Bucyrus 190-B Shovel Maintenance & Operation Manual BI379536 PDF DOWNLOAD
CAT Bucyrus 190-B 61/2 to 14 CUBIC YARD SHOVEL
190-Bulletin X-650a – Foreword and General Instructions
X-1413a – Operating Instructions
X-660 – Cat Mountings
X-651 – Care and Handling of Wire Rope
X-1944 – Lubrication of Bridge Strand Suspension Ropes
X-1436 – Lubrication Instructions
Dwg. L-14140 – Lower Works Lubrication
Dwg. L-14494 – Upper Works Lubrication
Lubrication of Bearings, etc.
Lubrication of Gears
Lubrication of Electric Motors & Generators
Lists of Lubricants Recommended by Oil Manufacturers
Description of Machinery
Adjusting Instructions
Control of Brakes & Clutches
Instructions for Crowd Machinery Slipping Clutches
Instructions for Checking Air Leaks
Instructions for Welding Tube Dipper Handles
Instructions for Straightening Tube Dipper Handles.
INSTRUCTION AND LUBRICATION DRAWINGS:
101827 – General Arrangement of Lower Works
801498 – General Arrangement of Steering Machinery
233600 – Center Pintle Sleeve Adjusting Instructions
238310 – General Arrangement of Swing Machinery
880035 – General Arrangement of Main Machinery
880533 – Section Through Main Machinery Shafts
403782 – Hoist Bearing Take-Up Instructions
804865 – Hoist Motor Brake Adjustment
217599 – Crowd & Swing Motor Brake Adjustment
852639 – General Arrangement Crowd Machinery
704935 – Boom Limit Switch Adjustment
804955 – General Arrangement Deflector Sheaves
802765 – General Arrangement of Shipper Shaft
853238 – General Arrangement of Dipper Trip
802763 – General Arrangement of Padlock
806687 – Crowd Rope Take-Up and Handle Stop
717548 – Crowd and Retract Rope Reeving Diagram
701537 – Hoist Rope Reeving Diagram
704997 – Air Piping Diagram
288972 – Instructions for Triple Swivel Joint
277032 – Welding Dipper Handle Tubes
410811 – Straightening Tubular Handles
