CAT Bucyrus 25M3 MAINTENANCE MANUAL BI619315 – PDF DOWNLOAD

Description

CAT Bucyrus 25M3 MAINTENANCE MANUAL BI619315 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus 25M3 MAINTENANCE MANUAL BI619315 – PDF DOWNLOAD

Language : English
Pages : 149
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus 25M3 MAINTENANCE MANUAL BI619315 – PDF DOWNLOAD

• DESCRIPTION
• The Bucyrus 25M3 is an electrically powered, radio remote controlled drum type continuous miner. Overall the miner is 12 metres long and 3.5 metres in the width of the body. The miner has a cutting width of 3.7 metres and is capable of mining seams from 1800 mm to 3500 mm thick.
• The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in both board and pillar and long wall development mining plans.
• The ranging cutting head mines material from the solid face using a chainless rotating drum, and a CLA-type gathering head with high speed conveyor efficiently moves mined material to a haulage system behind the miner. The machine’s weight and balance is designed to mine most efficiently by sumping into the face at the top and ripping material to the bottom or top of the seam.
• The figure below shows a general arrangement of major mechanical components. A brief description of the various major sub-systems of the 25M3 follows.

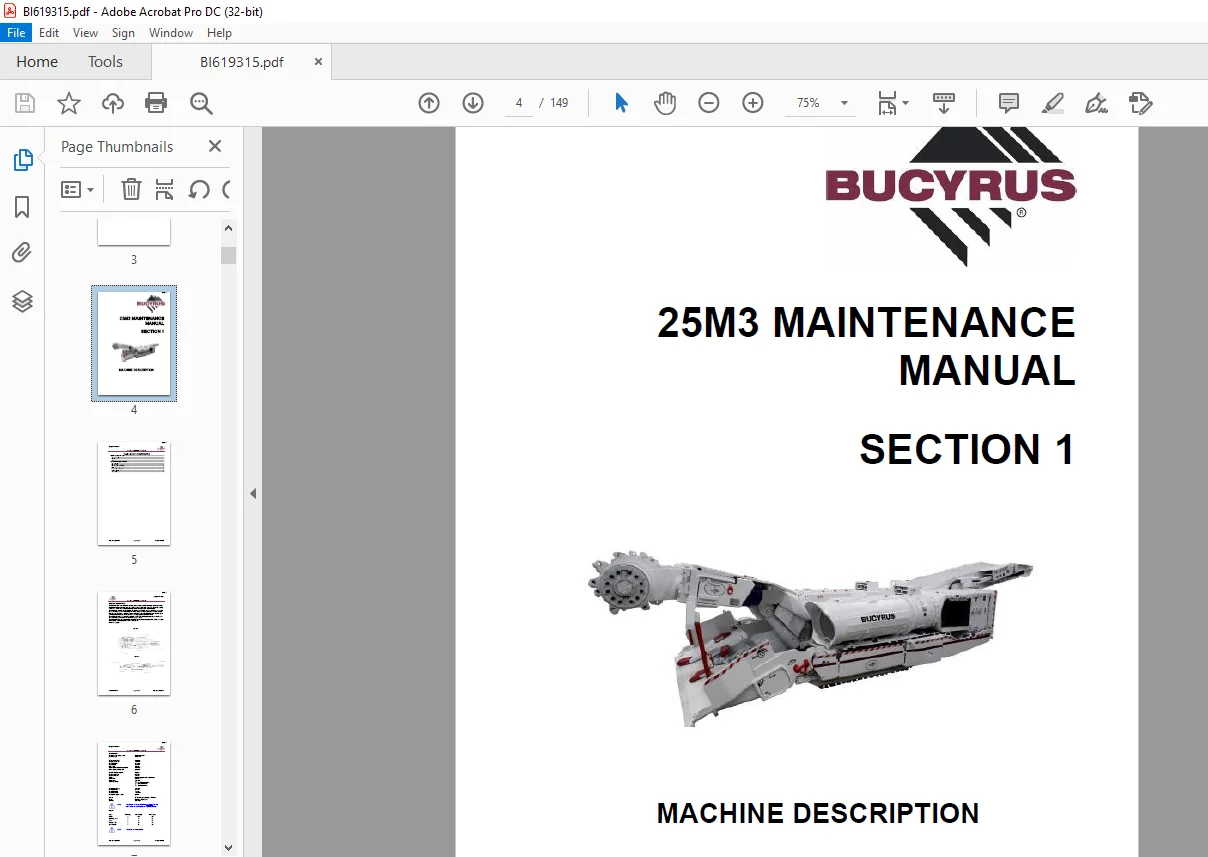

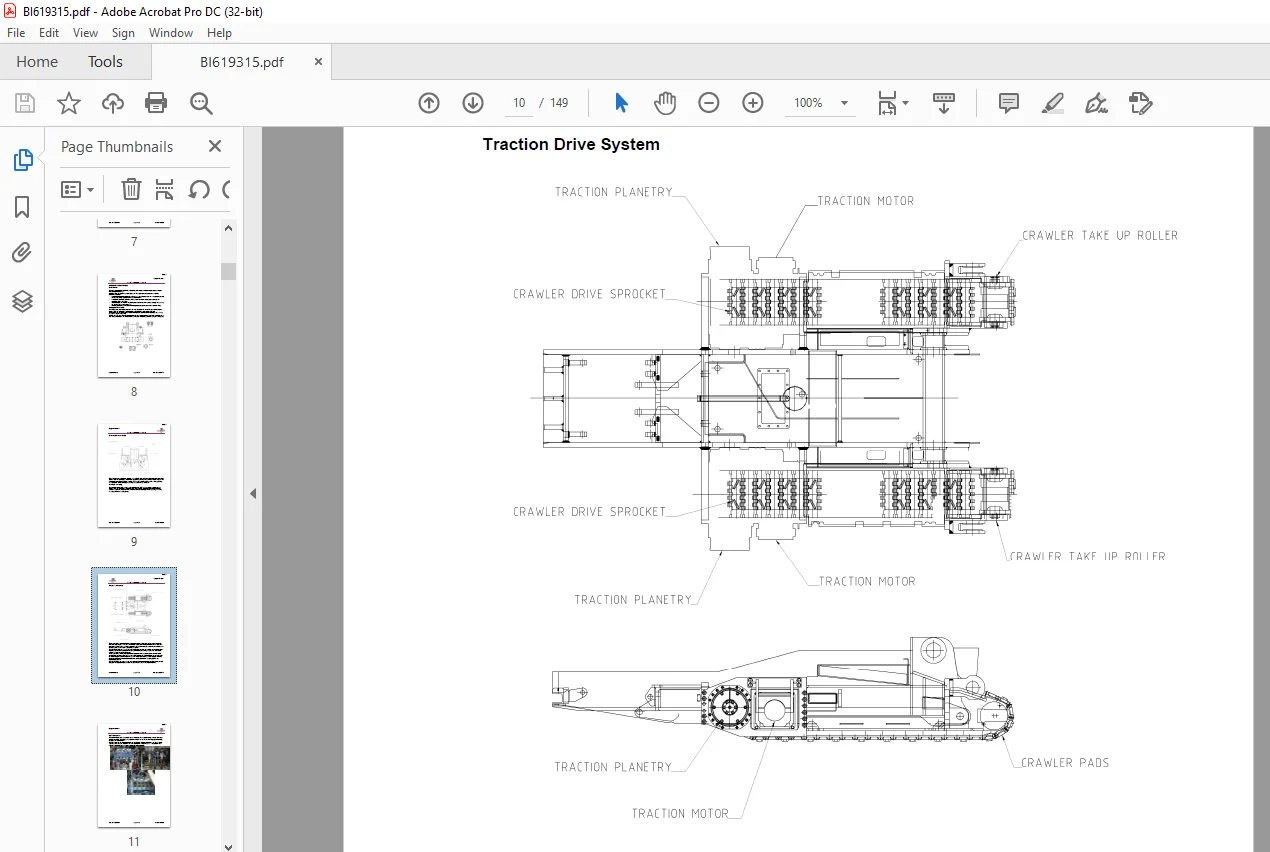

IMAGES PREVIEW OF THE MANUAL:

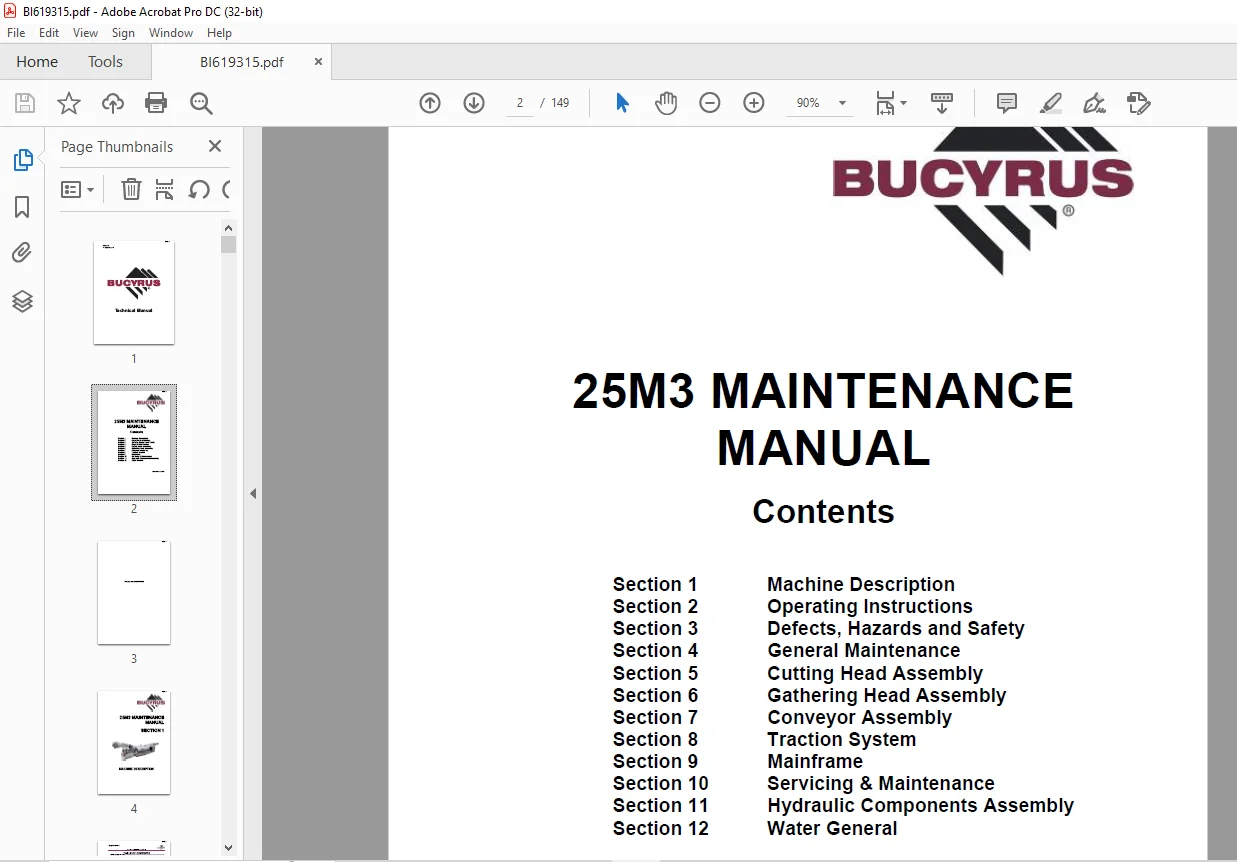

TABLE OF CONTENTS:
