CAT Bucyrus 30 MB3 MAINTENANCE MANUAL BI643658 – PDF DOWNLOAD

Description

CAT Bucyrus 30 MB3 MAINTENANCE MANUAL BI643658 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus 30 MB3 MAINTENANCE MANUAL BI643658 – PDF DOWNLOAD

Language : English
Pages : 285
Downloadable : Yes
File Type : PDF

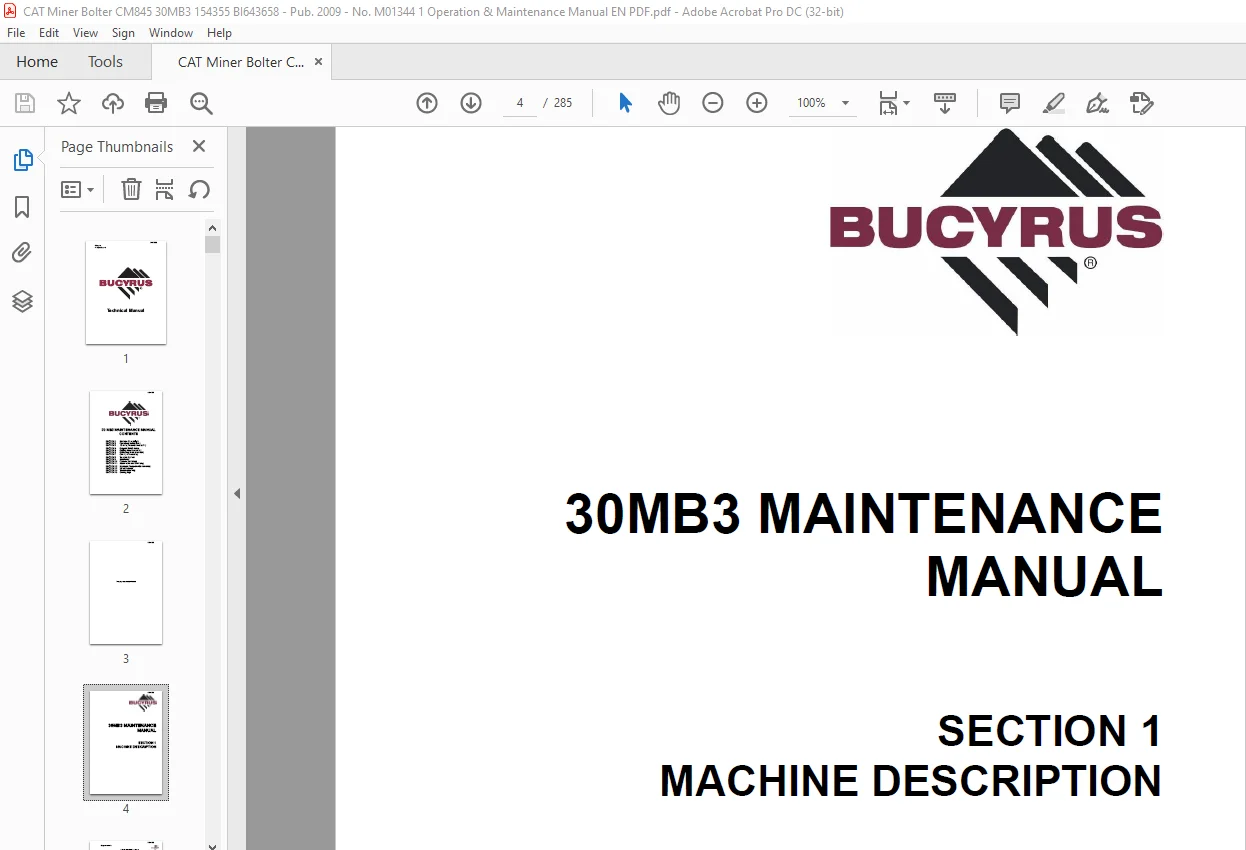

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus 30 MB3 MAINTENANCE MANUAL BI643658 – PDF DOWNLOAD

General

• The 30MB3 miner is a radio-controlled drum-type continuous miner with appropriate weight balance, cutting and loading power to enable the productive mining of coal and other soft mineral in seams ranging from 1,900mm up to 4, 000mm thick.
• The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in both bord and pillar and long wall development mining plans. The ranging cutting head mines material from the solid face using a chainless rotating drum, and a CLA-type gathering head with high speed conveyor efficiently moves mined material to a haulage system behind the miner.
• The machine’s weight and balance is designed to mine most efficiently by either sumping into the face at the top or bottom of the seam, and ripping material to the bottom or top of the seam.

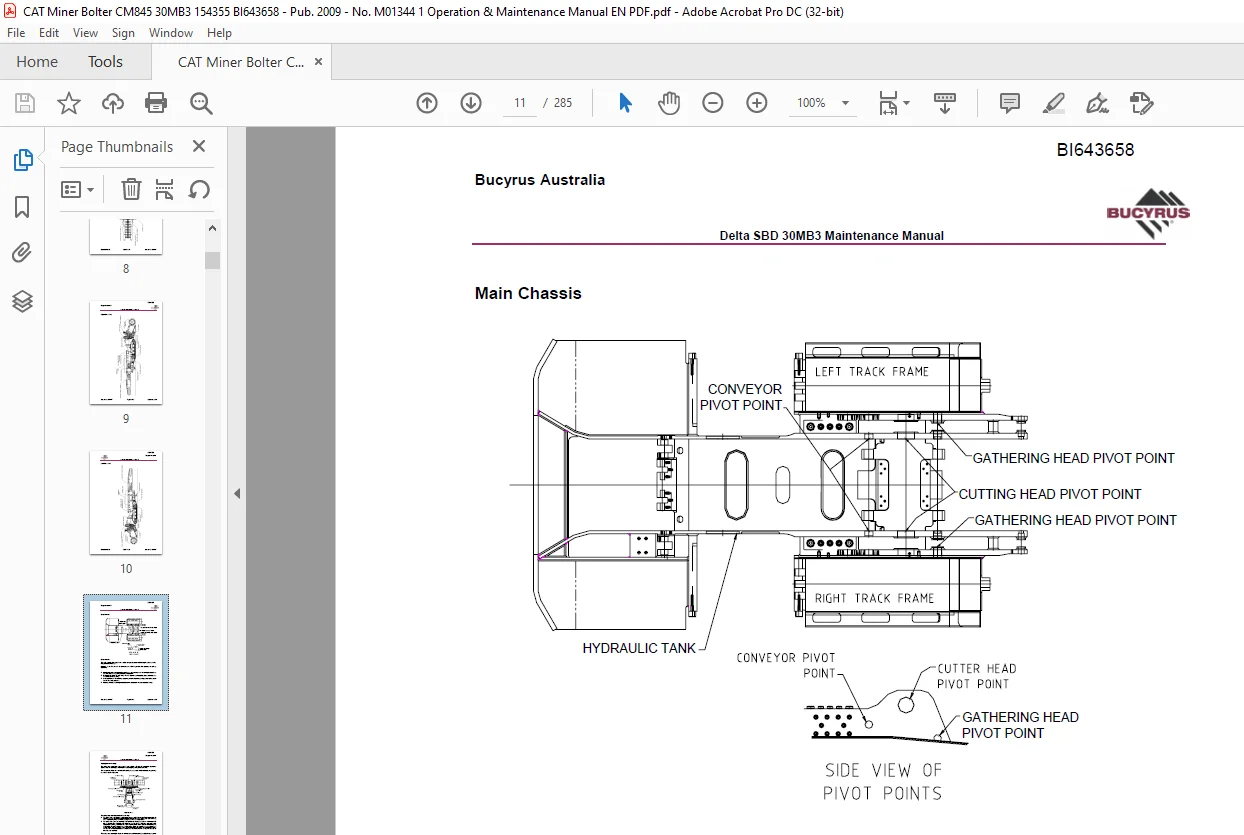

• The above figure shows a general arrangement of major mechanical components. A full description of the various major sub-systems of the 30MB3 follows

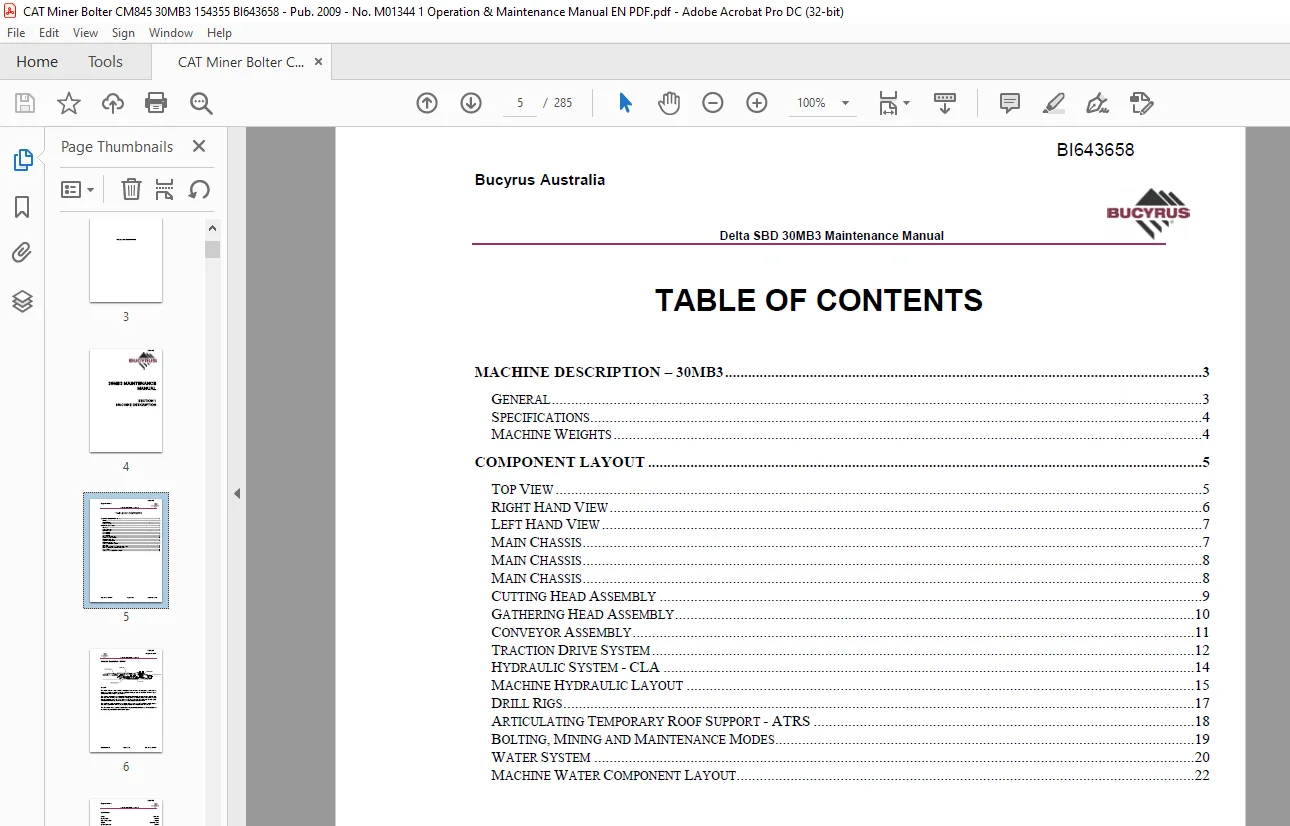

TABLE OF CONTENTS:

CAT Bucyrus 30 MB3 MAINTENANCE MANUAL BI643658 – PDF DOWNLOAD

SECTION 1 Machine Description
SECTION 2 Operating Instructions
SECTION 3 Defects, Hazards and Safety
SECTION 4 General Maintenance
SECTION 5 Cutting Head Assembly
SECTION 6 Gathering Head Assembly
SECTION 7 Conveyor Assembly
SECTION 8 Traction System
SECTION 9 Mainframe
SECTION 10 Cylinder Servicing
SECTION 11 Lubrication and Servicing
SECTION 12 Hydraulic Components Assembly
SECTION 13 Water General
SECTION 14 Troubleshooting
SECTION 15 Drilling Rigs
