Cat Bucyrus 30MB3 Electrical Technical Manual BI620101 – PDF DOWNLOAD

Description

Cat Bucyrus 30MB3 Electrical Technical Manual BI620101 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus 30MB3 Electrical Technical Manual BI620101 – PDF DOWNLOAD

Language : English
Pages : 205
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus 30MB3 Electrical Technical Manual BI620101 – PDF DOWNLOAD

General:

• The 30MB3 miner is a radio-controlled drum-type continuous miner with appropriate weight balance,
  cutting and loading power to enable the productive mining of coal and other soft mineral in seams
  ranging from 1,900 mm up to 4,000 mm thick.
• The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in
  both bord and pillar and long wall development mining plans. The ranging cutting head mines
  material from the solid face using a chainless rotating drum, and a CLA-type gathering
  head with high speed conveyor efficiently moves mined material to a haulage system behind the
  miner.
• The machine’s weight and balance is designed to mine most efficiently by either sumping into the
  face at the top or bottom of the seam, and ripping material to the bottom or top of the seam.

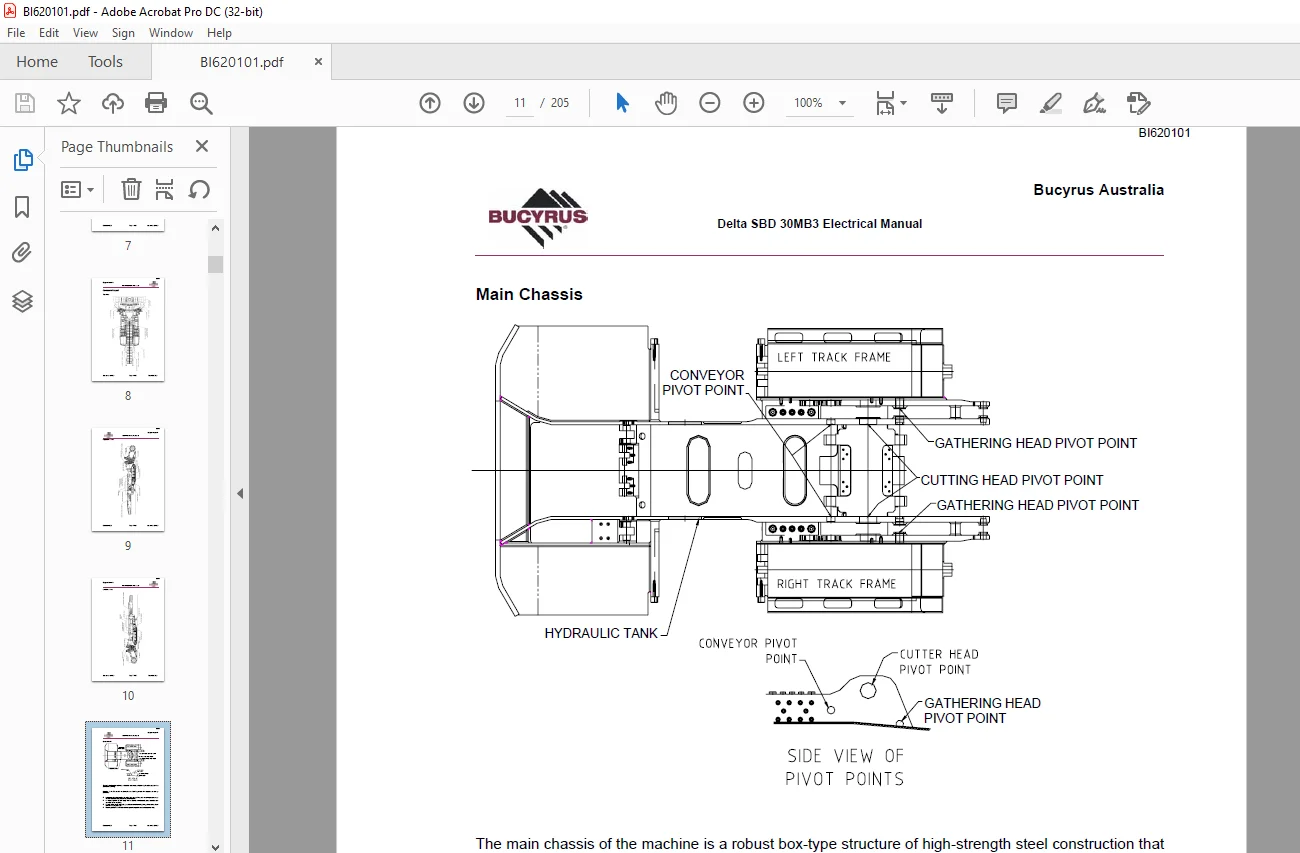

  The above figure shows a general arrangement of major mechanical components. A full description of
  the various major sub-systems of the 30MB3 follows.

IMAGES PREVIEW OF THE MANUAL:

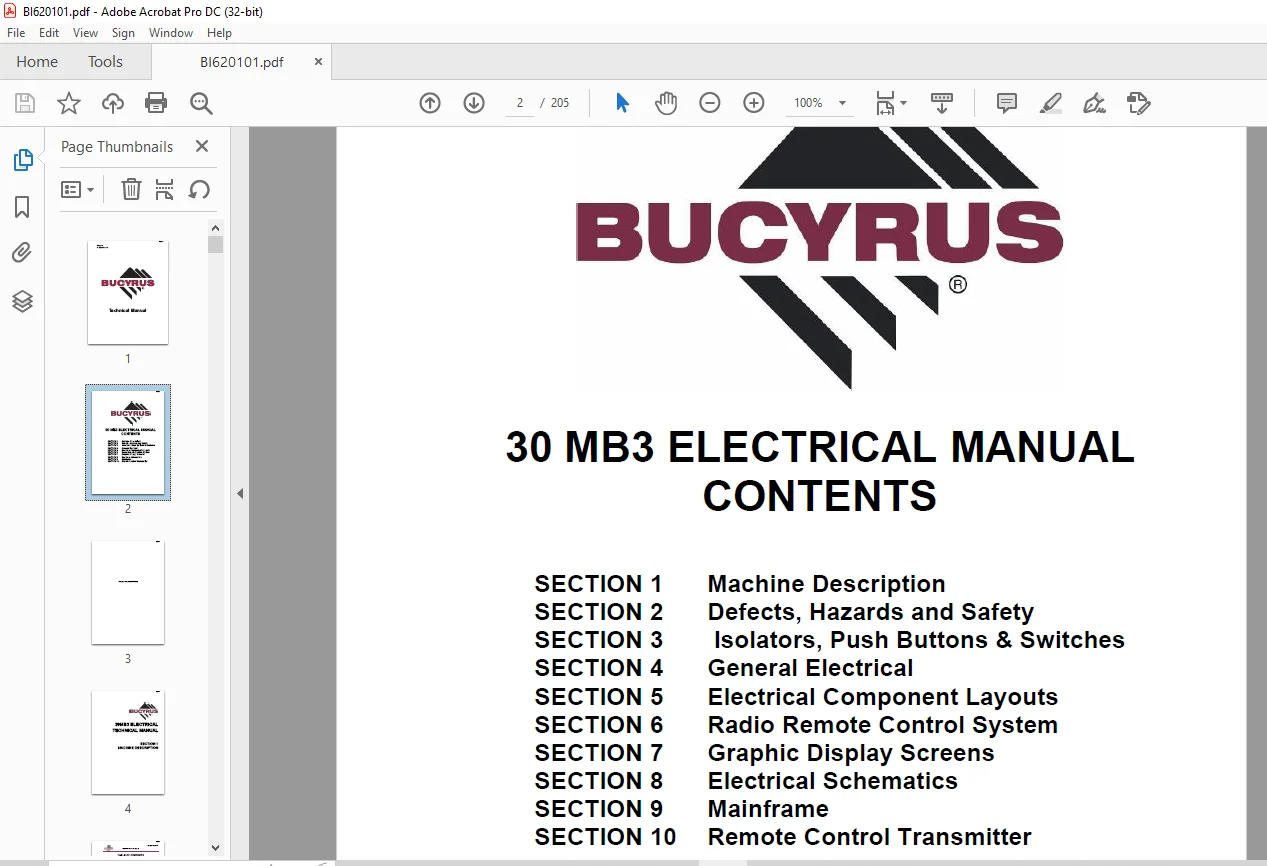

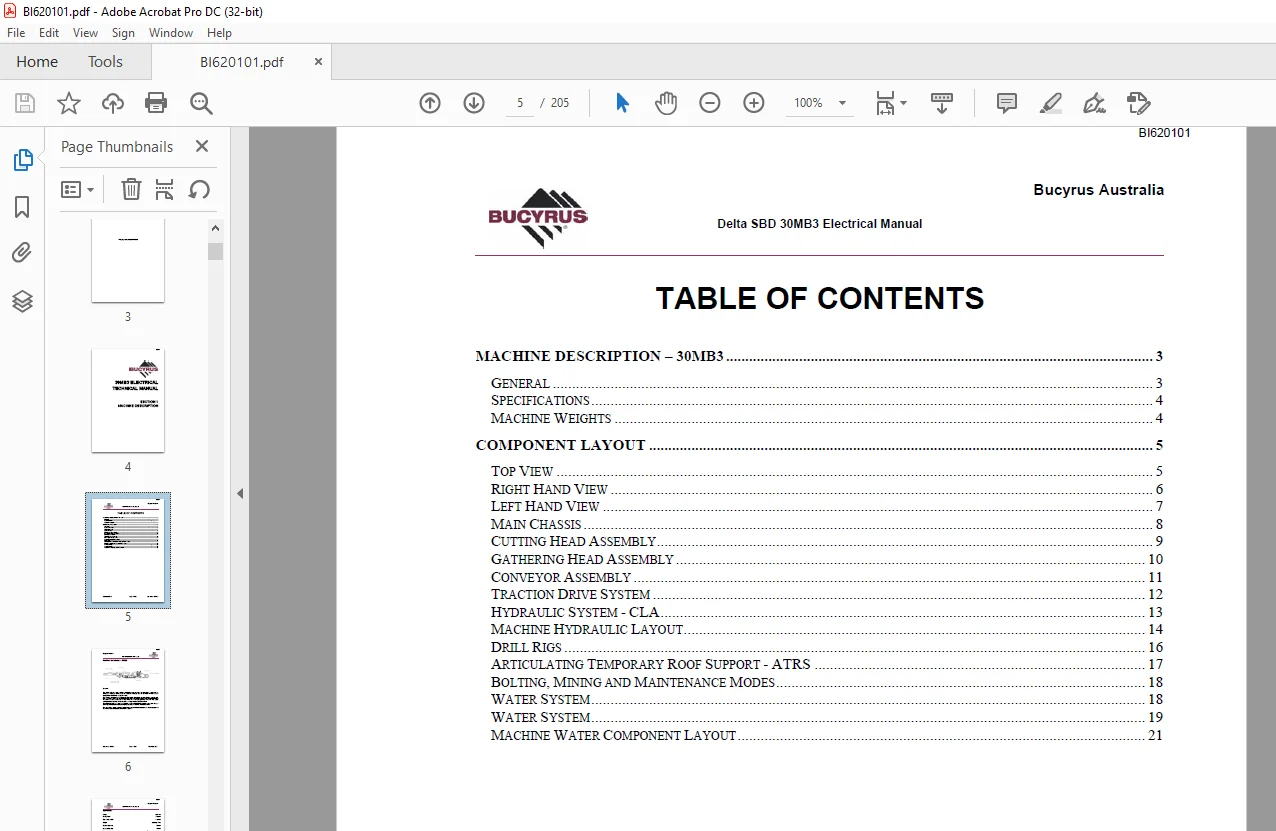

TABLE OF CONTENTS:
