CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
$28.95
CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
Description
CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
FILE DETAILS:
CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
Language : English
Pages : 87
Downloadable : Yes
File Type : PDF
DESCRIPTION:
CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
35B Rotary Blasthole Drill Controls and Indicators
NOTE: Actual Decals and Control Labels In the Operator Area may vary slightly from Illustrations.
However, use and operation remain as described In the following pages.
1. Auxiliary Hydraulic Pressure Gauge:
Indicates the operating pressure of the open loop (auxiliary) hydraulic system.
2. Rotary Hydraulic Pressure Gauge:
Indicates the hydraulic pressure to the rotary drive.
3. Main Air Pressure Gauge:
Indicates compressor discharge pressure.
4. Comp 011 Lamp:
Lights when air compressor loses oil pressure.
5. Pulldown Hydraulic Pressure Gauge:
Indicates hydraulic pressure to the pulldown motor.
6. Comp Air/Oil Temperature Gauge:
Indicates compressor air/oil temperature. (Discharge Temperature)
7. On/Off Switch:
Electrical switch that enables the starter, alternator, gauge, heater fan and lighting circuits.
8. Glow/Off/Start Switch:
Three-position switch that controls power to the glow plugs and starter.
9. Voltmeter:
Indicates charge status of the engine electrical system.
10. Temperature Gauge:
Indicates temperature of engine coolant.
11. OIi Pressure Gauge:
Indicates engine oil pressure.
12. Heater Fan Switch:
Controls cab heater fan.
13. Auxlllary Lights Switch:
Controls auxiliary (running) lights.
14. Drlll Lights:
Controls the headlights and mast lights used when drilling at night.
15. Mast Control:
Controls the jacks that raise and lower the mast.
16. Left Rear Jack Control:
Used to extend and retract left rear jack.
17. Front Jacks Control:
Used to extend and retract front jacks.
18. Right Rear Jack Control:
Used to extend and retract right rear jack.
19. Dust Collector Blower/Water Injection Pump Control:
Engages dust collector blower in one position, water injection pump in other position, depending upon
which type dust suppression is preferred.
20. Winch Control:
Controls operation of the winch.
CONTROLS

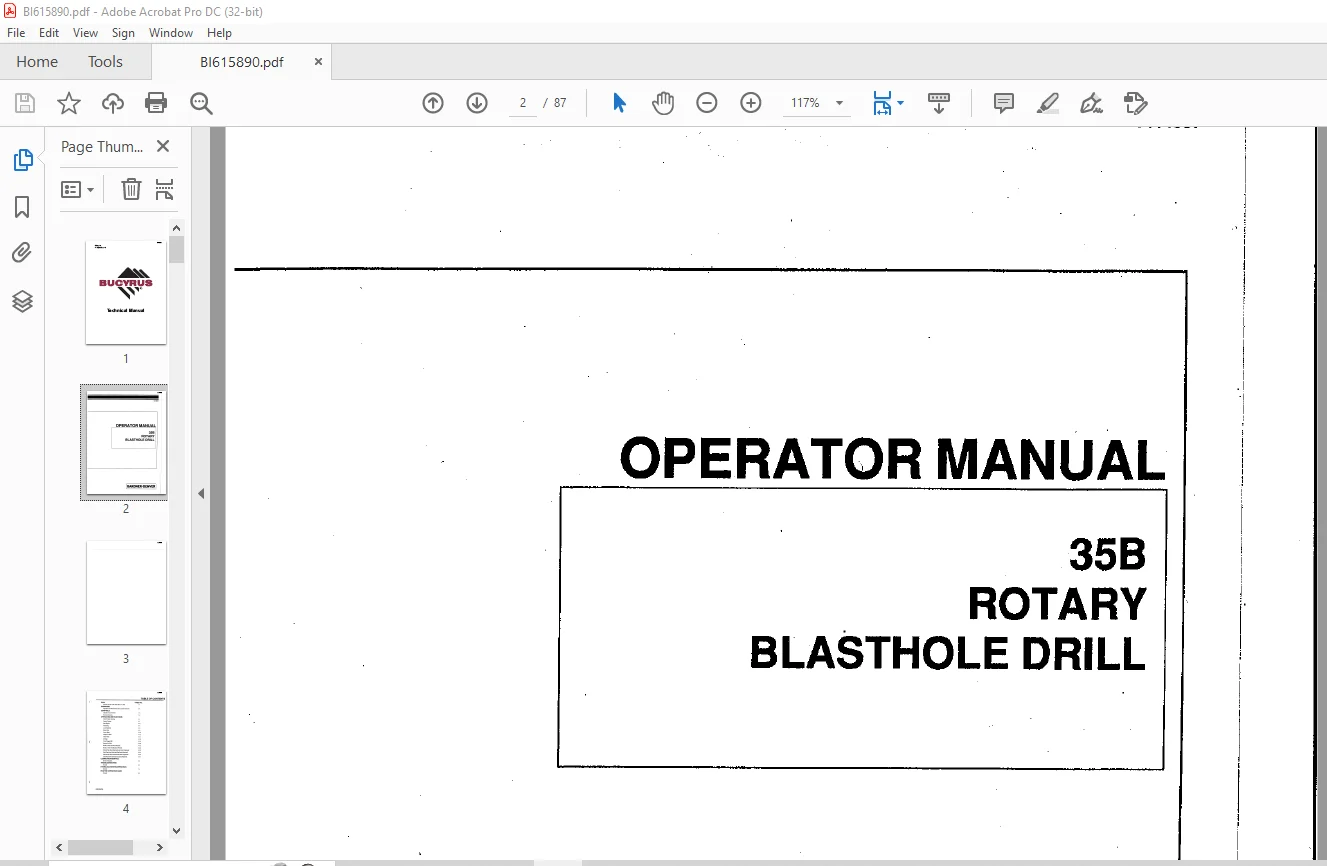

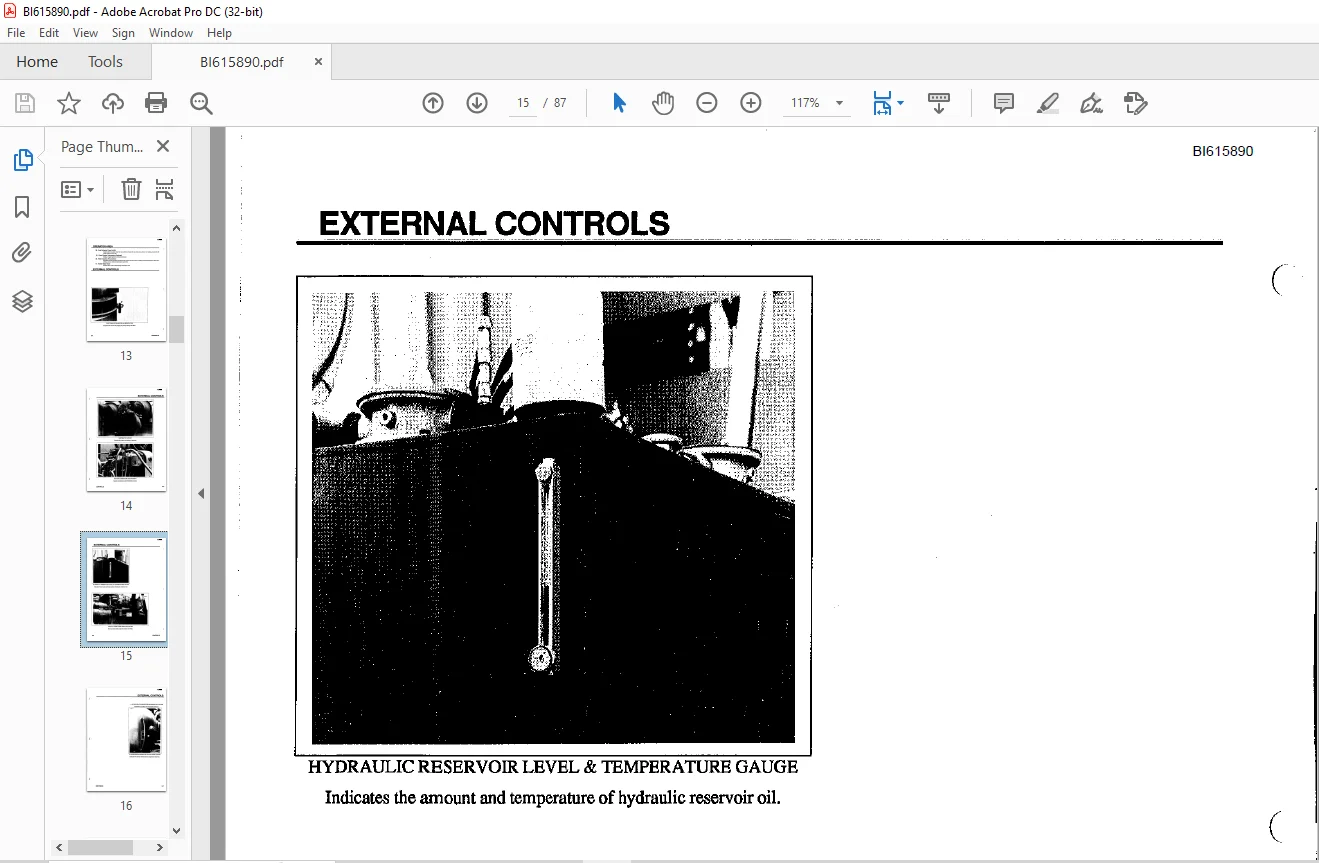

IMAGES PREVIEW OF THE MANUAL:

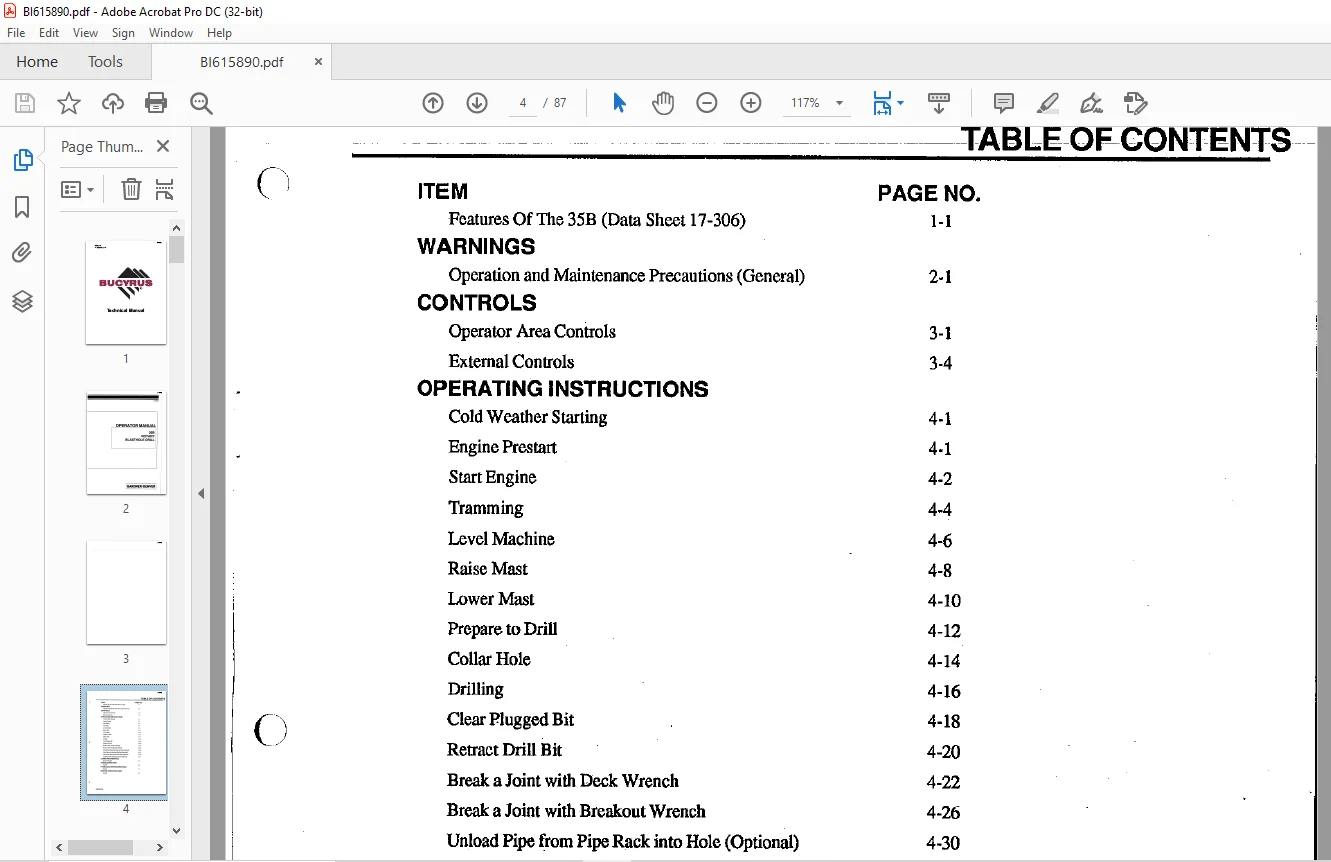

TABLE OF CONTENTS:
CAT Bucyrus 358 ROTARY BLASTHOLE DRILL OPERATOR MANUAL 1414957 – PDF DOWNLOAD
Features Of The 35B (Data Sheet 17-306)
WARNINGS
Operation and Maintenance Precautions (General)
CONTROLS
Operator Area Controls External Controls
OPERATING INSTRUCTIONS
Cold Weather Starting Engine Prestart
Start Engine Tramming Level Machine Raise Mast Lower Mast Prepare to Drill Collar Hole Drilling
Clear Plugged Bit Retract Drill Bit
Break a Joint with Deck Wrench Break a Joint with Breakout Wrench
Unload Pipe from Pipe Rack into Hole (Optional)
Load Pipe from Hole into Pipe Rack (Optional)
Unload Pipe from Carousel into Hole (Optional)
Load Pipe from Hole into Carousel (Optional)
LUBRICATION/SERVICE
Service Schedule
TROUBLESHOOTING
General
HYDRAULIC SYSTEM OPERATION
Gener;tl
ROUTINE OPERATOR CARE
General
PULLDOWN
Bit Load
Speed (Up or Down)
Chain
Drive
Control
ROTARY MACHINERY
Type
Torque
Speed
Drive
OPTIONAL
Torque
Speed
OPERATOR CAB
Standard Fu
POWER UNIT
Standard Make and Model Cate
UNDERCARRIAGE
Type
Shoes
Overall
Drive Hy
Adjustment
LUBRICATION
Planetary
Idler Wheel
Track Roller
AIR COMPRESSOR
Rating
Drive
Intake Air Filter
MAST (Standard)
ONE PIECE PIPE RACK (Optional)
Capacity
MAST WITH 5 POT CAROUSEL
Drill Pipe
PROPEL DATA
Gradeability
Track Unit Ground Pressure
Max Speed
APPROACH ANGLE
LEVELING JACKS
CAPACITIES
Fuel Tank
W11ter Tank
(Option11l)
Hydr11ulic Tank
EQUIPMENT FURNISHED WITH DRILL
Bit brellkout basket, guide bushing, bit sub and top head11dapter
OTHER OPTIONAL EQUIPMENT AVAILABLE
Dust Collector
Water Injection System
with hydraulic powered John Bean w Angle drill attachment 30° in 5° increments
