CAT Bucyrus 40-R Rotary Drill Operation Instruction Manual BI379543 – PDF DOWNLOAD

Description

CAT Bucyrus 40-R Rotary Drill Operation Instruction Manual BI379543 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus 40-R Rotary Drill Operation Instruction Manual BI379543 – PDF DOWNLOAD

Language : English
Pages : 192
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus 40-R Rotary Drill Operation Instruction Manual BI379543 – PDF DOWNLOAD

CHAPTER I – Description of Machinery:

The 40-R drill is a rotary type blast hole drill designed for drilling of blast holes in quarrying
and strip mining operations. The drilling is done by roller type bits rotated by drill pipe which
are connected by standard A.P.I. threaded rotary tool joints. Cuttings are blown out of the hole by
compressed air which is forced through the drill pipe. Air for this purpose is provided by a
compressor mounted on the drill. Cuttings are collected in a steel and fabric enclosure below the

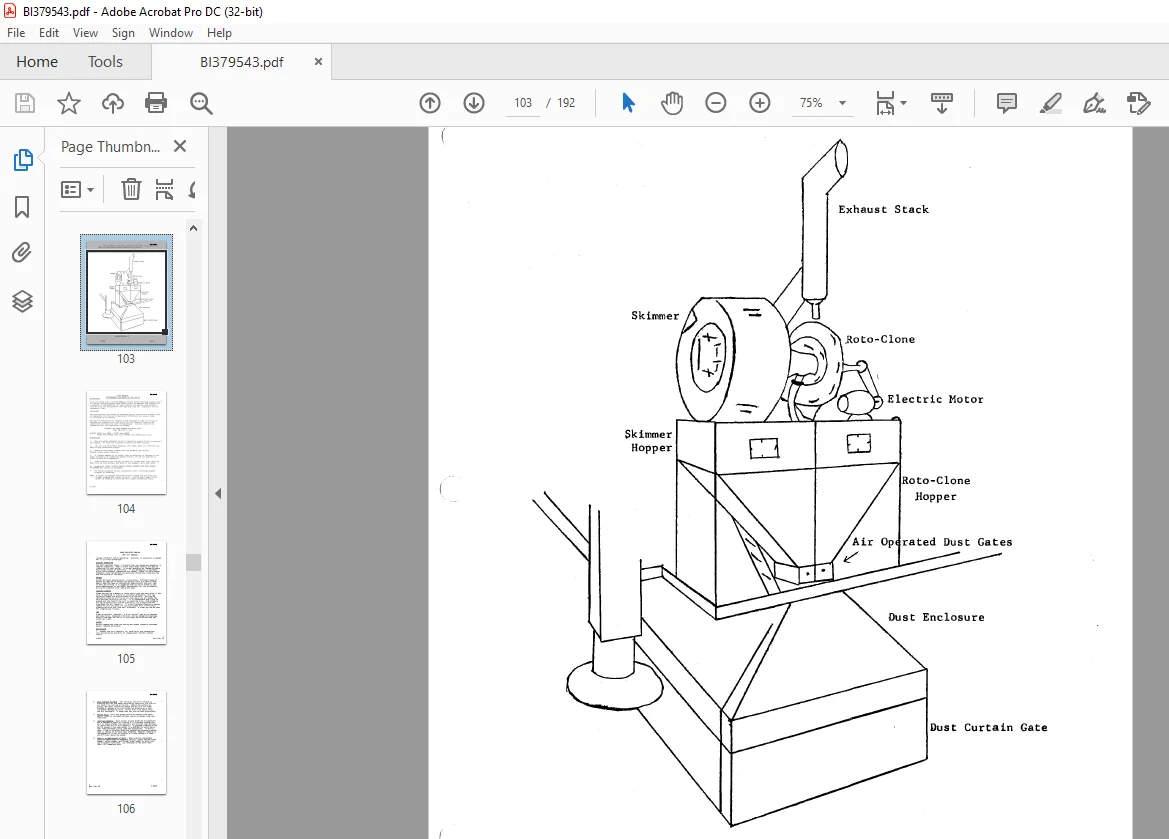

operator’s platform. A Roto-Clone precipitator driven by an electric motor removes the dust.

A. POWER PLANT:

‘Ihe drill can be powered with either an electric motor or Diesel engine. The power unit whether
Diesel or electric motor is located near the front of the machine and drives the generator set and
air compressor by means of V-belts. Full instructions for starting, lubricating and maintaining
the Diesel engine on 40-R drills will be found in the engine manufacturer’s instruction book which
is included with these instructions when the machine is so equipped.

• On machines powered with an
  electric motor alternating current is brought to the drill by a trail cable from a suitable sub
  station. Transformers on the all electric drill reduce the voltage for the electric light plant.
  On both D:i 13sel and electric machines direct current motors are used for the rotary drive, the
  suction fan, and for driving the bull reel, auxiliary reel, derrick hoist and propelling machinery.
  These motors get their power from the generator set, one D.C. generator providing power for the
  main motor and a second D.C. generator providing power for the rotary motor.
• Precise control
  of the speed and direction of these motors is afforded through the Ward-Leonard system. Details on
  the operation and maintenance of the electrical su.stem are covered in later sections of these
  instructions. The oil pump is V-belt driven from the compressor drive pulley.

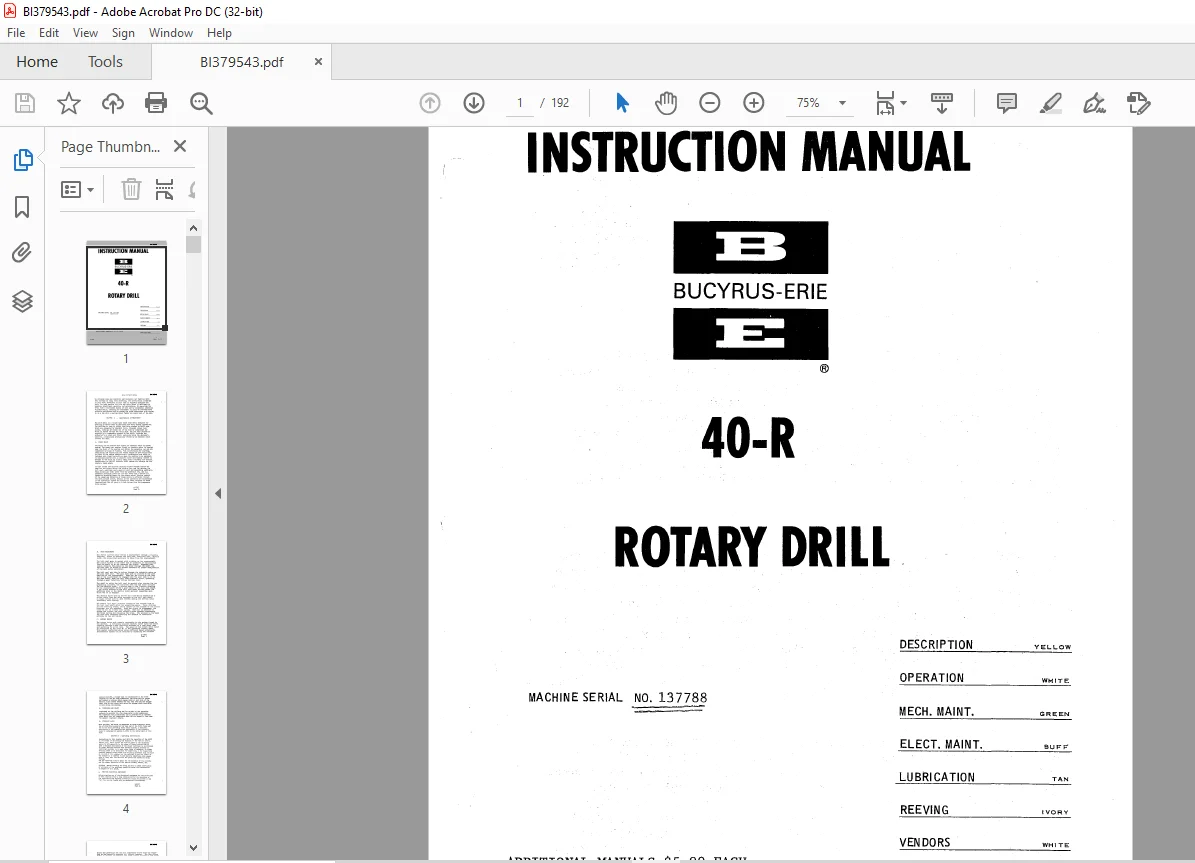

TABLE OF CONTENTS:

CAT Bucyrus 40-R Rotary Drill Operation Instruction Manual BI379543 – PDF DOWNLOAD

DESCRIPTION YELLOW
OPERATION WHITE
MACHINE SERIAL NO. 137788
MECH. MAINT. GREEN
ELECT. MAINT. BUFF
LUBRICATION TAN
REEVING IVORY
VENDORS WHITE
ADDITIONAL MANUALS $5.00 EACH
SPECIFICATIONS

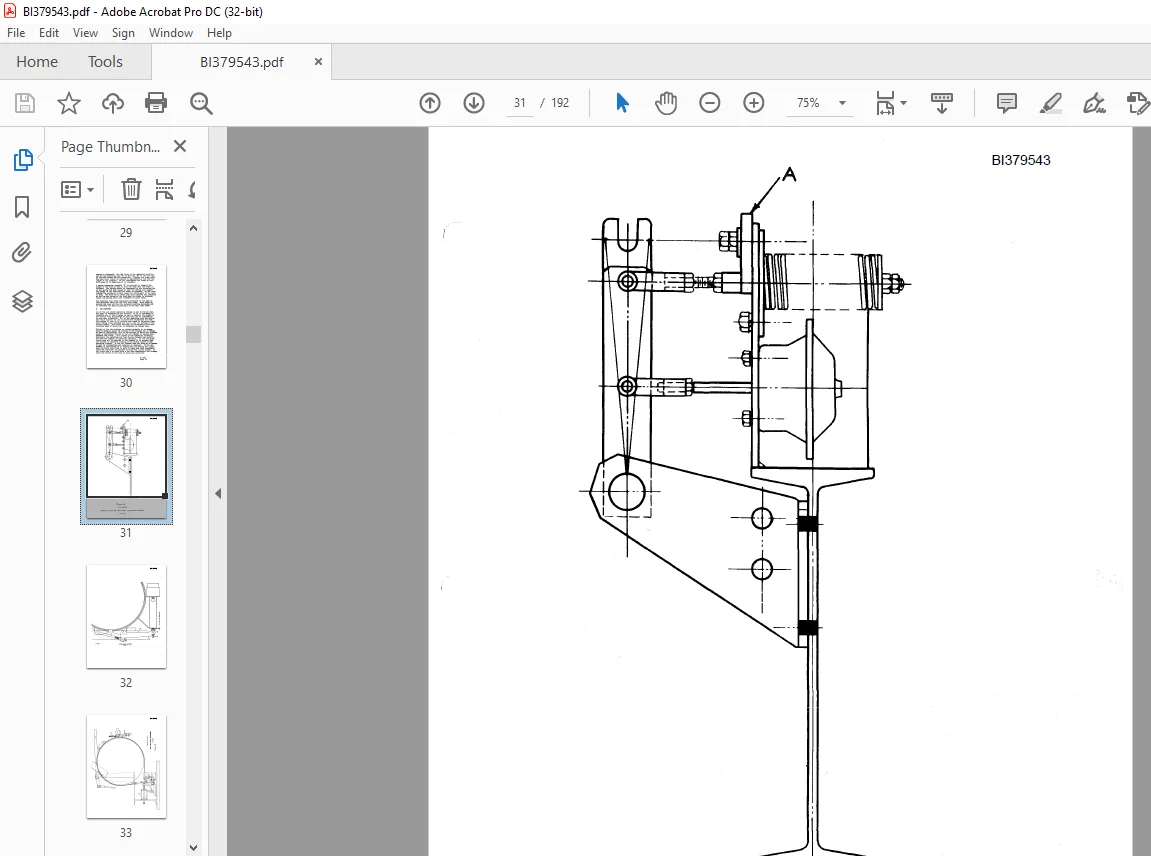

IMAGES PREVIEW OF THE MANUAL:
