Cat BUCYRUS 45R ELECTRIC BLAST HOLE DRILL MECHANICAL MAINTENANCE MANUAL – PDF DOWNLOAD

Description

Cat BUCYRUS 45R ELECTRIC BLAST HOLE DRILL MECHANICAL MAINTENANCE MANUAL – PDF DOWNLOAD

FILE DETAILS:

Cat BUCYRUS 45R ELECTRIC BLAST HOLE DRILL MECHANICAL MAINTENANCE MANUAL – PDF DOWNLOAD

Language : English
Pages : 117
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat BUCYRUS 45R ELECTRIC BLAST HOLE DRILL MECHANICAL MAINTENANCE MANUAL – PDF DOWNLOAD

SECTION 1 – MAINTENANCE PROCEDURE
GENERAL

• This section ofthe manual describes those aspects of preventive maintenance such as scheduled reports and safety precautions as they pertain to the 45-R drill.
• MAINTENANCE SCHEDULES AND REPORTS
• Ideally, all maintenance should be approached from the preventive standpoint and on a regularly scheduled basis. Obviously, this approach keeps downtime to a minimum and results in reduced maintenance costs. To establish a preventive upkeep program, scheduled inspections and an operator’s daily report are the most useful tools available.
• Schedule inspections should be conducted by the Mine Mechanical and Electrical Maintenance Departments since they are the most qualified. Either department should generate a certain amount of paper work such as inspection records that become a part of the mine’s permanent file on the machine. The inspection records should be explicit, complete, and cover every part of the machine.
• Each machine operator should complete a daily record ofthe machine’s performance. This record should include time worked, time down, reasons for all delays, and observations on any unusual conditions encountered during operation. From these records, items that can potentially cause machine downtime can be corrected or prevented immediately, or scheduled for a future date when the machine availability can be coordinated with the other mine activities. Each problem should be thoroughly reviewed and evaluated before scheduling any maintenance or repair. The following points should be considered during the evaluation.

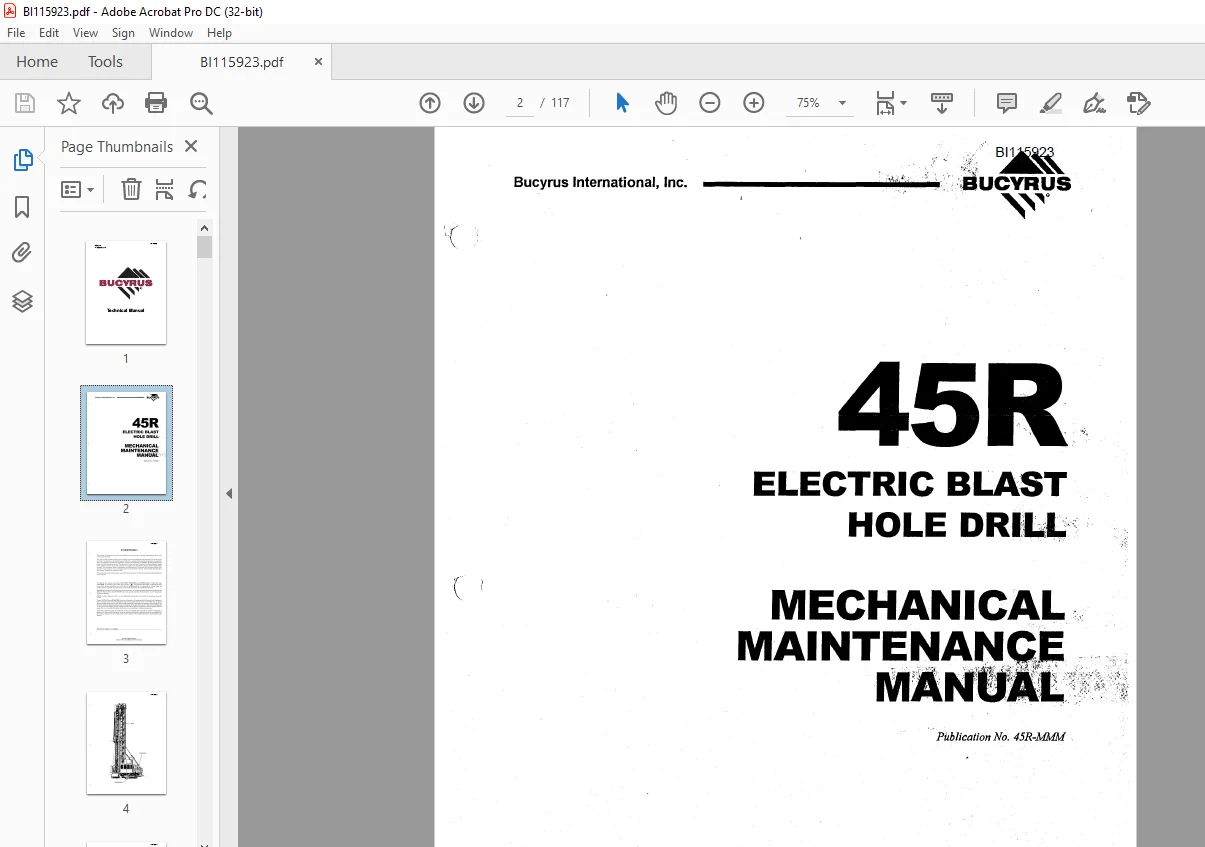

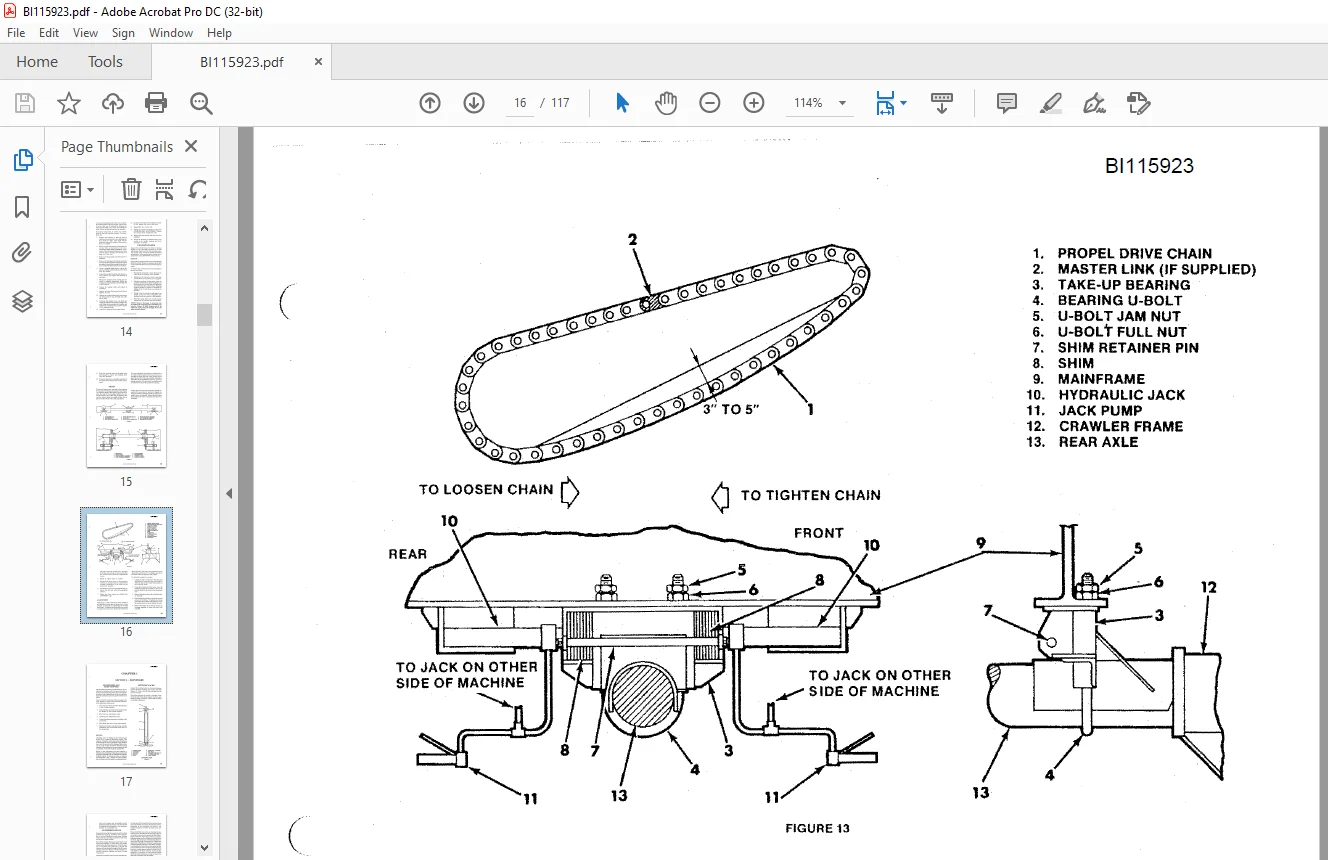

IMAGES PREVIEW OF THE MANUAL:

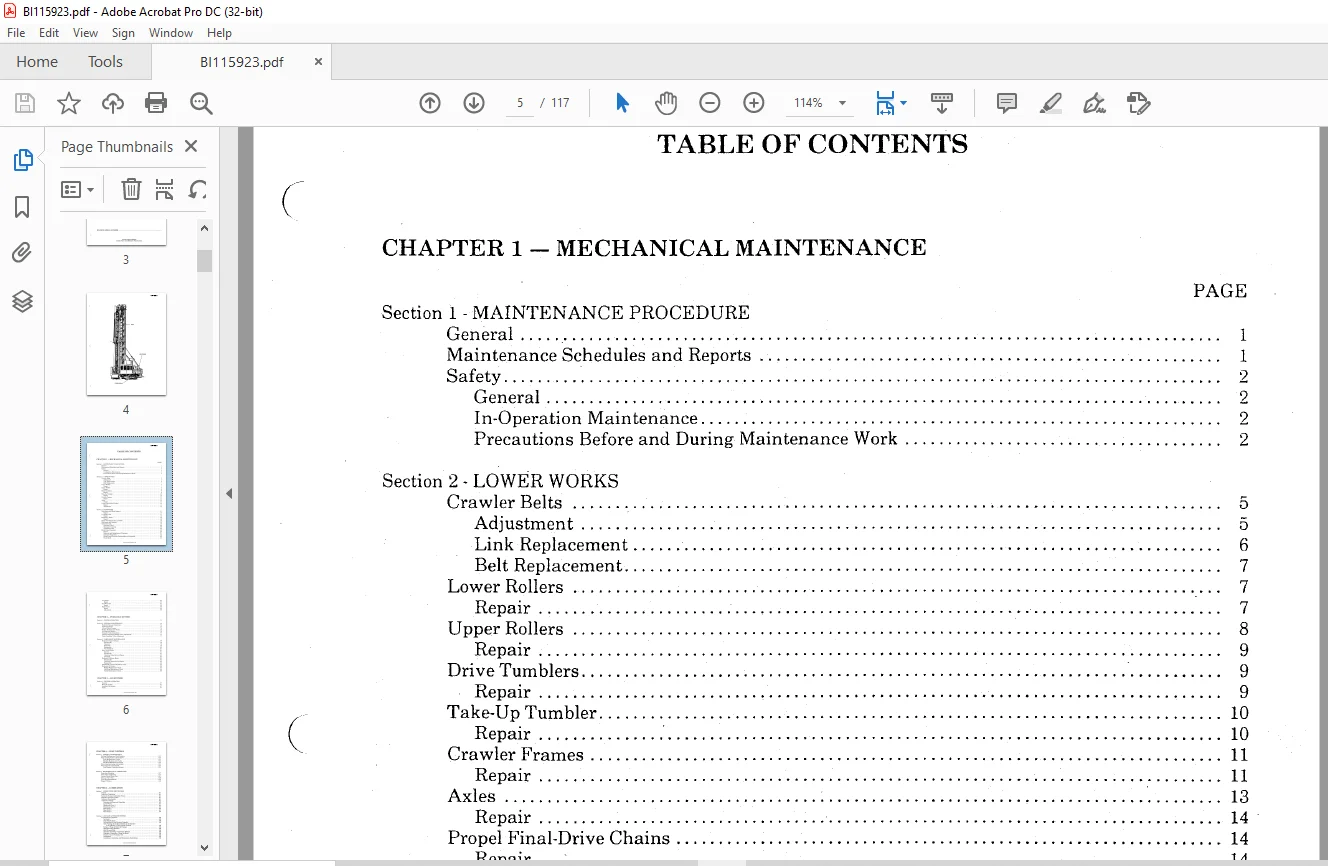

TABLE OF CONTENTS:

Cat BUCYRUS 45R ELECTRIC BLAST HOLE DRILL MECHANICAL MAINTENANCE MANUAL – PDF DOWNLOAD

Section 1 -MAINTENANCE PROCEDURE
General 1
Maintenance Schedules and Reports 1
Safety 2
General 2
In-Operation Maintenance 2
Precautions Before and During Maintenance Work 2
Section 2 – LOWER WORKS
Crawler Belts 5
Adjustment 5
Link Replacement 6
Belt Replacement 7
Lower Rollers 7
Repair 7
Upper Rollers 8
Repair 9
Dri ve Tum bIers 9
Repair 9
Take-Up Tumbler 10
Repair 10
Cra\vler Frames 11
Repair 11
Axles · 13
Repair 14
Propel Final-Drive Chains 14
Repair 14
Adjustment 14
Section 3 -MAINFRAME
Mainframe and Mast Support 17
Repair 17
Leveling Jacks 17
Repair 18
Machinery House · 19
Repair 19
House Ventilation Fan and Filter 19
Walkways and Ladders 19
Operator’s Cab 19
Operator’s Seat 20
Operator’s Controls 29
Ventilation Unit 20
Hoist-Propel Gearcase· 20
R’epair 20
Removal and Installation of Gearcase 21
Gearcase Suspension 22
Hoist-Propel Gearcase Disassembly and Assembly 23
Hoist Shaft
Tool Racks 65
Repair 65
( Tool Wrenches , 67
Repair 68
Back Braces 68
Repair ‘ 68
Adjustment 68
CHAPTER 2 – HYDRAULIC SYSTEM
Section 1· SYSTEM OPERATION 71
Section 2· GENERAL MAINTENANCE 75
Hydraulic System Cleanliness 75
Oil Requirements ” 75
Oil and Filter Changes 75
Weekly Maintenance Checks 76
Oil Reservoir Repairs ; 76
Unloader Valve Adjustment 77
Pressure Regulating (Relief) Valve Adjustment 77
Chain Equalizer Valve Adjustment ‘ 77
Section 3· COMPONENT MAINTENANCE
Hydraulic Pump Overhaul 79
Disassembly -; 79
( Cleaning ~ 79
Inspection ” 79
,Reassembly – : 80
Test Procedure ” ‘ 81
Main Valve Banks , ~ 81
General ” 81
Disassembly ~ ‘,’ ‘” ” 81
Cleaning, Inspection and Repair 83
Assembly 83
Hydraulic Pulldown Motor 83
Disassembly 83
Cleaning, Inspection and Repair , 85
Reassembly 85
Disassembly of Chain Equalizer Valve 85
Hydraulic Oil Cooler 86
Weekly Maintenance Check , ‘ 86
1000 Hour Maintenance Check 86
Yearly Maintenance Check 86
CHAPTER 3 – AIR SYSTEMS
Section 1· SYSTEMS OPERATION
General , 87
( Main Air System 87
Auxiliary Air System 87
Safety 87
CHAPTER 4 – DUST CONTROL
( Section 1- GENERAL MAINTENANCE
Drilling Platforms and Dust Curtains 133
Filter Air-Bag System (Amerpulse-iY) 133
Daily Maintenance Checks 133
Monthly Maintenance Checks 133
Six Month Maintenance Checks 134
Water Injection (using water pump) 134
Water Injection (pressurized) 134
Cold Weather Protection System 135
Section 2 – MAINTENANCE OF AMERPULSE~i
Operating Principles 137
Filter Tube Installation 137
Printed Circuit Timer Test 137
Solenoid Valve Test 139
Pulse Recommendations 139
Hopper Vibrator 139
CHAPTER 5 – LUBRICATION
Section 1 – LUBRICATION PROCEDURES
General 141
( Lubricant Cleanliness ” ‘” 141
Automatic System Lubrication Points 141
Manual Lubrication Points 141
Lubricant Benchmarks 142
Lubrication Charts 142
Gearcase and Reservoir Capacities ‘” 142
Lower Works 143
Mainframe (Part 1) ‘” , , 144
Mainframe (Part 2) 145
Mast (Part 1) 146
Mast (Part 2) ‘” 147
Mast (Part 3) ” 148
Section 2 -LINCOLN AUTOMATIC SYSTEM
Troubleshooting Systems 149
Air Locks 149
Dirty Supply Lines 149
All Injectors Do Not Function Properly , 149
After Venting, the Indicator Stems on the Injectors
Do Not Return to Their Normal Position 149
Failure of Pump to Build Up Pressure 150
Sluggish Pump Operation 150
Slow Pressure Rise 150
Assembly of Tubing Compression Fittings 150
Principle of Operation – Pump Air Motor 150
Service of Lower Pumping Unit , 152
Lubrication 153
Installation, Operating, and Maintenance Instructions 153
Air Compressor (piston type) Lubricant (ACPL) , 7 A
Chain Drive Lubricant (CDL) 8A
Drill Pipe Thread Lubricant (DPTL) 9A
Multipurpose Oil (MPO) o 0 0 0 0 0 0 0 0 ” 0000 00 ,lOA
Open Gear Lubricant (OGL) 0 0 0 0 lOA
Regular Type Gear Lubricant (RGL) 0 0 0 0 0 0 12A
Running Wire Rope Lubricant (RWRL) 0 l6A
Hydraulic Oil for Mining Machinery (HYDO) , 17 A
Appendix A5 -RECOMMENDED PROCEDURES FOR MAINTENANCE WELDING OF PRINCIPAL
STRUCTURES ON BLAST HOLE DRILLS
General o 0 0000 0 0 0 19A
Maintenance Welding 0 00 0·0 0 0 0 0 o19A
Structural Materials 0″ 0 0 0 0 19A
Welding Electrodes o 0 0 0 0 0 ‘” 20A
Preheat Requirements 0 0 0 0 0 0 0 22A
Removal of Cracks 0 0 0 0 0 0 0 0 0 22A
Weld Groove Preparation 0000 0000 0 0 0 22A
Drill Pipe Welding 00 0 0 0 0 0 0 0 22A
Welding Technique 0 23A
Weld Inspection 0 23A
Repair of Broken Parts 0 23A
Methods of Repair of Cracks 23A
( Appendix A6 -PREVENTIVE MAINTENANCE CHECKLISTS
Level I Inspection 25A
Level II Inspection 30A
Level III Inspection 32A
Appendix A7 -SPECIAL DRAWINGS
Hoist-Pulldown Shaft 0 0 00 0″ 0 0 0 o 0 o 33A
Propel Shaft 0 33A
Idler Shaft 0 0 33A
Hydraulic Motor Shaft 34A
Second Intermediate Pulldown Shaft ; 0 0 0 0 0 34A
First Intermediate Pull down Shaft 0 0 0 34A
First Intermediate Propel Shaft 0 0 35A
RH and LH Intermediate Propel Shafts 0 0 0 0 35A
Rotary Gearcase Shafts – Early Style o 0 0 0 0 0 36A
Rotary Gearcase Shafts -Latest Style 0 0 0 0 ” 0 0 36A
Rotary Unit Shipper Shaft 0 0 ; 37A
Drive Tumbler Shaft 0 0 0 “0 37A
