CAT Bucyrus 48 SINGEL 200 HP BELT DRIVE Parts & Operations Manual S/N:AMS-1107 – PDF DOWNLOAD

Description

CAT Bucyrus 48 SINGEL 200 HP BELT DRIVE Parts & Operations Manual S/N:AMS-1107 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus 48 SINGEL 200 HP BELT DRIVE Parts & Operations Manual S/N:AMS-1107 – PDF DOWNLOAD

Language : English
Pages : 107
Downloadable : Yes
File Type : PDF

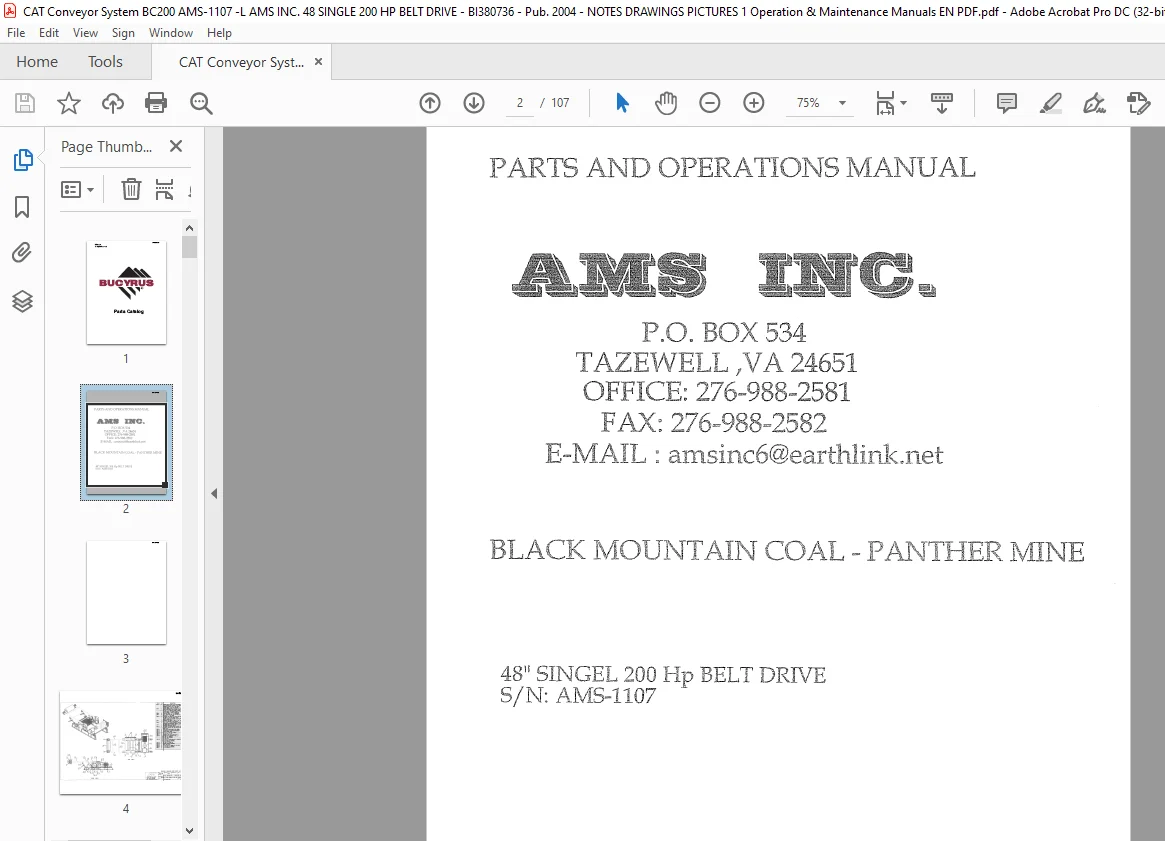

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus 48 SINGEL 200 HP BELT DRIVE Parts & Operations Manual BI380736 – PDF DOWNLOAD

• Due to the inherent characteristics of insulating materials, abnormally high temperatures shorten the operating life of electrical apparatus. The total temperature, not the temperature rise, should be the measure of safe operation. The class of insulation determines the maximum safe operating temperature. Aging of insulation occurs at an accelerated rate at abnormally high temperatures. A general rule for gauging the effect of excessive heat is that for each 10°C. rise in temperature above the maximum limit for the Insulation, the life of the Insulation is halved.
• Unbalanced voltage or single-phase operation of polyphase machines may cause excessive heating and ultimate failure. It requires only a slight unbalance of voltage applied to a polyphase motor to cause large unbalance currents and resultant overheating.
• Periodic checks of phase voltage, frequency and power consumption of a motor while in operation are recommended; such checks assure the correctness of frequency and voltage applied to the motor and yield an indication of the load offered by the apparatus which the motor drives.
• Comparisons of this data with previous no-load and full load power demands will give an Indication of the performance of the complete machine. Any serious deviations should be inv9Stigated and corrected.

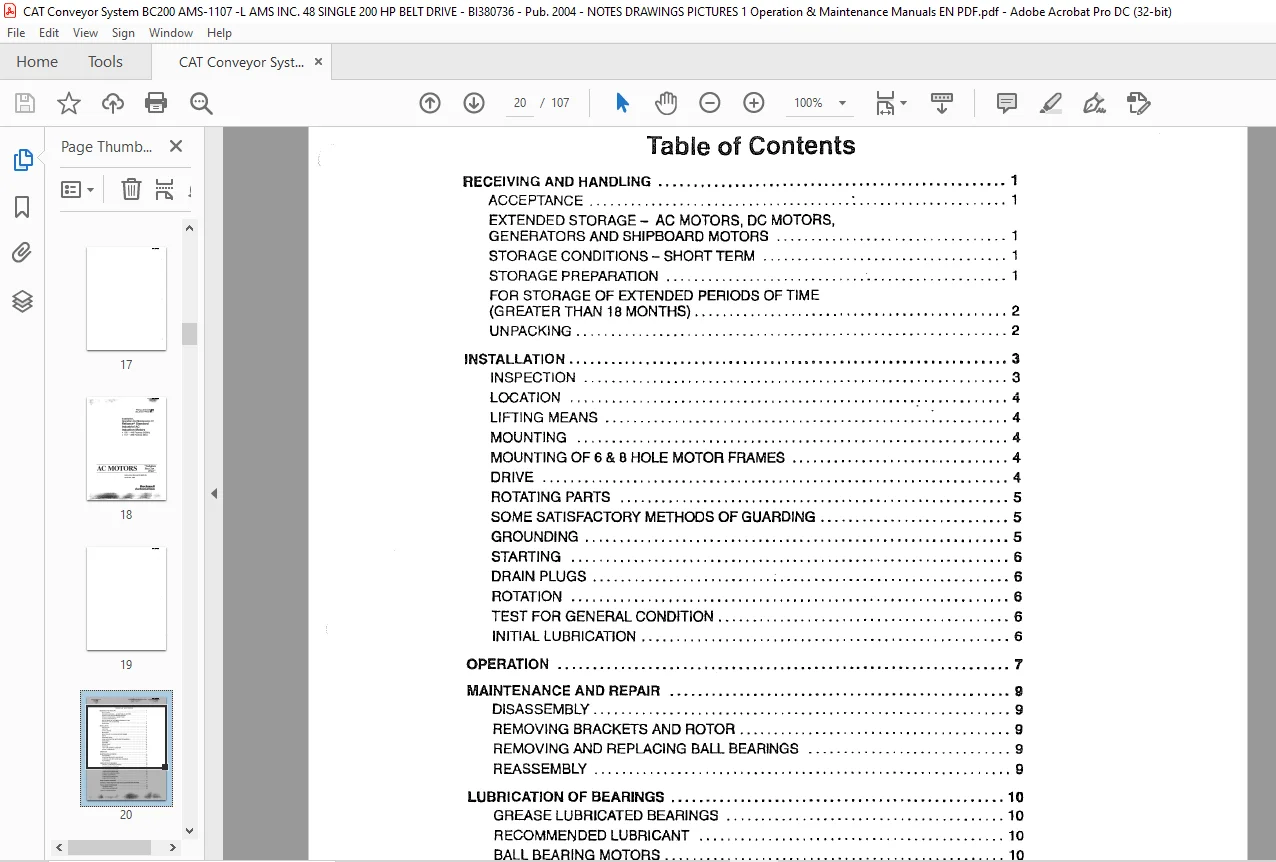

TABLE OF CONTENTS:

CAT Bucyrus 48 SINGEL 200 HP BELT DRIVE Parts & Operations Manual BI380736 – PDF DOWNLOAD

RECEIVING AND HANDLING 1
ACCEPTANCE 1
EXTENDED STORAGE – AC MOTORS, DC MOTORS,
GENERATORS AND SHIPBOARD MOTORS 1
STORAGE CONDITIONS – SHORT TERM 1
STORAGE PREPARATION 1
FOR STORAGE OF EXTENDED PERIODS OF TIME (GREATER THAN 18 MONTHS) 2
UNPACKING 2
INSTALLATION 3
INSPECTION 3
LOCATION 4
LIFTING MEANS  4
MOUNTING 4
MOUNTING OF 6 & 8 HOLE MOTOR FRAMES 4
DRIVE 4
ROTATING PARTS 5
SOME SATISFACTORY METHODS OF GUARDING 5
GROUNDING 5
STARTING 6
DRAIN PLUGS 6
ROTATION 6
TEST FOR GENERAL CONDITION 6
INITIAL LUBRICATION 6
OPERATION 7
MAINTENANCE AND REPAJR 9 DISASSEMBLY 9
REMOVING BRACKETS AND ROTOR 9
REMOVING AND REPLACING BALL BEARINGS 9
REASSEMBLY 9
LUBRICATION OF BEARINGS 10
GREASE LUBRICATED BEARINGS 10
RECOMMENDED LUBRICANT 10
BALL BEARING MOTORS 10
ROLLER BEARING MOTORS 10
LUBRICATION PROCEDURE 10
LUBRICATION INSTRUCTIONS 1
SERVICE CONDITIONS 11
LUBRICATION FREQUENCY 11
LUBRICATION VOLUME 11
REPLACEMENT BEARINGS , 11
GENERAL CROSS SECTION AND PARTS IDENTIFICATION DRAWING 11
TOTAL SERVICE PROGRAMS 12
RENEWAL PARTS 12
ADDITIONAL LITERATURE 12
