CAT BUCYRUS 49-RIII Rotary Blast Hole Drill Operation Maintenance Manual – PDF DOWNLOAD

Description

CAT BUCYRUS 49-RIII Rotary Blast Hole Drill Operation Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS 49-RIII Rotary Blast Hole Drill Operation Maintenance Manual – PDF DOWNLOAD

Language : English
Pages : 264
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS 49-RIII Rotary Blast Hole Drill Operation Maintenance Manual – PDF DOWNLOAD

FOREWORD

• The purpose of this manual is to provide information concerning the general maintenance of the 49-RIII Rotary Blast Hole Drill. The Model 49-RIII consists of three major units, the lower works, the mainframe and the mast. The lower works provides a foundation for the mainframe and contains the necessary equipment to propel the drill.
• The mainframe includes the hydraulic system, main air system, and the machinery house. The machinery house encloses the majority of the mechanical equipment necessary for the main air system, the hydraulic systems and electrical control systems.
• The machinery house is pressurized with filtered air to minimize dirt and heat build-up. The operator’s cab, mounted to the mainframe, includes the operator’s station, and encloses the majority of the controls necessary to operate the drill. The mast contains the drill pipe and drilling tools, the pipe racks, and the rotary and pulldown machinery.
• This manual consists of six chapters, each divided into sections. A table of contents is located in the front of the manual.

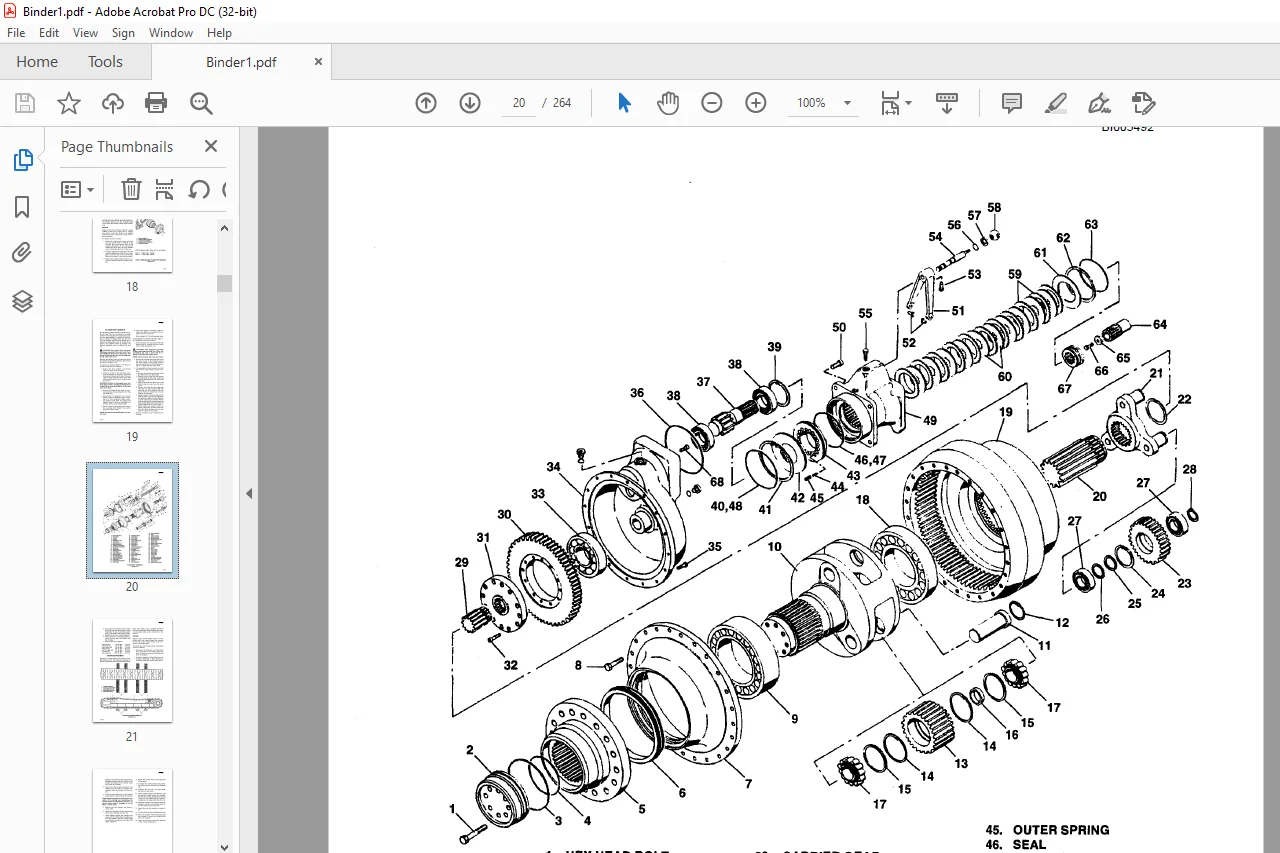

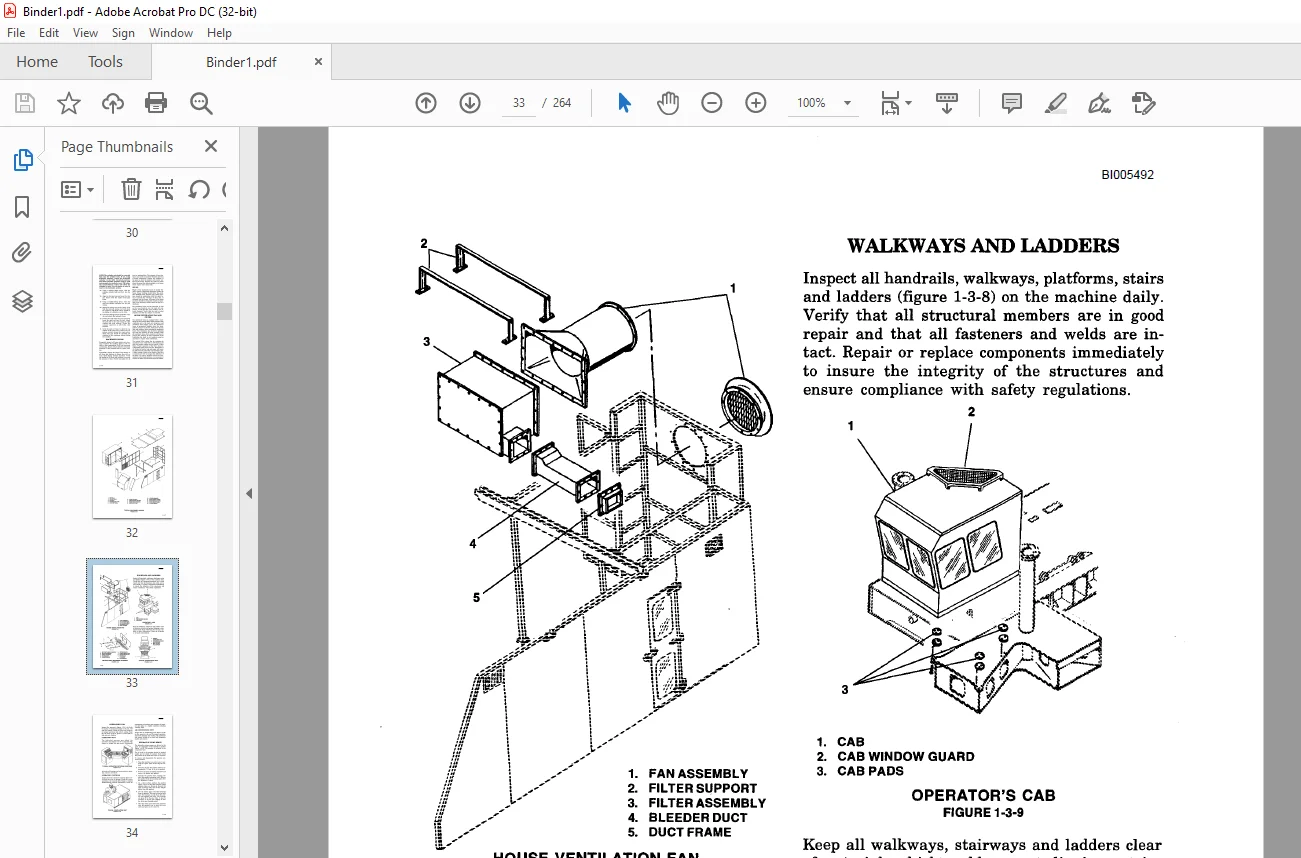

IMAGES PREVIEW OF THE MANUAL:

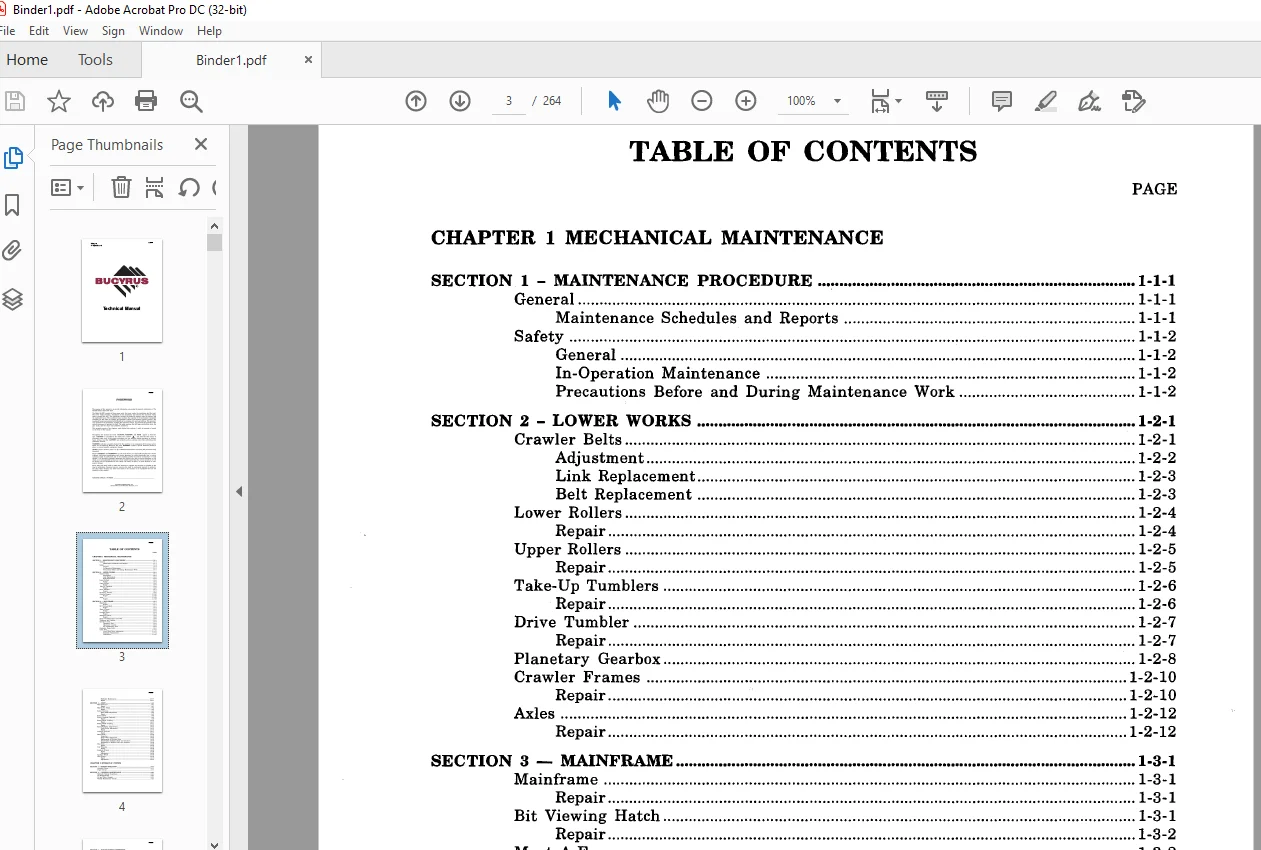

TABLE OF CONTENTS:

CAT BUCYRUS 49-RIII Rotary Blast Hole Drill Operation Maintenance Manual – PDF DOWNLOAD

CHAPTER 1 MECHANICAL MAINTENANCE
SECTION. 1 – MAINTENANCE PROCEDURE 1-1·1
General 1-1-1
Maintenance Schedules and Reports 1-1-1
Safety 1-1-2
General 1-1-2
In-Operation Maintenance 1-1-2
Precautions Before and During Maintenance Work 1-1-2
SECTION 2 – LOWER WORKS 1·2-1
Crawler Belts 1-2-1
Adjustment 1-2-2
Link Replacement 1-2-3
Belt Replacement 1-2-3
Lower Rollers 1-2-4
Repair 1-2-4
Upper Rollers 1-2-5
Repair 1-2-5
Take-Up Tumblers 1-2-6
Repair 1-2-6
Drive Tumbler 1-2-7
Repair 1-2-7
Planetary Gearbox 1-2-8
Crawler Frames 1-2-10
Repair 1-2-10
Axles 1-2-12
Repair 1-2-12
SECTION 3 – MAINFRAME 1-3-1
Mainframe 1-3-1
Repair 1-3-1
Bit Viewing Hatch 1-3-1
Repair 1-3-2
Mast A-Frame 1-3-2
Repair 1-3-2
Leveling Jacks 1-3-2
Repair 1-3-4
Machinery House 1-3-6
Repair 1-3-6
House Ventilation Fan and Filter 1-3-6
Walkways and Ladders ; 1-3-8
Operator’s Cab 1-3-9
Operator’s Seat 1-3-9
Operator’s Controls 1-3-9
Air Conditioning Unit 1-3-9
Hydraulic Pump Drive 1-3-9
Cable Reel 1-3-11
Level Wind Drive Adjustment 1-3-11
Hydraulic Adjustments 1-3-14
Lubrication 1-3-17
Hydraulic Maintenance 1-3-17
Repair 1-3-17
SECTION 4 – MAST ” 1·4-1
Mast Structure 1-4-1
Repair 1-4-1
Mast Safety Slings 1-4-2
Repair 1-4-2
Rotary Gearcase 1-4-2
Drive Shaft Adjustment 1-4-3
Repair 1-4-3
Rotary Motor 1-4-8
Rotary Coupling (Optional) 1-4-9
Repair 1-4-9
Rotary Shock Coupling 1-4-10
Repair 1-4-10
Rotary Shock Coupling 1-4-11
Repair 1-4-12
Rotary/Pulldown Guide Frame 1-4-13
Guide Roller Adjustment 1-4-13
Repair 1-4-13
Pulldown Gearcase 1-4-17
Repair 1-4-17
Hoist Brake 1-4-22
Inspection 1-4-22
Brake Wear Adjustment 1-4-23
Replacement of Friction Discs 1-4-23
Disassembly of Magnet Body and Armature 1-4-24
Reassembly of Magnet Body and Armature 1-4-24
Pipe Racks 1-4-25
Repair 1-4-25
Tool Wrenches 1-4-28
Repair 1-4-28
Breakout Wrench 1-4-29
Repair 1-4-29
Adjustment 1-4-29
Auxiliary Winch 1-4-30
Mast Braces 1-4-30
Repair 1-4-31
Adjustment 1-4-31
CHAPTER 2 HYDRAULIC SYSTEM
SECTION 1 – SYSTEM OPERATION 2-1-1
Cylinder Circuit 2-1-1
Propel Circuit 2-1-1
SECTION 2 – GENERAL MAINTENANCE 2-2-1
Hydraulic System Cleanliness 2-2-1
Oil Requirements 2-2-1
Oil and Filter Changes 2-2-1
Weekly Maintenance Checks 2-2-1
SECTION 3 – ROTARY SCREW COMPRESSOR
(A·C COMPRESSOR CORP. KS·31·AC(X) OR KS·27·AC) .•••..•.••..•.•…••.•. 3·3·1
Description , 3-3-1
Coupling Alignment 3-3-2
Parallel Misalignment 3-3-2
Angular Misalignment 3-3-3
Start-Up Procedure 3-3-3
Shutdown 3-3-5
Controls and Instruments 3-3-5
Air Pressure Control System 3-3-5
Variable Volume Feature (Optional) 3-3-9
Lubrication System 3-3-9
Compressor Oil System 3-3-9
Lubrication – compressor 3-3-10
Lubricant Specifications 3-3-10
Filling Oil System (Initially) 3-3-10
Oil Level Gauge 3-3-10
Adding Oil Between Changes 3-3-10 .
Draining Oil System 3-3-12
Refilling Oil System 3-3-13
Compressor Oil Strainer and Filters 3-3-13
Compressor Oil Cooler 3-3-13
Temperature Control Valve 3-3-14
Compressor Oil Separator Elements 3-3-15
Air Filters 3-3-16
Maintenance Schedule 3-3-18
Preventative maintenance 3-3-19
Intake Valve Service (figure 3-3-16) 3-3-19
Air End Input Shaft Oil Seal Replacement (figure 3-3-17) 3-3-21
CHAPTER 4 DUST CONTROL
SECTION 1 – GENERAL MAINTENANCE •..•••…•….•….••…..••..•.••..•….•.•..••••…•.•…••••..•….•.•..•••. 4·1·1
Drilling Platforms and Dust Curtains 4-1-1
Filter/Clone® System (Tipton) 4-1-1
Daily Maintenance Checks 4-1-1
Monthly Maintenance Checks 4-1-1
Six Month Maintenance Checks 4-1-2
Water Injection System 4-1-2
Operation 4-1-2
Filling Water Tank 4-1-3
Deck Washdown System (Optional) 4-1-3
Operating Principle 4-2-1
SECTION 2 – MAINTENANCE OF FILTERICLONE® (TIPTON) ..••…•.•…•••….•…..•…•••….• 4·2·1
Maintenance 4-2-1
CHAPTER 5 LUBRICATION
SECTION 1 • LUBRICATION PROCEDURES 5·1·1
General 5-1-1
Lubricant Cleanliness 5-1-1
Lubrication Points 5-1-1
Lubrication Benchmarks 5-1-8
BI005492
Oil Reservoir Repairs 2-2-2
Leveling Jack Counterbalance Valve Pressure Relieving Procedure 2-2-2
Rear Jacks 2-2-2
Front Jack 2-2-2
Prestart Inspection 2-2-3
Hydraulic Systems Tests 2-2-3
Propel Pump Charge Pressure Check 2-2-4
Control Pressure Check 2-2-4
Propel Enable Valve and Low Speed Select Check 2-2-4
Jack Cylinder Check in Manual Mode 2-2-5
Flow Control Check 2-2-5
Jack Cylinder Drift Test 2-2-6
Brake Release Pressure Check 2-2-6
Propel Brake Emergency Release Check 2-2-6
Propel Pump Main Relief Pressure Check 2-2-7
Crawler Function Check 2-2-7
Bit Viewing Hatch Check 2-2-7
Boarding Stair Check 2-2-7
Main Flow Valve Check 2-2-7
Breakout Wrench and Tool Wrench Check 2-2-8
Dust Curtain Cylinders 2-2-8
Dust Seal Slider 2-2-8
Mast Lock 2-2-8
Mast Brace Lock Cylinders 2-2-8
A-Frame Lock Cylinders 2-2-8
Mast Lock Constant Pressure Check 2-2-8
Mast Brace Constant Pressure Check 2-2-8
A-Frame Lock Constant Pressure Check 2-2-9
Mast RaiselLower 2-2-9
Auxiliary Winch 2-2-9
Hydraulic Central Lube Drive Pressure Check 2-2-10
Window Guard Function Check 2-2-10
Water Injection Drain Valves Check 2-2-10
Water Injection Pump Function Check 2-2-11
Water Injection Washdown Check 2-2-12
Check Jacks in Auto Level Mode 2-2-12
Pipe Rack Position Check 2-2-13
Pipe Rack Lock and Gate Cylinder Port Relief Setting 2-2-13
Pipe Thread Lubricator Check 2-2-13
Pipe Positioner Function Check 2-2-13
Center Guide Function Check plus Constant Pressure Check 2-2-13
Automatic breakout wrench check 2-2-14
CHAPTER 3 AIR SYSTEM
SECTION 1- SYSTEM OPERATION 3-1·}
Main Air System 3-1-1
SECTION 2 – GENERAL MAINTENANCE 3-2-1
Main Air System 3-2-1
General 3-2-1
Intake Air Filter 3-2-1
Filter Replacement 3-2-1
Compressor Radiator 3-2-2
SECTION 2 – LINCOLN AUTOMATIC SYSTEM 5-2-1
Troubleshooting Systems , ‘” 5-2-1
Air Locks 5-2-1
Dirty Supply Lines 5-2-1
All Injectors Do Not Work Properly 5-2-1
After Venting, The Indicator Stems on the Injectors do not Return to
Their Normal Position 5-2-1
Graco Pump Servicing 5-2-2
Pressure Relief Procedure 5-2-2
Replacing the Throat Seals 5-2-2
Disconnecting the Reciprocator and Displacement Pump 5-2-2
Lubrication 5-2-10
APPENDIX Al . GEAR INSPECTION lA-I
General lA-1
APPENDIX A2 – BOLT TORQUING 2A-}
Torque Wrench Method ; 2A-1
Turn Of The Nut Method 2A-2
APPENDIX A3 • PINION, BRAKE DRUM AND COUPLING INSTALLATION 3A-l
Removal From Shaft 3A-1
Mounting On Shaft 3A-1
APPENDIX A4 – LUBE BENCHMARKS 4A-}
MPG – Multi-Purpose Type Grease 4A-1
Scope 4A-1
Application 4A-1
General Requirements 4A-1
Compounding 4A-1
Specific Requirements 4A-1
Notations 4A-1
Air Compressor (Screw Type) Lubricant 4A-2
DPTL – Drill Pipe Thread Lubricant .4A-2
Scope 4A-2
Application 4A-2
General Requirements 4A-2
Specific Requirements 4A-2
MPO – Milti-Purpose Oil 4A-3
Scope 4A-3
Application 4A-3
General Requirements 4A-3
Viscosity Recommendations 4A-3
OGL – Open Gear Lubricant 4A-3
Scope 4A-3
Application 4A-3
Methods of Application 4A-3
General Requirements 4A-3
Type of Lubricants 4A-4
Compounding 4A-4
Specific Requirements for all Types of Lubricants 4A-4
RGL – Regular Type Gear Lubricant 4A-5
Scope 4A-5
Application 4A-5
General Requirements 4A-5
Compounding , 4A-5
Viscosity and Viscosity Index 4A-5
BI005492
Notations 4A-6
Rotary Blast Hole Drills 4A-6
Notations 4A-7
RWRL – Running Wire Rope Lubricant.. .4A-8
Scope 4A-8
Application 4A-8
General Requirements 4A-8
Compounding 4A-8
Special Requirements 4A-8
HYDO – Hydraulic Oil 4A-9
PAO Synthetic Hydraulic Fluid 4A-9
Parafinnic base Petroleum Hydraulic Fluid .4A-IO
APPENDIX AS – RECOMMENDED PROCEDURES FOR MAJNTENANCE WELDING
OF PRINCIPAL STRUCTURES ON BLAST HOLE DRILLS
APPENDIX AG – PREVENTIVE MAINTENANCE CHECK LIST GA-}
APPENDIX A7 – SPECIAL FITS 7A·l
APPENDIX AS – AEROQUIP ORS CONNECTIONS SA-}
