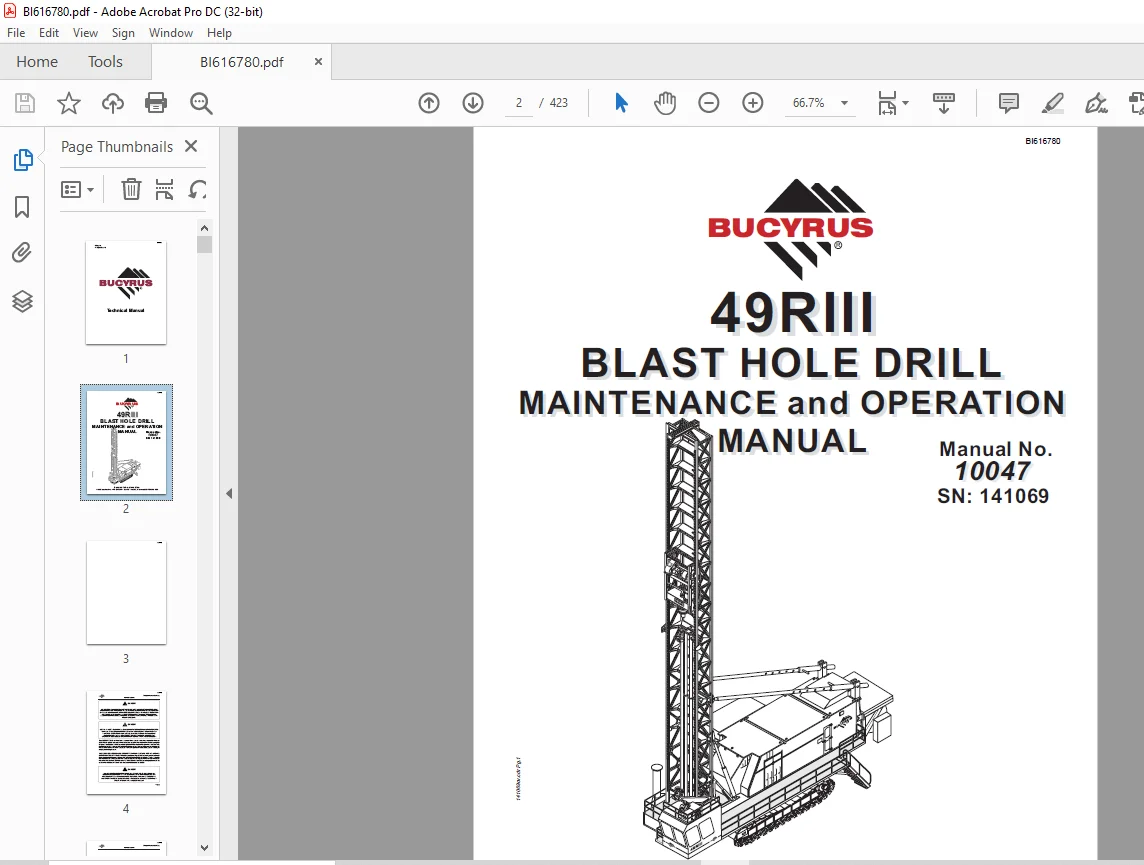

CAT Bucyrus 49RIII BLAST HOLE DRILL MAINTENANCE and OPERATION MANUAL SN 141069 – PDF DOWNLOAD

Description

CAT Bucyrus 49RIII BLAST HOLE DRILL MAINTENANCE and OPERATION MANUAL SN 141069 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus 49RIII BLAST HOLE DRILL MAINTENANCE and OPERATION MANUAL SN 141069 – PDF DOWNLOAD

Language : English
Pages :423
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus 49RIII BLAST HOLE DRILL MAINTENANCE and OPERATION MANUAL SN 141069 – PDF DOWNLOAD

FORWARD

• This manual is designed to assist you as the owner in the operation and maintenance of this machine. By following easy to understand step-by-step procedures the operators and maintenance personnel can perform all tasks in a safe manner. It is important to remember that when a systematic and thorough maintenance/service procedure is used for this machine, a minimum of unplanned downtime and more reliable operation will result.
• Periodic additions or revisions may be made to this manual. These can be ordered and will be mailed direct to you from the factory. Should you require additional information or factory service assistance contact your regional service representative or:

Bucyrus International, Inc.
1100 Milwaukee Avenue
P.O. Box 500
South Milwaukee, Wisconsin, USA 53172-0500
Telephone (414)-768-4000

• is Bucyrus International’s policy to improve its products whenever possible and practical to do so. The company reserves the right to make changes or add improvements to it’s machines at any time. This will be without incurred obligations to install such changes on machines sold previously. Due to this ongoing program of product research and development some procedures, specifications and parts may be altered in a constant effort to improve our machines.
• THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used as reference material to order parts. A separate, detailed parts book has been supplied. Please carefully read the instructions in it. All parts are listed by group and/or product code numbers with the associated item/part numbers for THIS SPECIFIC MACHINE. Order parts in the exact quantity needed. Parts ordered by mistake and returned are subject to a re-handling charge.
• RIGHT HAND (RH) and LEFT-HAND (LH) parts correspond to the operator’s hands at the controls when operating the machine. Please state the correct machine SERIAL NUMBER (Serial No.141069) when corresponding or contacting the factory service or parts departments. Records on each machine are filed by serial number and when given this number, your machine’s specific design and original equipment is accessed quickly by the Bucyrus International’s parts representative.

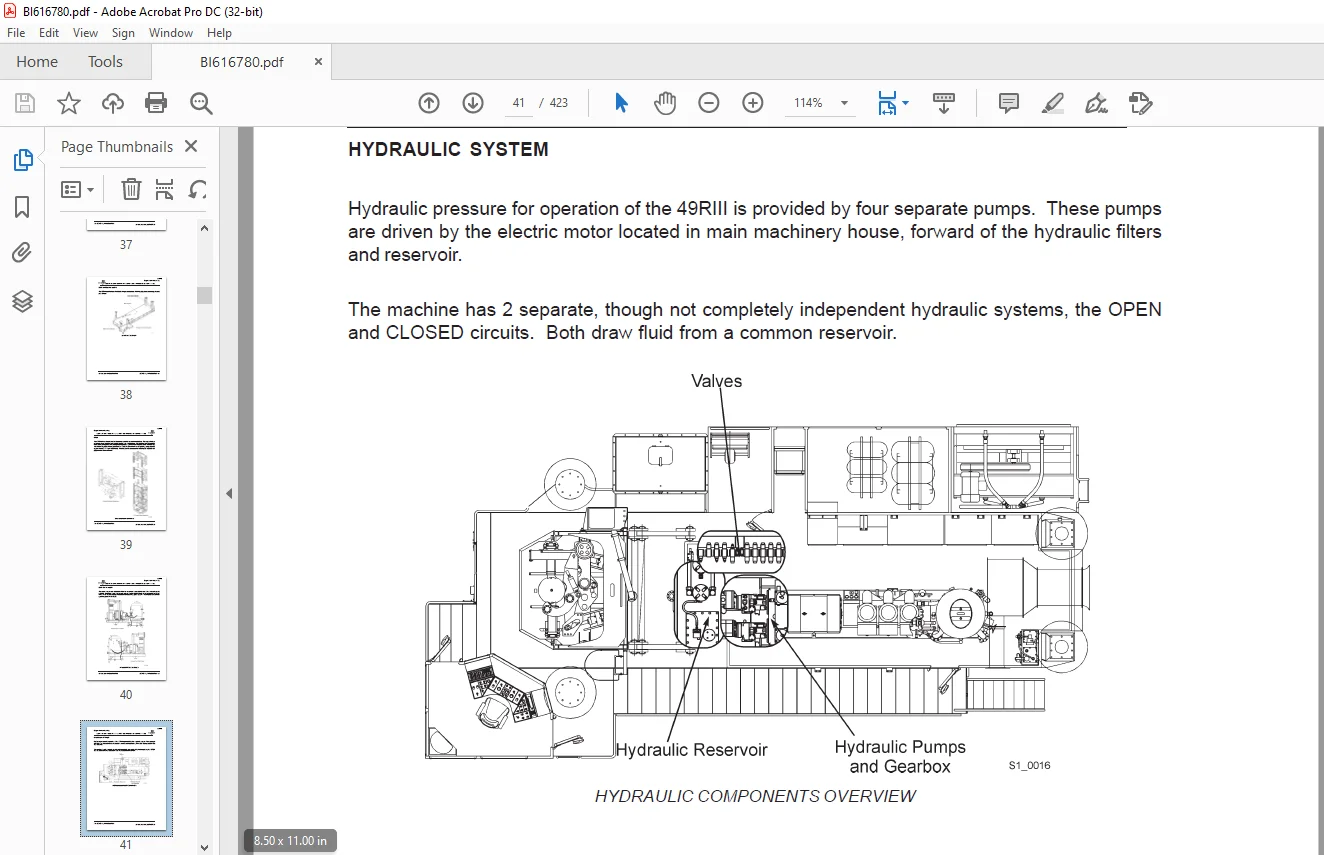

IMAGES PREVIEW OF THE MANUAL:

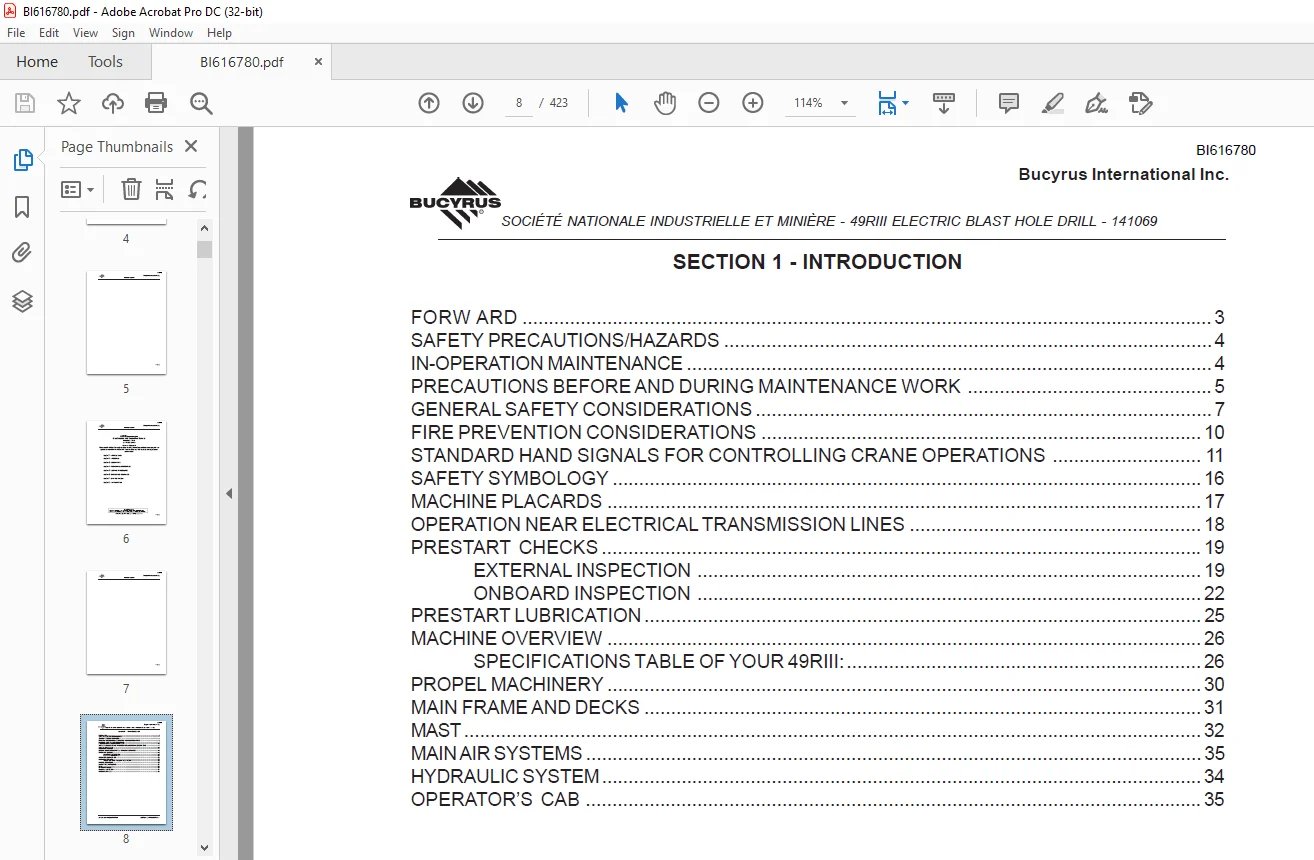

TABLE OF CONTENTS:
