Cat Bucyrus 8050 Dragline Parts Book Manual SN 23105 – PDF DOWNLOAD

Description

Cat Bucyrus 8050 Dragline Parts Book Manual SN 23105 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus 8050 Dragline Parts Book Manual SN 23105 – PDF DOWNLOAD

Language : English
Pages : 477
Downloadable : Yes
File Type : PDF

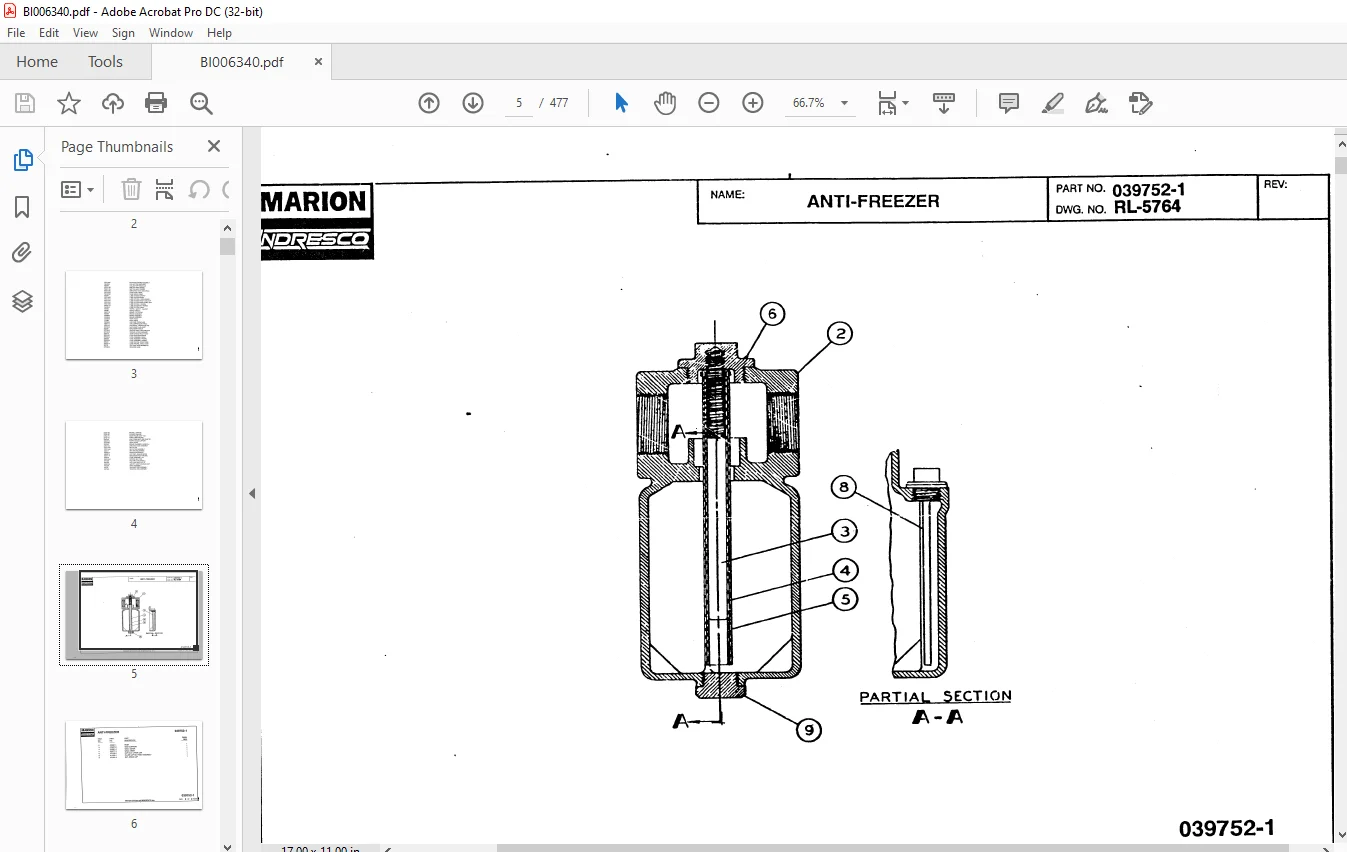

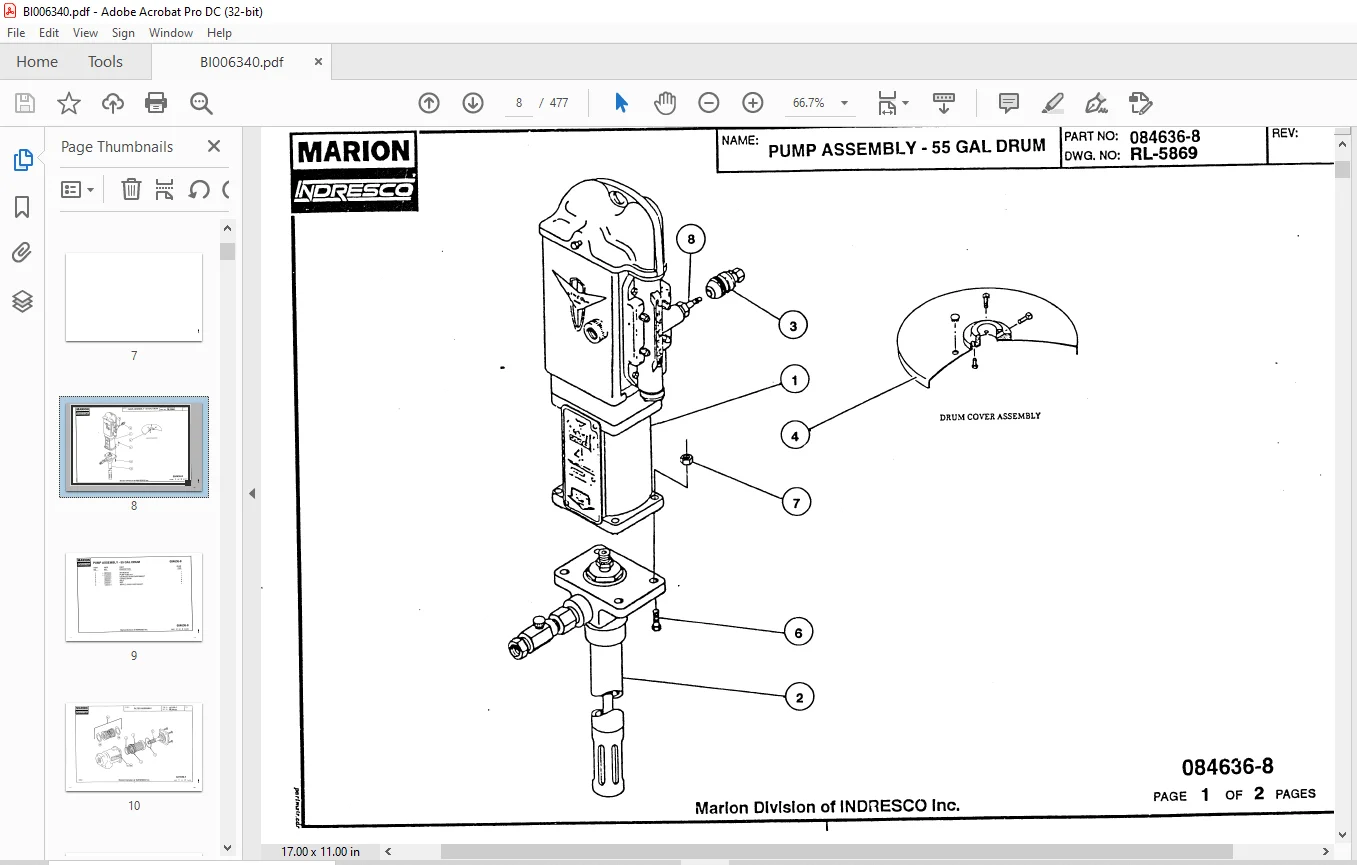

IMAGES PREVIEW OF THE MANUAL:

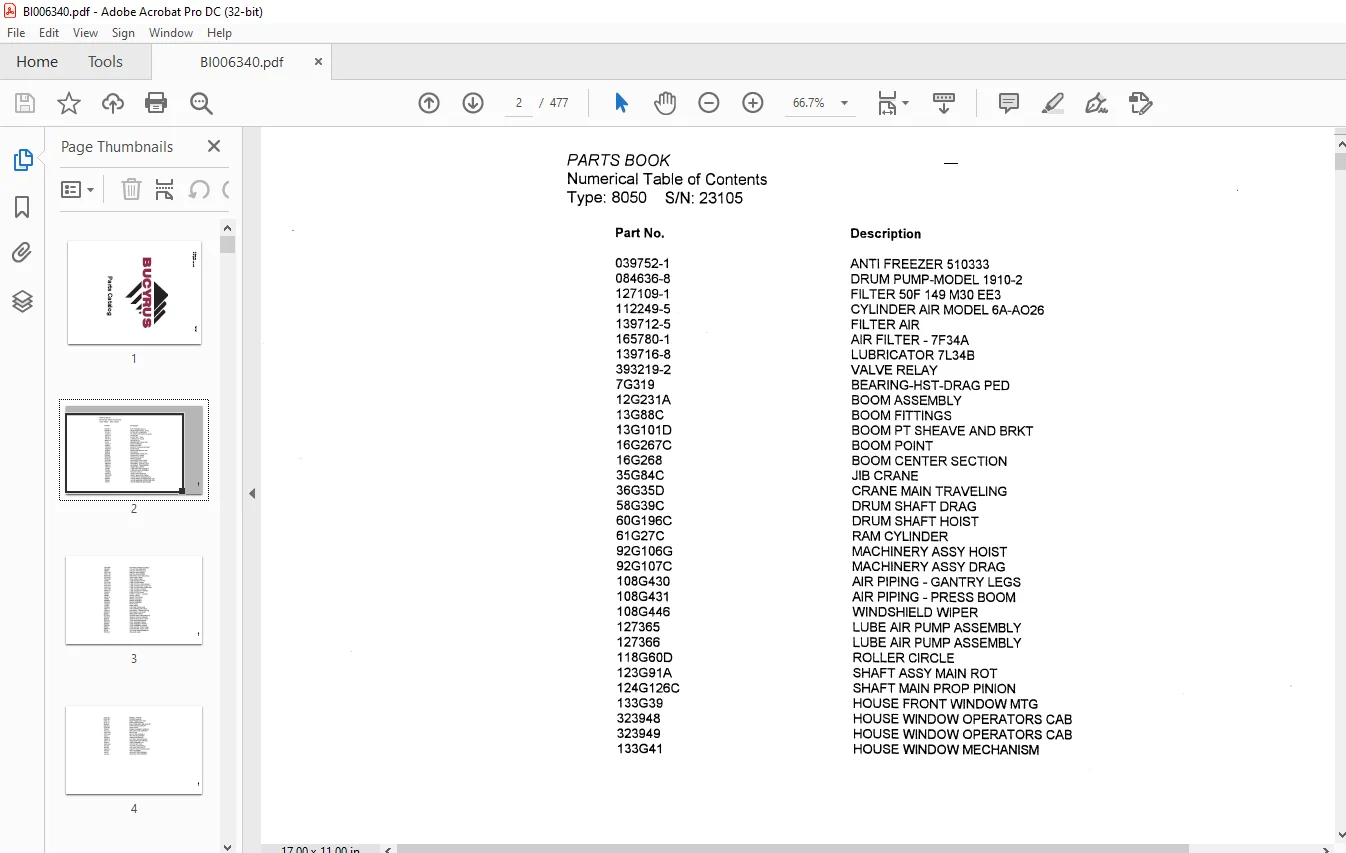

TABLE OF CONTENTS:

Cat Bucyrus 8050 Dragline Parts Book Manual SN 23105 – PDF DOWNLOAD

ANTI FREEZER 510333
DRUM PUMP-MODEL 1910-2
FILTER 50F 149 M30 EE3
CYLINDER AIR MODEL 6A-AO26
FILTER AIR
AIR FILTER – 7F34A
LUBRICATOR 7L34B
VALVE RELAY
BEARING-HST-DRAG PED
BOOM ASSEMBLY
BOOM FITTINGS
BOOM PT SHEAVE AND BRKT
BOOM POINT
BOOM CENTER SECTION
JIB CRANE
CRANE MAIN TRAVELING
DRUM SHAFT DRAG
DRUM SHAFT HOIST
RAM CYLINDER
MACHINERY ASSY HOIST
MACHINERY ASSY DRAG
AIR PIPING – GANTRY LEGS
AIR PIPING – PRESS BOOM
WINDSHIELD WIPER
LUBE AIR PUMP ASSEMBLY
LUBE AIR PUMP ASSEMBLY
ROLLER CIRCLE
SHAFT ASSY MAIN ROT
SHAFT MAIN PROP PINION
HOUSE FRONT WINDOW MTG
HOUSE WINDOW OPERATORS CAB
HOUSE WINDOW OPERATORS CAB
HOUSE WINDOW MECHANISM
ROTATING FRAME ASSEMBLY
COLLECTOR RING ASSY
COLLECTOR RINGS AUX
SWITCH ASSY PROPEL
SWITCH ASSY PROPEL
SWITCHES HOIST AND DRAG
CASE HOIST GEAR
CASE SWING GEAR
LUBE SYSTEM GANTRY
LUBE SYSTEM BOOM
LUBE SYSTEM – OPEN GEARS
LUBE SYSTEM HOIST CABLE SP
LUBE SYSTEM DRAG CABLE SPR
LUBE SYSTEM – PROPEL
LUBE SYSTEM ROT FRAME
LUBE SYSTEM – MAST
ROPES-SAFETY-GANTRY
ROPES SAFETY
BRAKE – ROTATING
BRAKE ASSEMBLY
BRAKE ASSEMBLY
BRAKE ASSEMBLY
ROPE HOIST
ROPE DRAG
AIR COMP. PIPING ADD
AIR COMPRESSOR PIPING
AIR PIPING – OPERATOR CAB
MACHINERY AUX HOIST
MACHINERY WINCH
SHEAVE ASSY LOW FAIRLEAD
SHEAVE UPPER FAIRLEAD
GEAR CASE STRUCT HOIST
CASE MAIN DRIVE GEAR
CASE ASSEMBLY DRAG
CASE ASSEMBLY PROPEL
CASE ASSEMBLY PROPEL
CASE PROPEL STRUCTURE
CASE PROPEL STRUCTURE
RAIL AND GEAR SEGMENTS
WALKING SHOE
PROPEL LINKAGE
PROPEL LINKAGE
BASE FRAME ASSY TUB
SHAFT MAIN PROPEL
LINK CONN MAST AND GANTRY
ROPES BOOM SUPPORT
HOOKSHOE
BRAKE SNUBBER LOWER SH
WALKING SHOE ASSEMBLY
AIR FILTER
AIR FILTER ASSEMBLY
RETURN MECHANISM
BOOM SUSPENSION
HST DEFL SHEAVE BOOM
MACHINERY ASSY PROPEL
PUMP ASSEMBLY OIL
CENTER SECTION
PCR AIR COND INSTALL
AIR COND AND DUCTS
GANTRY AND FAIRLEAD ASSY
MAST ASSEMBLY
WALKING ARM ASSEMBLY
WALKING ARM ASSEMBLY
