Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
$28.95
Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
Description
Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
FILE DETAILS:
Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
Language : English
Pages : 263
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
control is adjustable. When the control is set, pump automatically compensates to deliver fluid
necessary to reach and maintain set pressure.
angle drill pipe support, track tension, track brake release, and tool lower cavity. LOCATION: Top right position on pump
drive gearbox.
Setting – 2000 psi. Special Tools – none. Adjustment Procedure
1. With rig engine not running, remove protective cap (top cap on motor). Be sure locknut does
not back off with cap.
2. Start rig engine and set speed at idle (around 550 to 600 rpm).
3. Loosen adjustment screw locknut. (Hold adjustment screw to keep it from turning with locknut).
4. Adjust to set pressure at 2000 psi. Read pressure on CONTROL PUMP gage.
NOTE: If 2000 psi cannot be obtained, check control circuit pressure relief valve setting. (See
BMI – 02.)
6. Replace and secure protective cap. Be sure locknut does not turn.

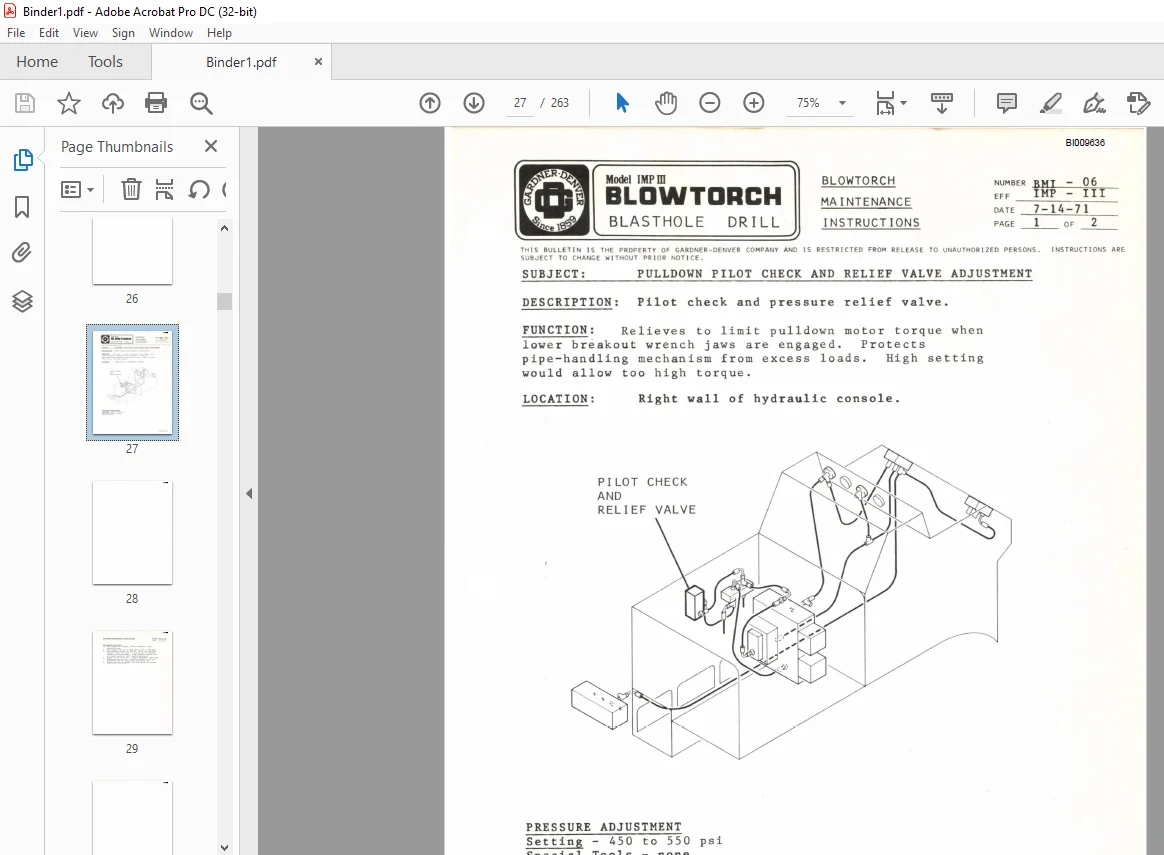

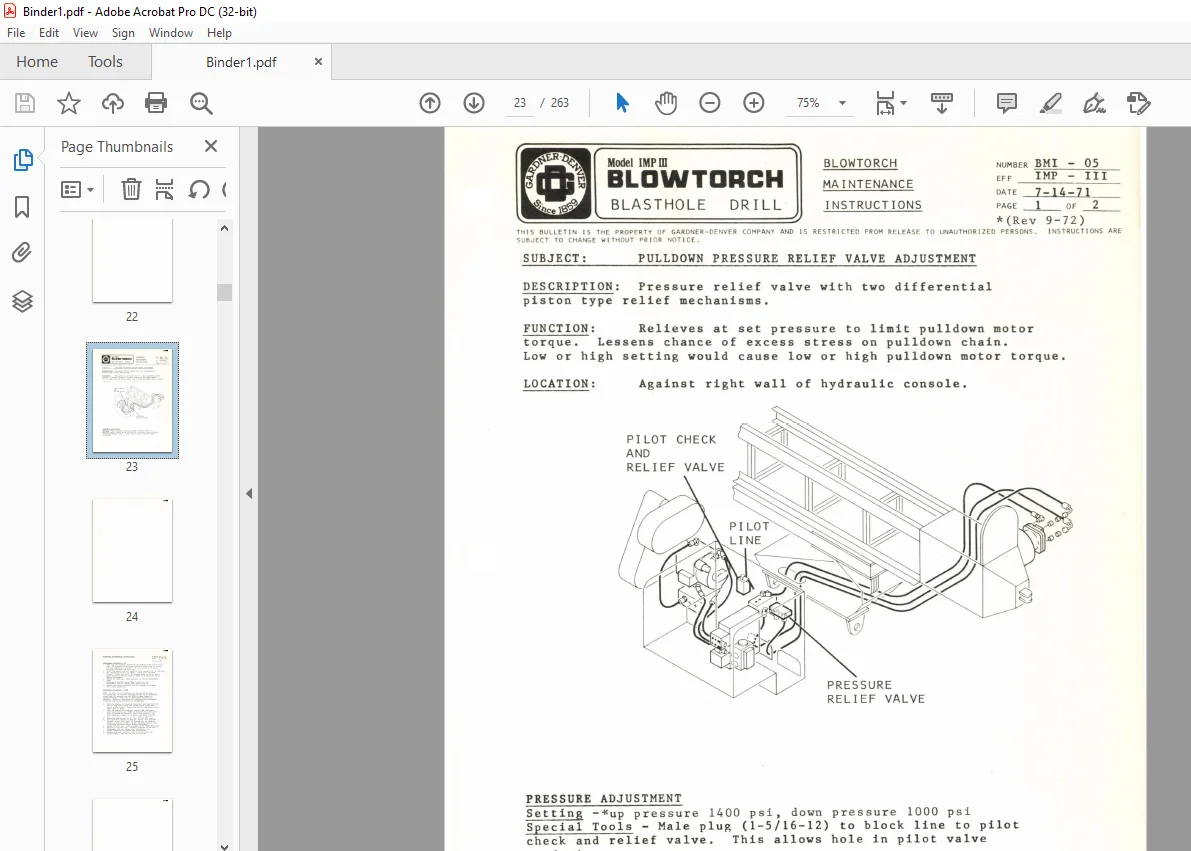

IMAGES PREVIEW OF THE MANUAL:

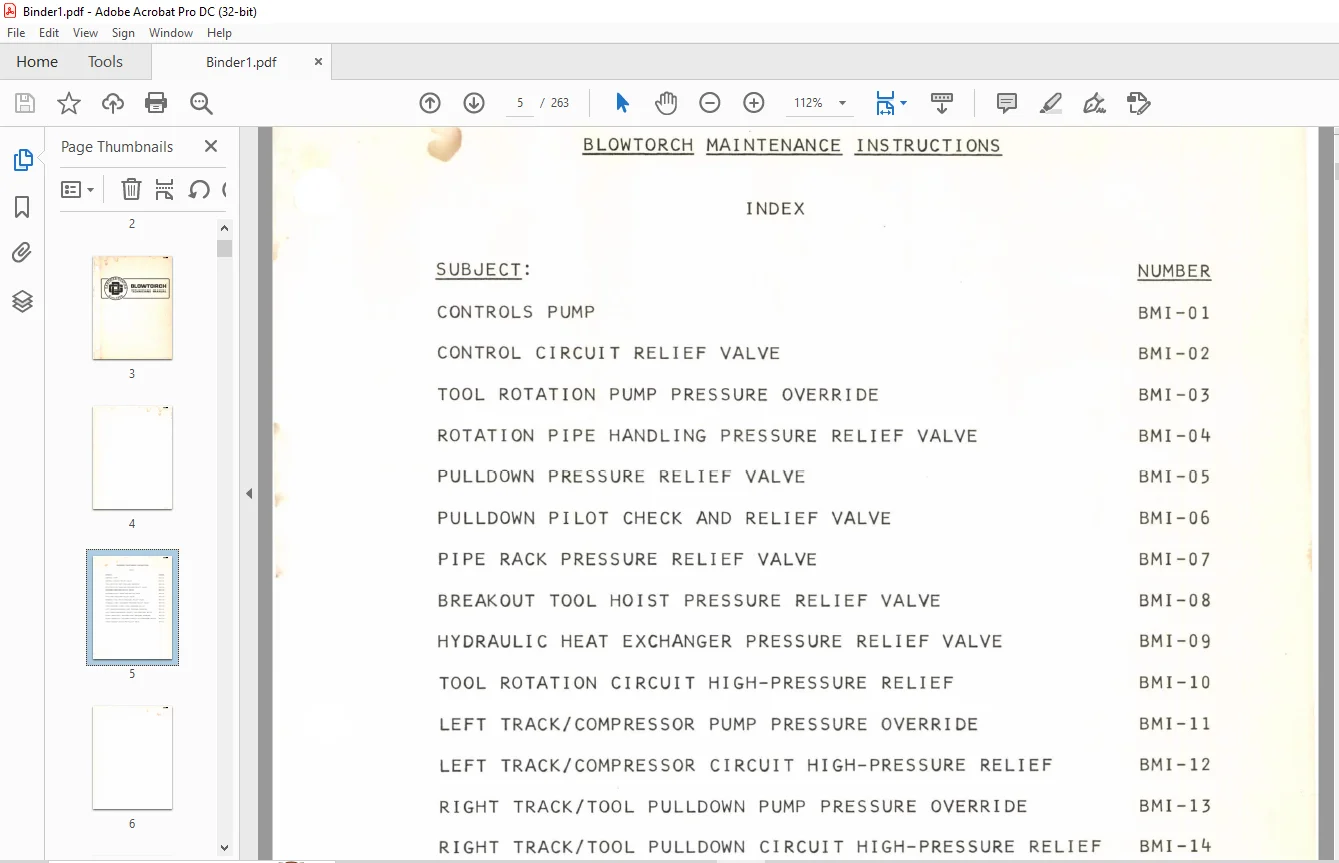

TABLE OF CONTENTS:
Cat Bucyrus Blowtorch IMP – III Blast Hole Drill Maintenance Instruction Manual BI009636 – PDF DOWNLOAD
CONTROLS PUMP
CONTROL CIRCUIT RELIEF VALVE
TOOL ROTATION PUMP PRESSURE OVERRIDE
ROTATION PIPE HANDLING PRESSURE RELIEF VALVE
PULLDOWN PRESSURE RELIEF VALVE
PULLDOWN PILOT CHECK AND RELIEF VALVE
PIPE RACK PRESSURE RELIEF VALVE
BREAKOUT TOOL HOIST PRESSURE RELIEF VALVE
HYDRAULIC HEAT EXCHANGER PRESSURE RELIEF VALVE
TOOL ROTATION CIRCUIT HIGH-PRESSURE RELIEF
LEFT TRACK/COMPRESSOR PUMP PRESSURE OVERRIDE
LEFT TRACK/COMPRESSOR CIRCUIT HIGH-PRESSURE RELIEF
RIGHT TRACK/TOOL PULLDOWN PUMP PRESSURE OVERRIDE
RIGHT TRACK/TOOL PULLDOWN CIRCUIT HIGH-PRESSURE RELIEF
TRACK TENSION CHECK AND RELIEF VALVE
