CAT Bucyrus CL210 Load Haul Dump Service Manual SN 5003958 – PDF DOWNLOAD

Description

CAT Bucyrus CL210 Load Haul Dump Service Manual SN 5003958 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus CL210 Load Haul Dump Service Manual SN 5003958 – PDF DOWNLOAD

Language : English
Pages : 343
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus CL210 Load Haul Dump Service Manual SN 5003958 – PDF DOWNLOAD

General Information
INTRODUCTION

• The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
• This manual is designed to provide the CL210 Load Haul Dump operator and service personnel with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators and service personnel of this machine must be conversant with the information contained within this manual before operating or performing service tasks on the machine.
• To ensure safe and efficient operation, the CL210 Load Haul Dump must be adequately maintained by the operators and service personnel. The operator’s pre-start inspection procedure contained in Section 6 of the Operator’s Manual must be performed before the machine is returned to active service.

DESCRIPTION

• The CL210 is a 10000 kg Load Haul Dump machine. It allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies. The motive force is provided by a 172 kW CAT 3126 turbocharged four-stroke inline six cylinder flameproof diesel engine package.
• Flameproofing of the system includes a dry exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic. The Diesel Control System (DCS) is an intrinsically safe electronic monitoring system.
• The engine power output is connected to the constant four-wheel drive system via a drive coupling through a four-speed bidirectional power shift transmission to heavy duty axles. The CL210 utilises a dry exhaust system complete with a replaceable particulate filter, catalysed exhaust post treatment purifier and an exhaust outlet flame trap

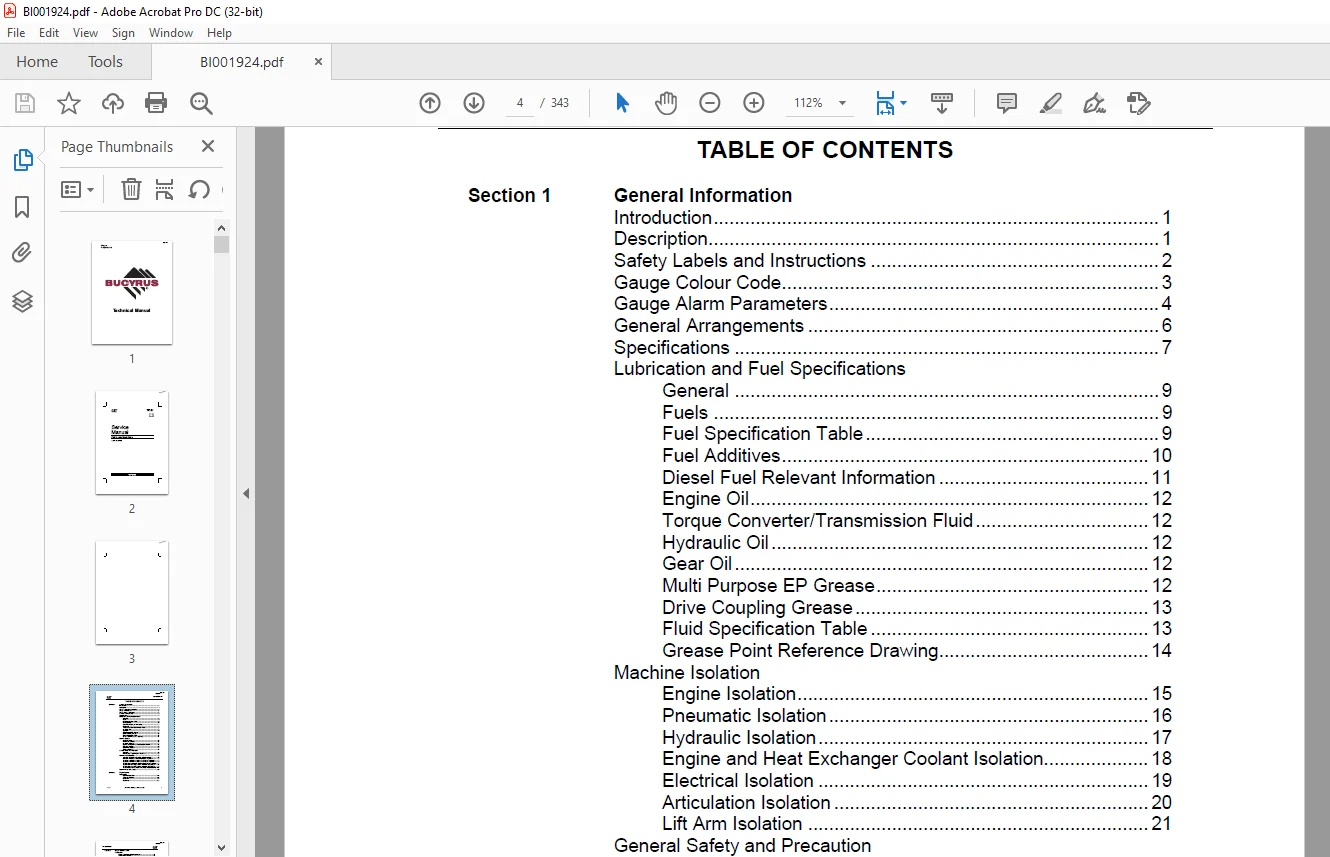

TABLE OF CONTENTS:

CAT Bucyrus CL210 Load Haul Dump Service Manual SN 5003958 – PDF DOWNLOAD

BI001924-00-00-EN_BODY.pdf...........................  0
	Table of Contents.pdf............................  4
	Section 1 General Information - Parallel Lift.... 10
	Section 2 Engine System..........................130
	Section 3 Transmission and Drive Train...........192
	Section 4 Hydraulic System_Danfoss...............220
	Section 4 Hydraulic Schematic....................254
	Section 5 Electrics_DCS..........................256
	Section 6 Frame Components.......................294
	Section 7 Pneumatic System.......................310
	Section 8 Attachments_Adryiala...................322

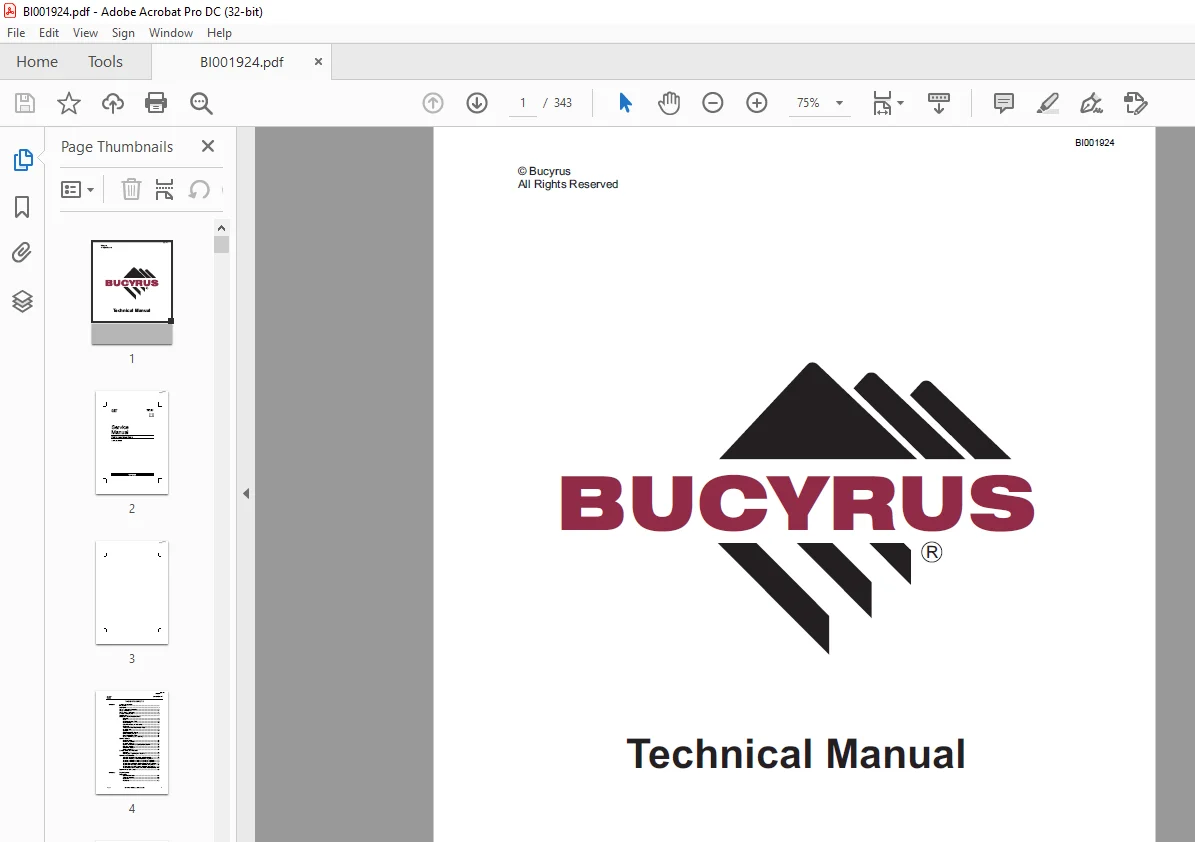

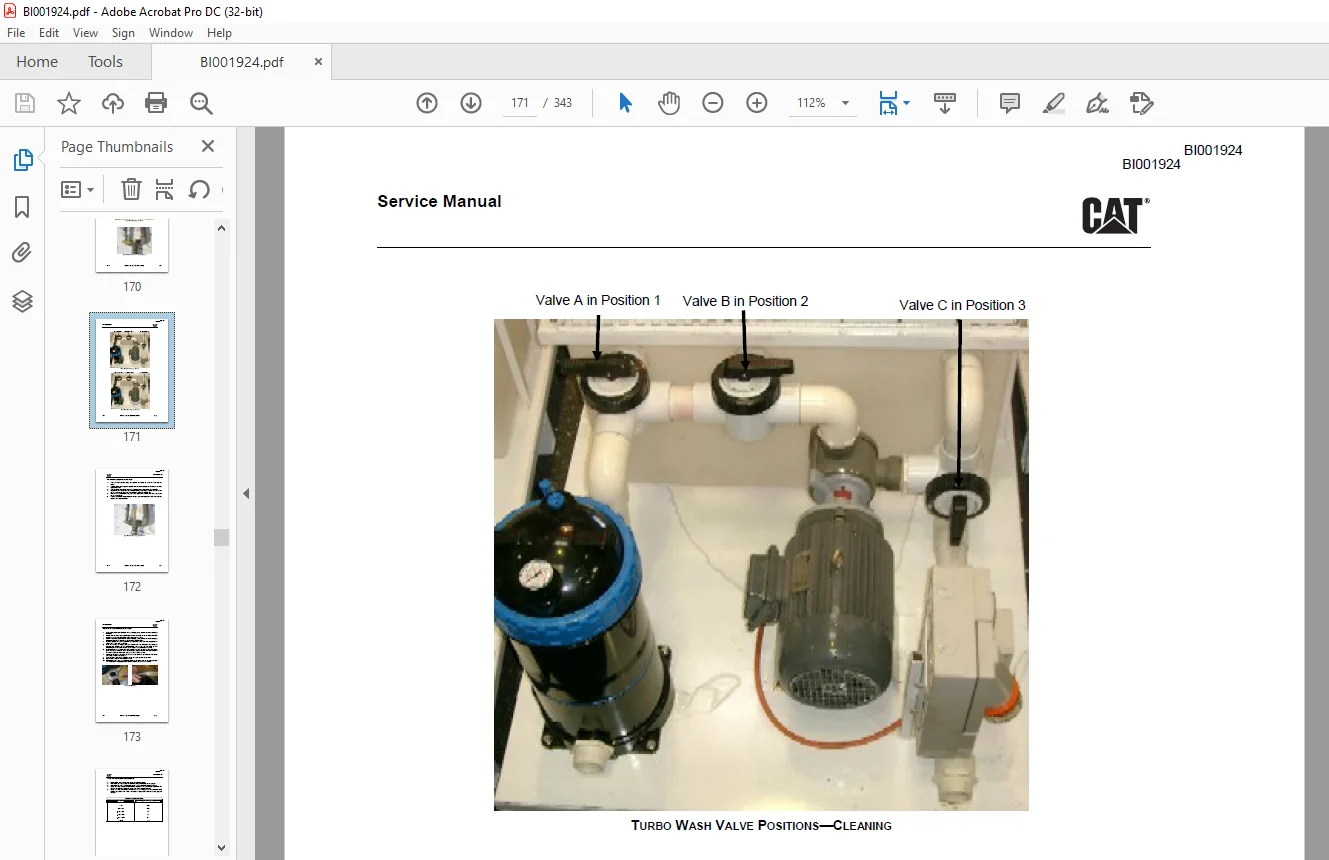

IMAGES PREVIEW OF THE MANUAL:
