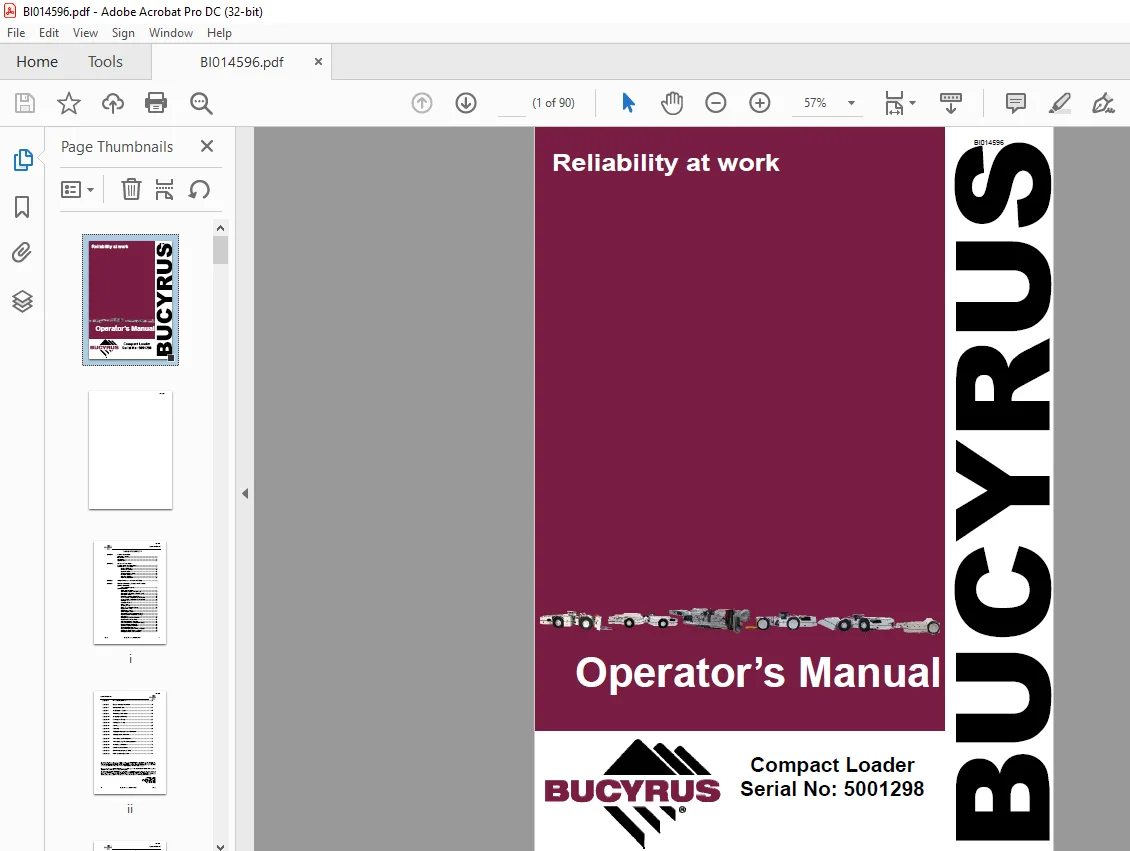

CAT Bucyrus Compact Loader Operator’s Manual SN 5001298 – PDF DOWNLOAD

Description

CAT Bucyrus Compact Loader Operator’s Manual SN 5001298 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus Compact Loader Operator’s Manual SN 5001298 – PDF DOWNLOAD

Language : English
Pages : 90
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus Compact Loader Operator’s Manual SN 5001298 – PDF DOWNLOAD

General Information
ABOUT THIS PACKAGE

• The operation of heavy mining equipment can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the equipment.
• This documentation package is designed to provide the operator of the Compact Loader with the correct information for the equipment’s:

• The Compact Loader is designed and manufactured by Bucyrus, the loader is an 8000 kg multi-purpose machine. This allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies.
• The motive force is provided by a 129 kW MWM turbocharged four-stroke inline six cylinder flameproof diesel engine package. Flameproofing of the system includes a wet scrubber system complete with exhaust and intake flame traps.
• The start system is pneumatic and the diesel control system (DCS) is an intrinsically safe electronic monitoring and shutdown system which prevents the engine running outside of the predetermined safe operating parameters.
• The engine power output is connected to the constant four-wheel drive system via a drive coupling through a torque converter and out to a four speed Dana/Spicer 32000 Series transmission to heavy duty Dana 113 inboard planetary with bevel gear and pinion axles.
• The Compact Loader is in a class of its own in today’s arduous mining conditions and is the most advanced machine available to perform the tasks required in the modern mine

CAT Bucyrus Compact Loader Operator’s Manual SN 5001298 – PDF DOWNLOAD

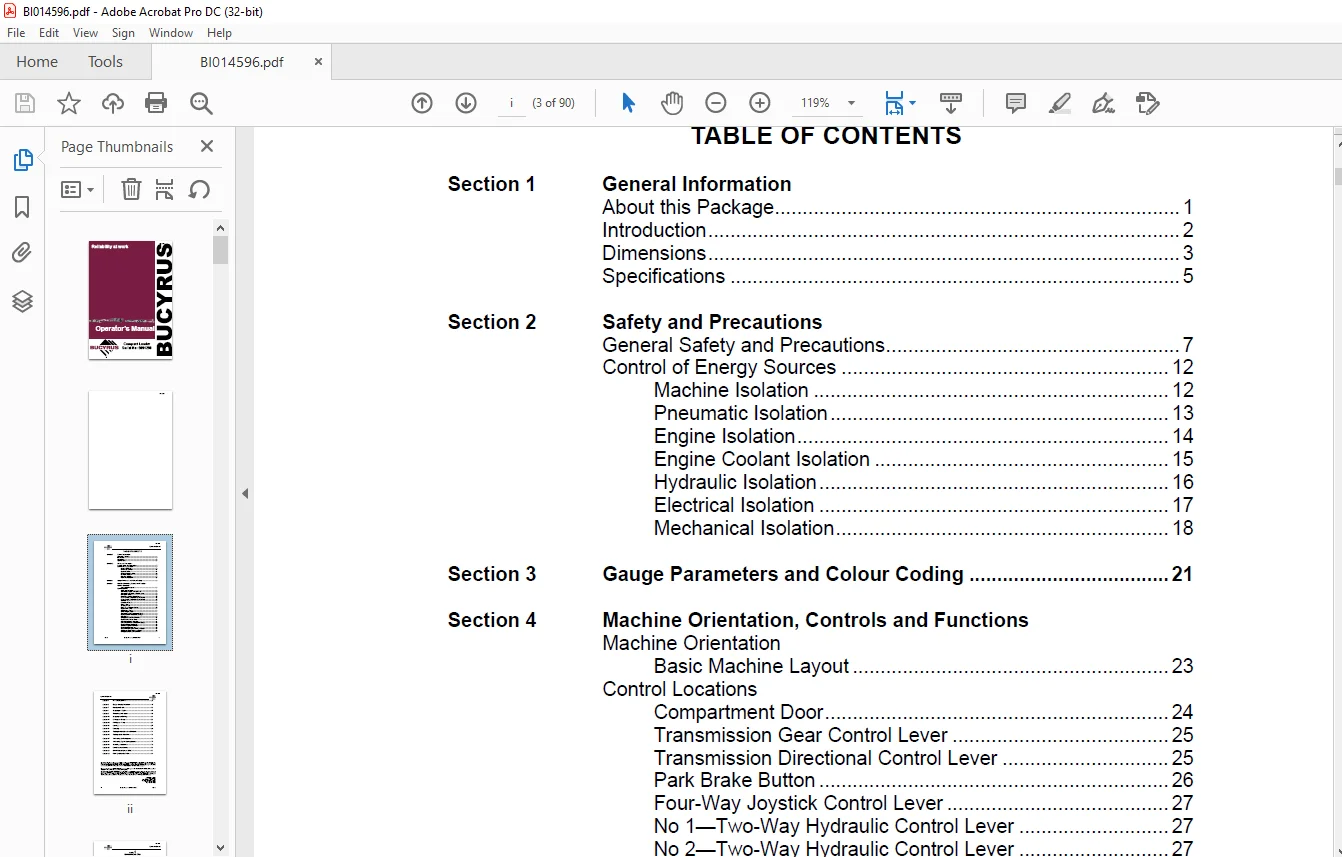

Table of Contents.pdf.................................... 3
Section 1 General Information............................ 5
Section 2 Safety and Isolation...........................11
Section 3 Gauge Parameters and Colour Coding.............25
Section 4 Machine Orientation, Controls and Functions....27
Section 5 Pre-Start Procedure............................43
Section 6 Engine Starting Procedure......................53
Section 7 Post Start Checks..............................55
Section 8 Stopping the Engine............................61
Section 9 Tramming the Machine...........................63
Section 10 Stopping and Braking..........................65
Section 11 Driving on a Ramp.............................67
Section 12 Parking on a Ramp.............................69
Section 13 Loading.......................................71
Section 14 Dumping.......................................73
Section 15 Towing the Machine when Disabled..............75
Section 16 Towing with the Machine.......................77
Section 17 Air Venting the Fuel System...................79
Section 18 Air Venting the Engine Cooling System.........81
Section 19 Attaching Attachments.........................83
Section 20 Detaching Attachments.........................85
Section 21 Diesel Control System_DCS.....................87
Section 22 Fluid Specification Table.....................89

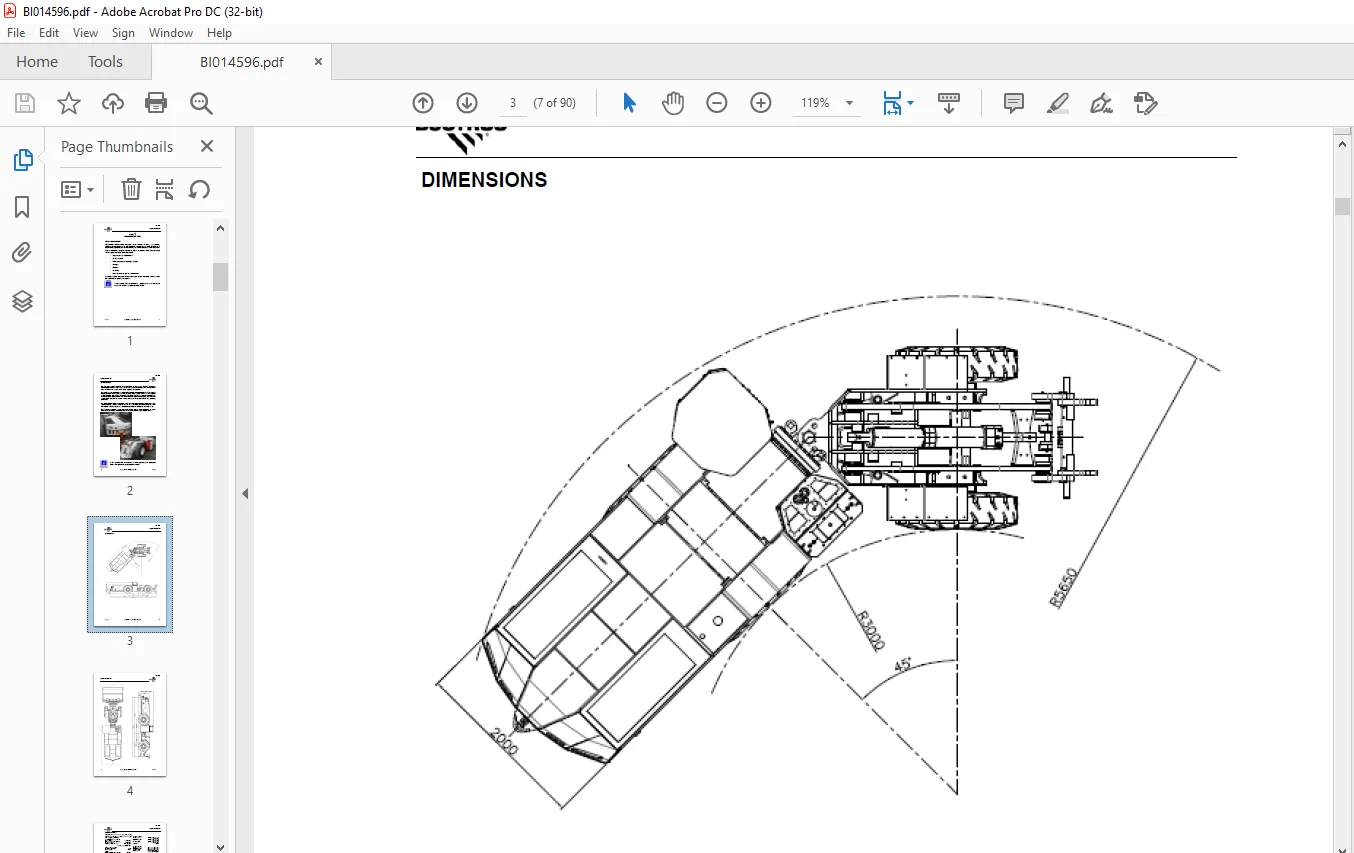

IMAGES PREVIEW OF THE MANUAL:
