Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD
$28.95
Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD
Description
Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD
FILE DETAILS:
Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD
Language : English
Pages : 383
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD

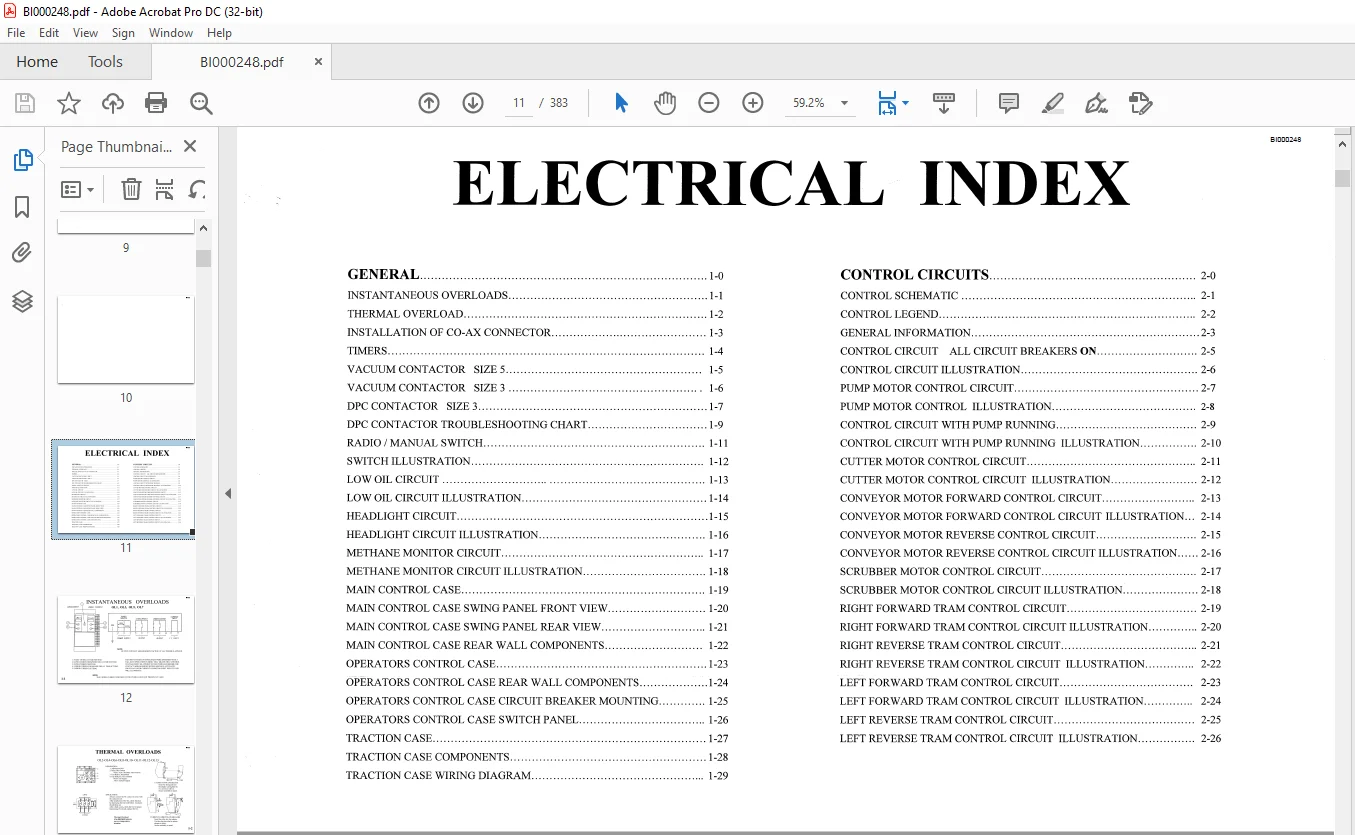

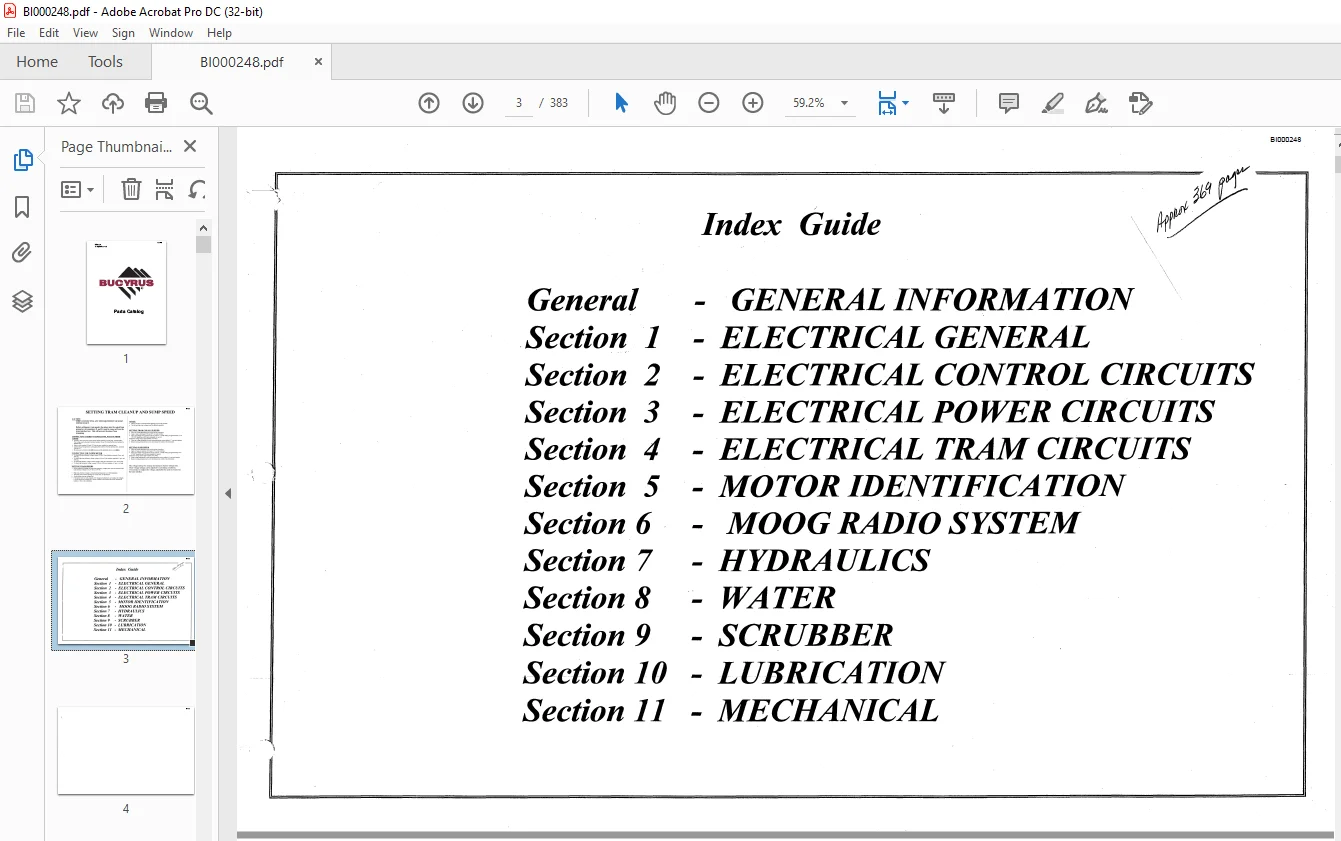

General
– GENERALINFORMATION
– ELECTRICAL GENERAL
– ELECTRICAL CONTROL CIRCUITS
– ELECTRICAL POWER CIRCUITS
– ELECTRICAL TRAM CIRCUITS
~ MOTOR IDENTIFICATION
– MOOG RADIO SYSTEM
– HYDRAULICS
– WATER
– SCRUBBER
– LUBRICATION
– MECHANICAL
DESCRIPTION:
Cat Bucyrus EIMCO 2810-2 Continuous Drum Miner Mechanical Maintenance Manual BI000248 – PDF DOWNLOAD
SAFETY PRECAUTIONS:
1. The machine should not be operated until the operator has read and understood the operating
instructions for the machine and is thoroughly familiar with the location, operation and
functions of all controls.
2.An operator should not operate the machine without all covers and/or guards properly mounted
and secured.
3.The operator should familiarize himself with the fire suppression system of the machine.
4. Always be sure all personnel are clear of machine before starting machine.
5.Carefully test all functions before operating the machine~ .
6.Always wear safety glasses not only for your own safety but for that of your fellow workers.
Should an operator be temporarily blinded by dust, etc., while operating the machine, the
machine becomes a hazard to both men and other equipment.
7.When operating the machine, always keep all parts of your body within the confines of the
operator’s pit. Hanging head, arms or legs outside the pit could result in severe injury or death.
8.Take extra caution to keep from cutting the trailing cable against the rib or under the track.
9.Any damaged, broken or malfunctioning parts should be reported at once to the section
foreman.
10.A permissible electrical enclosure should never be opened by anyone except properly trained
maintenance personnel.
11.The operator should never try to troubleshoot the cause of a circuit breaker trip, whether the
breaker is on the machine or at the power center. Notify proper maintenance personnel to
determine the cause and correct.
12. Never work under a raised cutter boom, conveyor boom or gathering head unless they are
properly supported.
1. Make sure that everyone is clear of the machine and all valves, breakers and switches are in
the neutral or off position.
2. Make sure proper voltage is being supplied to the machine.
5. Turn on control circuit breakers.
6. Tum on area lights.
7. Select and tum on control valve for directional water spray.
8. Turn on headlights.
9. Start pump motor.
10. Raise or lower conveyor and cutter boom for adequate clearance and visibility.
11. Put gathering head in float position. For maximum cleanup efficiency, the gathering head
should rest against the mine floor and be free to float.
12. Tram machine to the face until cutterhead just touches face.
13. Position the rear conveyor over the shuttle car by raising and swinging to desired position.
14. Raise the cutter boom to the desired cutting height.
15. Start the gathering head/conveyor motor.
16. Activate water spray system.
17. Start cutter head motors.
18. Lower stabilizer shoe to help stabilize machine during sumping and shearing operation, if
required.
19. Sump the cutterhead into the face by pushing tram levers forward. Tram machine forward until
it has advanced approximately 30: into the top of face.
20. Lower cutting head down, thus shearing the face. Do not tram during the shearing cycle.
21. When head has reached bottom, release shear switch, raise stabilizer shoe and tram machine
backward approximately 36:, thus trimming ridges and smoothing bottom. Make certain shuttle car is
clear before backing miner.
22. Raise the cutterhead and repeat cycle (19 thru 22) until desired amount of face has been cut.
23. Turning crosscuts is accomplished by making a series of partial cuts until the machine can be turned
to the desired angle.
