CAT BUCYRUS-ERIE 195-8 ELECTRIC SHOVEL INSTRUCTION MANUAL BI005555 – PDF DOWNLOAD

Description

CAT BUCYRUS-ERIE 195-8 ELECTRIC SHOVEL INSTRUCTION MANUAL BI005555 – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS-ERIE 195-8 ELECTRIC SHOVEL INSTRUCTION MANUAL BI005555 – PDF DOWNLOAD

Language : English
Pages :171
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS-ERIE 195-8 ELECTRIC SHOVEL INSTRUCTION MANUAL BI005555 – PDF DOWNLOAD

INTRODUCTION
1. Read Instruction Manual Carefully

• This manual has been compiled to give the owner and operator information as to the care, operation and maintenance of the machine.
• For convenience this manual has been written in sections. Familiarize yourself with the various sections so that you can easily locate the particular information you may need. Every effort has been made to have this manual as complete as possible at the time of printing.
• However, since the Bucyrus-Erie Company reserves the right to improve its products continually, changes may be made that are not covered in this manual.

II. General Maintenance.

• A regular planned inspection of all moving machinery parts should be made at least once each shift. Structural parts, castings an,d all non-moving connections should be inspected once a week. Keep all bolts tight and free from oil or grease. Keep the machine clean and painted. Motors, generators and other electrical equipment should be cleaned frequently.
• It is best to dig with crawler belts tight on the bottom. Check grounding of machine frequently. Contact resistance of each ground should never exceed 25 ohms.
• Never attempt to inspect the collector rings unless the trail cable is disconnected from the power line. An open switch may not be sufficient protection since there is the possibility that dirt or water in the oil might cause sufficient leakage to result in a dangerously high voltage

GENERAL OPERATING INSTRUCT’IONS

• How to operate a power excavator efficiently must be learned in much the same way as any skilled trade.. No one is a “born”operat.or. Regardless of previous experience, the new operator must use care to operate the machine safely so as not to endanger men or equipment. At first glance the large number of levers and switches looks as though operating the machine might be complicated, but most of them control some aUXiliary function of the machine such as steering, etc., and are not used in the regular operating cycle •
• The two tall. levers and the two pedals in front of the operator are the principal. controls used in the regular operating cycle and their use will be described in detail further on in these instructions. The first thing the new operator must do is to familiarize himself with the purpose of each of these levers and operating switches. When learning to operate the machine it is a good plan to study each separate function until fully familiar with the control of all the auxiliary functions of the machine such as propelling, steering, etc .•
• , then try out the main controls which are used in actual digging operations. The main functions can be tried separately until the operator becomes accustomed to the response of the machine to the controls

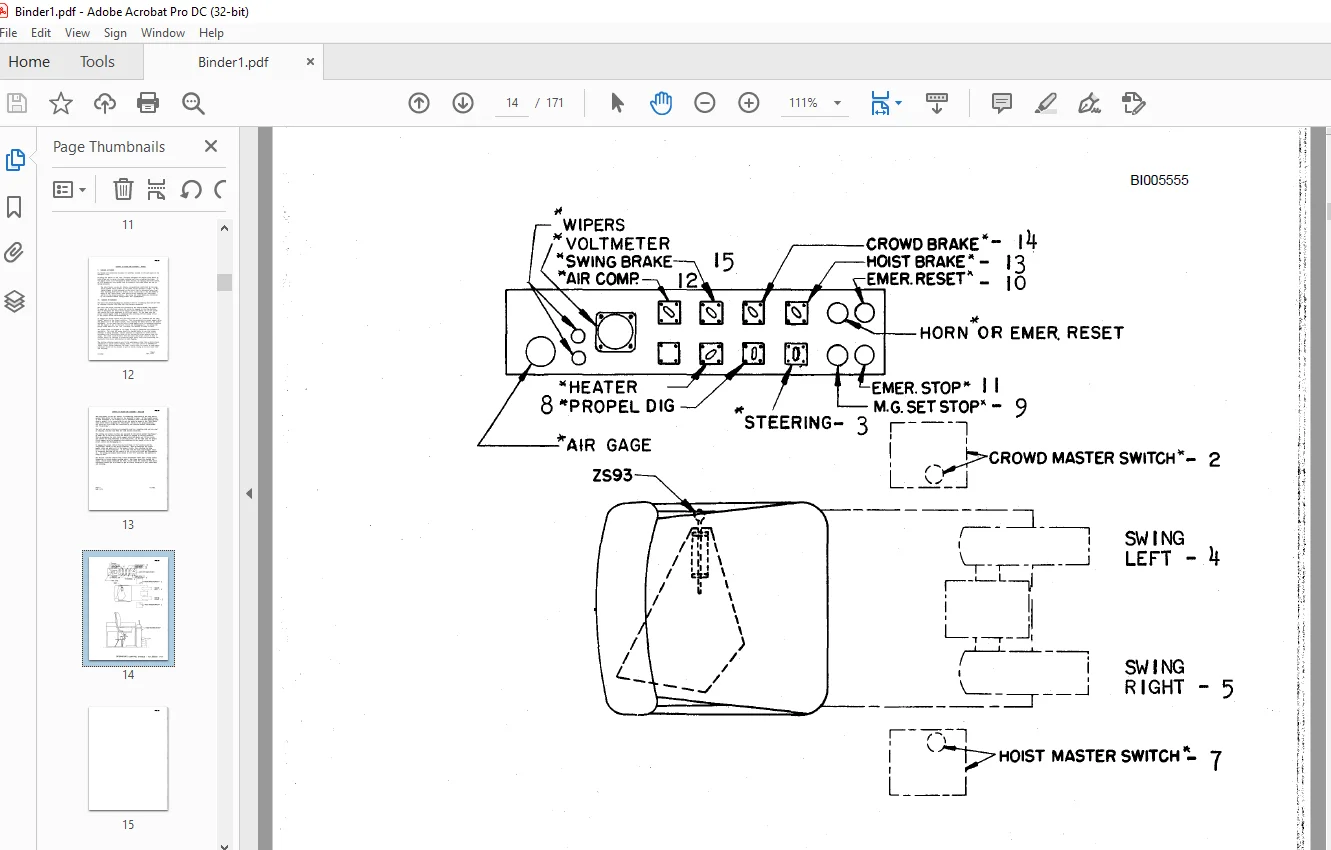

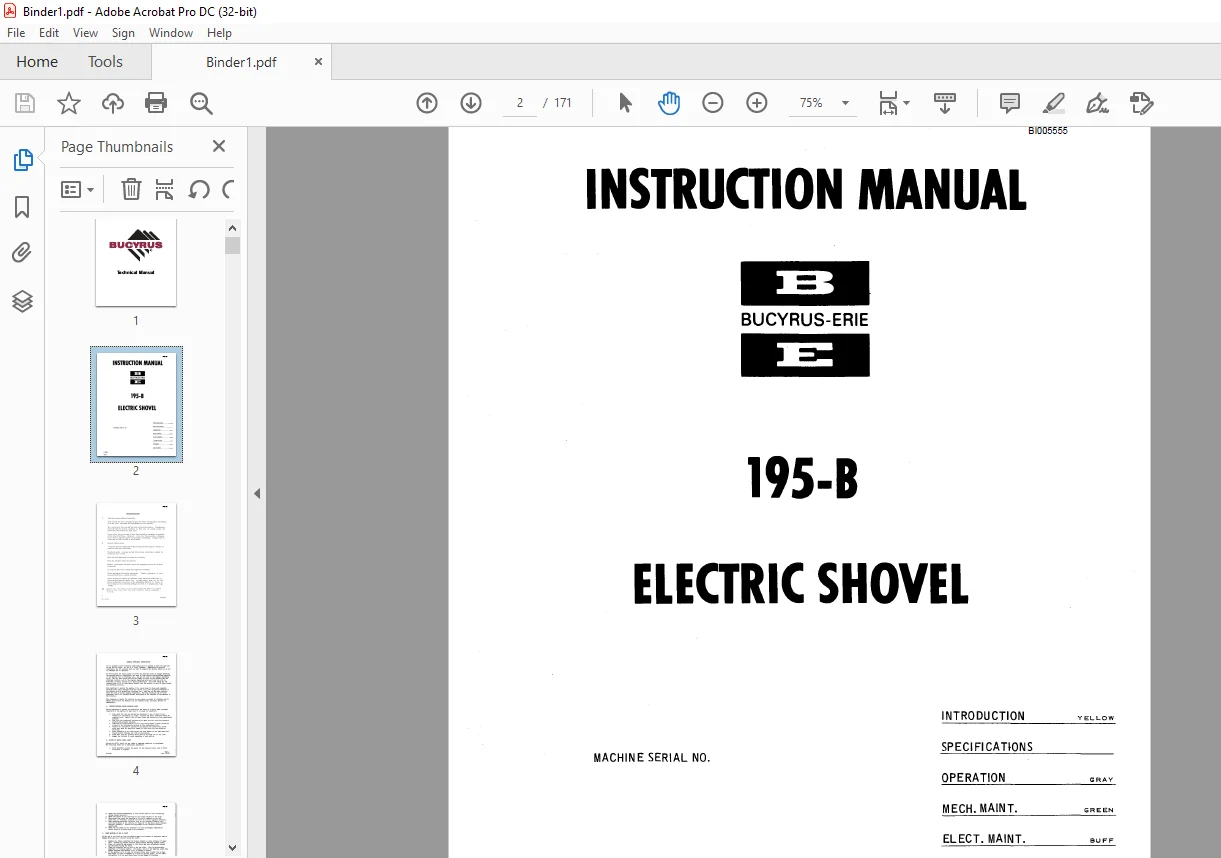

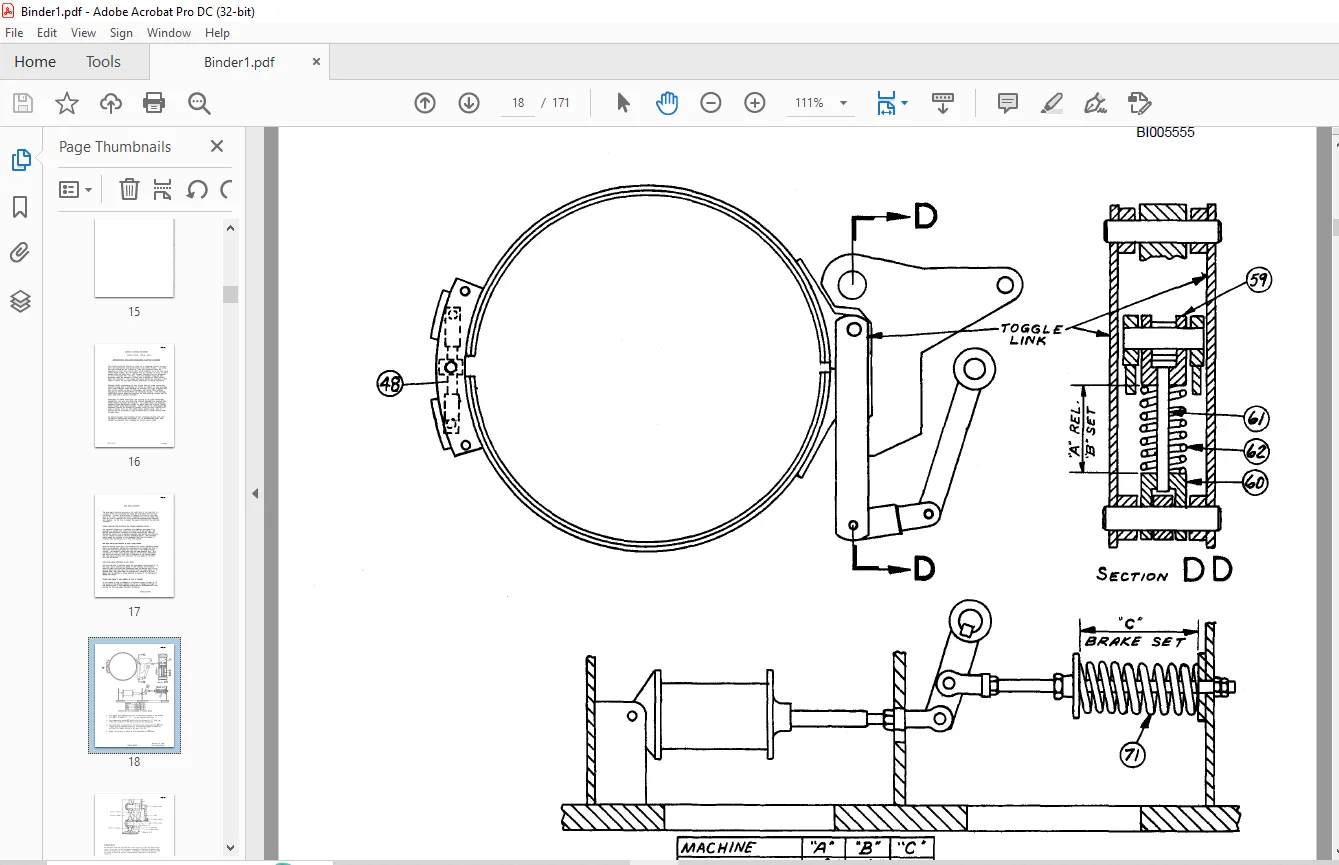

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT BUCYRUS-ERIE 195-8 ELECTRIC SHOVEL INSTRUCTION MANUAL BI005555 – PDF DOWNLOAD

TABLE OF CONTENTS
General Instructions
M.G. Set Starting
Procedure and Excitor
Testing
Motion Control Hoist,
Swing and Crowd
Testing and Initial
Instructions
D.C. Reel Type
Dipper Trip
