CAT BUCYRUS-ERIE 40-R ROTARY DRIll INSTRUCION MANUAL BI005445 – PDF DOWNLOAD

Description

CAT BUCYRUS-ERIE 40-R ROTARY DRIll INSTRUCION MANUAL BI005445 – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS-ERIE 40-R ROTARY DRIll INSTRUCION MANUAL BI005445 – PDF DOWNLOAD

Language : English
Pages :187
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS-ERIE 40-R ROTARY DRIll INSTRUCION MANUAL BI005445 – PDF DOWNLOAD

Description of Machinery

• The 40-R ROTARY DRIll type blast hole drill designed for drilling of blast holes in quarrying and strip mining operations. The drilling is done by roller type bits rotated by drill pipe which are connected by standard A.P.I. threaded rotary tool joints.
• Cuttings are blown out of the hole by compressed air wq.ich is forced through the drill pipe. Air for this purpose is provided by a compressor mounted on the drill. Cuttings are collected in a steel and fabric enclosure below the operator’s platform. A Roto-Clone precipitator driven by an electric motor removes the dust.

A. POVJER PLANT

• The drill can be powered with either an electric motor or Diesel engine. The p0T,1er unit whether Diesel or electric motor is located near the front of the machine and drives the generator set and air compressor by means of V-belts.
• Full instructions for starting, lubricating and maintaining the Diesel engine on 40-R drills will be f.ound in the engine manufacturer’s instruction book which is included with these instructions when the machine is so equipped. On machines powered with an electric motor alternating current is brought to the drill by a trail cable from a suitable sub station.
• Transformers on the all electric drill reduce the voltage for the electric light plant. On both mesel and electric machines direct current motors are used for the rotary drive, the suction fan, and for driving the bull reel, auxiliary reel, derrick hoist and propelling machinery.
• These motors get their pmver from the generator set, one D.C. generator providing power for the main motor and a second D.C. generator providing power for the rotary motor. Precise control of the speed and direction of these motors is afforded through the Ward-Leonard system. Details on the operation and maintenance of the electrical au-stem are covered. in later sections of these instructions. The oil pump is V-belt driven from the compressor drive pulley.

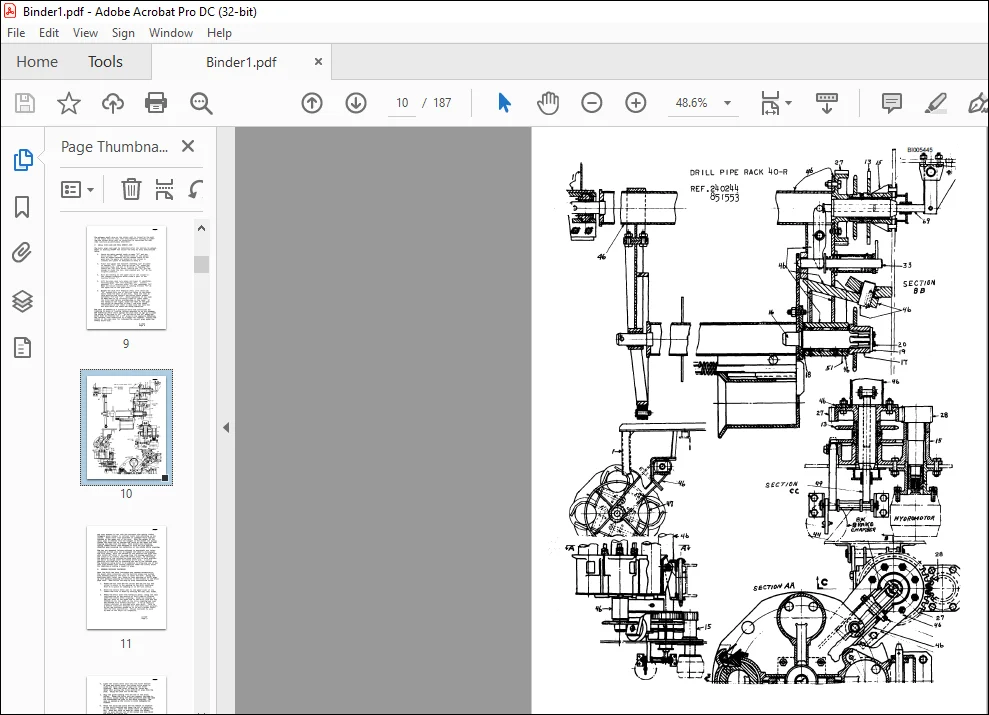

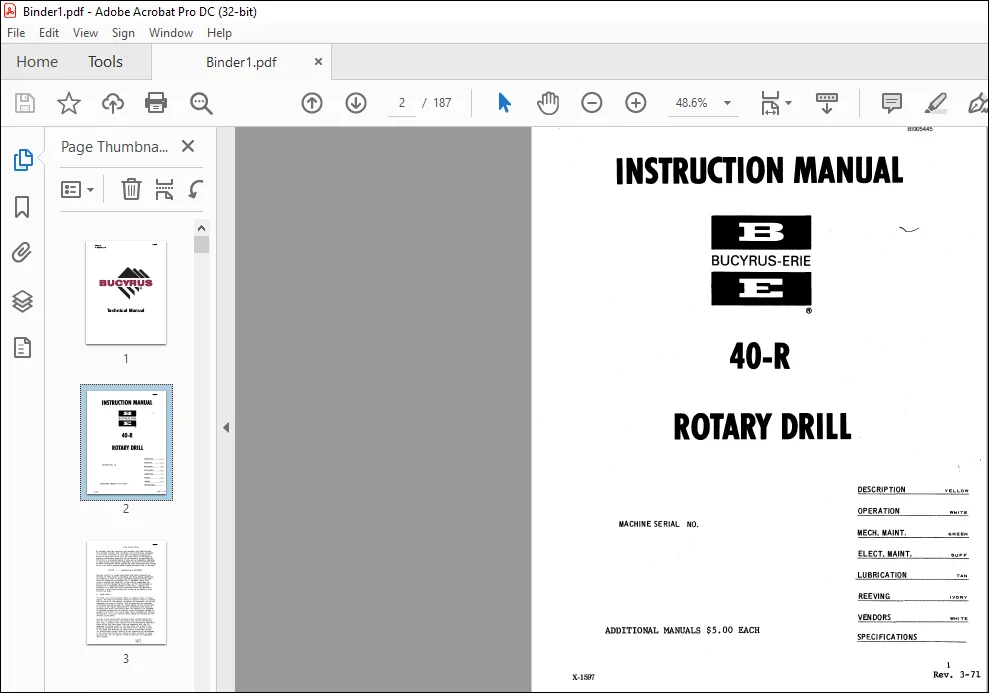

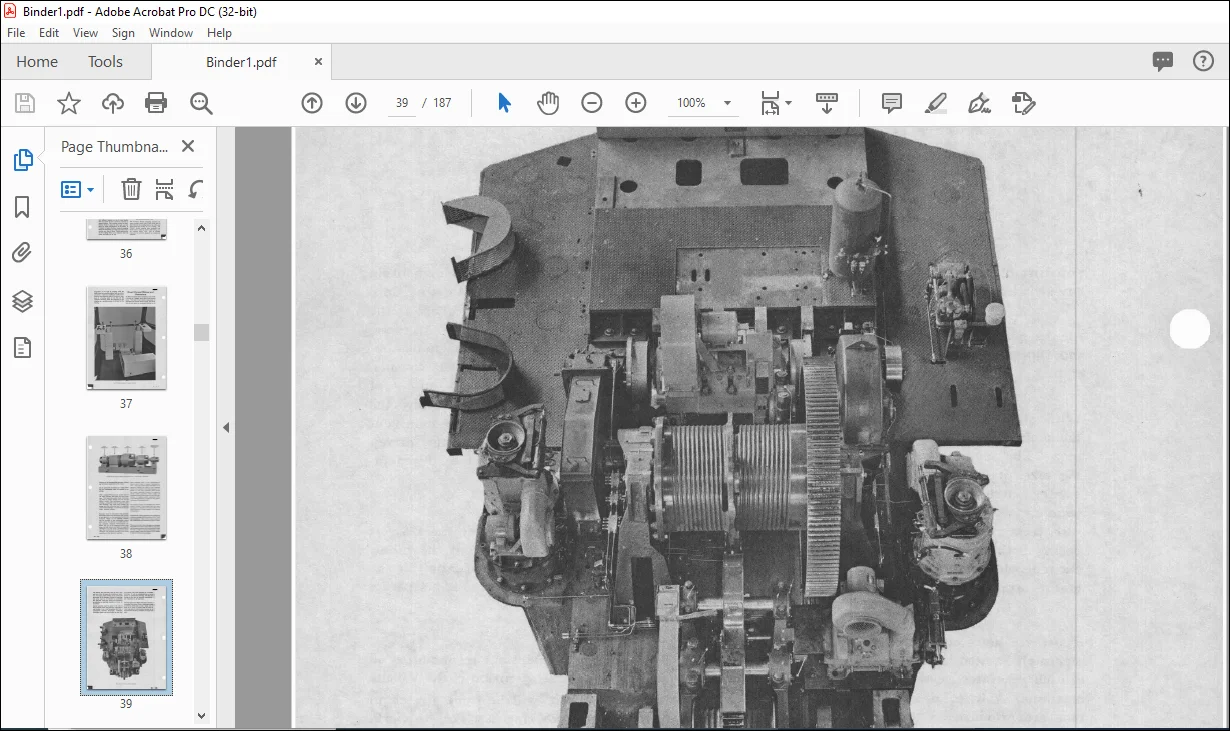

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT BUCYRUS-ERIE 40-R ROTARY DRIll INSTRUOION MANUAL BI005445 – PDF DOWNLOAD

DESCRIPTION YELLOW
OPERATION WHITE
MECH. MAINT. GREEN
ELECT. MAINT. BUFF
LUBRICATION TAN
REEVING IVORY
VENDORS WHITE
SPECIFICATIONS
