CAT BUCYRUS FBL-10 LHD Utility Load Haul Dump Operation Manual SN 5003688 – PDF DOWNLOAD

Description

CAT BUCYRUS FBL-10 LHD Utility Load Haul Dump Operation Manual SN 5003688 – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS FBL-10 LHD Utility Load Haul Dump Operation Manual SN 5003688 – PDF DOWNLOAD

Language : English
Pages : 92
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS FBL-10 LHD Utility Load Haul Dump Operation Manual SN 5003688 – PDF DOWNLOAD

General Information
INTRODUCTION

• The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery. This manual is designed to provide the FBL-10 LHD/Utility operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures.
• All operators of this machine must be conversant with the information contained within this manual before operating the machine. To ensure safe and efficient operation, the FBL-10 LHD/Utility must be adequately maintained by the operators and service personnel.
• To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken. Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine

DESCRIPTION

• The FBL-10 is a 10000 kg Load Haul Dump/Utility machine. This allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies. The motive force is provided by a 172 kW Caterpillar 3126 turbocharged four-stroke inline six cylinder flameproof diesel engine package.
• Flameproofing of the system includes a wet bath exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic.
• The Diesel Control System (DCS) is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant four-wheel drive system via a drive coupling and converter through a four-speed bidirectional power shift transmission to heavy duty axles. The FBL-10 LHD/Utility utilises a wet bath exhaust system complete with an exhaust purifier

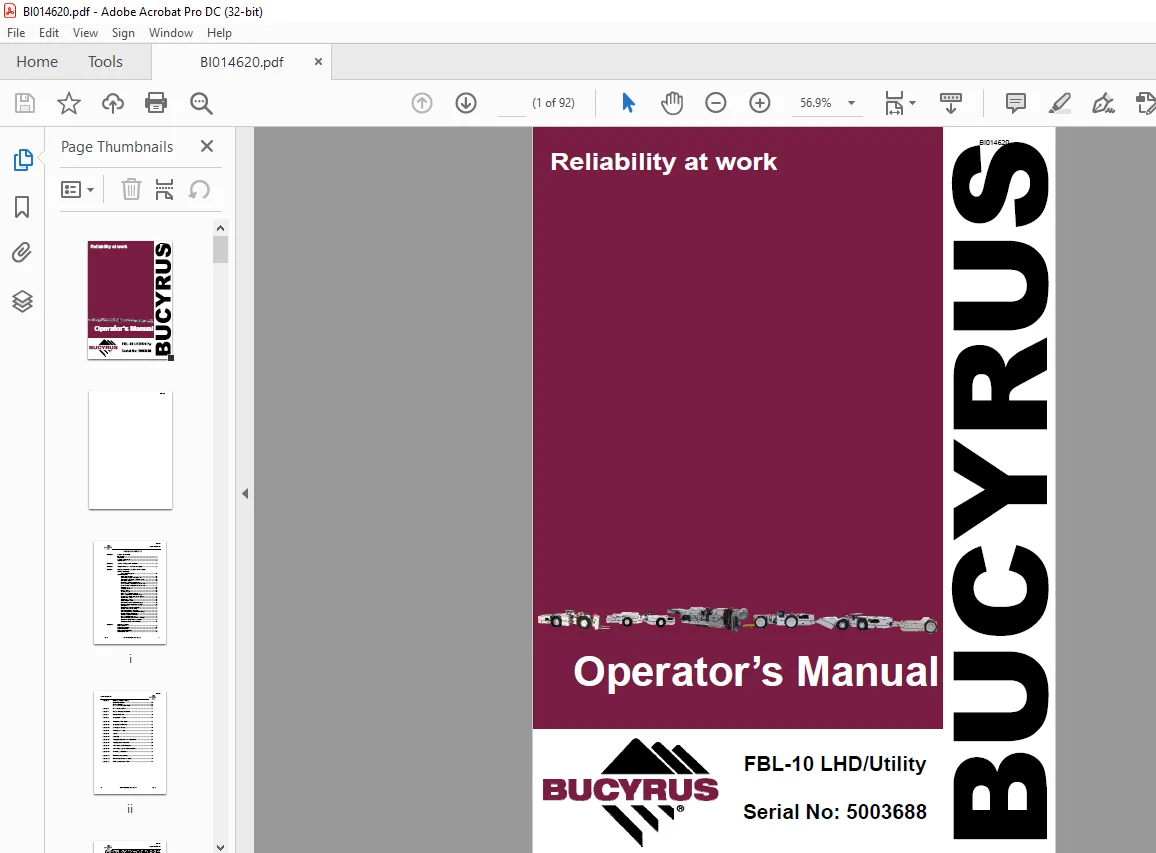

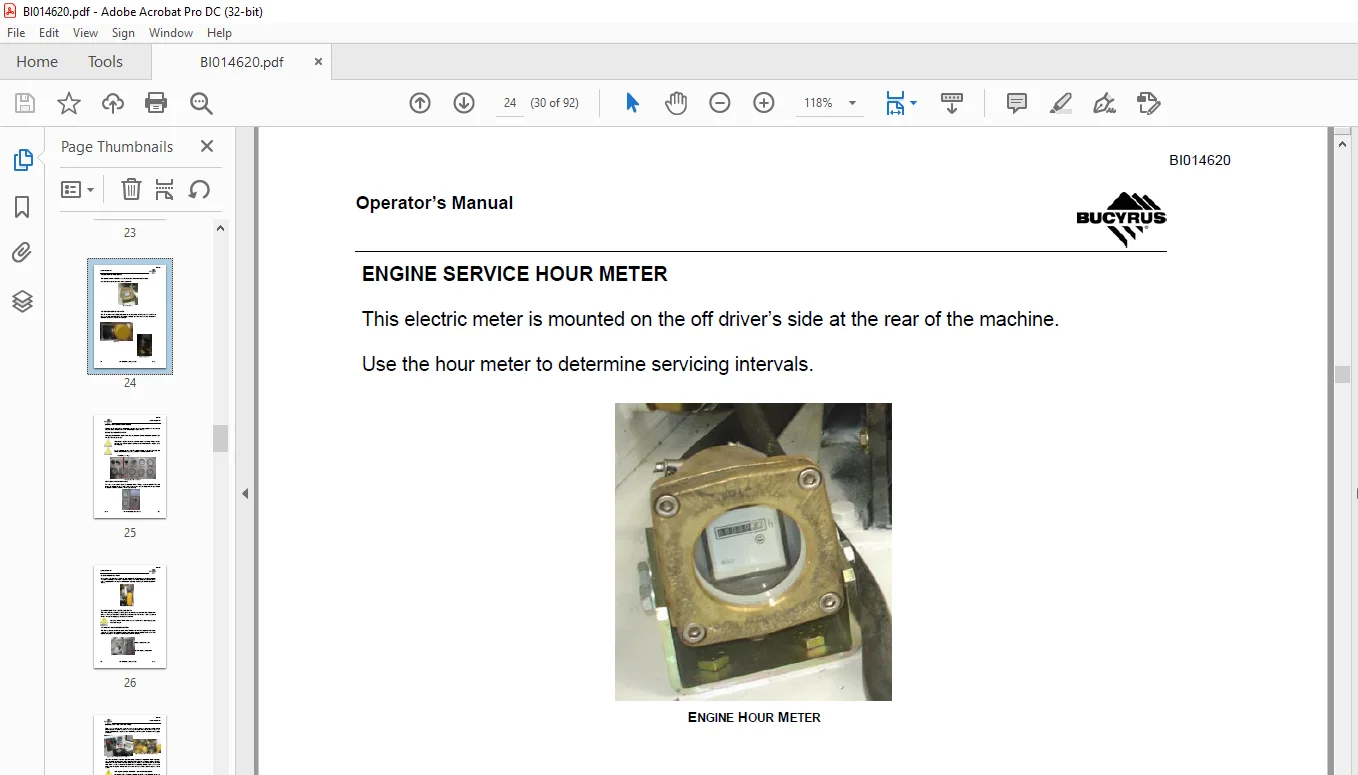

IMAGES PREVIEW OF THE MANUAL:

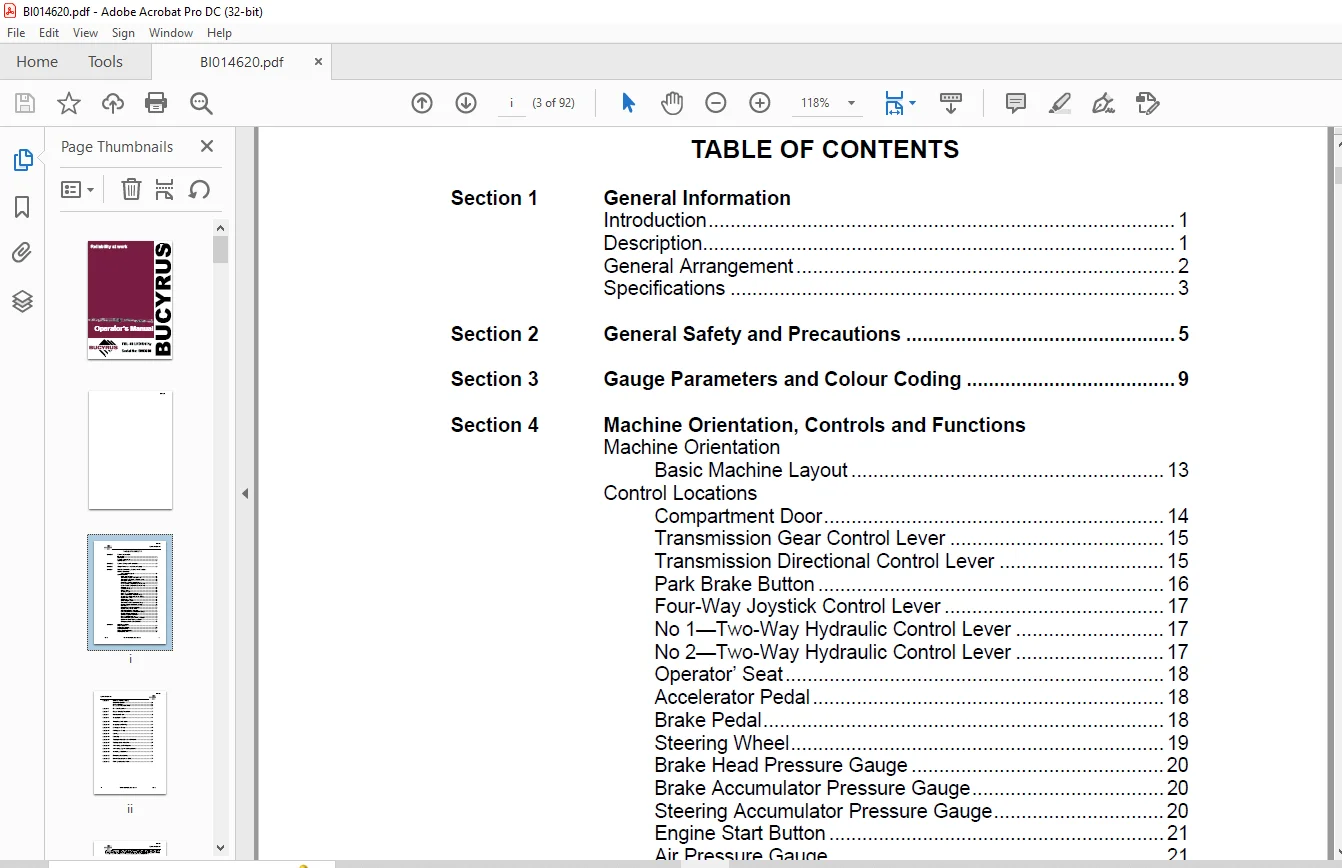

TABLE OF CONTENTS:

CAT BUCYRUS FBL-10 LHD Utility Load Haul Dump Operation Manual SN 5003688 – PDF DOWNLOAD

Table of Contents pdf 3
Section 1 General Information-Wet 7
Section 2 General Safety and Precautions 11
Section 3 Gauge Parameters and Colour Coding 15
Section 4 Machine Orientation, Controls and Functions 19
Section 5 Machine Isolation 35
Section 6 Pre-Start Procedure 43
Section 7 Engine Starting Procedure 53
Section 8 Post Start Checks 55
Section 9 Stopping the Engine 61
Section 10 Tramming the Machine 63
Section 11 Stopping and Braking 65
Section 12 Driving on a Ramp 67
Section 13 Parking on a Ramp 69
Section 14 Loading 71
Section 15 Dumping 73
Section 16 Towing the Machine when Disabled 75
Section 17 Towing with the Machine 77
Section 18 Air Venting the Fuel System 79
Section 19 Air Venting the Engine Cooling System 81
Section 20 Attaching Attachments_QDS 83
Section 21 Removing Attachments_QDS 85
Section 22 Diesel Control System_DCS 87
Section 23 Fluid Specification Table 91

Customer Support: [email protected]

https://vimeo.com/858536900?share=copy

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
