CAT Bucyrus FBL-60 Shield Hauler Operator’s Manual SN 5003704 – PDF DOWNLOAD

Description

CAT Bucyrus FBL-60 Shield Hauler Operator’s Manual SN 5003704 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus FBL-60 Shield Hauler Operator’s Manual SN 5003704 – PDF DOWNLOAD

Language : English
Pages : 94
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus FBL-60 Shield Hauler Operator’s Manual SN 5003704 – PDF DOWNLOAD

General Information:
INTRODUCTION:

The operation of heavy mining machinery can be hazardous. To ensure safe operation,
operators and personnel must be alert, competent, correctly trained, tested and licensed in the
principles, capabilities and correct operating and isolation procedures of the machinery.

• This manual is designed to provide the FBL-60 Shield Hauler operator with the proper
  information regarding the machine’s instrumentation, operating controls and general safe
  working procedures. All operators of this machine must be conversant with the information contained
  within this manual before operating the machine.
• To ensure safe and efficient operation, the FBL-60 Shield Hauler must be adequately
  maintained by the operators and service personnel. To achieve this, the operator’s pre-start
  inspection procedure contained in Section 6 of this manual must be performed before any use of this
  machinery is undertaken.
• Any abnormalities should be reported immediately to service personnel to avoid costly
  machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION:

The FBL-60 is a 60000 kg high capacity Shield Hauler. It has been designed for lifting and carrying
heavy pieces of equipment and machinery in underground coal mines. Its main function
is carrying and placing of longwall equipment and shields. The machine comes standard
with a set of fork tines and winch for this purpose.

• The motive force is provided by a 195 kW Caterpillar 3126 turbocharged four-stroke inline six
  cylinder flameproof diesel engine package. Flameproofing of the system includes a wet exhaust
  conditioning system complete with exhaust and intake flame traps. The start system is
  pneumatic. The diesel control system is an intrinsically safe electronic monitoring system. The
  engine power output is connected to the constant four-wheel drive system via a drive coupling
  through a four-speed bidirectional power shift transmission to heavy duty axles.
• The FBL-60 utilises a wet bath exhaust conditioning system complete with an optional
  replaceable particulate filter and a purifier.

TABLE OF CONTENTS:

CAT Bucyrus FBL-60 Shield Hauler Operator’s Manual SN 5003704 – PDF DOWNLOAD

Bucyrus to CAT Model Number Cross Reference.............. 3
Table of Contents........................................ 5
Section 1 General Information-Wet........................ 9
Section 2 General Safety and Precautions.................13
Section 3 Gauge Parameters and Colour Coding.............19
Section 4 Machine Orientation, Controls and Functions....23
Section 5 Machine Isolation..............................41
Section 6 Pre-Start Procedure............................51
Section 7 Engine Starting Procedure......................61
Section 8 Post Start Checks..............................63
Section 9 Stopping the Engine............................67
Section 10 Tramming the Machine..........................69
Section 11 Stopping and Braking..........................71
Section 12 Driving on a Ramp.............................73
Section 13 Parking on a Ramp.............................75
Section 14 Loading.......................................77
Section 15 Cookie Plate Use..............................79
Section 16 Towing the Machine when Disabled..............81
Section 17 Towing with the Machine.......................83
Section 18 Air Venting the Fuel System...................85
Section 19 Air Venting the Engine Cooling System.........87
Section 20 Diesel Control System_DCS.....................89
Section 21 Fluid Specification Table.....................93

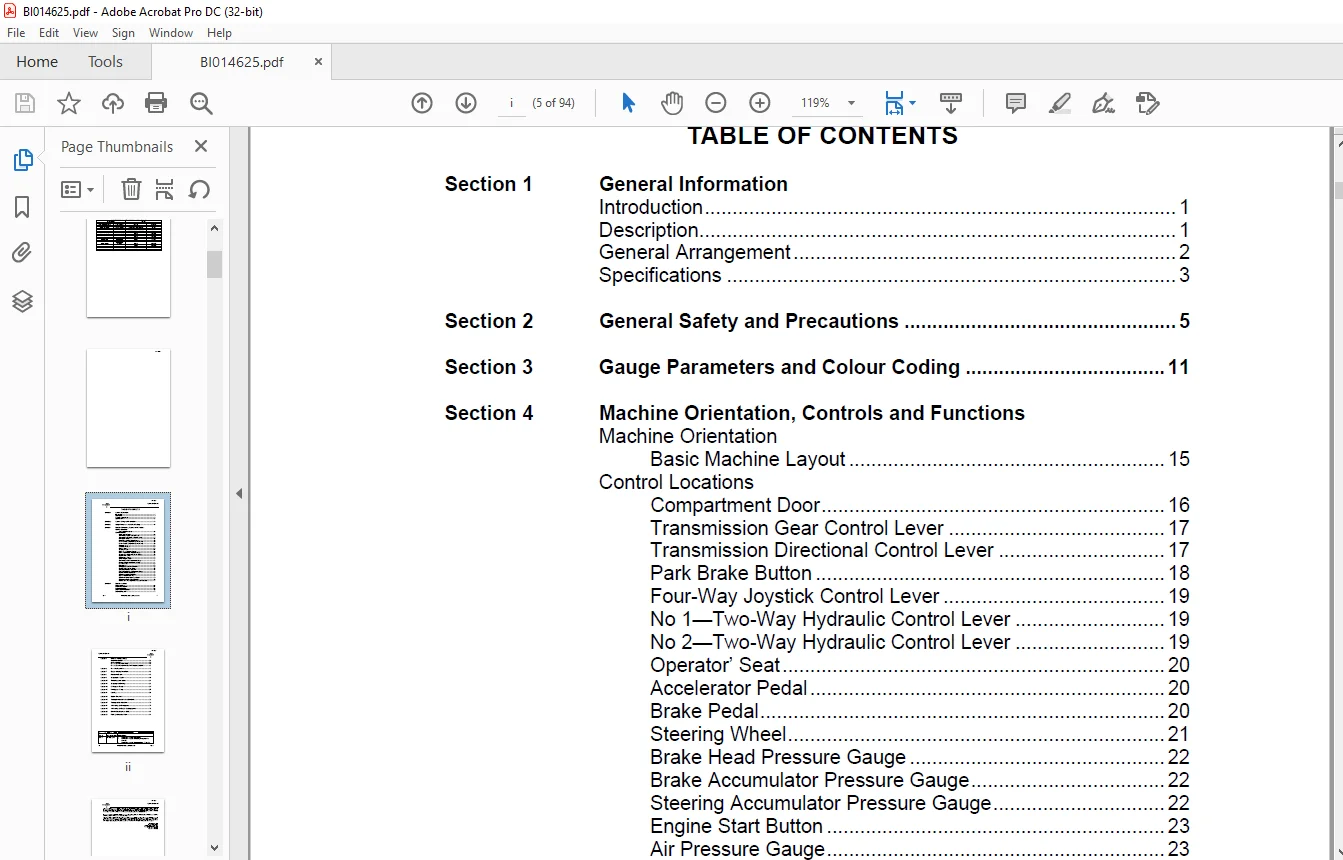

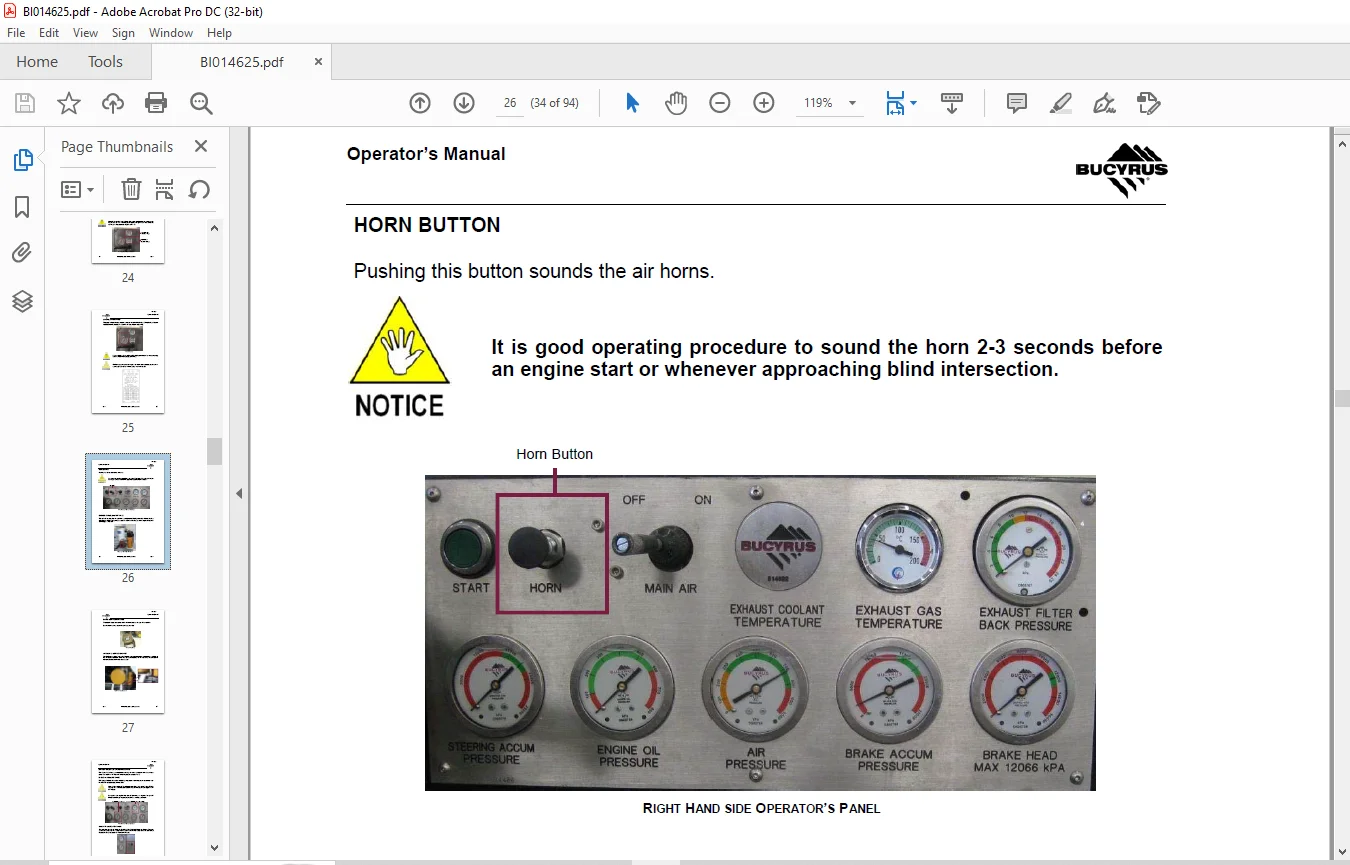

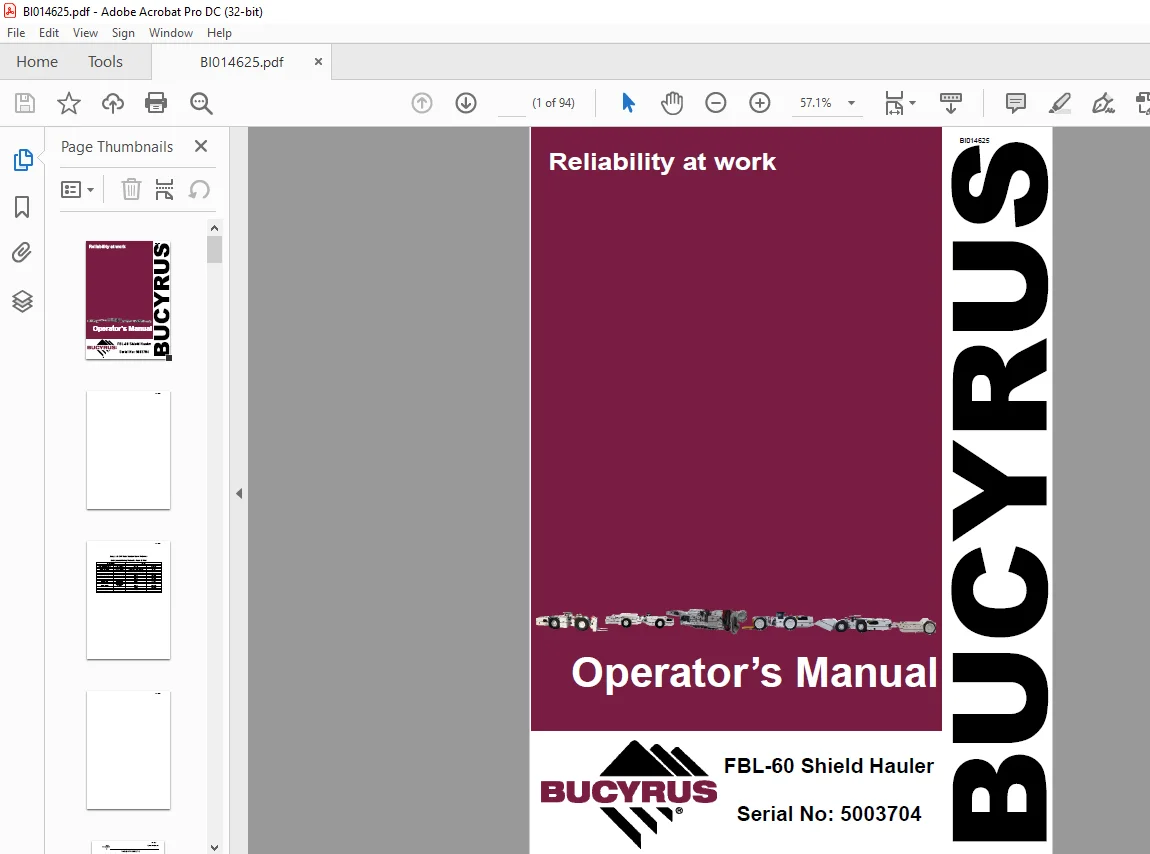

IMAGES PREVIEW OF THE MANUAL:
