CAT Bucyrus FBR15 Coal Hauler Operation Manual SN:500061 – PDF DOWNLOAD

Description

CAT Bucyrus FBR15 Coal Hauler Operation Manual SN:500061 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus FBR15 Coal Hauler Operation Manual SN:500061 – PDF DOWNLOAD

Language : English
Pages : 83
Downloadable : Yes
File Type : PDF

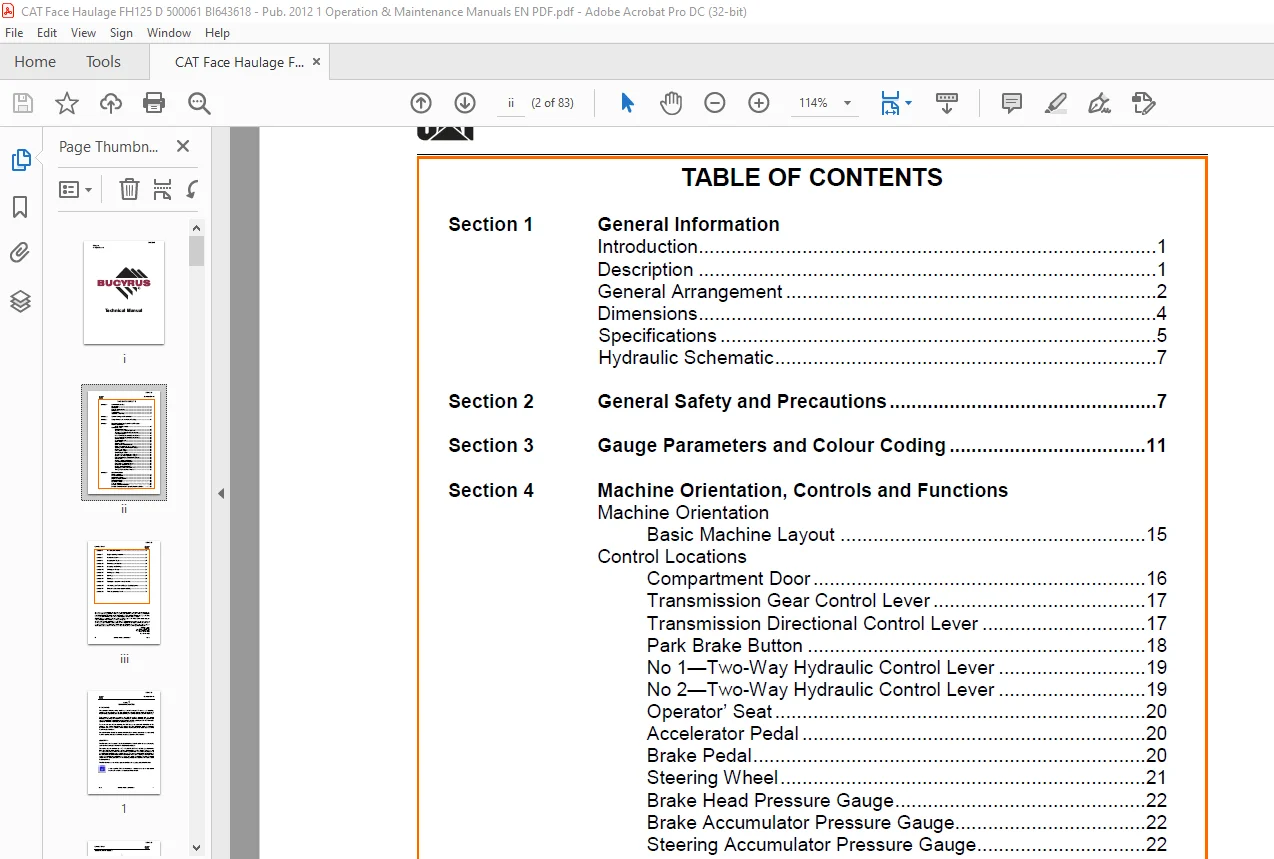

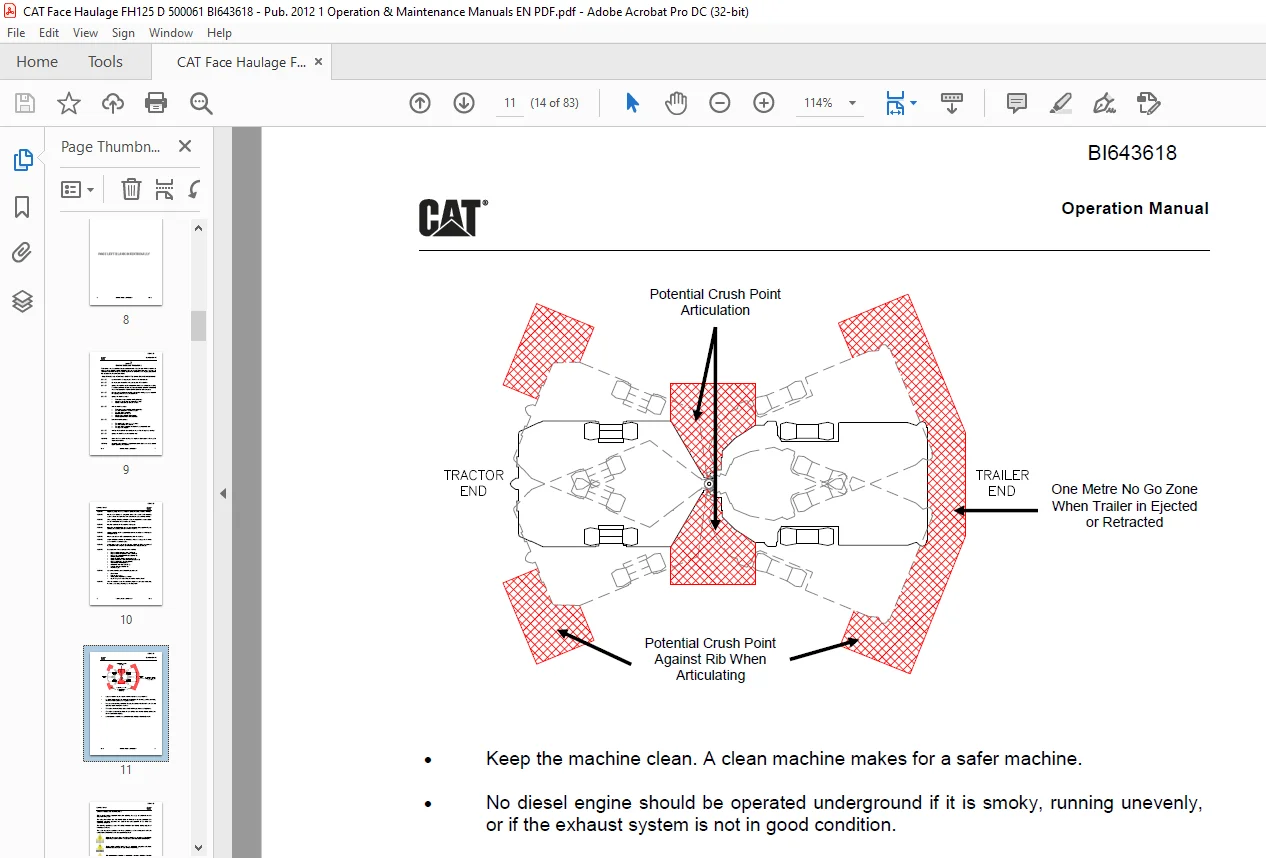

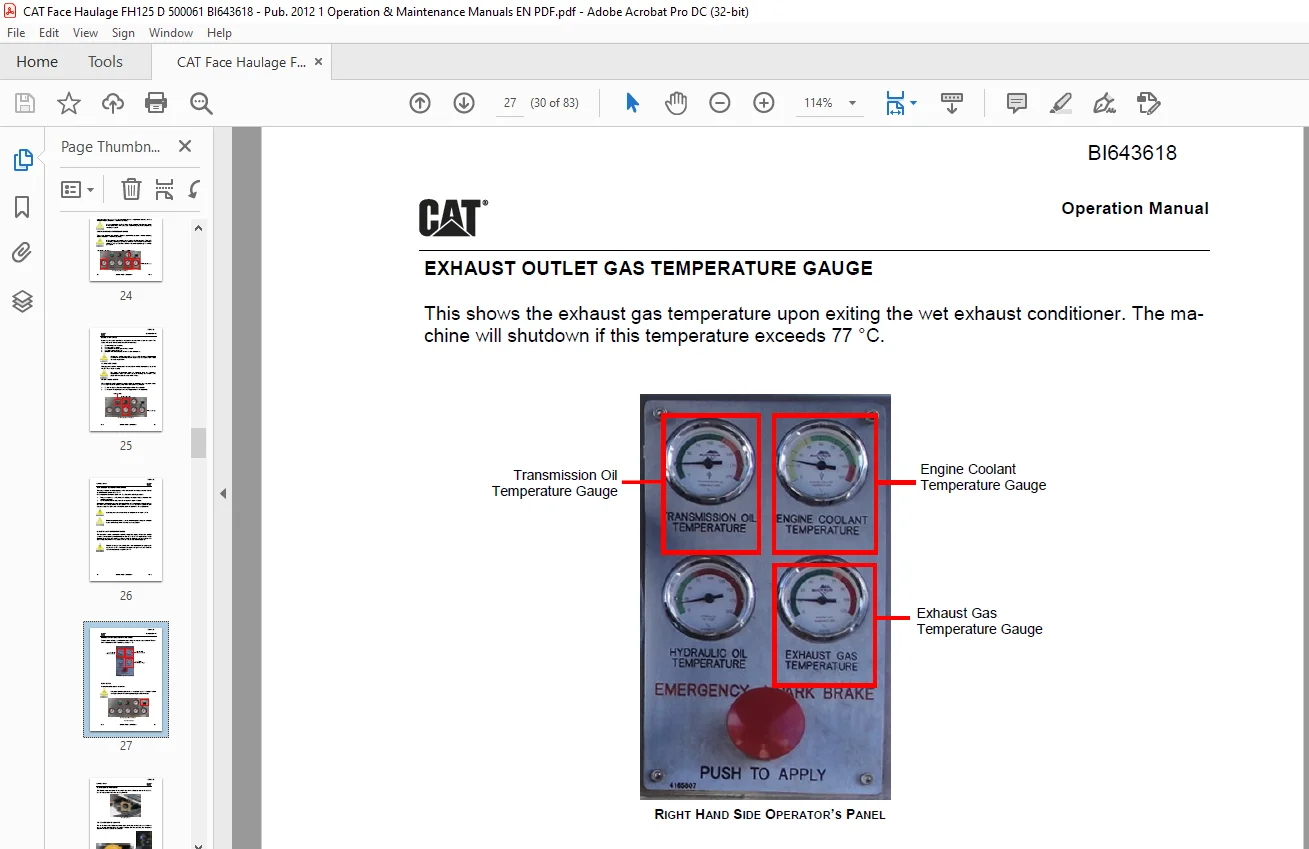

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus FBR15 Coal Hauler Operation Manual SN:500061 – PDF DOWNLOAD

• The FBH15 is a 15m³ capacity Face Haulage Machine. This allows it to be used for carrying coal from the continuous miner to the feeder breaker station.
• The motive force is provided by a 172 kW (230HP) CAT 3126 turbocharged four-stroke inline six cylinder diesel engine package. Flameproofing of the system includes a wet exhaust conditioning system. The start system is pneumatic. The diesel control system is an intrinsically safe electronic monitoring system. The engine power output is connected to the four speed bidirectional power shift transmission via a drive coupling on the rear of the engine, the power is then transmitted to heavy duty axles. The trailer axle drives the trailer wheels via 90° bevel gear boxes to the trailer planetary hub complete with liquid-cooled Posi-Stop brakes.
• The FBH15 utilises a wet exhaust system complete with a replaceable particulate filter.

TABLE OF CONTENTS:

CAT Bucyrus FBR15 Coal Hauler Operation Manual SN:500061 – PDF DOWNLOAD

Table of Contents............................................ 2
Section 1 General Information................................ 4
Section 2 General Safety and Precautions.....................12
Section 3 Gauge Parameters and Colour Coding.................16
Section 4 Machine Orientation, Controls and Functions........20
Section 5 Machine Isolation..................................36
Section 6 Pre-Start Procedure................................46
Section 7 Engine Starting Procedure..........................56
Section 8 Post Start Checks..................................58
Section 9 Stopping the Engine................................60
Section 10 Tramming the Machine..............................62
Section 11 Stopping and Braking..............................64
Section 12 Driving on a Ramp.................................66
Section 13 Parking on a Ramp.................................68
Section 14 Loading...........................................70
Section 15 Ejecting..........................................72
Section 16 Towing the Machine when Disabled..................74
Section 17 Air Venting the Fuel and Engine Cooling System....76
Section 18 Electronic Shutdown System -  SEMS................78
Section 19 Fluid Specification Table.........................82
