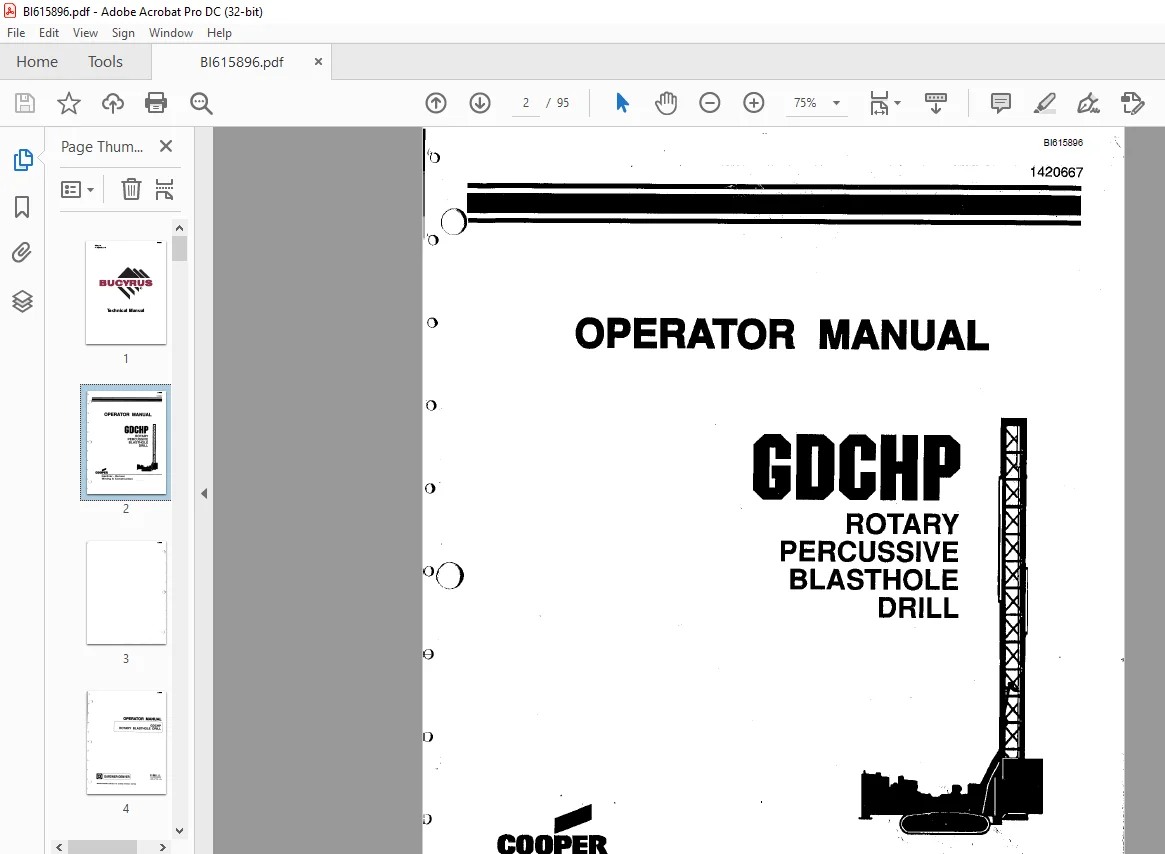

Cat Bucyrus GDCHP Rotary Percussive Blasthole Drill Operator Manual BI615896 – PDF DOWNLOAD

Description

Cat Bucyrus GDCHP Rotary Percussive Blasthole Drill Operator Manual BI615896 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus GDCHP Rotary Percussive Blasthole Drill Operator Manual BI615896 – PDF DOWNLOAD

Language : English
Pages : 95
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat Bucyrus GDCHP Rotary Percussive Blasthole Drill Operator Manual BI615896 – PDF DOWNLOAD

OPERATOR MANUAL:

• This manual contains instructions regarding operation and routine care of the Gardner-Denver
  GDC2HP Rotary Blasthole Drill. It is intended to help you understand rig functions, operations,
  and maintenance. Read and understand this manual before operating or servicing the rig. Keep
  it handy for reference later. The· many variations in equipment for specific drilling programs are
  not covered in this instruction book. General hole starting procedure is given because this
  information is basic to most conditions regardless of how the drill is equipped. The “DOWN-HOLE”
  technical problems encountered in drilling are not covered in this manual. The solutions to these
  problems are usually learned by careful observation and on-the-job experience. To obtain maximum
  service life and trouble-free operation, it is important to follow the lubrication and
  maintenance recommendations.
• The information, specifications, and illustrations in this manual are based on the information in
  effect at the time this manual was printed. Continuing improvement and advancement of product
  design may cause changes in your machine which may not be included in this manual. Each manual is
  reviewed and revised, as required, to update and include these changes in later editions. Because
  of the various options offered in the GDC2HP Rotary Blasthole drill, the operator may find
  variations in some of the controls with regard to location and/or additional controls for optional
  components.

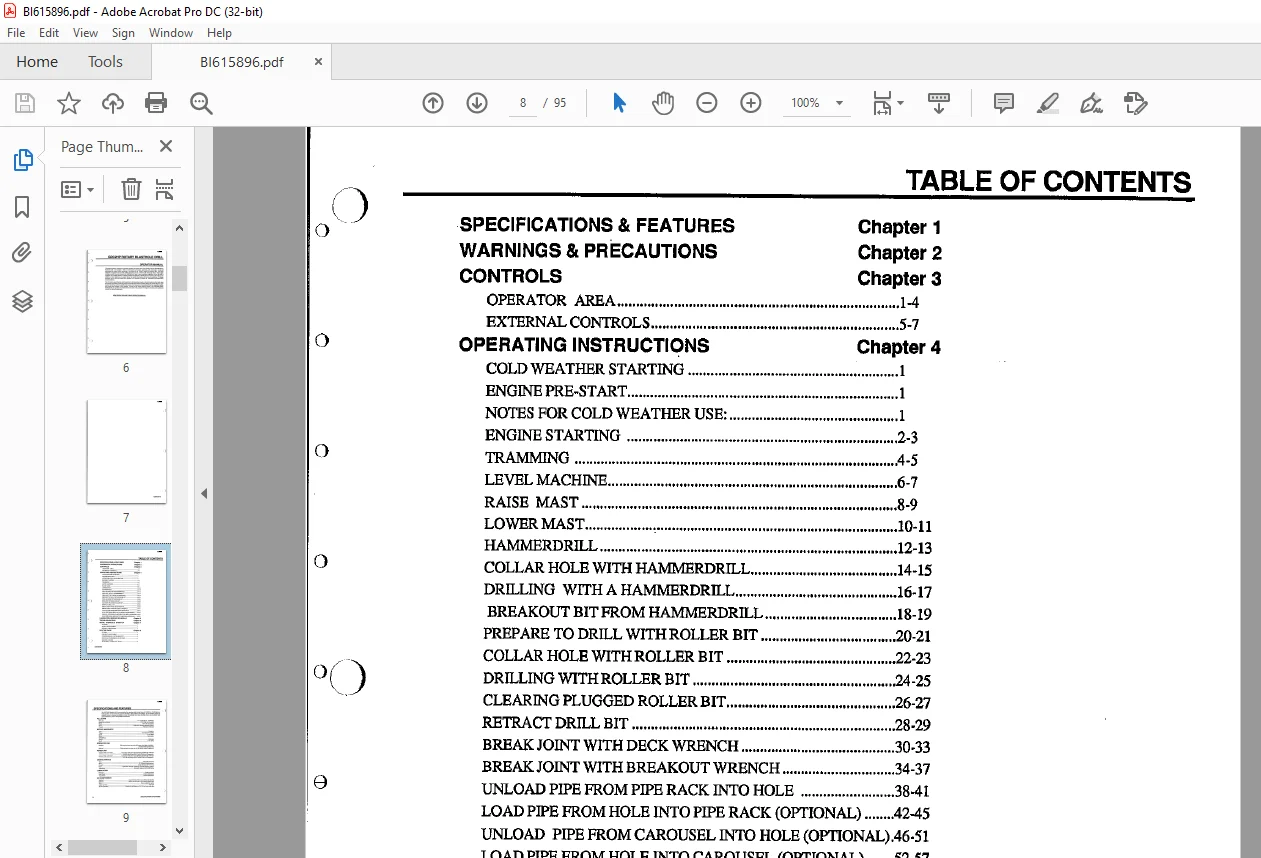

TABLE OF CONTENTS:

Cat Bucyrus GDCHP Rotary Percussive Blasthole Drill Operator Manual BI615896 – PDF DOWNLOAD

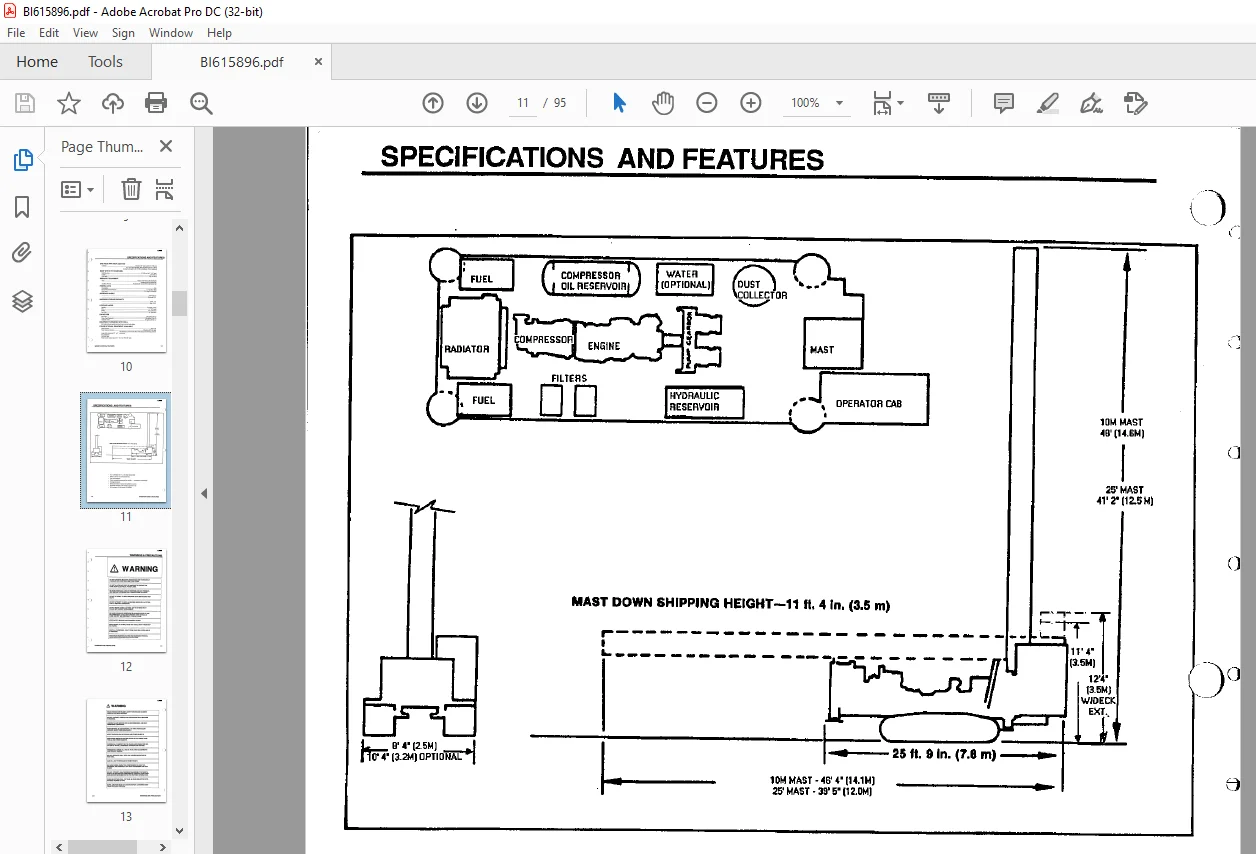

SPECIFICATIONS & FEATURES
WARNINGS & PRECAUTIONS
CONTROLS
Chapter 1
Chapter 2
Chapter 3
OPERATOR AREA 1-4
EXTERNALCONTROLS 5-7
OPERATING INSTRUCTIONS Chapter 4
COLD WEATHER STARTING 1
ENGINEPRE-START • 1
NOTES FOR COLD WEATHER USE: • • • • 1
ENGINE STARTING 2-3
TRAMMING 4-5
LEVEL MACHINE 6-7
RAISE MAST 8-9
LOWER MAST , 10-ll
HAMMERDRlLL 12-13
COLLAR HOLE WITH HAMMERDRILL 14-15
DRILLING WITH A HAMMERDRILL 16-17
BREAKOUT BIT FROM HAMMERDRILL 18-19
PREP ARE TO DRILL WITH ROLLER BIT 20-21
COLLAR HOLE WITH ROLLER BIT 22-23
DRILLING WITH ROLLER BIT 24-25
CLEARING PLUGGED ROLLER BIT 26-27
RETRACT DRILL BIT 28-29
BREAK JOINT WITH DECK WRENCH 30-33
BREAK JOINT WITH BREAKOUT WRENCH 34-37
UNLOAD PIPE FROM PIPE RACK INTO HOLE 38-41
LOAD PIPE FROM HOLE INTO PIPE RACK (OPTIONAL) 42-45
UNLOAD PIPE FROM CAROUSEL INTO HOLE (OPTIONAL) 46-51
LOAD PIPE FROM HOLE INTO CAROUSEL (OPTIONAL) 52-57
LUBRICATION SERVICE SCHEDULE Chapter 5
TROUBLESHOOTING Chapter 6
INITIAL HYDRAULIC START-UP Chapter 7
PURPOSE 1
START-UPEQUIPMENT 1
GENERAL PROCEDURE 1
ROUTINE CARE Chapter 8
FILTERS 1
FAN BELT ADJUSTMENT 2
COMPRESSOR OIL FILTER SERVICE 3
ENGINE & COMPRESSOR AIR FILTERS 4
SUCTION FILTER
AUXILIARY HYDRAULIC PUMP 4
PULLDOWN
Bit Load 0 to 35,000 lbs (0 • 15,890 kg)
Speed (Up or Down) 133 F P M (40 5 m/min)
Chain ! 3/4″ (45 mm) (pitch)
Drive Hydrostatic through planetary gearbox
Control Feed rate or bit load
ROTARY MACHINERY
Type Topdrive
Torque 4145 ft/lb (573 m/kPa)
Speed 0-135 RPM
Drive Hydrostatic
OPTIONAL
Torque 2850 ft/lb
Speed 0-194 RPM
OPERATOR CAB
Standard Fully-enclosed one-man cab with heater, tinted glass, insulation
and adjustable operators seat
Optional Fully-enclosed two-man cab with the above standard equipment
POWER UNIT
Standard Make and Model Caterpillar 3306 DITA rated@ 300 hp (216kW)@ 2100 rpm
for 500 cfm/350 psi (2361 L/s/2412 kPa) Air Compressor
Optional Make and Model Caterpillar 3406 DITA-rated@400 hp (216kW)@ 2100 rpm
for 750 cfm/300 psi (3541 L/s/2067 kPa) Air Compressor
UNDERCARRIAGE
Type Caterpillar 215 (D4)
Shoes 20″ (508mm) triple grousers
Overall Length of track-162″ (4 11 m)
Drive Hydrostatic through completely enclosed planetary gearbox
Adjustment Hydraulic Adjuster and Recoil Spring
LUBRICATION
Planetary Totally enclosed
Idler Wheel Lifetime lubrication
Track Roller Lifetime lubrication
AIR COMPRESSOR
Standard Rated 500 cfm (2361 L/s) at 350 psi (2412 kPa)
Optional Rated 750 cfm (3541 L/s) at 300 psi (2067 kPa)
Drive Direct coupled to engine
Intake Air Filter Dry type
MAST (Standard) Suitable for drilling up to 32 8′ (10 m) hole single pass
ONE PIECE PIPE RACK (Optional)
Capacity , One piece 25′ pipe rack for 4″ (102 mm)
or 5″ (127 mm) drill pipe, plus one piece of 32′ 10″ (10 m)
for total hole depth fo 58′ (17 68 m)(Hydraulic Winch Standard)
MAST WITH 5 POT CAROUSEL
Drill Pipe Size 4″ (102 mm) or 5″ (127 mm)
Length 25′ (7 62 m)
Hole depth 150′ (45 72 m)
BREAKOUT EQUIPMENT
Type Impact Deck Wrench, Hydraulically
Actuated From Operators Cab
Auxiliary Wrench Hydraulically Actuated From Operators Cab
PROPEL DATA
Gradeability 35%
Track Unit Ground Pressure 12 7 psi (86 1 kPa)
Max Speed 2 12 mph (3 22 km/hr)
APPROACH ANGLE
Forward 15 °
Rearward 22°
MAXIMUM LEVELING CAPACITY
Front 7 4°
Rear 12 5°
LEVELING JACKS
Quantity 4 (2 front, 2 rear)
Size 5″ (127 mm)
Stroke 45″ (1143 mm)
Jack Pads 20″ (508 mm)
CAPACITIES
Fuel Tank 200 gallon (757 L)
Water Tank (Optional) 100 gallon (378 5 L)
Hydraulic Tank 150 gallon (567 81 L)
EQUIPMENT FURNISHED WITH DRILL
Bit breakout basket, guide bushing, bit sub, and top head adapter
OTHER OPTIONAL EQUIPMENT AVAILABLE
Dust Collector Dry Type
Water Injection System 100 gallon (378 5L) tank
with hydraulic powered John Bean water pump and metering controls
Angle drill attachment 30° in 5° increments
Air conditioner
Drilling Lights
Wide Crawler stance up to 10′ 4″ (3 15 m) With 20″ pads
