Cat Bucyrus GMR40-SD DISC BRAKE CALIPER INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Manual BI619418 – PDF DOWNLOAD

Description

Cat Bucyrus GMR40-SD DISC BRAKE CALIPER INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Manual BI619418 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus GMR40-SD DISC BRAKE CALIPER INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Manual BI619418 – PDF DOWNLOAD

Language : English
Pages : 38
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus GMR40-SD DISC BRAKE CALIPER INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Manual BI619418 – PDF DOWNLOAD

GENERAL:
1.1 Description:

• This manual contains the Installation, Operation and Maintenance instructions for
  the Twiflex GMR40-SD disc brake caliper.
• The GMR40-SD disc brake comprises a GMR40 caliper and SD thruster which is
  suitable for a disc thickness of 40mm.
• The minimum disc diameter for both calipers is 610mm but there is no limit on the
  maximum diameter.
• The GMR40-SD disc brake calipers are spring applied, air released and produce a maximum tangential
  braking force of 36 kN at a nominal thruster stroke of 20mm.
• By removing springs from the thruster the braking force can be reduced to 10 kN. The range of
  thrusters use dry and filtered compressed air at pressures from 1.4 to 4.6 bar depending on the spring setting.
• A total of five spring settings are available (see Tables 1 & 2).
• Two types of monitor unit can be supplied.
• The first incorporates microswitches to indicate full retraction and when thruster stroke
  adjustment is required.
• The second incorporates inductive proximity sensors which also indicate full retraction and the
  requirement for thruster stroke adjustment, but in addition provide a signal which can be used to
  initiate system shutdown if adjustment has not been
  made.

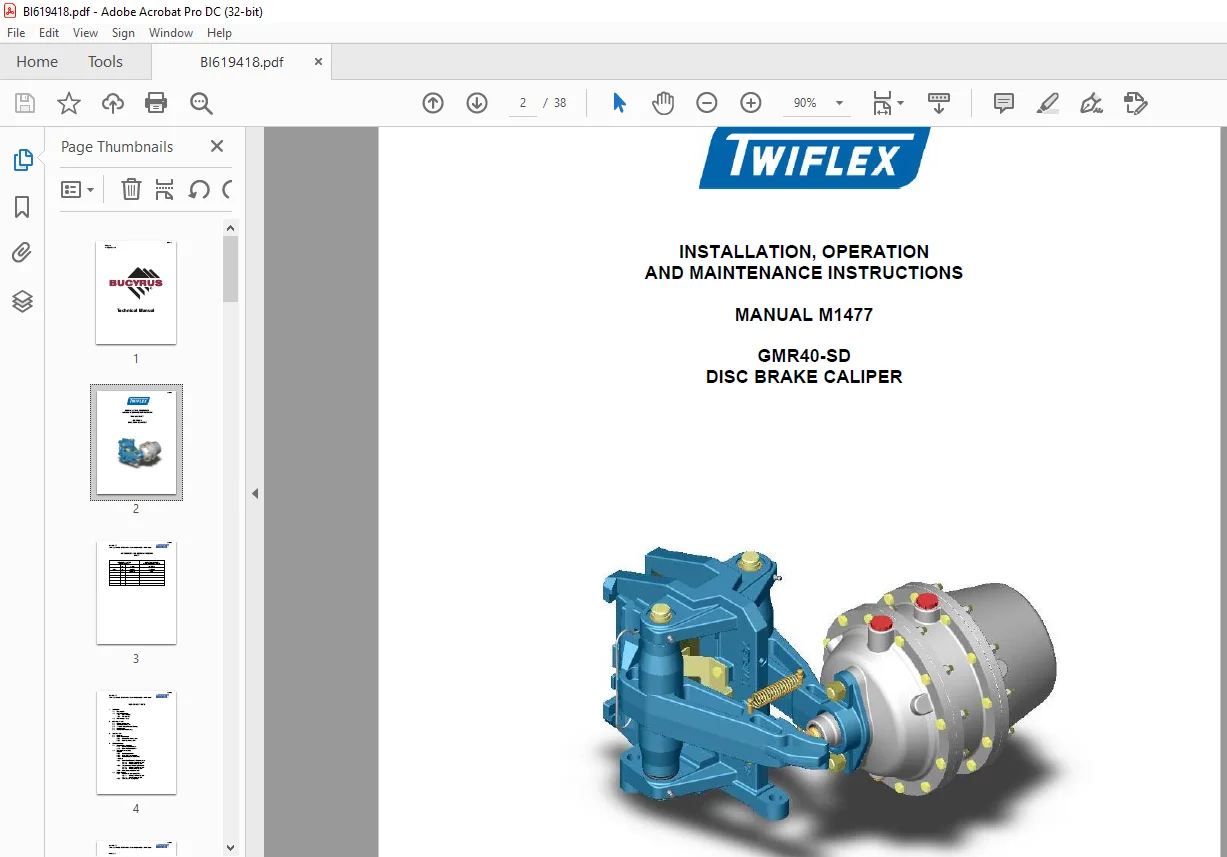

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Bucyrus GMR40-SD DISC BRAKE CALIPER INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Manual BI619418 – PDF DOWNLOAD

1. GENERAL
1.1 Description
1.2 Part Identification
1.2.1 GMR Caliper
1.2.2 SD Thruster
1.3 Performance Data
2. INSTALLATION
2.1 Caliper Installation
2.2 Inclined Mounting Kit
2.3 Thruster Installation and Setting
2.4 Monitor Unit
2.5 Brake Pad Conditioning
3. OPERATION
3.1 General
3.2 Manual Retraction
3.2.1 Without Monitoring Unit
3.2.2 With Monitoring Unit
4. MAINTENANCE
4.1 Maintenance Schedule
4.1.1 Monthly Maintenance
4.1.2 Periodic Maintenance
4.2 Routine Maintenance
Caliper
4.2.1 Pad Replacement
4.2.2 Pivot Pin Replacement
4.2.3 Recommended Lubricants
Thruster
4.2.4 Push Rod Removal / Replacement
4.2.4.1 Without Monitoring Unit
4.2.4.2 With Monitoring Unit
4.2.5 Stripdown and Seal Replacement
4.2.5.1 Without Monitoring Unit
4.2.5.2 With Monitoring Unit
4.2.6 Recommended Lubricants
4.3 Major Service
4.3.1 Removal of the Spring Pack
4.3.1.1 Without Monitoring Unit
4.3.1.2 With Monitoring Unit
4.3.2 Assembly of Spring Pack
BI619418
GMR40-SD
INSTALLATION, OPERATION & MAINTENANCE – M1477 EXT
FIGURES
1. Twiflex GMR-SD Disc Brake Caliper
2. GMR Brake Caliper : Basic Parts
3. SD Thruster : Basic Parts
4. Inclined Mounting Kit
5. Thruster Setting
6. Manual Retraction Screw
7. Monitor Unit B or C
8. Return Springs Released
9. Keep Plate(s) Removal
10. Replace Pads
11. Pivot Pin Replacement
12. Push Rod Removal
13. Front Cap Removed
14. Centre Casing Removed
15. Hydraulic Press with SD Thruster mounted
16. Assembly Compression and Guide Tools
17. Equipment Layout
18. Retraction Screw removed
19. Monitor Unit Cover Removal
20. Assembly Guide Tool
21. Assembly Equipment Layout
22. GMR Caliper Recommended Spares
23. SD Thruster Recommended Spares
TABLES
1. SD Thruster suitable for Monitor Unit A
2. SD Thruster suitable for Monitor Unit B and C
3. GMR Caliper – Basic Parts
4. Friction Pad Assemblies
5. SD Thruster – Basic Parts
6. Spring Pack
7. Seal Kit
8. Inclined Mounting Kit
DRAWINGS (to be used in conjunction with this manual – M1477)
A11046 Thruster Type SD
A01221 GMR40 Caliper Assembly
A11210 Monitor Unit
A01601 Monitor Unit 3 Function – Proximity Type
A21123 Seal Fitting Kit
A21160 Assembly Compression Tool
A32151 Assembly Guide

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
