Cat Bucyrus HPR1H Hydraulic Drill Operator Manual BI615937 – PDF DOWNLOAD

Description

Cat Bucyrus HPR1H Hydraulic Drill Operator Manual BI615937 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus HPR1H Hydraulic Drill Operator Manual BI615937 – PDF DOWNLOAD

Language : English
Pages : 89
Downloadable : Yes
File Type : PDF

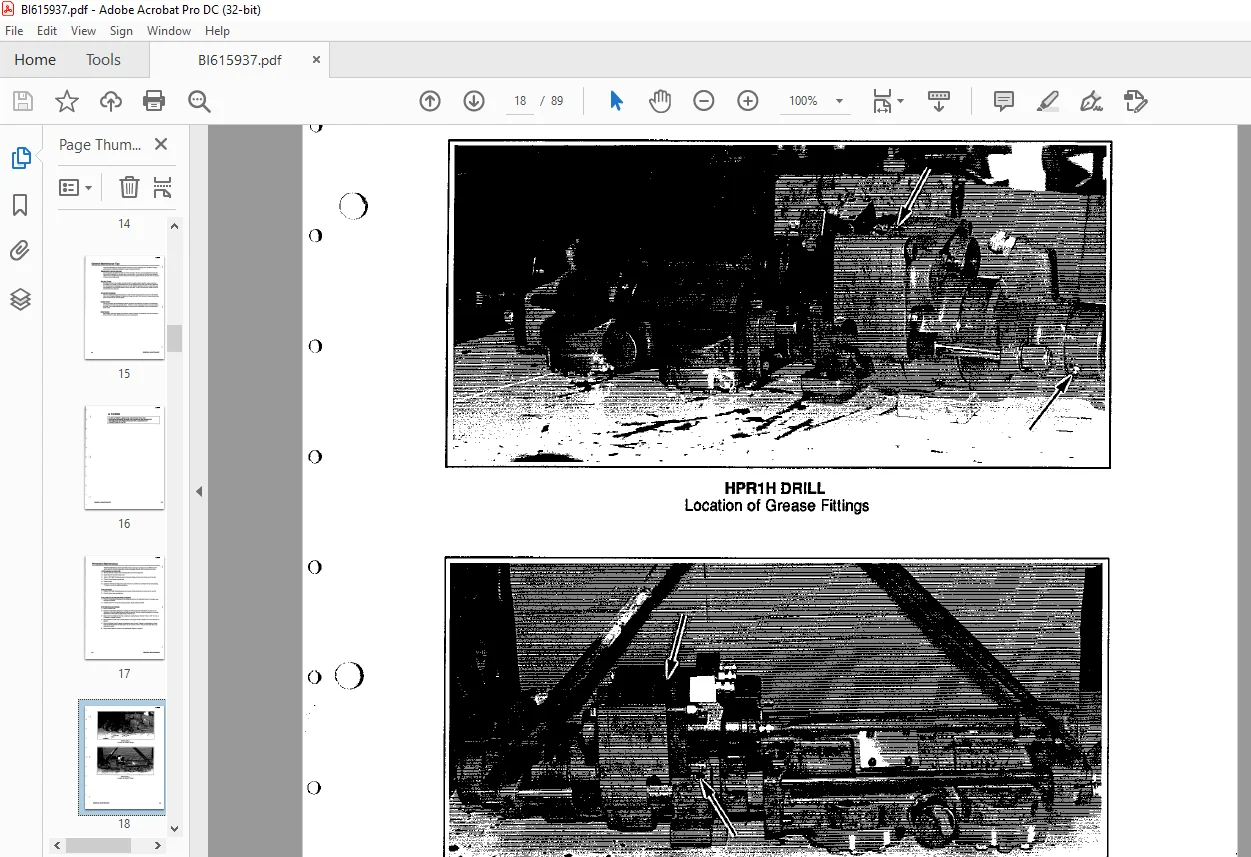

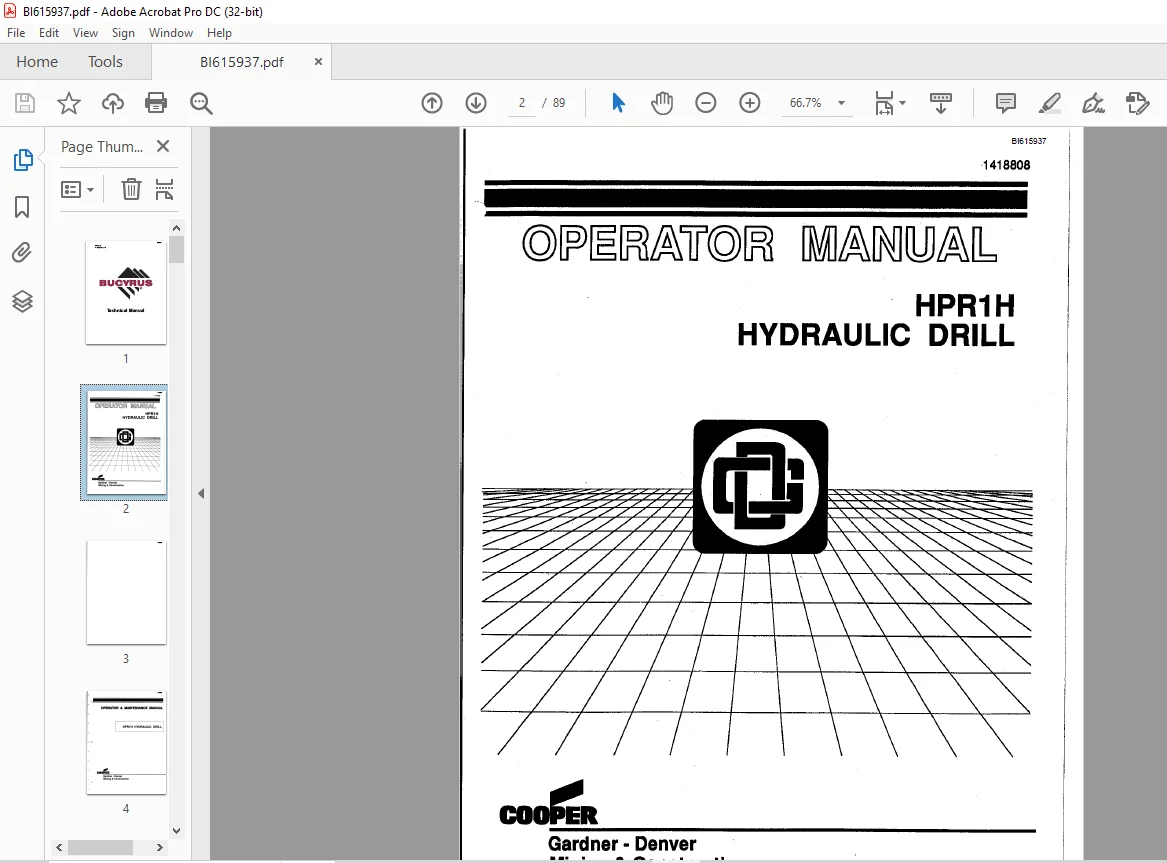

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat Bucyrus HPR1H Hydraulic Drill Operator Manual BI615937 – PDF DOWNLOAD

General Description:

The HPRlH Hydraulic Drill is a high perfonnance, high efficiency hydraulic percussion drill. The
HPRlH drill is designed for long life, minimum downtime and minimum operating cosL The drill has a
manual stroke adjustment to be able to adjust energy and frequency for different ground conditions
and bit sizes. We offer two consttuctions of the HPRlH drill to cover different applications.

HPR1H-AT:

This consttuction is used primarily with the SCH2500and SCH3500 Hydra Tracs’ with both 38mm and
45mm drill steel in hole sire ranges from 21,i” to 41h” diameter, dependent on the drillability of
the rock, and the hole depth. The maximum recommended differential pressure* is 2600 PSI.

HPR1H-ST:

• HPRlH-ST consttuction has an extra long hammer and has been specifically designed for 45mm drill
  steel. It is intended for applications where the blow energy of the HPRH-AT is not sufficient for
  efficient drilling of larger diameter deep holes in hard rock fonnations. This construction can be
  operated at differ­ ential pressures up to 3200 PSI. The limitation will be the energy transfer
  through the drill string, primar­ ily the first coupling, and depends largely on rock conditions
  and bit sire. The use of a collaring circuit with a maximum pressure setting of 1500 PSI is
  essential.
• At lower differential pressures (2000 to 2600 PSI) this construction has shown improved
  consumables life relative to HPRlH-AT in many applications. It also has been used successfully with 38mm steel
  in un­ derground long hole applications.

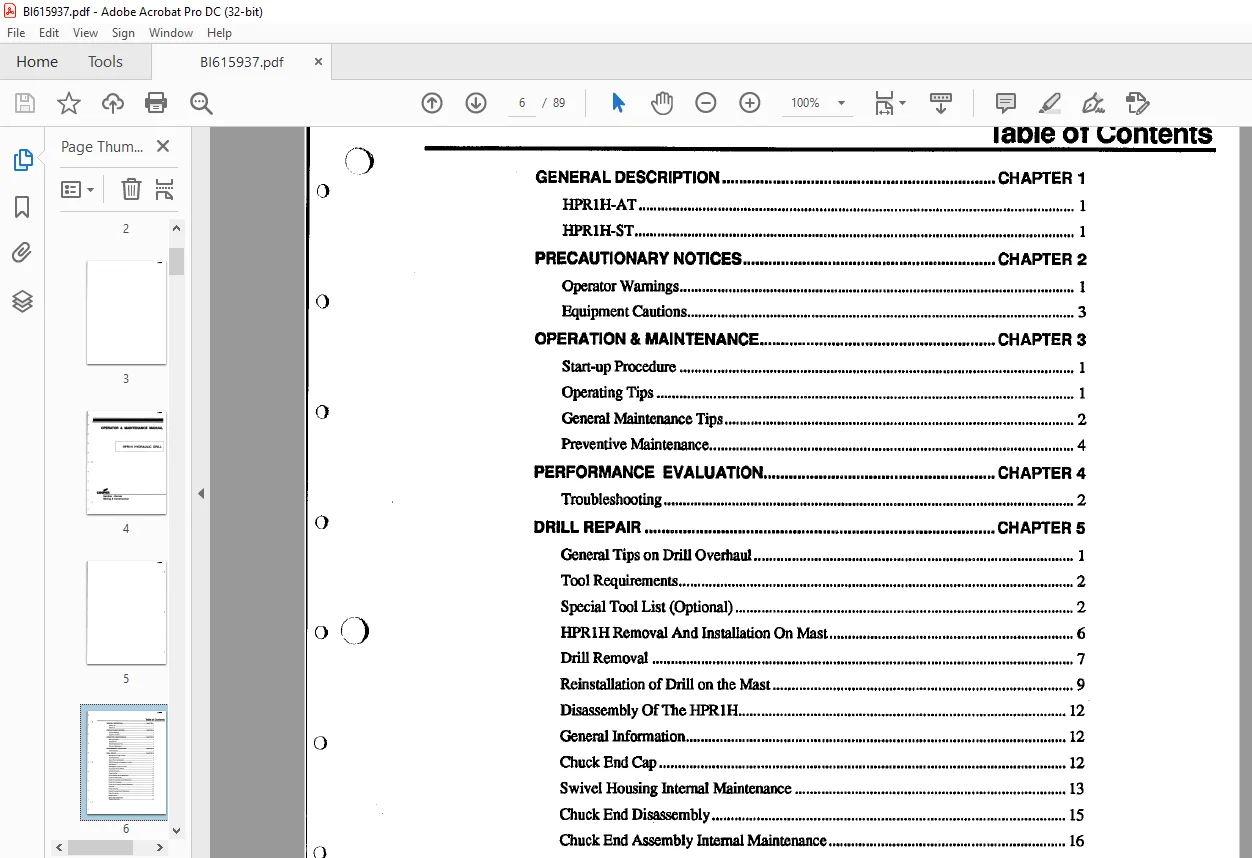

TABLE OF CONTENTS:

Cat Bucyrus HPR1H Hydraulic Drill Operator Manual BI615937 – PDF DOWNLOAD

GENERAL DESCRIPTION CHAPTER 1
HPRlH-AT 1
HPRlH-ST 1
PRECAUTIONARY NOTICES CHAPTER 2
Operator Warnings 1
Equipment Cautions 3
OPERATION & MAINTENANCE CHAPTER 3
Start-up Procedure 1
Operating Tips 1
0 General Maintenance Tips 2
Preventive Maintenance 4
PERFORMANCE EVALUATION CHAPTER 4
Troubleshooting 2
0 DRILL REPAIR CHAPTER 5
General Tips on Drill Overhaul 1
Tool Requirements 2
Special Tool List (Optional) 2
HPRlH Removal And Installation On Mast 6
Drill Removal 7
Reinstallation of Drill on the Mast 9
Disassembly OfThe HPRlH 12
0 General htformation 12
Chuck End Cap 12
Swivel Housing Internal Maintenance 13
Chuck End Disassembly 15
Chuck End Assembly Internal Maintenance 16
Chuck Driver Assembly 17
Chuck Driver Assembly Internal Maintenance 18
Side Rods 19
Rotation Housing 20
0 Rotation Housing Internal Maintenance 22
What To Look For 22
Rotation Motors 23
Shuttle Valve Disassembly
0 Threaded Plug Style 25
Shuttle Valve Disassembly
Thru Bore Style 29
What To Look For 30
Shuttle Valve Reassembly ()
Threaded Plug Style 31
Shuttle Valve Reassembly
Thru-Bore Design 33
Accumulators 37
What To Look For 40
Reassembly 40
Stroke Controller 41
Manual Stroke Control 42
Reassembly Of The HPRlH 46
Drill Reassembly 54 0
Installation Of The Shank 56
CHARGING THE ACCUMULATORS CHAPTER 6
Requirements 2
Procedure 2 ()
Checking The Accumulator Charge Pressure 3
SPECIFICATIONS Chapter 7
Hydraulic Oils For Pereussion Drills 1
Lubrication Of Rotation Units on Hydraulic Drills 2 : ) 0
Maintenance Record Sheets 3
