CAT Bucyrus M-4 & M-5 BLAST HOLE DRILL MAINTENANCE AND OPERATION MANUAL 2001 – PDF DOWNLOAD

Description

CAT Bucyrus M-4 & M-5 BLAST HOLE DRILL MAINTENANCE AND OPERATION MANUAL 2001 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus M-4 & M-5 BLAST HOLE DRILL MAINTENANCE AND OPERATION MANUAL 2001 – PDF DOWNLOAD

Language : English
Pages :270
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus M-4 & M-5 BLAST HOLE DRILL MAINTENANCE AND OPERATION MANUAL 2001 – PDF DOWNLOAD

INTRODUCTION

• The inform ion contained in this manual provides guidance to all persons who care about the operatio and maintenance of this machine. Needed data for operation, lubrication, adjustments a d other tasks supplied in the various sections permits accurate operation and service. All enclosed specifications agree with the Marion Power Shovel Engineering Department. This nformation allows for quality maintenance when followed exactly.
• This Manual is NOT a Parts Book. Do not use it to order parts. You have been supplied with a separate, etailed Parts Book. Please read carefully the instructions in the front of it. All parts are lis ed by group number with items and part numbers for this SPECI FIC machine. Please order the correct parts in exact quantity. Parts ordered by mistake and returned are subject to a Company rehandling charge. RIGHT and LEFT HAND PARTS on the upper frame corre pond to the operator’s hands at the controls as he faces the bucket.
• Please state the correct achine SERIAL NUMBER in any conversation or correspondence. Records of each machi e are filed by serial number. Given this number, the specific design and original equipment heck is accurate and quick. ADDED IN ORMATION, when required, not found in this Manual or the Parts Book may be obtained from Marion Power Shove! Company, I nco at Marion, Ohio 43302. SERVICE nd LABOR CHARGES are NOT accepted unless previously authorized by the Company i writing.

SAFETY SUGGESTIONS
The operator controls the machine and its usefulness. The crew alone thinks for it. Safety,
constantly in mind, prevents accidents. Develop good habits. Everyone has bad habits, bU,t
try to erase them quickly. Cleanliness and safety go together. A clean machine is easier to
operate, inspect and maintain.
READ and OBSERVE ALL warning signs, they’re placed for your health and safety.
KNOW the location of fire extinguisher.
DO NOT START machine without a FULL tank of air pressure.
DO NOT LEAVE the controls without pushing the STOP BUTTON marked “EXCITA·
TION”, turning BOTH brake switches to “SET” and automatic drill control lever to the
center detent position.
DO NOT SERVICE or lube moving parts.
PLEASE READ carefully this Manual and Parts Book.
PLEASE LUB E regularly.
PLEASE CREATE A SYSTEMATIC maintenance procedure and follow it.
PLEASE WATCH clearance when lowering mast.
PLEASE OPERATE machine on as near level ground as possible.
PLEASE KEEP safe operating procedures in mind at ALL times.

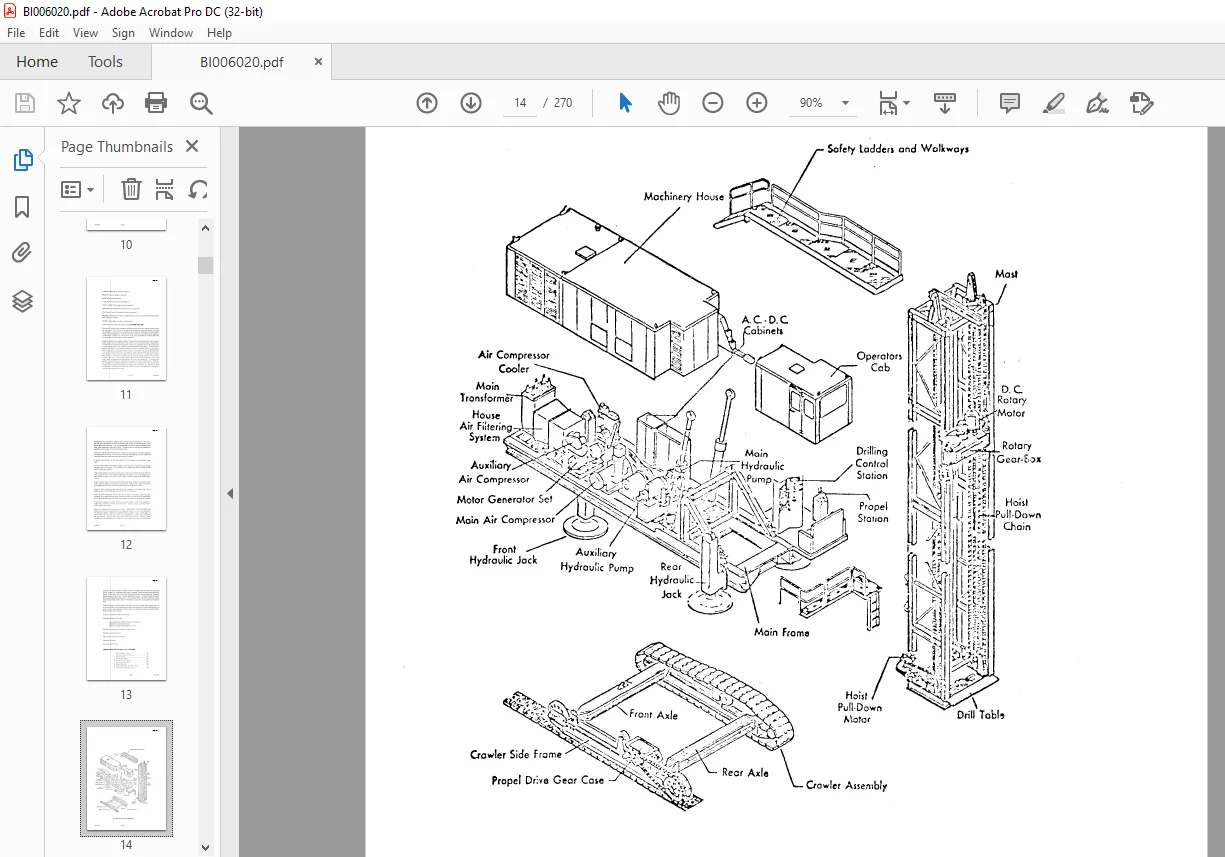

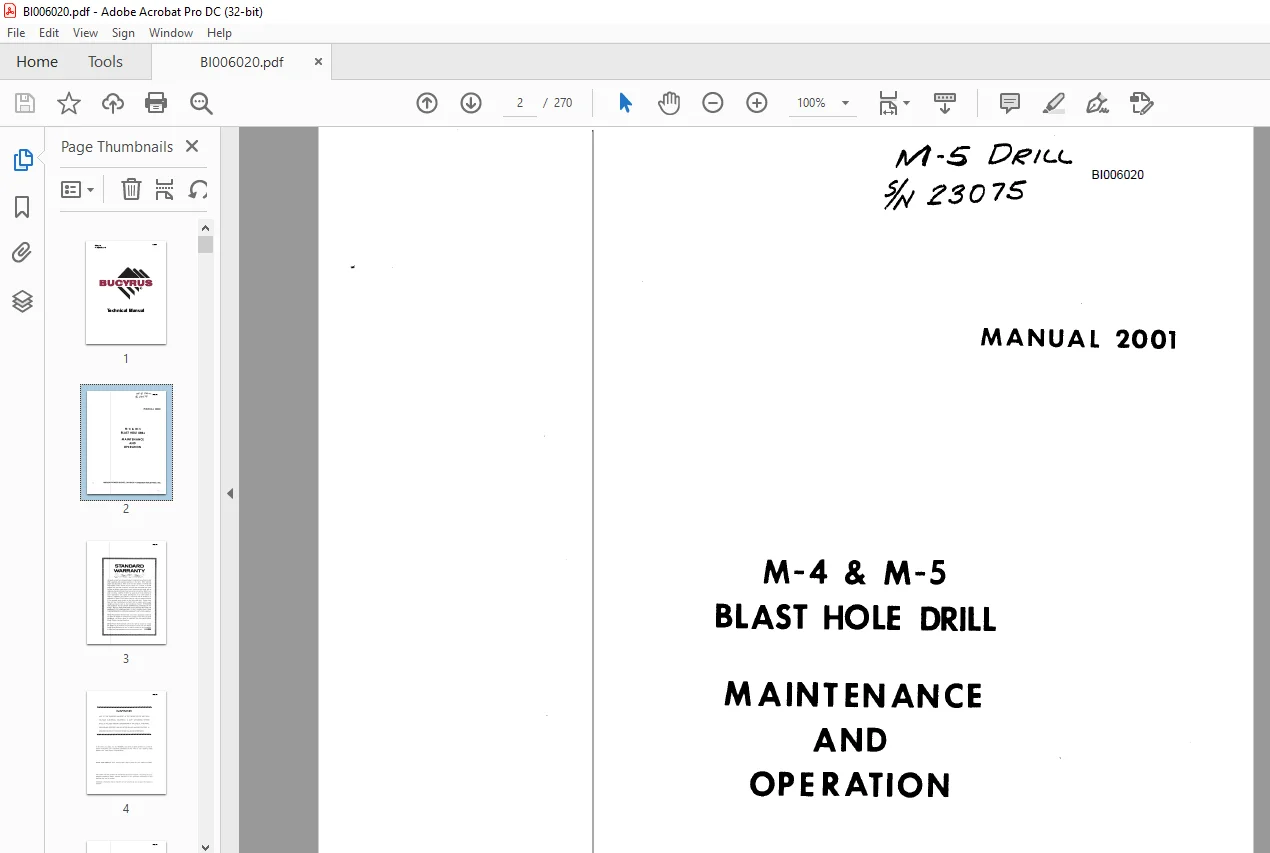

IMAGES PREVIEW OF THE MANUAL:

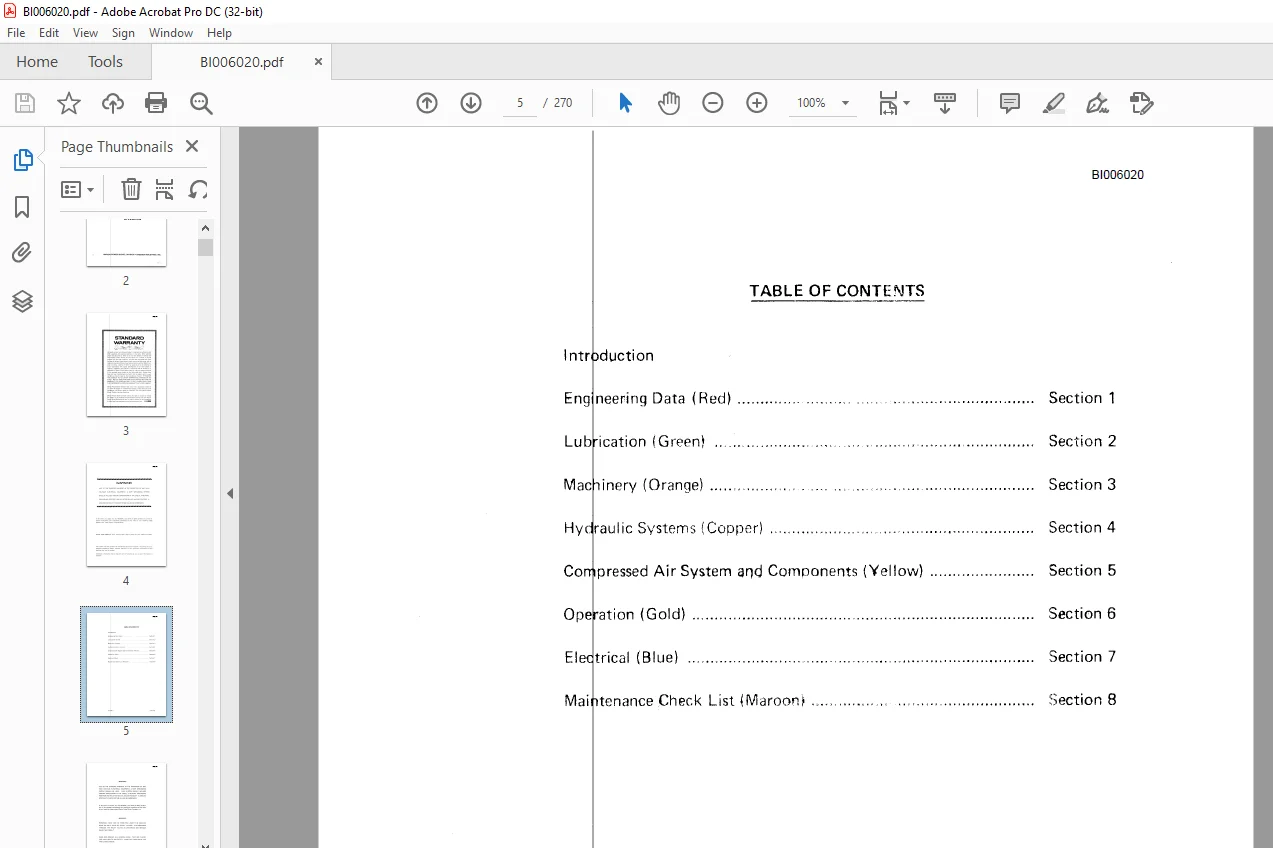

TABLE OF CONTENTS:

CAT Bucyrus M-4 & M-5 BLAST HOLE DRILL MAINTENANCE AND OPERATION MANUAL 2001 – PDF DOWNLOAD

Introduction
TABLE OF CONTENTS
Engineering Data (Red)
Lubrication (Green)
Machinery (Orange)
Hydraulic Systems (Copper)
Compressed Air System and Components (Yellow)
Operation (Gold)
Electrical (Blue)
Maintenance Check List (Maroon)
