CAT Bucyrus MARION 111-M WARD-LEONARD ELECTRIC Operation, Maintenance & Service Manual 1014 PDF DOWNLOAD

Description

CAT Bucyrus MARION 111-M WARD-LEONARD ELECTRIC Operation, Maintenance & Service Manual 1014 PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus MARION 111-M WARD-LEONARD ELECTRIC Operation, Maintenance & Service Manual 1014 PDF DOWNLOAD

Language : English
Pages : 500
Downloadable : Yes
File Type : PDF

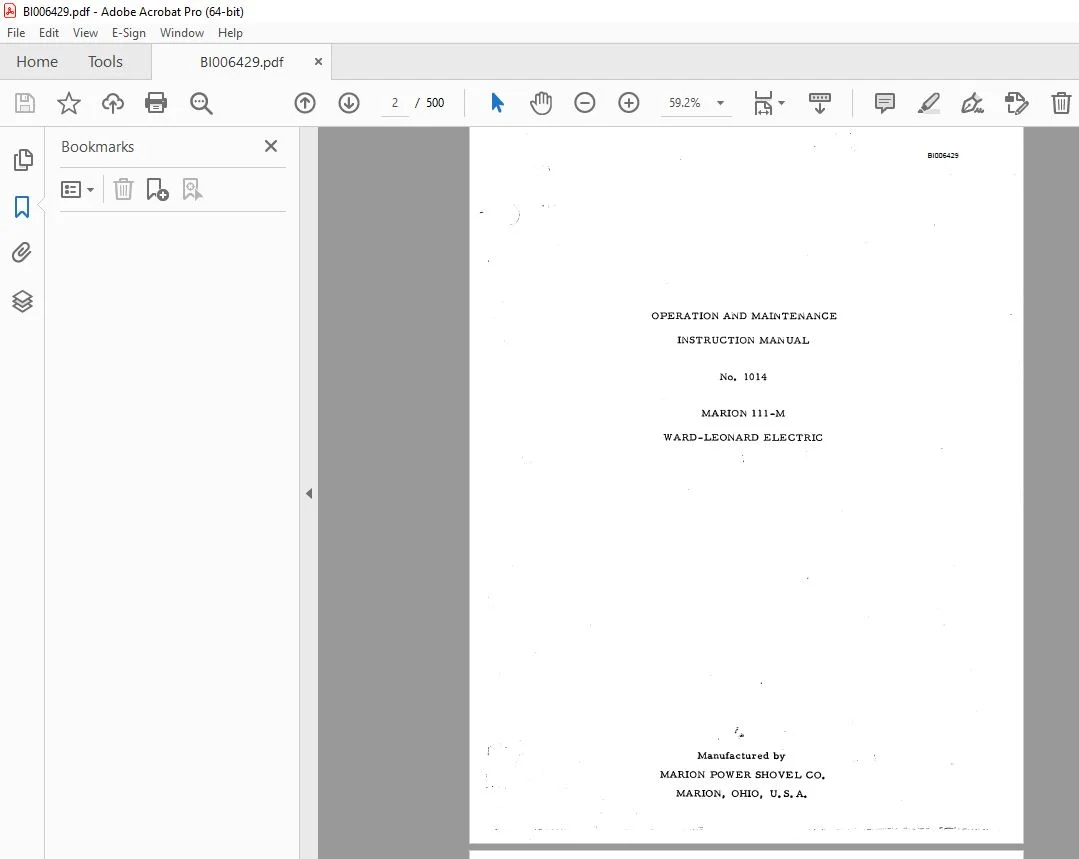

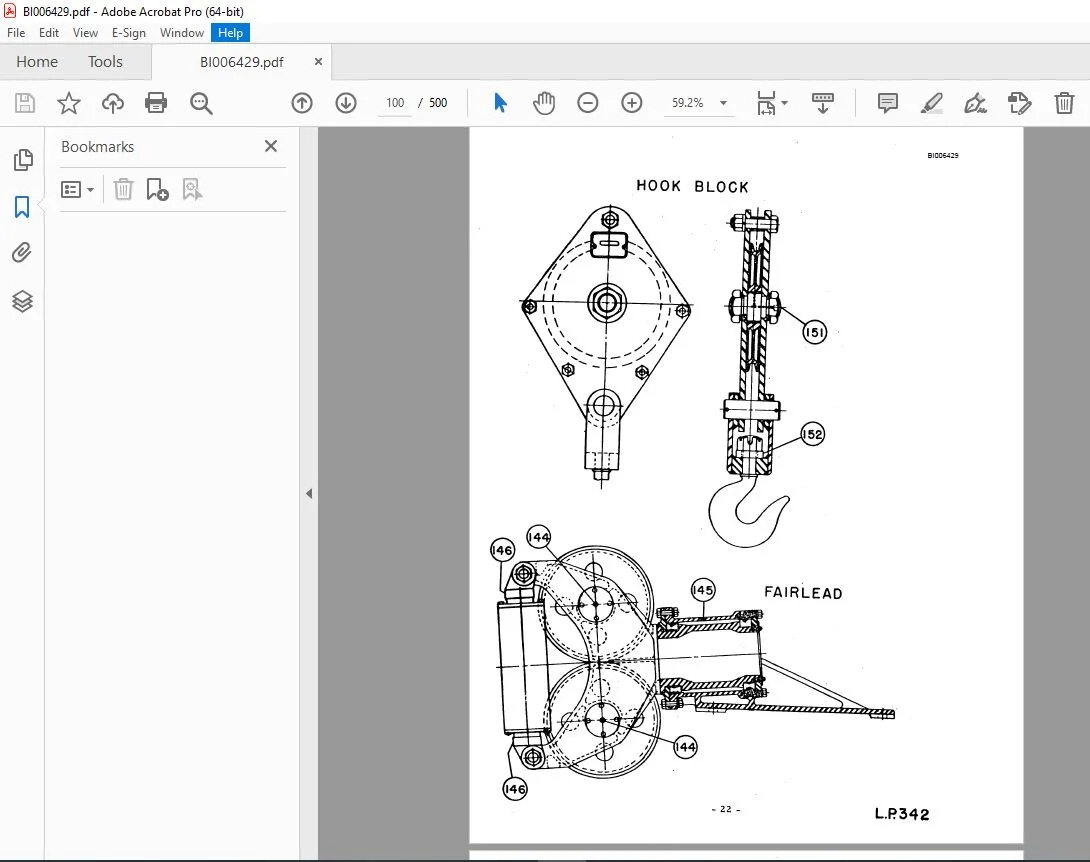

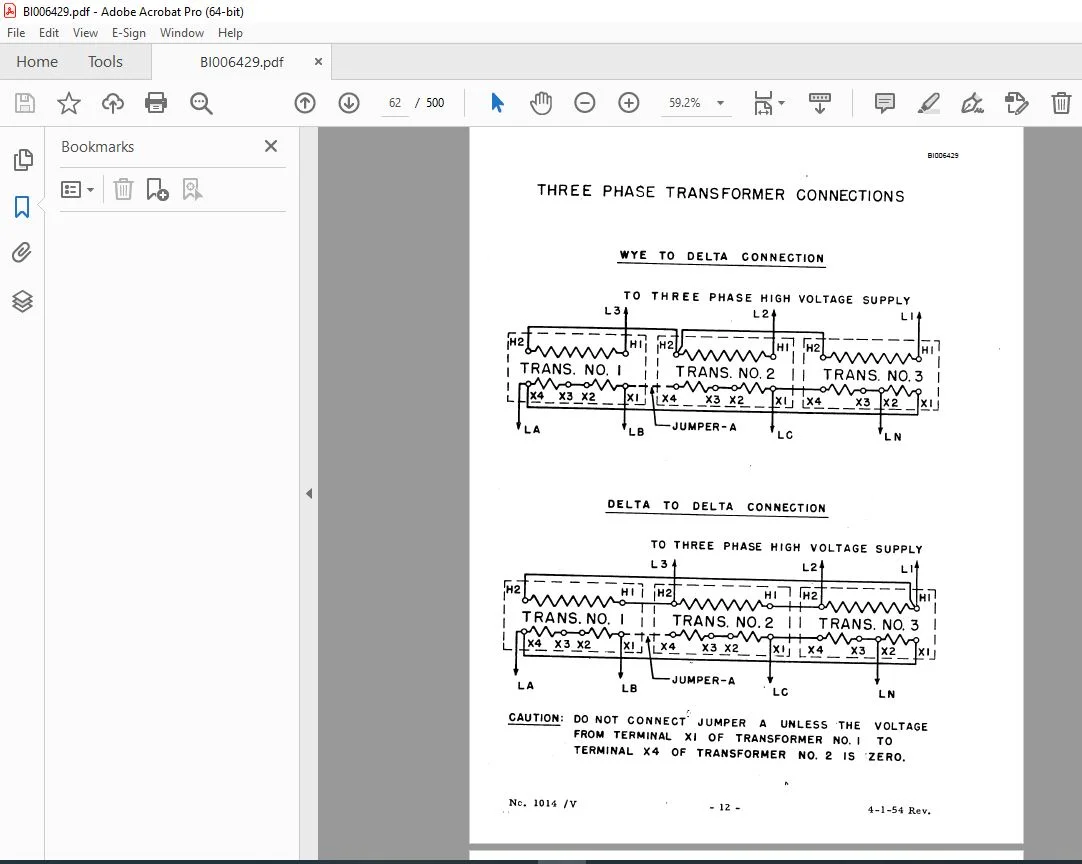

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT Bucyrus MARION 111-M WARD-LEONARD ELECTRIC Operation, Maintenance & Service Manual 1014 PDF DOWNLOAD

Section I  Erecting Instructions
Section II Adjustment Instructions
Section III  Operating Instructions
Section IV Conversion Instructions
Section V Electrical Instructions
Section VI Lubrication Instructions
Section VII  Cable Reeving
Section VIII Miscellaneous

Need help? Contact: [email protected]

https://vimeo.com/856298806?share=copy

DESCRIPTION:

CAT Bucyrus MARION 111-M WARD-LEONARD ELECTRIC Operation, Maintenance & Service Manual 1014 PDF DOWNLOAD

GENERAL INFORMATION:

• These instructions have been prepared to aid in erecting a Marion 111-M Ward-Leonard shovel, dragline, clamshell, or crane. Also, as a guide for the operator and oiler in their operation, lubrication, and maintenance. The engineering drawings which accompany the machine give the exact location of all parts, all necessary dimensions, etc.
• It is very important that extreme care be taken in assembly because improper erection may cause unnecessary wear and faulty operation of the machine.
• When the machine is shipped from the factory, the parts are match-marked throughout. Care should be taken to follow these match marks when the machine is being reassembled.
• All finished surfaces and bearings are protected against corrosion and should be thoroughly cleaned just before assembly. When assembling, all bearings should be lubricated. Ball and roller bearings are to be filled only half full of the proper grease.
• Also, lubricate gears and chains and put the proper oil in gear and chain cases up to the correct level before the machine is run.
• The electric generators and motors, all air and electrical equipment, bearings, and finished surfaces should be protected from the weather until the machine is fully assembled. Also, lubricate gears and chains and put the proper oil in gear and chain cases up to the correct level before the machine is run
