Cat Bucyrus MARION 1200 ELECTRIC Walking Dragline Operation & Maintenance Instruction Manual BI005998 – PDF DOWNLOAD

Description

Cat Bucyrus MARION 1200 ELECTRIC Walking Dragline Operation & Maintenance Instruction Manual BI005998 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus MARION 1200 ELECTRIC Walking Dragline Operation & Maintenance Instruction Manual BI005998 – PDF DOWNLOAD

Language : English
Pages : 198
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus MARION 1200 ELECTRIC Walking Dragline Operation & Maintenance Instruction Manual BI005998 – PDF DOWNLOAD

GENERAL :

• These instructions have been prepared to aid in erecting a MARION 7200 Electric
  Walking Dragline, as a guide for the operator, the groundman, and the oiler in
  their operation, maintenance and lubrication. The engineering drawings which
  accompany the machine give the exact locc!tion of all parts, all necessary dimensions,
  etc. It is very important that extreme care be taken in assembly because
  improper erection may cause unnecessary wear and faulty operation of the machine.
• When the m~chine is shipped from the factory, the parts are match marked
  throughout. Care should be taken to follow these match marks when the machine
  is assembled.
• All finished surfaces and bearings are protected against corrosion and should be
  thoroughly cleaned just before assembly. When assembling, all bearings should
  be lubricated. Ball and roller bearings are to be filled only 1/2 full of the proper
  grease. Also lubricate all gears and put the proper oil in gear cases up to the
  correct level before the lnachine is run. All air and electrical equipment, bearings,
  and finished surfaces should be protected from the weather until the machine
  is fully assembled.
• Select a level assembling area adjacent to the unloading point approximately 50′
  x 150’1 preferably made up of solid material and with good drainage. It may be
  advisable to place gravel or cinders in the immediate erection area.
• It is important that the derrick be placed so that the greatest loads can be lifted
  without interferring with the erection of the machine. The recommended position
  of this derrick is indicated on drawing CR-4723. If the ground is not level,
  place the dead men out further than the 175′ indicated for boom clearance.
• In the event that a 2 to 2-1/2 yd. machine is available, for use as a lifting crane
  for unloading and placing of heavy pieces; it can be used instead of a derrick.
  This machine should have at least a 65’1 boom.

IMAGES PREVIEW OF THE MANUAL:

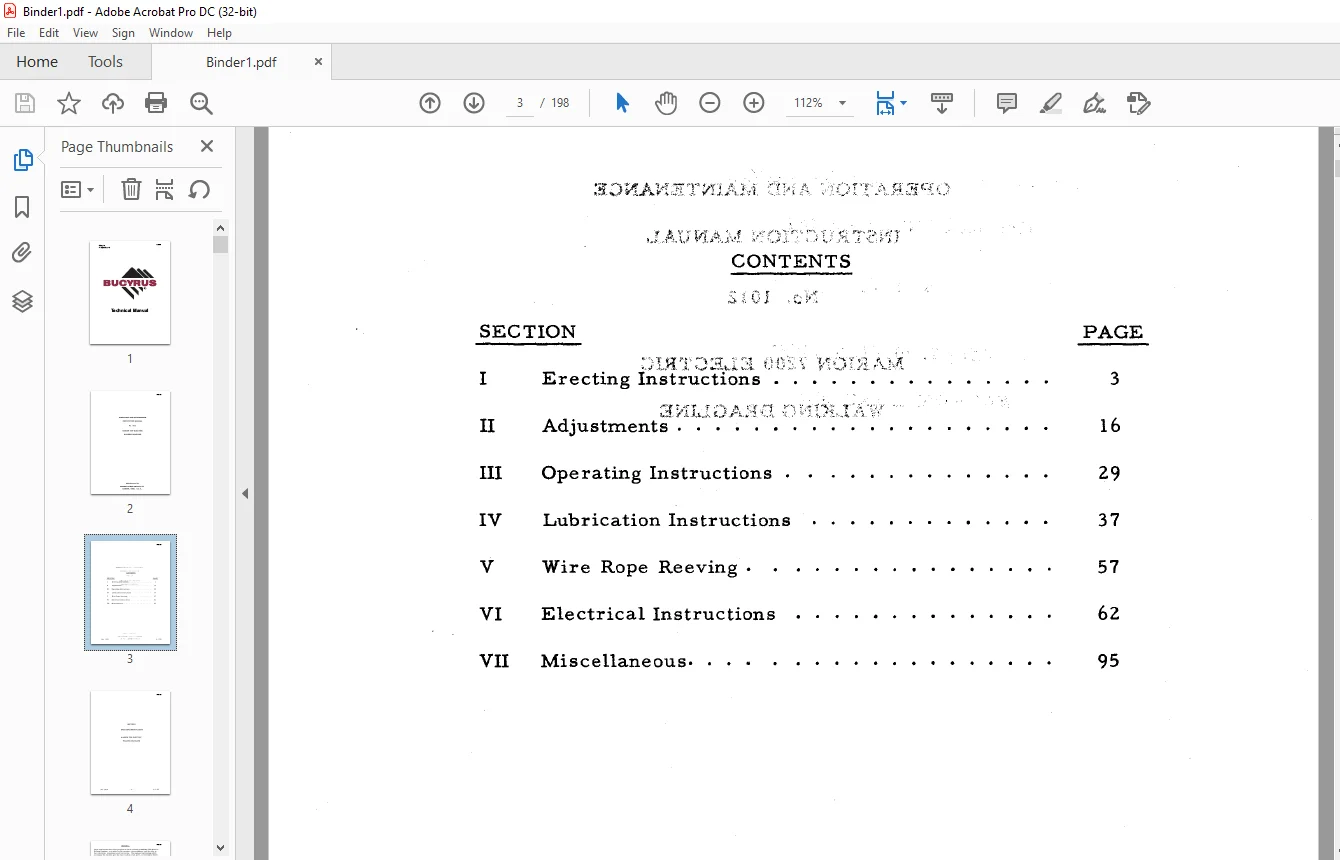

TABLE OF CONTENTS:

Cat Bucyrus MARION 1200 ELECTRIC Walking Dragline Operation & Maintenance Instruction Manual BI005998 – PDF DOWNLOAD

I Erecting Instructions
II Adjustments
III Operating Instructions
IV Lubrication Instructions
V Wire Rope Reeving.
VI Electrical Instructions
VII Miscellaneous
