CAT Bucyrus MARION 181-M MAINTENANCE & OPERATION MANUAL BI006317 – PDF DOWNLOAD

Description

CAT Bucyrus MARION 181-M MAINTENANCE & OPERATION MANUAL BI006317 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus MARION 181-M MAINTENANCE & OPERATION MANUAL BI006317 – PDF DOWNLOAD

Language : English
Pages :147
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus MARION 181-M MAINTENANCE & OPERATION MANUAL BI006317 – PDF DOWNLOAD

INTRODUCTION

• This manual is to serve as a guide to the operators and maintenance men. To all who service and operate this machine, we recommend a careful reading of this manual.
• All information, measurements and specifications in this manual have been approved by the Marion Power Shovel Engineering Department and should be followed carefully.
• This manual is not to be used when ordering parts. You have been furnished a repair parts catalogue which lists all parts by group numbers with item and port numbers for your particular machine.

The following information is required when ordering parts:
1. Type
2. Serial Number
3. Group or Repair List Number
4. Item or Part Numbers

RIGHT AND LEFT HAND
PARTS

On the upper frame, right hand and left hand correspond to the operator’s right and left hands when he is facing forward. On the lower frame, standing at the rear and facing the crawler drive end, right and left correspond to your right and left.

GENERAL INFORMATION

Preventive Maintenance . To insure that the machine is ready for operation at all times it must be inspected systematically so problems may be corrected before they result in serious damage or failure. We recommend the entire machine be inspected daily. If a condition is noted during inspection which would cause damage to the equipment, corrections should be made before operation is continued.

The following check list for daily visual inspection will serve as
a guide for operating personnel:

1. Inspect both tread belts and crawler frames for wear, cracks,
etc. Check drive tumblers and tread belt tension.
2. Visually inspect, dipper for excessive wear, cracks, loose· or
worn teeth and tooth pins.
3. Inspect dipper handles for ere · and sufficient lubrication.
4. Visually inspect lower frame fur cracks and the main rotating
gear and pinions for proper lubrication.
5. Check boom and crowd machinery for lubrication and maintenance
needs.
6. Start the blowers and make certain all ore operating properly,
with sufficient amount of air output.
7. Inspect all revolving parts on machinery deck. All tools and
loose items sho•Jld be stored in proper place and all guards in
place.
8. Check gear cases for evidence of lubrication leakage

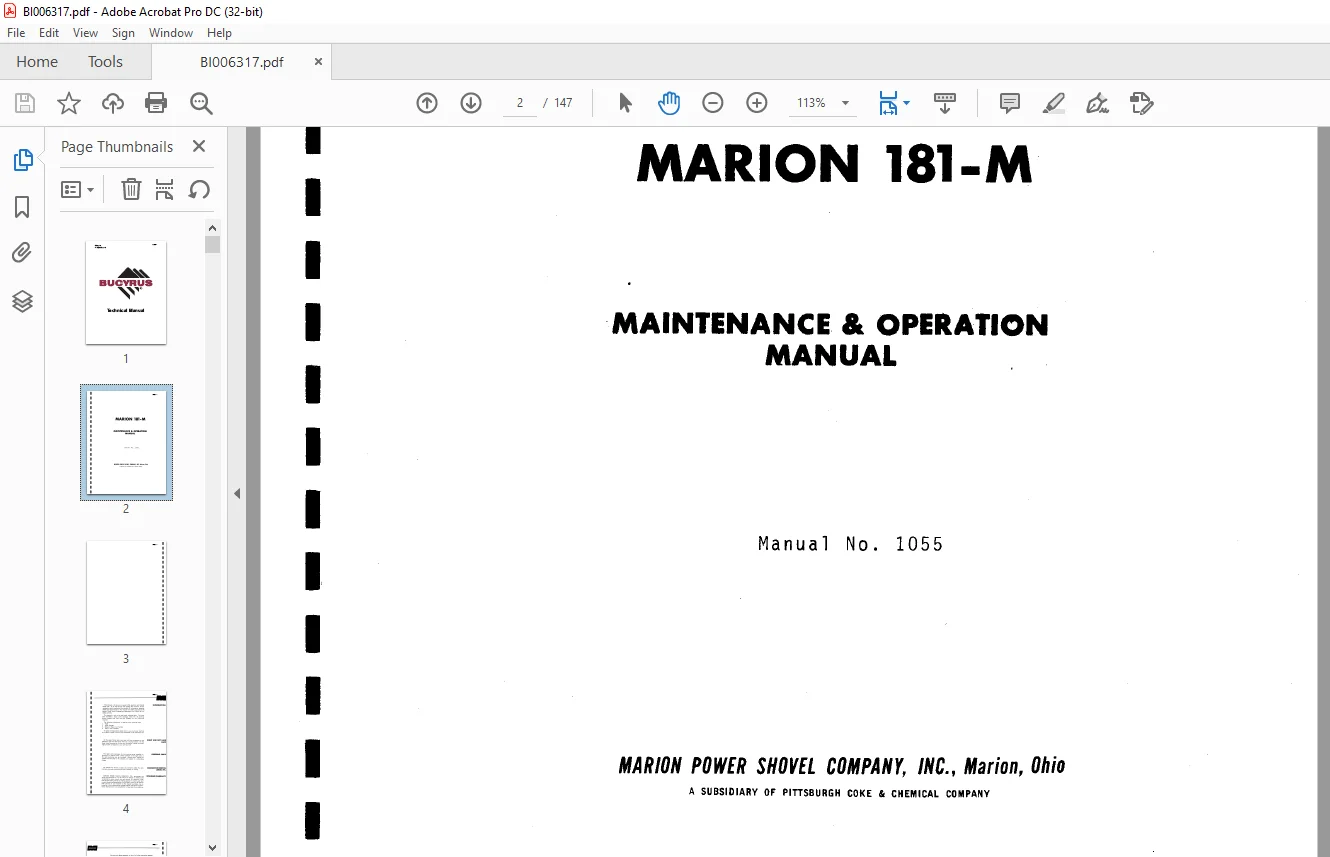

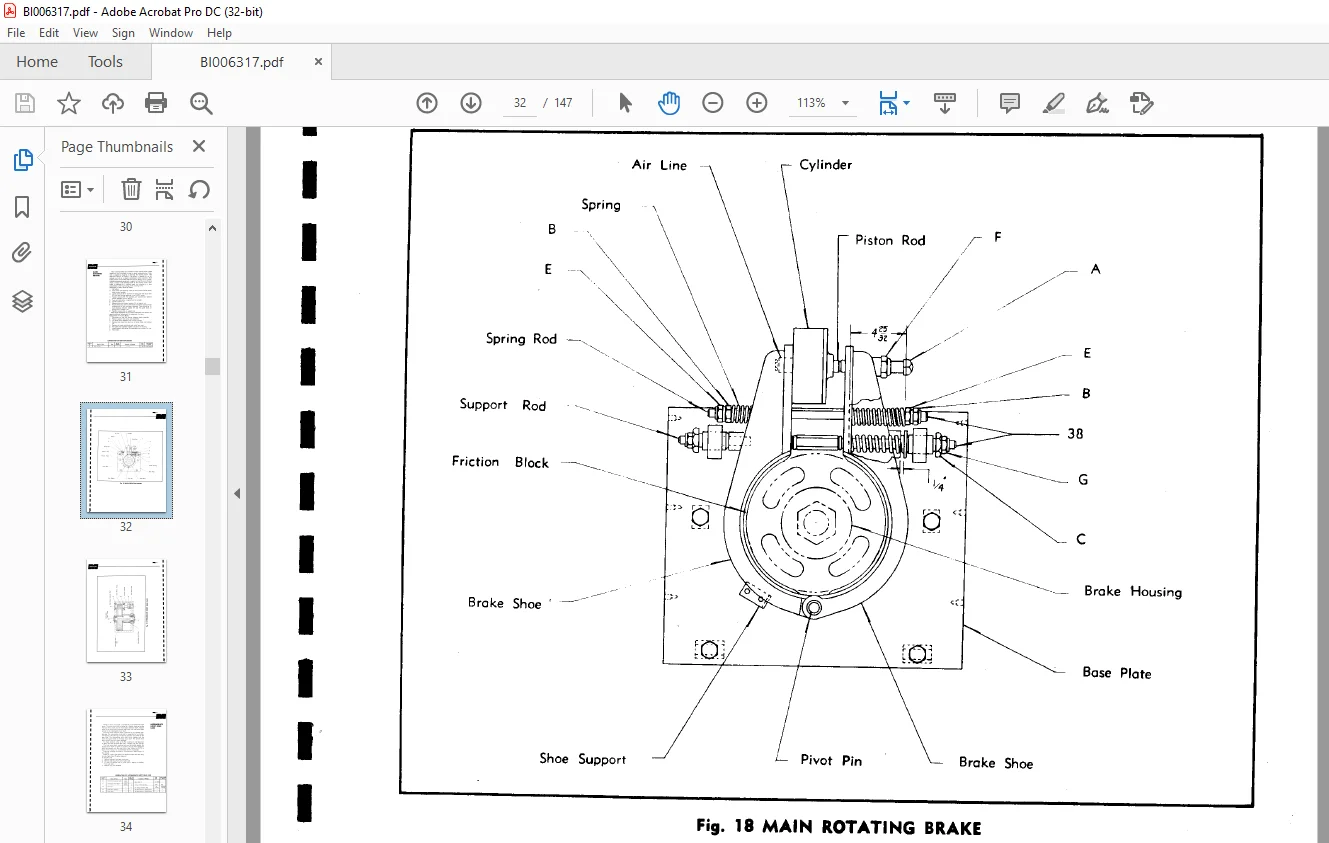

IMAGES PREVIEW OF THE MANUAL:

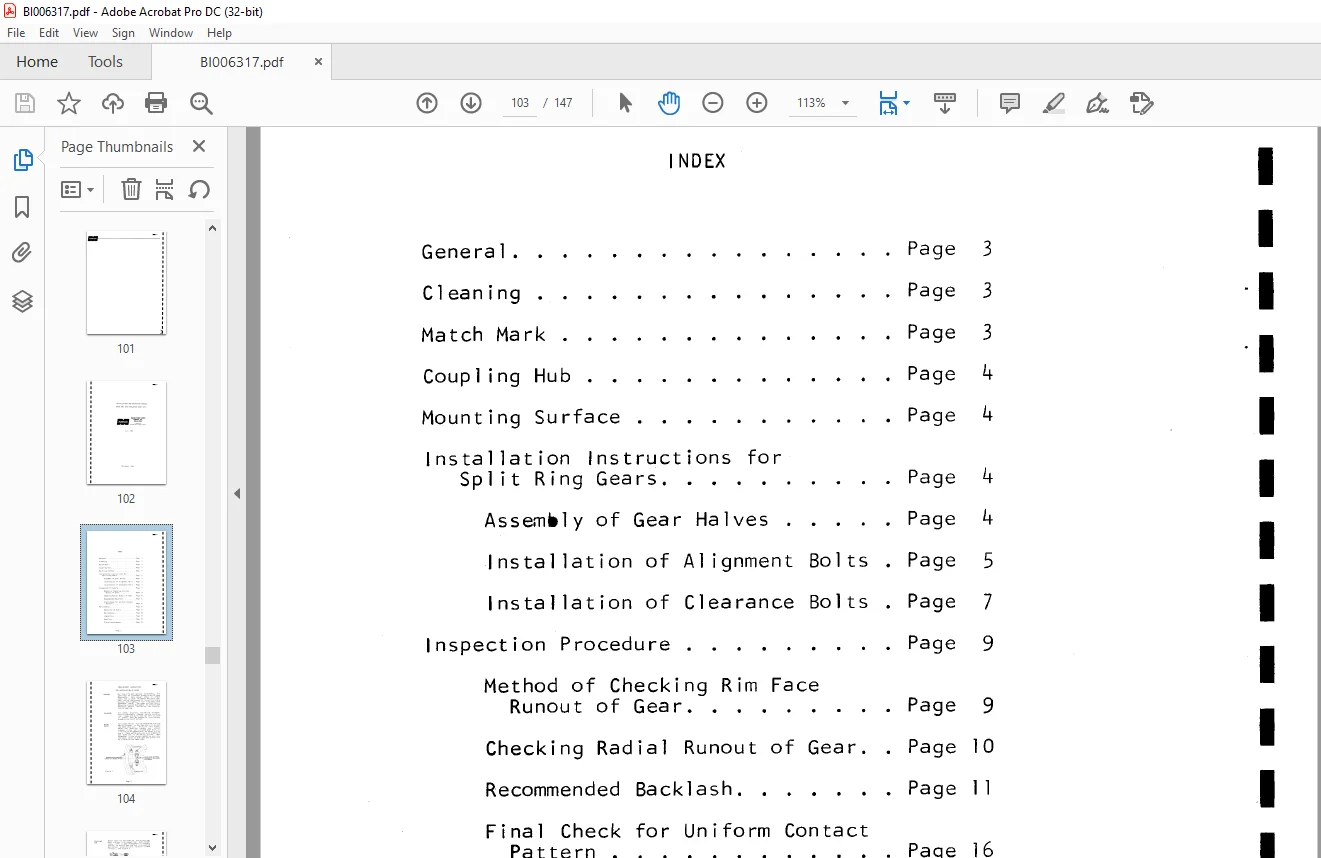

TABLE OF CONTENTS:

CAT Bucyrus MARION 181-M MAINTENANCE & OPERATION MANUAL BI006317 – PDF DOWNLOAD

General
Cleaning
Match Mark
Coupling Hub
Mounting Surface
Installation Instructions for
Sp l it Ring Gears
Assemaly of Gear Halves
lnstal lation of Al i gnment
Installation of Clearance
Inspection Procedure

Bolts
Bolts

Method of Checking Rim Face
Runout of Gear
Checking Radial Runout of Gear
Recommended Backlash
Final Check for Uniform Contact
Pattern
Maintenance
Operation of Gears
Maintenance
Inspection
Hand 1 i ng
Pinion Replacement
