Cat Bucyrus Marion 195-M Crawler Mounted Dragline Maintenance & Operation Manual BI006284 – PDF DOWNLOAD

Description

Cat Bucyrus Marion 195-M Crawler Mounted Dragline Maintenance & Operation Manual BI006284 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Marion 195-M Crawler Mounted Dragline Maintenance & Operation Manual BI006284 – PDF DOWNLOAD

Language : English
Pages : 295
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus Marion 195-M Crawler Mounted Dragline Maintenance & Operation Manual BI006284 – PDF DOWNLOAD

• This manual is designed to assist the owner in the operation and preventive maintenance of this machine. Following easy to understand step-by-step procedures, maintenance personnel
  can perform these tasks in a safe manner. When a systematic and thorough maintenance/
  service procedure (a responsibility of the maintenance superintendent) is used for this
  machine, minimum unplanned downtime and reliable operation will result.
• THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used to order parts. A separate,
  detailed parts book has been supplied. Please carefully read the instructions in it. All
  parts are listed by group and/or product code numbers with item/part numbers for THIS
  SPECIFIC MACHINE. Order parts in exact quantity. Parts ordered by mistake and return- .
  ed, are subject to a rehandling charge. RIGHT and LEFT HAND PARTS on the upper frame
  correspond to the operator’s hands at the controls; as seated wh~n operating the machine.
  Please state the correct machine SERIAL NUMBER (located on a plate in the operator’s
  cab) when corresponding or contacting factory service or parts departments. Records on
  each machine are filed by serial number and when given this number, your machine’s spa..
  cific design and origi~aJ equipment is accessed quickly by the Marion parts representative.

SAFETY PRECAUTIONS:

The operator must be alert, physically fit, and free from the influence of alcohol, drugs, or
medications that might effect his eyesight, hearing or reactions.

• Safety must always be the operator’s most important concern. He must refuse to operate when
  he knows it is unsafe, and consult his supervisor when safety is in doubt.
• The owner and/or operator must replace any and all safety and warning product graphics if they are
  defaced or removed from the machine.
• Before doing any work on the machine, lock out or remove electric power supply from the
  machine and tag it so personnel are aware that someone is working on the machine.
• Do not start an engine indoors unless adequate exhaust ventilators are provided. Once an
  engine is running, move the machine outdoors as soon as possible.
• Keep hands, feet, clothing away from rotating parts
• As a machine is being moved, the operator must face the direction of travel. Think before you act.
  Carelessness is one luxury the serviceman cannot afford.
  Do not wear rings, wrist watches or loose fitting clothing when working on machinery.
  They could catch on moving parts causing serious injury. Never adjust and/or service
  a machine in bare feet, sandals or sneakers.
• Always wear safety glasses when using a hammer, chisel or other tools that may cause chips to
  fly.
• Excessive or repeated skin contact with sealants or solvents may cause skin irritation.
  In case of skin contact, remove sealant or solvent promptly by washing with soap and water.
• Always use a safety bar to block air or hydraulic operated cylinders. Never rely on
  the machine air or hydraulic systems to hold when working on machines. An air or
  hydraulic line or cylinder could fail or someone could accidently strike the control levers
  causing the equipment to fall.
• Equipment must be level on ground at all times during machine servicing and periods of
  idleness.
• – Cranes and hoists must be of sufficient capacity to lift the heavier components (gear
  cases, dipper/bucket, boom, etc.) and have an ample safety margin.

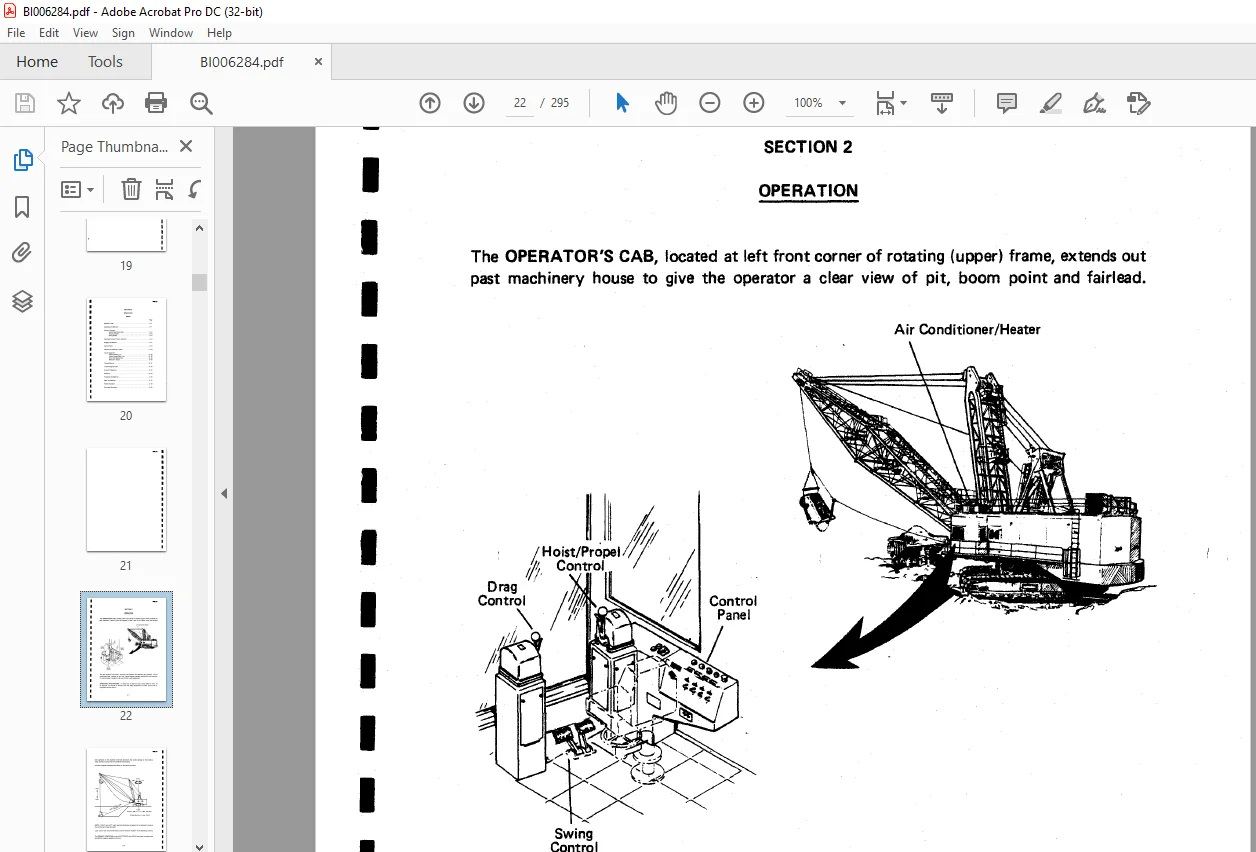

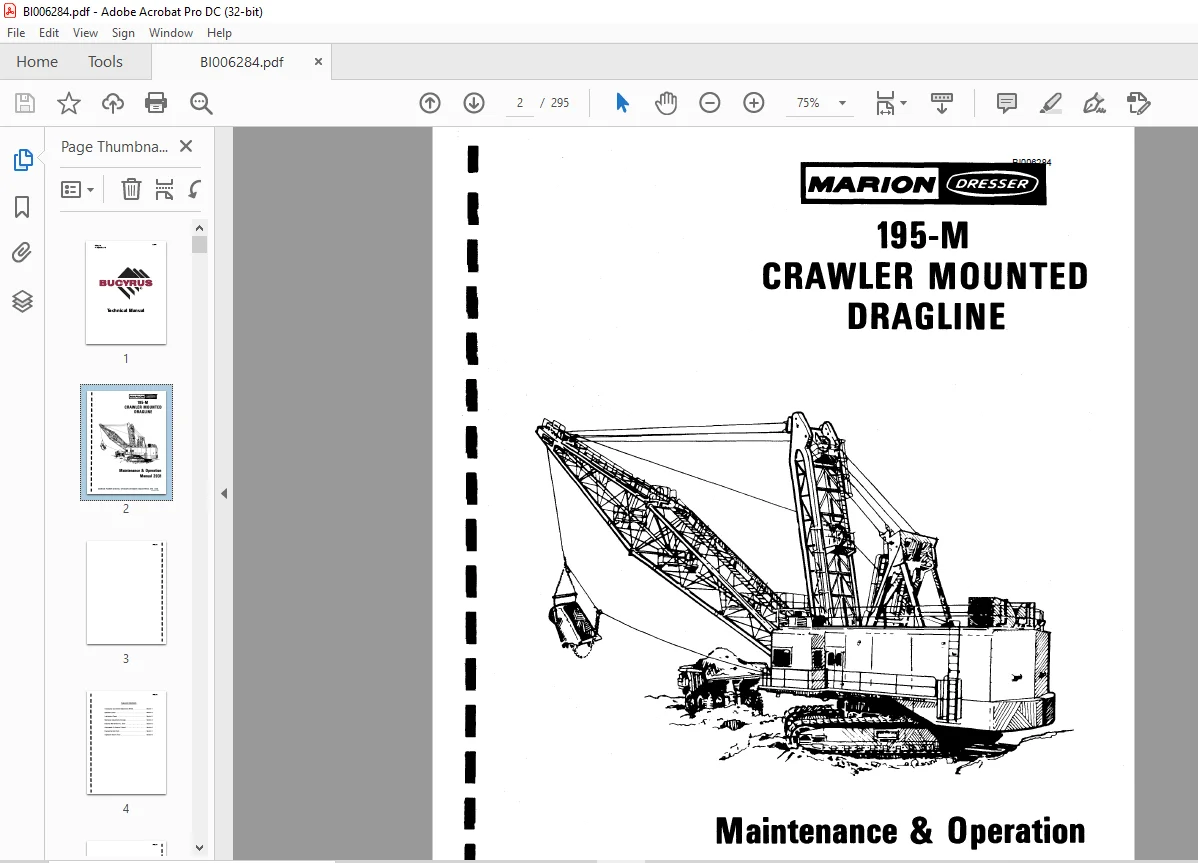

IMAGES PREVIEW OF THE MANUAL:

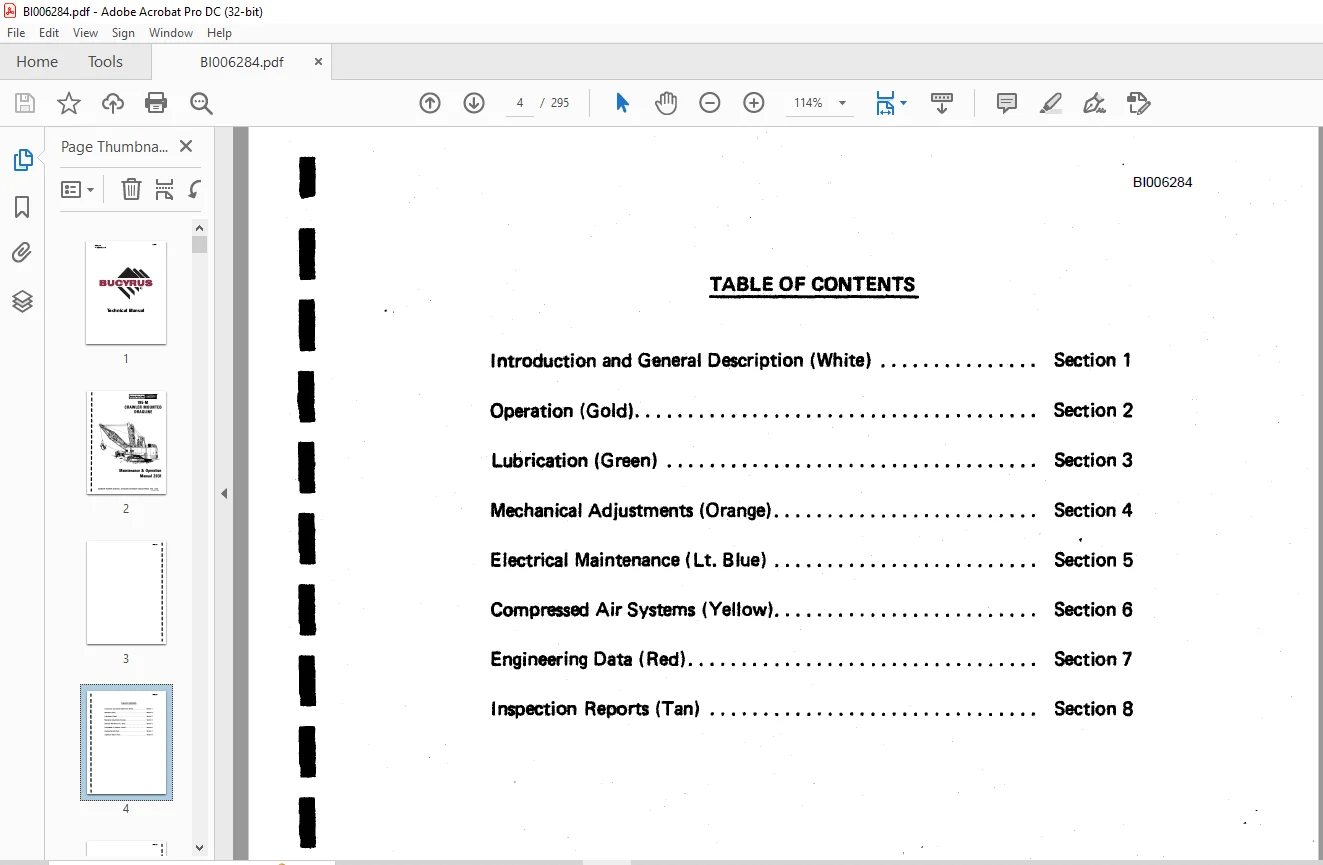

TABLE OF CONTENTS:

Cat Bucyrus Marion 195-M Crawler Mounted Dragline Maintenance & Operation Manual BI006284 – PDF DOWNLOAD

SECTION 1 – INTRODUCTION
SECTION 2 – OPERATION
SECTION 3 – LUBRICATION
SECTION 4 – MECHANICAL ADJUSTMENTS
SECTION 5 – ELECTRICAL MAINTENANCE
SECTION 6 – COMPRESSED AIR SYSTEMS
SECTION 7 – ENGINEERING DATA
SECTION 8 -INSPECTION REPORTS
