Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Instruction Manual BI006430 – PDF DOWNLOAD

Description

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Instruction Manual BI006430 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Instruction Manual BI006430 – PDF DOWNLOAD

Language : English
Pages : 305
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Instruction Manual BI006430 – PDF DOWNLOAD

GENERAL:

• Theae inatructiona have been prepared to &id in erecting a Marion 7400 Electric
  Walking Dragline, aa a guide for the operator, the groundman, and the oiler in
  their operation, maintenance and lubrication. The engineering drawina• whicll
  accompany the machine, give the exact location of all parta, all neceaaary dimenaiona,
  etc. It ia very important that extreme care be taken in aaaembly beca11ae
  improper erection may ca.uae unneceaaary wear and faulty operation of
  the machine.
• When the machine is ahipped from the factory, the part a are match marked
  throughout. Care should be taken to follow theae match mark• when the machine
  ia aaaembled.
• All finiahed aurfacea and bearing• are protected against corrosion and ahould be
  thoroughly cleaned just before aaaembly. When assembling, all bearing• ahould
  be lubricated. Ball and roller bearings are to be filled only 1 / Z full of the proper
  greaae. Also lubricate all gears and put the proper oil in gear caaea up to
  the correct level before the machine ia run. All air and electrical equipment,
  bearing ■ and finiahed surface• should be protected from the weather until the
  machine ia fully asaembled.
• Select a level assembling area adjacent to the unloading point approxirnately 300′
  x 300 ‘ preferably made up of aolid material and with good drainage. It may be
  adviaable to place gravel or cinders in the immediate erection area.
• It is important that the derrick be placed ao that the greatest loads can be lifted
  without interferring with the erection of the machine. The recommended poaition
  of thia derrick ia indicated on drawing CR-4585. If the ground ia not level,
  place the dead men out further than the 300′ indicated for boom clearance.

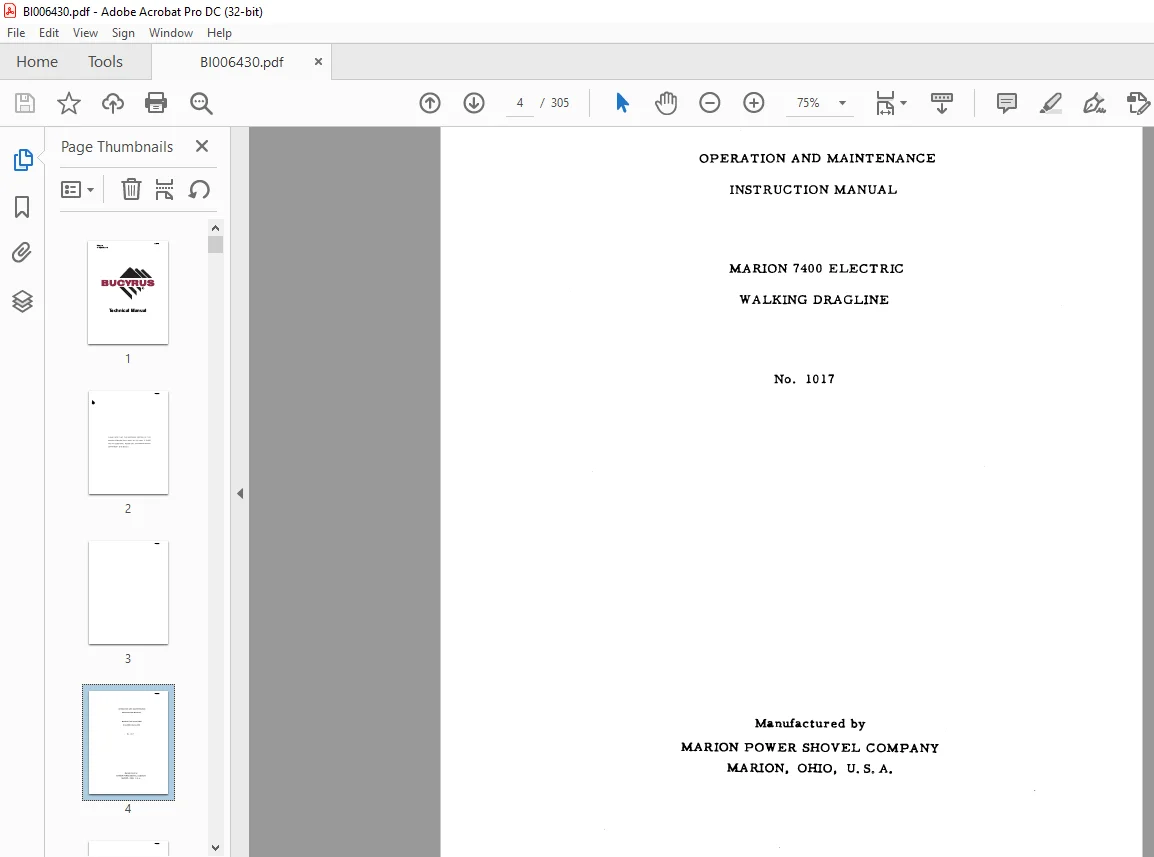

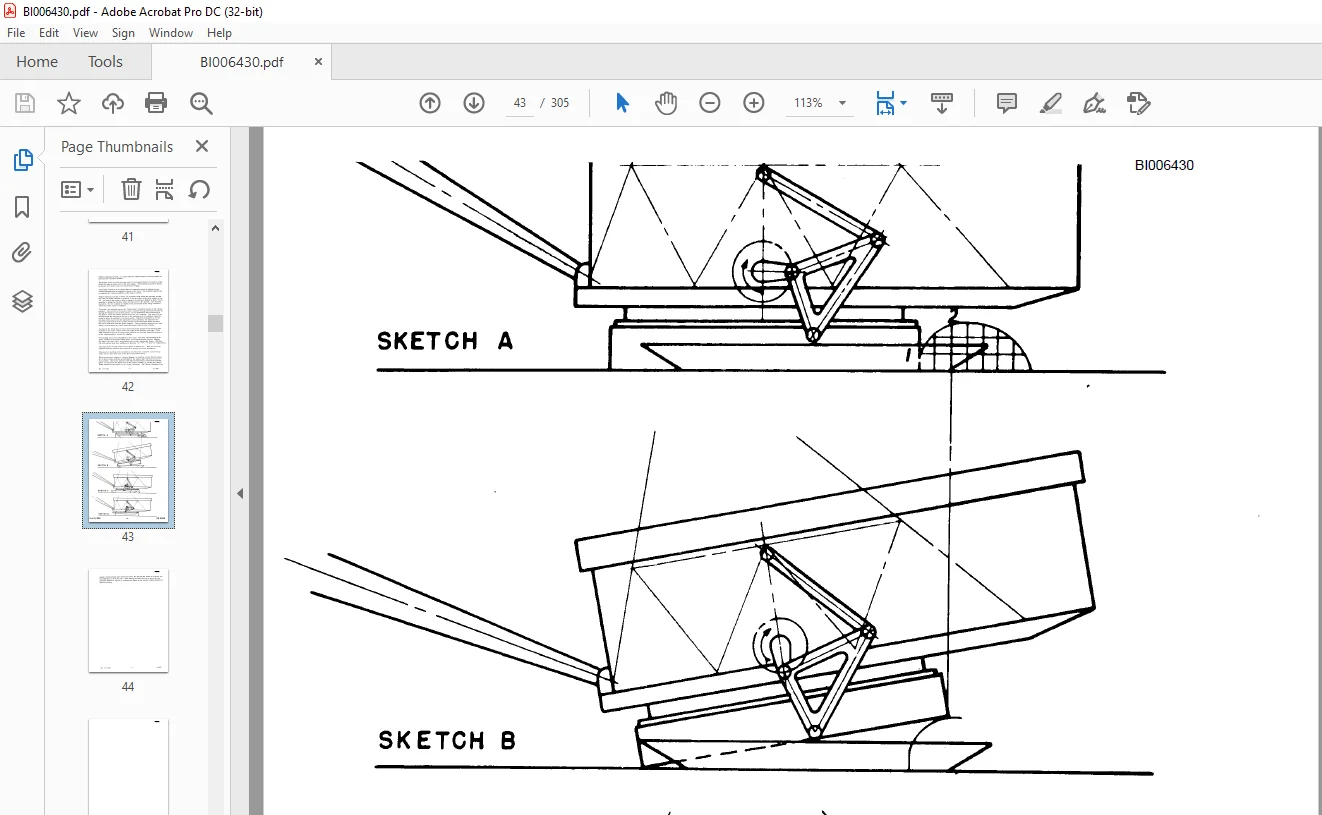

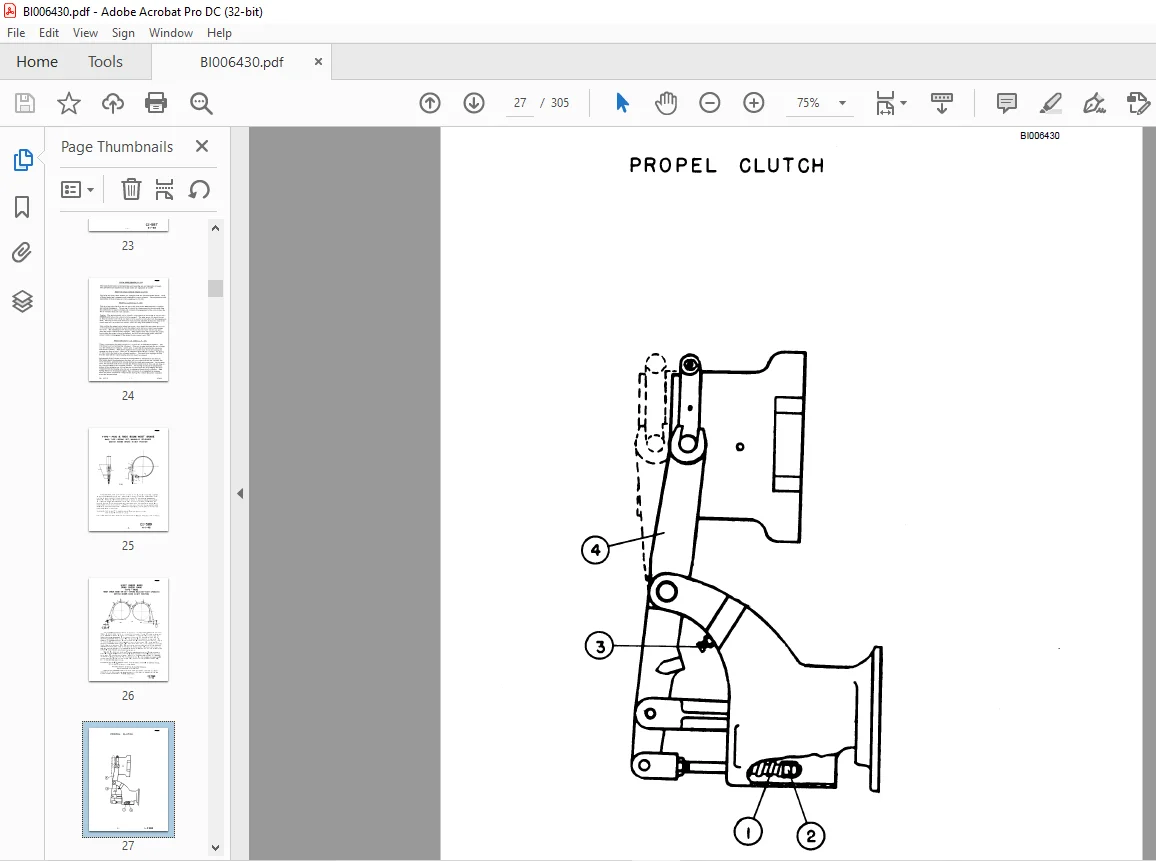

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Instruction Manual BI006430 – PDF DOWNLOAD

I Erection Instructions 1 – 14
II Adjustments 1 – 12
III Operating Instructions 1 – 11
IV Lubl”ication Instructions 1 – 22
V Wire Rope Reeving 1 – 6
VI Electl”ical Instructions 1 – 26
VII Miscellaneous
