Cat Bucyrus Marion 8200 Dragline Programmable System Manual SN 23139 – PDF DOWNLOAD

Description

Cat Bucyrus Marion 8200 Dragline Programmable System Manual SN 23139 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Marion 8200 Dragline Programmable System Manual SN 23139 – PDF DOWNLOAD

Language : English
Pages : 124
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus Marion 8200 Dragline Programmable System Manual SN 23139 – PDF DOWNLOAD

Introduction:
GENERAL INFORMATION:

• This manual is designed to assist the owner in the operation nd preventive
  maintenance of this machine. Following easy to understand step-by-s ep procedures,
  maintenance personnel can perform these tasks in a safe manner. Wh n a systematic
  and thorough maintenance/service procedure (a responsibility of t e maintenance
  superintendent) is used for this machine, minimum unplanned downtime and reliable
  operation will result.
• THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used to order parts. A
  separate, detailed parts book has been supplied. Please carefully read he instructions
  in it. All parts are listed by group and/or product code numbers with ite /part numbers
  for THIS SPECIFIC MACHINE. Order parts in exact quantity. Parts ord red by mistake
  and returned, are subject to a rehandling charge. RIGHT and LEFT H ND PARTS on
  the upper frame correspond to the operator’s hands at the controls; s seated when
  operating the machine. Please state the correct machine SERIAL NUM ER (located on
  a plate in the operator’s cab) when corresponding or contacting factory service or parts
  departments. Records on each machine are filed by serial number and hen given this
  number, your machine’s specific design and original equipment is acc ssed quickly by
  the Marion parts representative.

SAFETY PRECAUTIONS:

• The owner and/or operator must replace any and all safety and arning product
  graphics if they are defaced or removed from the machine.
• Before doing any work on the machine, a qualified electrician must 10 k out or remove
  the electric power supply from the machine and tag it so personne are aware that
  someone is working on the machine.
• Do not start an engine indoors unless adequate exhaust ventilators ar provided. Once
  an engine is running, move the machine outdoors as soon as possibl
• Keep hands, feet, and clothing away from rotating parts.
• Do not move or operate the machine without knowing the location a d purpose of all
  personnel, plus test or support equipment, in or near the machine.
• Think before you act. Carelessness is one luxury the service man ca not afford.
• Do not wear rings, wrist watches or loose fitting clothing when worki g on machinery.
• They could catch on moving parts causing serious injury. Never adju t and/or service
  a machine in bare feet, sandals or sneakers.
• Always wear safety glasses when using a hammer, chisel or othe tools that may
  cause chips to fly.
• Excessive or repeated skin contact with sealants or solvents may cau e skin irritation.
• In case of skin contact, remove sealant or solvent promptly by washi g with soap and
  water.
• Never utilize the machine air or hydraulic systems for support when working on the
  machine. Deactivate and isolate the system prior to performing main enance.
• Equipment should be parked on level ground at all times during machi e servicing and
  periods of idleness.
• Cranes and hoists must be of sufficient capacity to lift the heavier c mponents (gear
  cases, dipper/bucket, boom, etc.) and have an ample safety margin.
• Be sure heavy items are properly supported from cranes or hoists efore removing
  supporting members from machine.
• Have sufficient service personnel available when removing or instal ing large heavy
  items to maintain control at all times.
• Always use safety stands in conjunction with hydraulic jacks or hoist . Do not rely on
  the jack or hoist to carry the load, they could fail.
• Use safety catch on all hoist hooks. Do not take a chance, the load co Id slip off of the
  hook.

TABLE OF CONTENTS:

Cat Bucyrus Marion 8200 Dragline Programmable System Manual SN 23139 – PDF DOWNLOAD

Introduction Section 1
Functional Description Section 2
Start-up and Test Procedures Section 3
Mechanical System Calibration & Test Section 4
Supporting Figures Section 5
Schematics Section 6
Hoist and Drag Drum Shaft Encoder
Data/Troubleshooting
Section 7
Section 8
Spare Parts List Section 9
Data Sheets Section 10
Field Settings & Modifications Section 11
Software Documentation

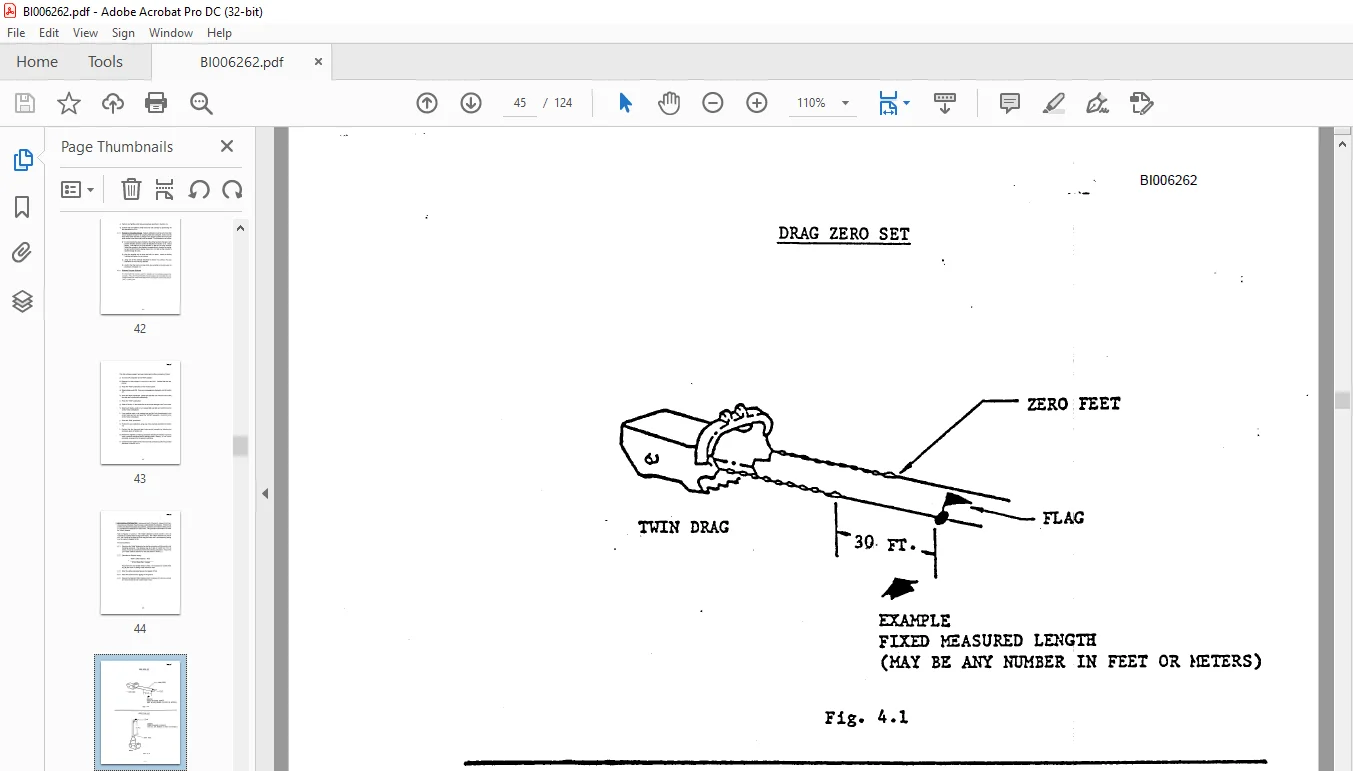

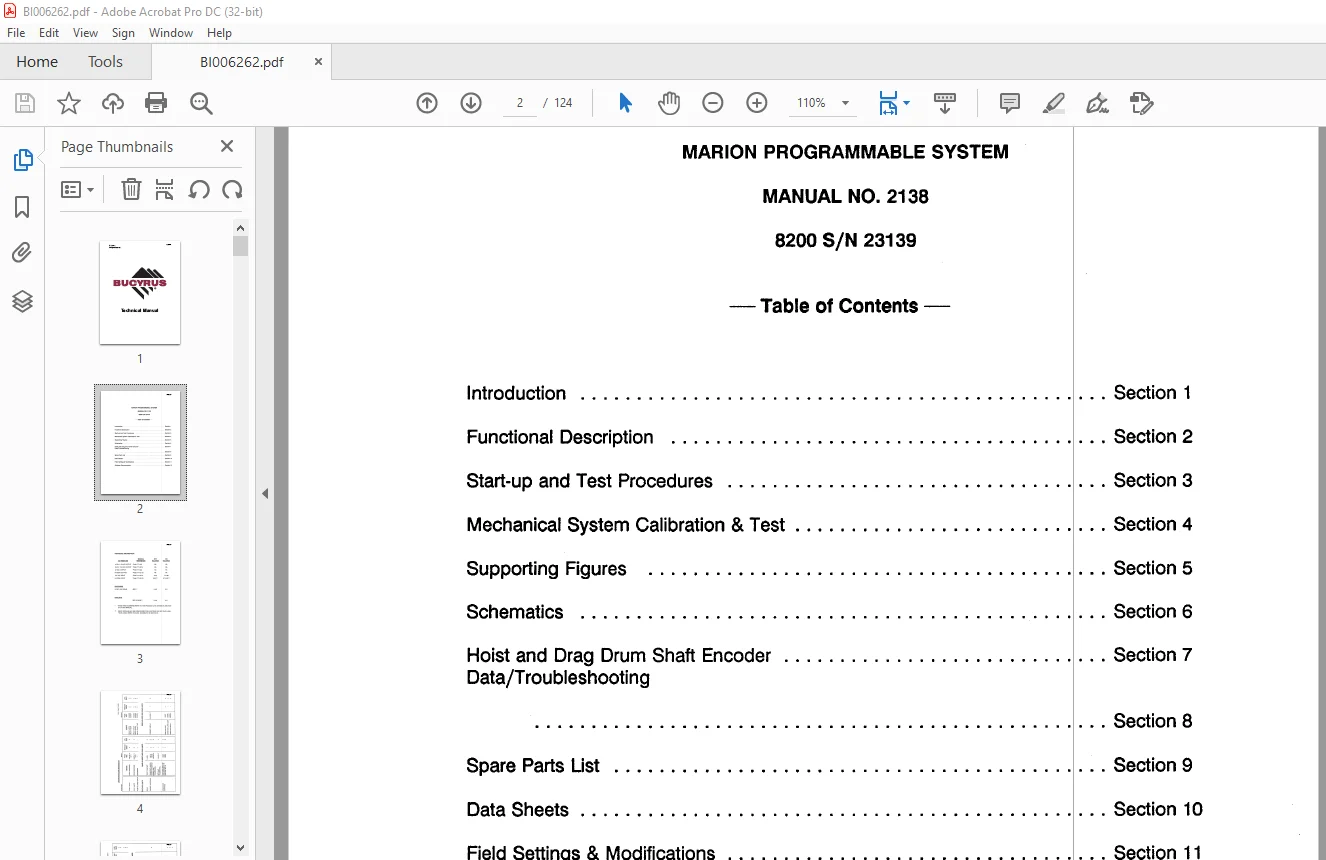

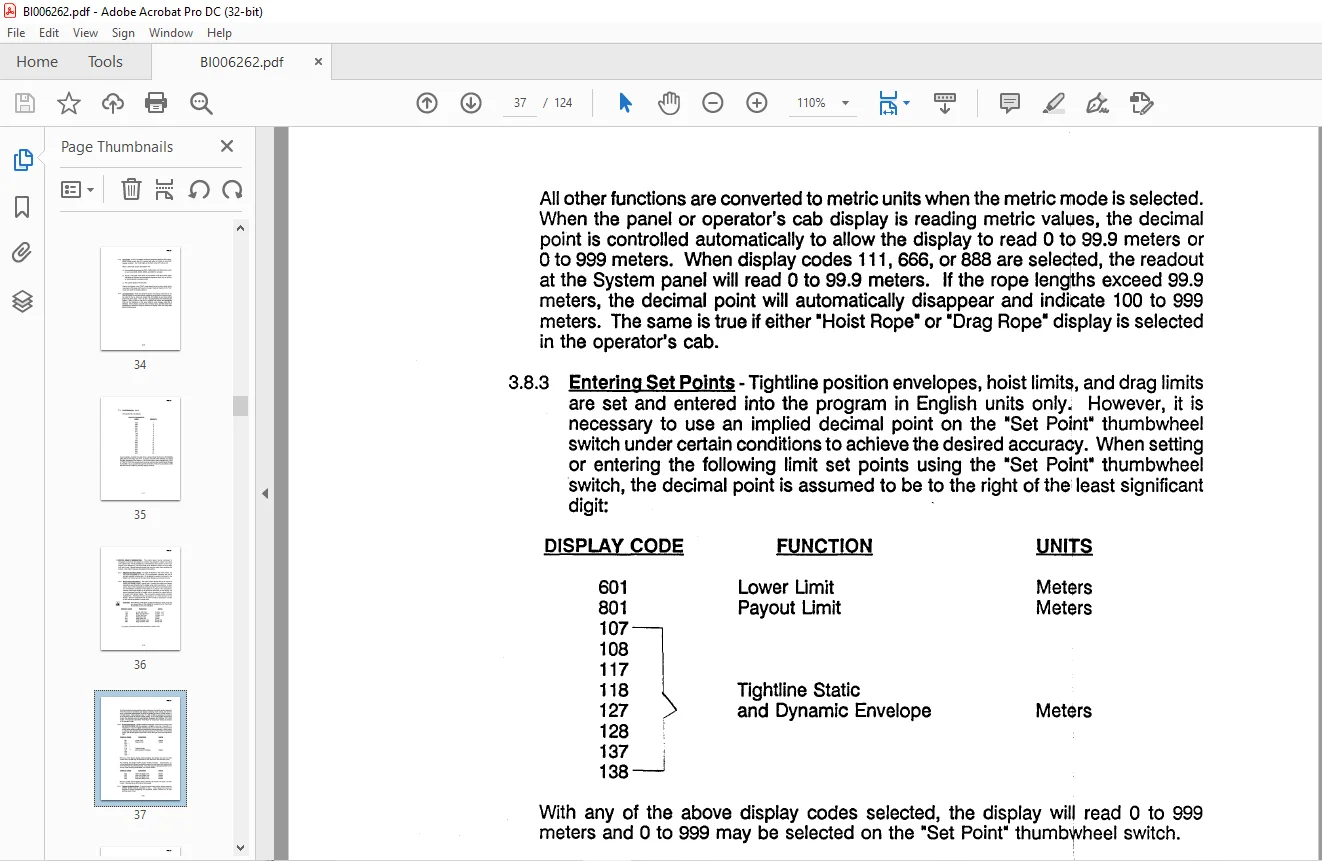

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

https://vimeo.com/871058123?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
