Cat Bucyrus MH-40 Shield Hauler Operator’s Manual SN 5002211 – PDF DOWNLOAD

Description

Cat Bucyrus MH-40 Shield Hauler Operator’s Manual SN 5002211 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus MH-40 Shield Hauler Operator’s Manual SN 5002211 – PDF DOWNLOAD

Language : English
Pages : 82
Downloadable : Yes
File Type : PDF

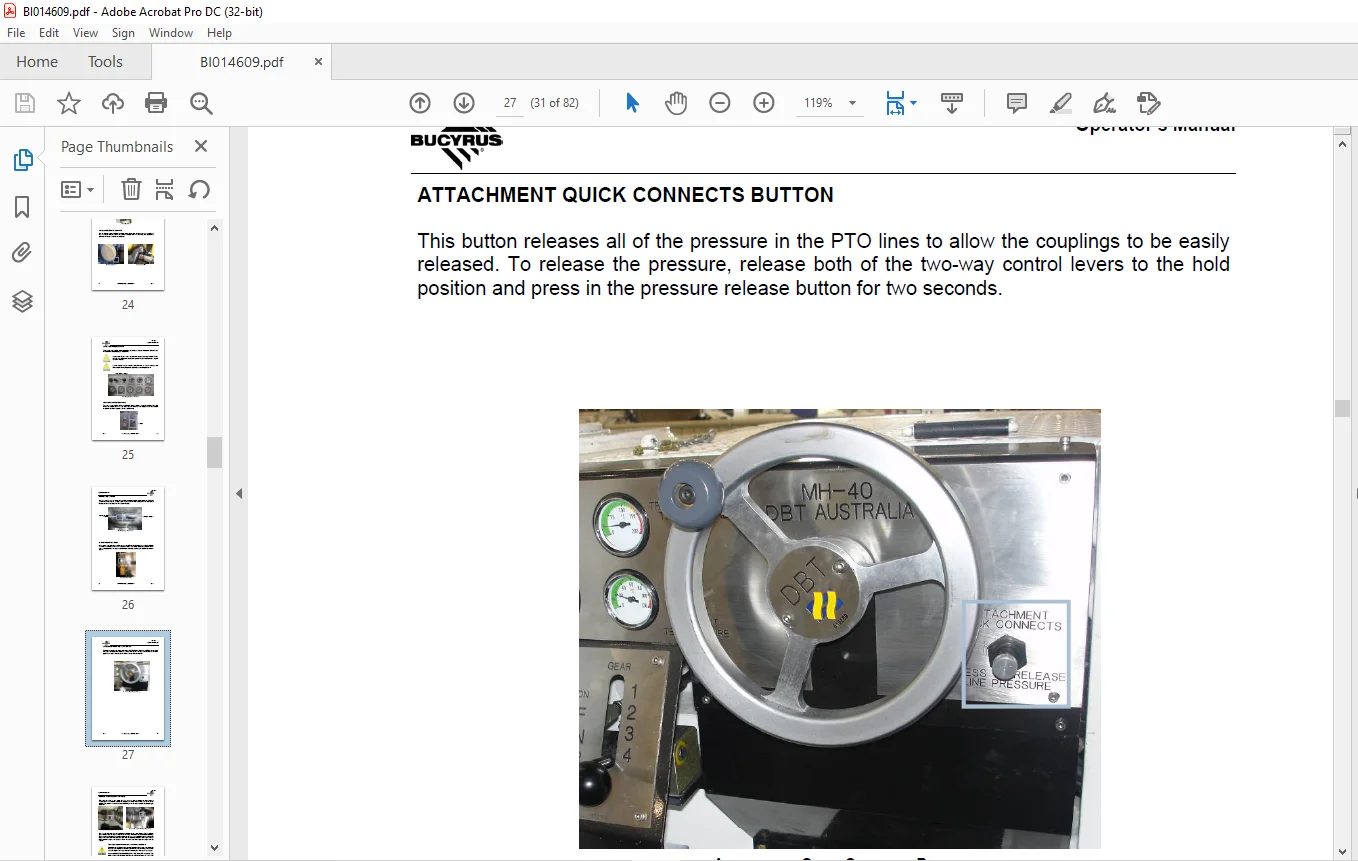

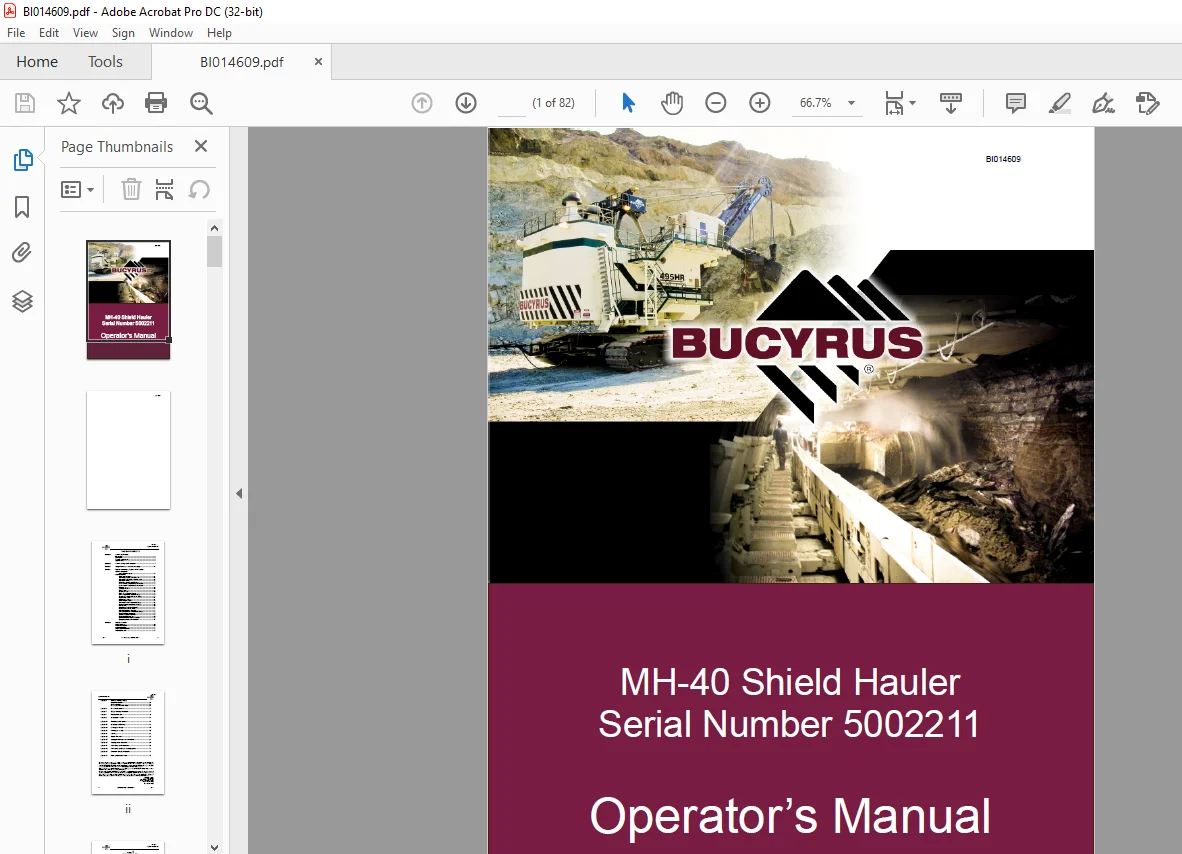

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat Bucyrus MH-40 Shield Hauler Operator’s Manual SN 5002211 – PDF DOWNLOAD

The operation of heavy mining machinery can be hazardous. To ensure safe operation,
operators and personnel must be alert, competent, correctly trained, tested and licensed in the
principles, capabilities and correct operating and isolation procedures of the machinery.

• This manual is designed to provide the MH-40 Shield Hauler operator with the proper
  information regarding the machine’s instrumentation, operating controls and general safe
  working procedures. All operators of this machine must be conversant with the information contained
  within this manual before operating the machine.
• To ensure safe and efficient operation, the MH-40 Shield Hauler must be adequately
  maintained by the operators and service personnel. To achieve this, the operator’s pre-start
  inspection procedure contained in Section 6 of this manual must be performed before any use of this
  machinery is undertaken.
• Any abnormalities should be reported immediately to service personnel to avoid costly
  machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION:

The MH-40 is a 40000 kg high capacity Shield Hauler. It has been designed for lifting and carrying
heavy pieces of equipment and machinery in underground coal mines. Its main function is
carrying and placing of longwall equipment and shields. The machine comes standard with
a set of fork tines and winch for this purpose.

• The motive force is provided by a 172 kW Caterpillar 3126 turbocharged four-stroke inline six
  cylinder flameproof diesel engine package. Flameproofing of the system includes a wet bath exhaust
  conditioning system complete with exhaust filtration and intake flame traps. The start system is
  pneumatic. The Electronic Shutdown System is an intrinsically safe electronic monitoring
  system. The engine power output is connected to the constant four- wheel drive system via a drive
  coupling and converter through a four-speed bidirectional power shift transmission to heavy duty
  axles.
• The MH-40 Shield Hauler utilises a wet bath exhaust system complete with a exhaust
  purifier.

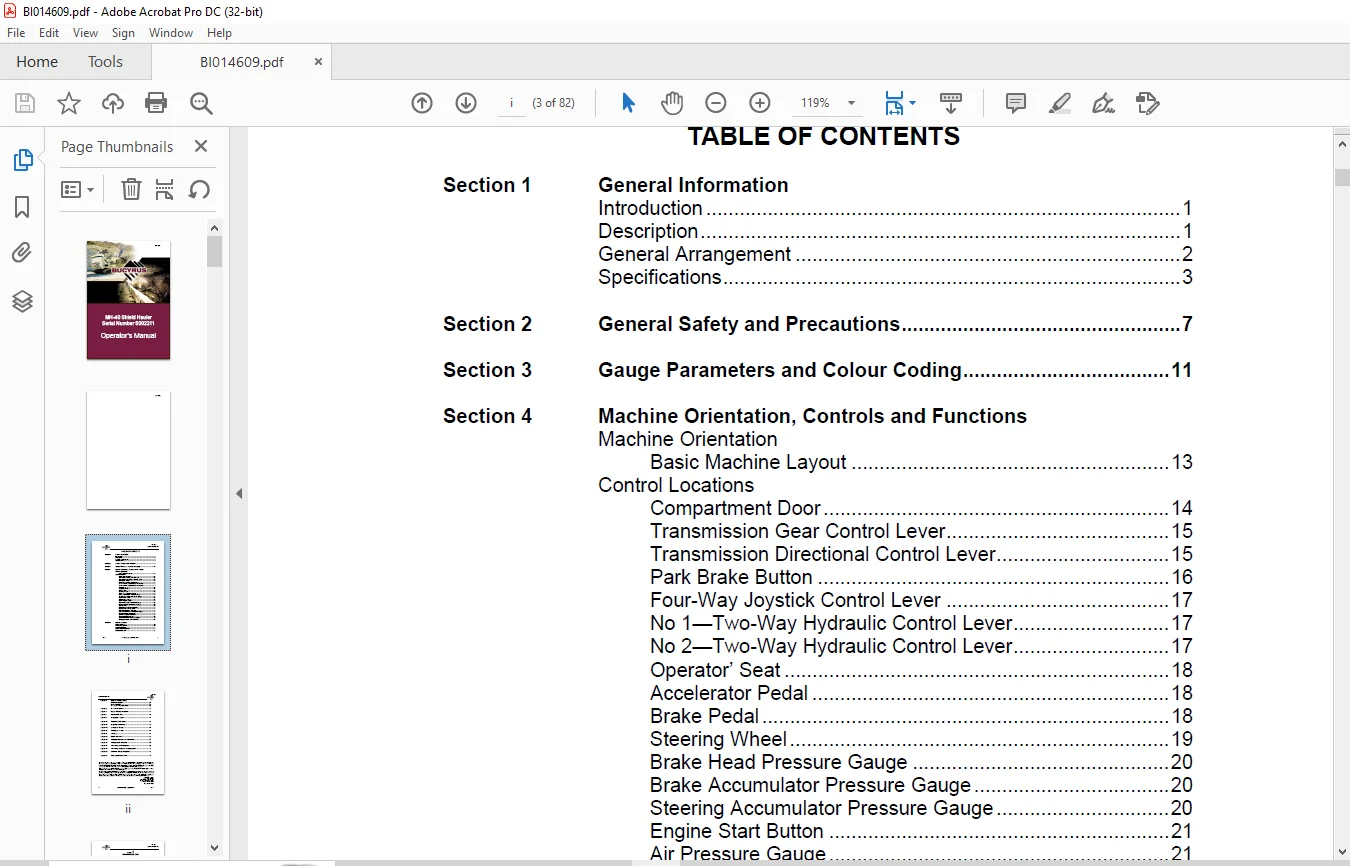

TABLE OF CONTENTS:

Cat Bucyrus MH-40 Shield Hauler Operator’s Manual SN 5002211 – PDF DOWNLOAD

Table of Contents.pdf.................................... 3
Section 1 General Information-Wet........................ 5
Section 2 General Safety and Precautions.................11
Section 3 Gauge Parameters and Colour Coding.............15
Section 4 Machine Orientation, Controls and Functions....17
Section 5 Machine Isolation..............................33
Section 6 Pre-Start Procedure............................41
Section 7 Engine Starting Procedure......................51
Section 8 Post Start Checks..............................53
Section 9 Stopping the Engine............................55
Section 10 Tramming the Machine..........................57
Section 11 Stopping and Braking..........................59
Section 12 Driving on a Ramp.............................61
Section 13 Parking on a Ramp.............................63
Section 14 Loading.......................................65
Section 15 Cookie Plate Use..............................67
Section 16 Towing the Machine when Disabled..............69
Section 17 Towing with the Machine.......................71
Section 18 Air Venting the Fuel System...................73
Section 19 Air Venting the Engine Cooling System.........75
Section 20 Electronic Shutdown System.................... 0
Section 21 Fluid Specification Table.....................81
