CAT Bucyrus MH 40 Shield Hauller Operators Manual SN 5002119 – PDF DOWNLOAD

Description

CAT Bucyrus MH 40 Shield Hauller Operators Manual SN 5002119 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus MH 40 Shield Hauller Operators Manual SN 5002119 – PDF DOWNLOAD

Language : English
Pages : 83
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus MH 40 Shield Hauller Operators Manual SN 5002119 – PDF DOWNLOAD

General Information:
Introduction:

• The operation of heavy mining equipment can be hazardous. To ensure safe operation, operators and
  personnel must be alert, competent, correctly trained, tested and licensed in the
  principles, capabilities and correct operating and isolation procedures of the equipment.
• This manual is designed to provide the MH-40 Shield Hauler Operator with the proper information
  regarding the equipment’s instrumentation, operating controls and safe working procedures.
  All operators of this machine must be conversant with the information contained within
  this manual before operating the machine.
• To ensure safe and efficient operation, the MH-40 Shield Hauler must be adequately maintained by
  the operators and service personnel. To achieve this, the Operator’s Pre-start Inspection
  procedure contained in Section 5 of the Operator’s Manual must be performed.
• Any abnormalities should be reported immediately to maintenance personnel to avoid
  costly machine repairs, production down time and unsafe operation of the machine.

Description:

The MH-40 is a 40,000 kg high capacity Shield Hauler. It has been designed for lifting and
carrying heavy pieces of equipment and machinery in underground mines. Its main function will be
carrying and placing of longwall equipment and shields throughout the mine

• The motive force is provided by a 172 kW Caterpillar 3126 six cylinder turbo charged four
  stroke inline six cylinder FLAMEPROOF diesel engine package. Flame proofing of the system
  includes a “dry” exhaust conditioning system complete with exhaust and intake flame traps. The
  start system is pneumatic and the safety system is an intrinsically safe electronic monitoring
  system. The engine power output is connected to the constant four wheel drive system via a drive
  coupling through a Dana-Spicer 32000 model four speed bi-directional power shift
  transmission to Dana-Spicer 21D heavy duty axles.
• The MH-40 utilises a dry exhaust system complete with a replaceable particulate filter
  and a catalysed exhaust post treatment purifier. A removable flame trap for ease of cleaning is
  fitted on the outlet of the exhaust filter housing.

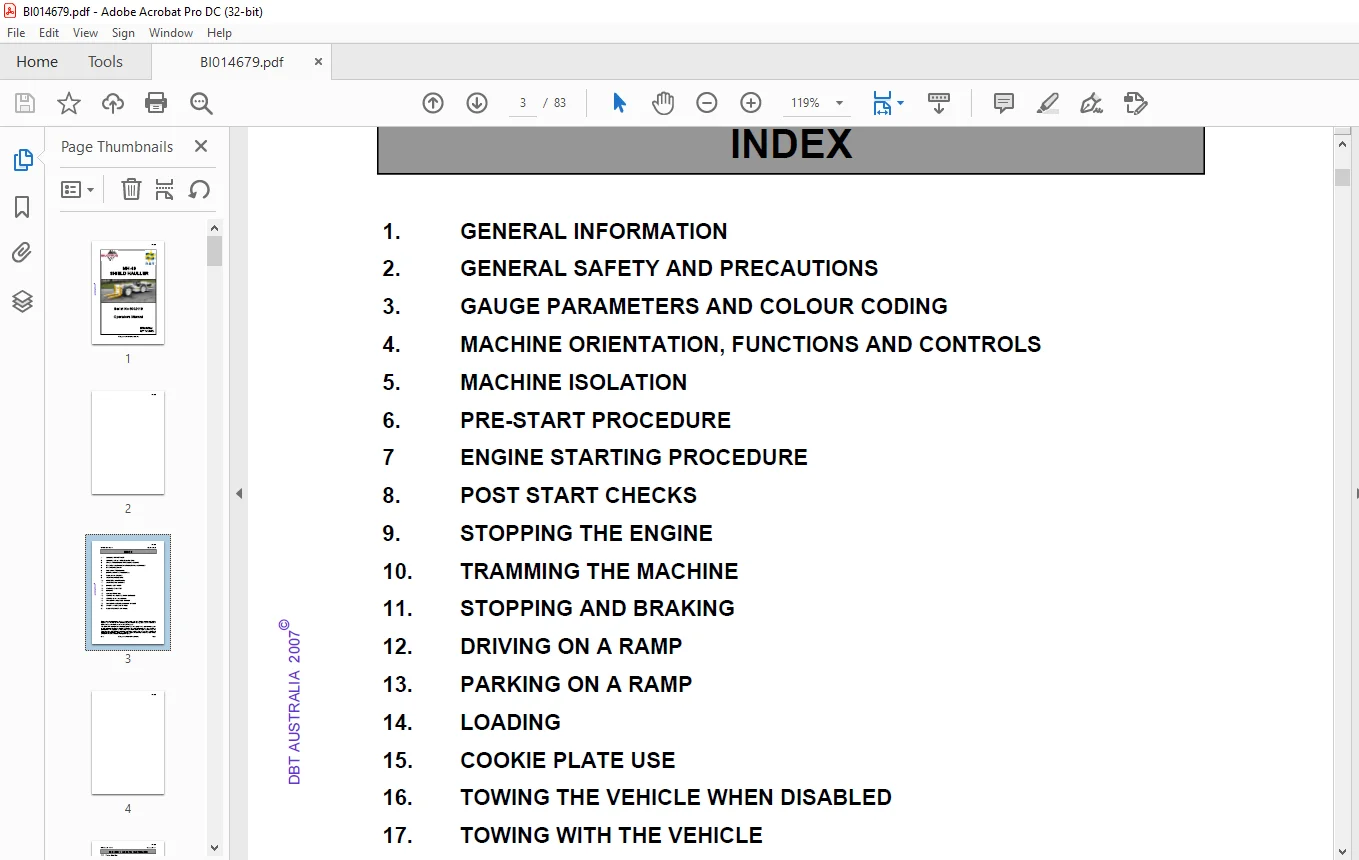

TABLE OF CONTENTS:

CAT Bucyrus MH 40 Shield Hauller Operators Manual SN 5002119 – PDF DOWNLOAD

Front Page.pdf........................................... 1
Section 1 General Information............................ 5
Section 2 General Safety and Precautions.................11
Section 3 Gauge Parameters and Colour Coding.............15
Section 4 Machine Orientation, Functions and Controls....19
Section 5 Machine Isolation..............................35
Section 6 Pre-Start Procedure............................43
Section 7 Engine Starting Procedure......................51
Section 8 Post Start Checks..............................53
Section 9 Stopping the Engine............................57
Section 10 Tramming the Machine..........................59
Section 11 Stopping & Braking............................61
Section 12 Driving on a Ramp.............................63
Section 13 Parking on a Ramp.............................65
Section 14 Loading.......................................67
Section 15 Cookie Plate..................................69
Section 16 Towing the Vehicle when Disabled..............71
Section 17 Towing with the Vehicle.......................73
Section 18 Air Venting the Fuel System...................75
Section 19 Air Venting the Engine Cooling System.........77
Section 20 Safety System.................................79
Section 21 Fluid Specification Table.....................83

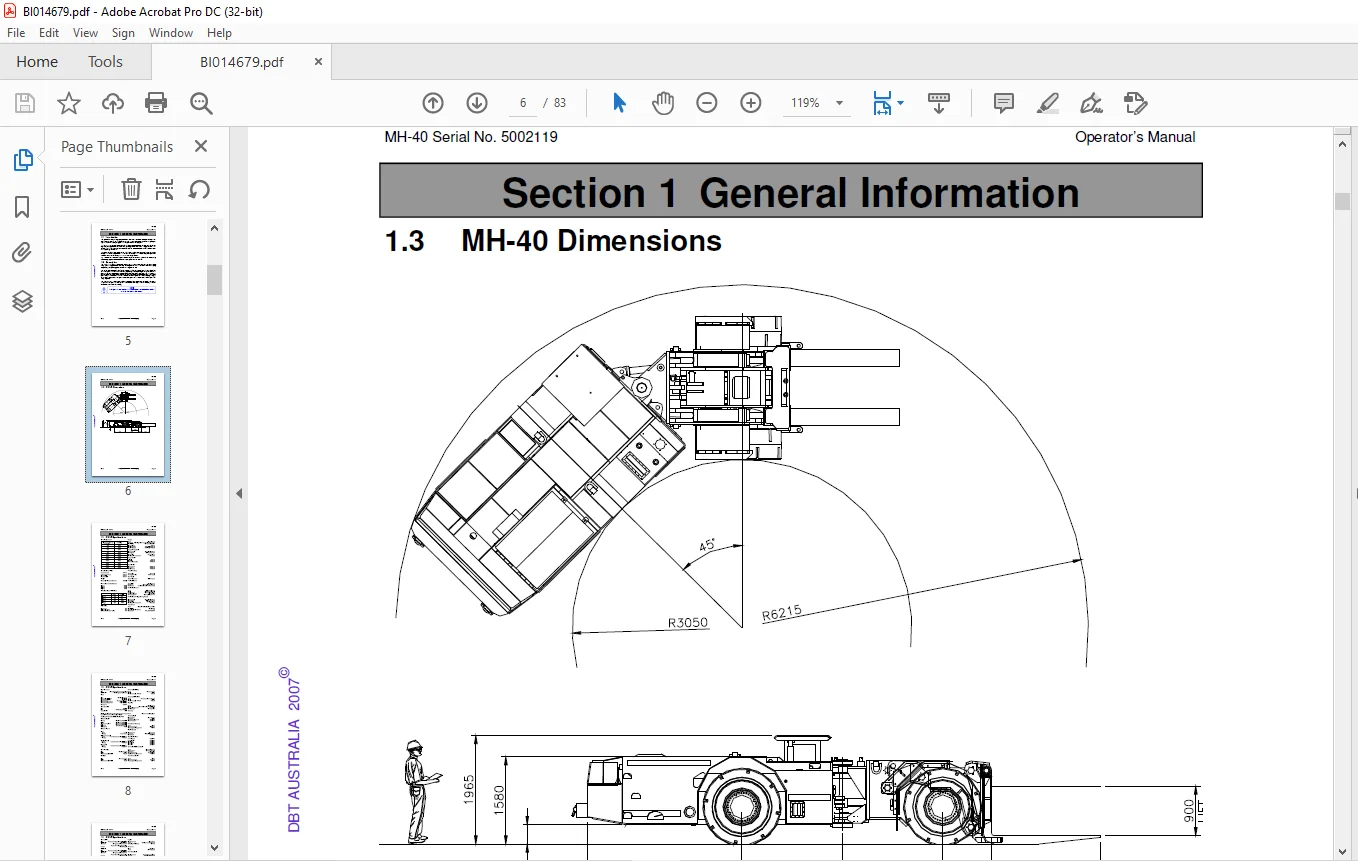

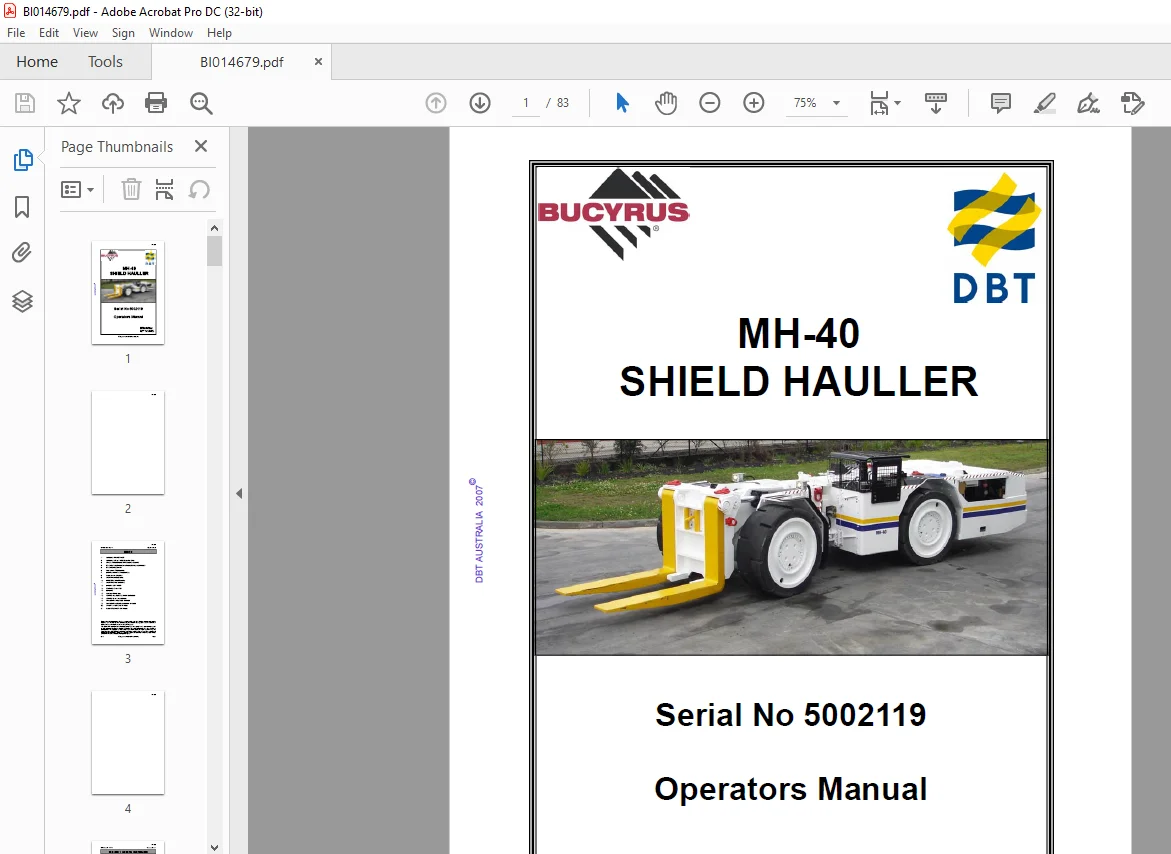

IMAGES PREVIEW OF THE MANUAL:
