Cat Bucyrus R506 R2112 Service & Maintenance Instruction Manual BI115523 – PDF DOWNLOAD

Description

Cat Bucyrus R506 R2112 Service & Maintenance Instruction Manual BI115523 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus R506 R2112 Service & Maintenance Instruction Manual BI115523 – PDF DOWNLOAD

Language : English
Pages : 245
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus R506 R2112 Service & Maintenance Instruction Manual BI115523 – PDF DOWNLOAD

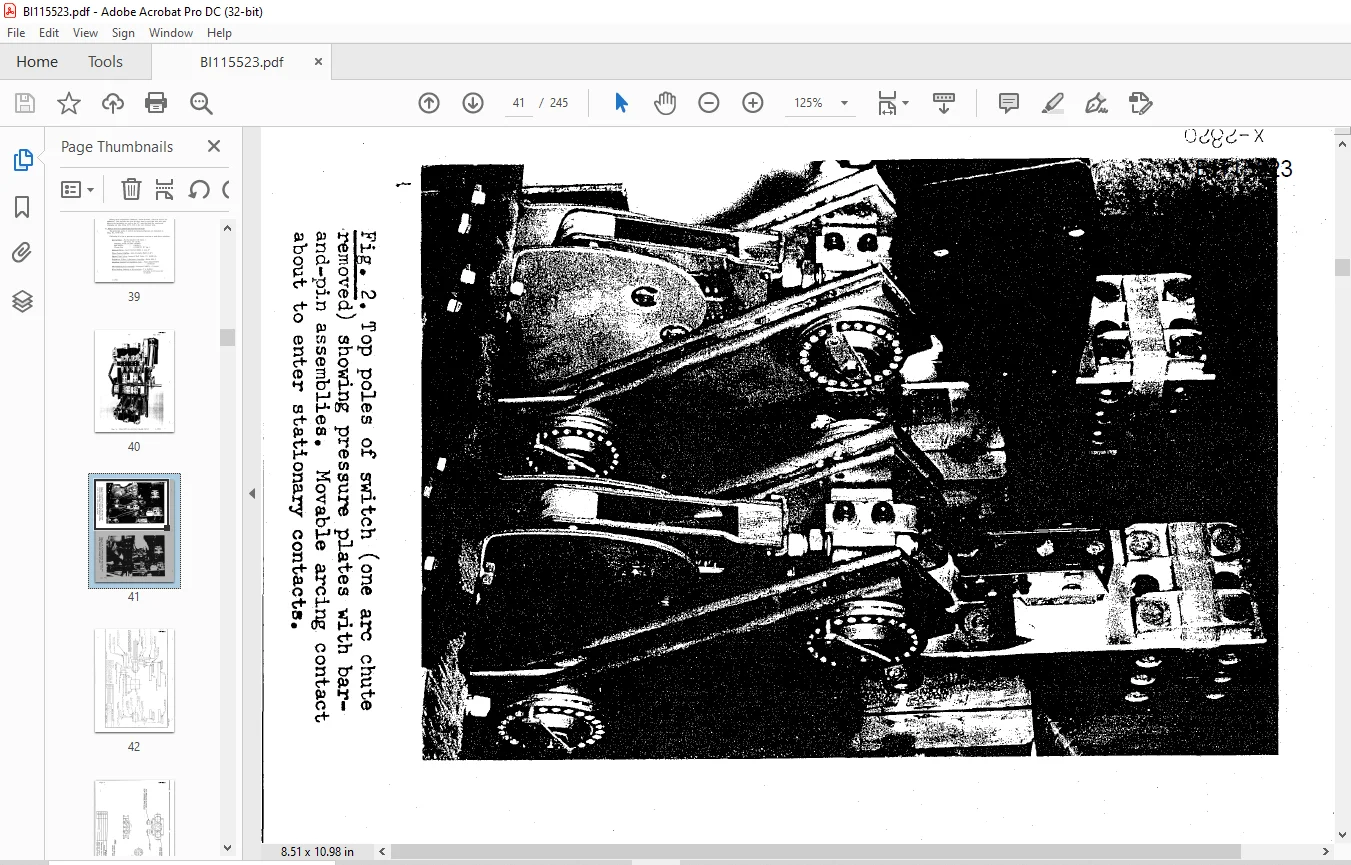

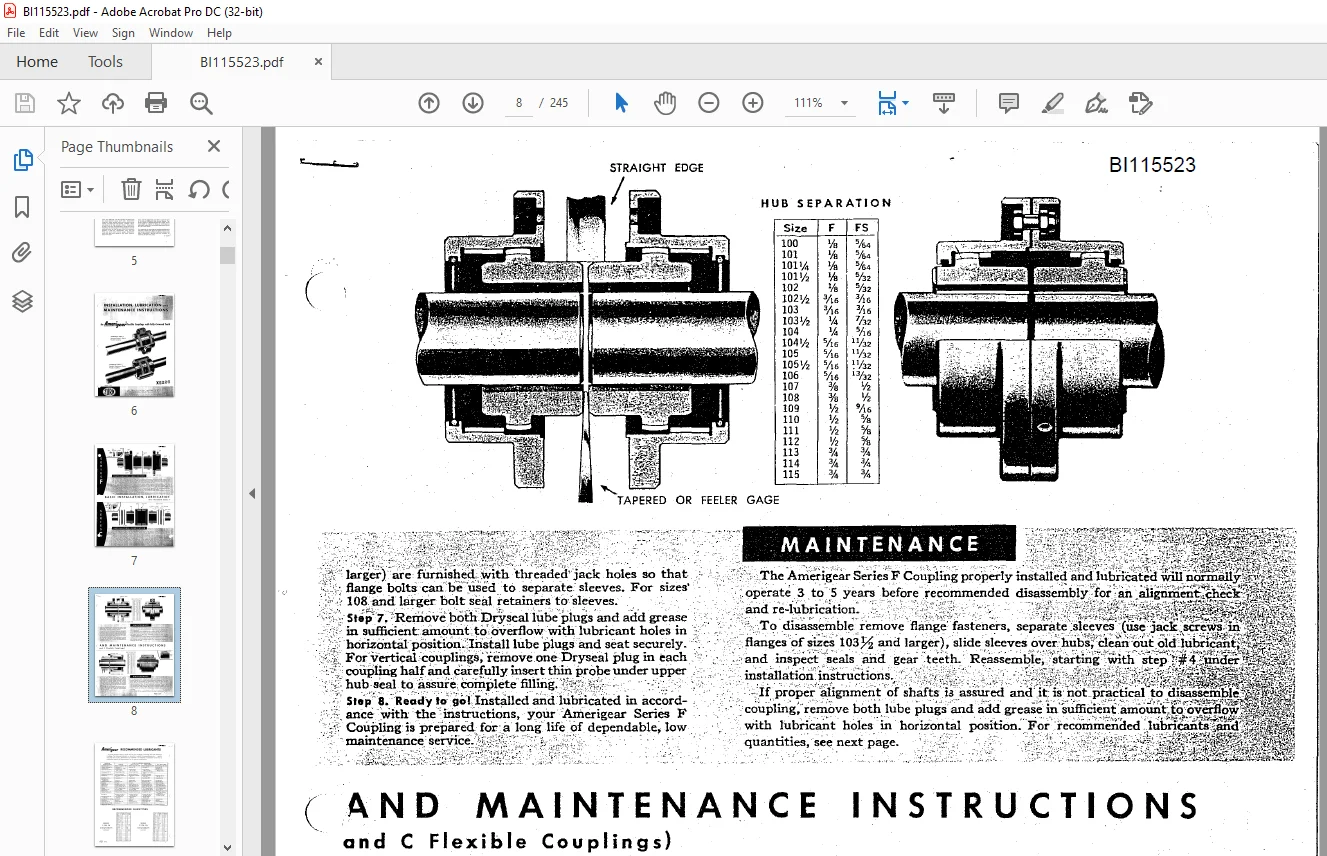

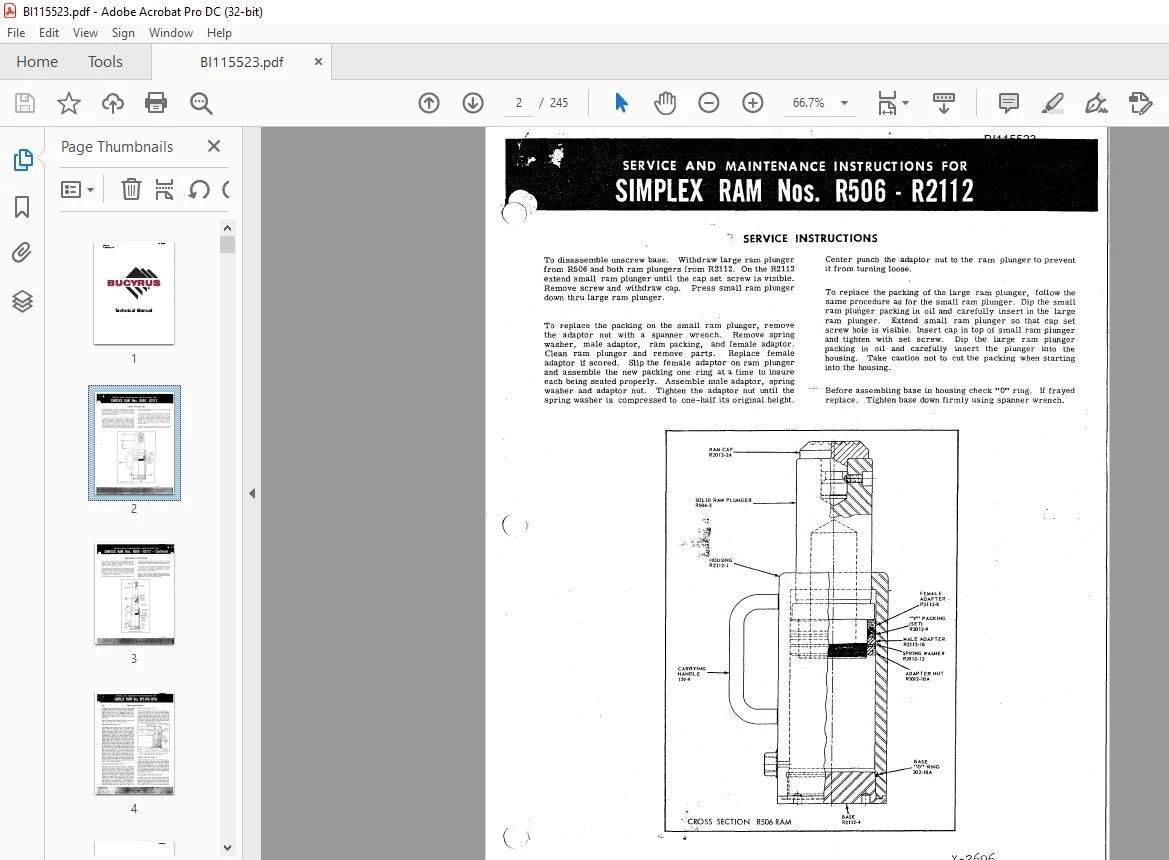

To disassemble unscrew base. Withdraw large ram plunger from R506 and both ram
plungers from R2112. On the R2112 extend small ram plunger until the cap set screw
is visible. Remove screw and withdraw cap. Press small ram plunger down thru large ram
plunger.

• To replace the packing on the small ram plunger, remove the adaptor nut with a
  spanner wrench. Remove spring washer, male adaptor, ram packing, and female
  adaptor. Clean ram plunger and remove parts. Replace female adaptor if
  scored. Slip the female adaptor on ram plunger and assemble the new packing one ring
  at a time to insure each being seated properly. Assemble male adaptor, spring washer
  and adaptor nut. Tighten the adaptor nut until the spring washer is compressed to
  one-half its original height.
  Center punch the ,adaptor nut to the ram plunger to prevent it from turning loose.
• To replace the packing of the large ram plunger, follow the same procedure as for the
  small ram plunger. Dip the small ram plunger packing in oil and carefully insert in
  the large ram plunger. Extend small ram plunger so that cap set screw hole is
  visible. Insert cap in top of small ram plunger and tighten with set screw. Dip
  the large ram plunger packing in oil and carefully insert the plunger into
  the housing. Take caution not to cut the packing when starting
  into the housing.
